Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
B032-VUA4
Category
KVM Switchboxes
Overview
Connects 4 Computers to a VGA Monitor and a Single Keyboard/Mouse
This single-monitor KVM switch lets you connect as many as four computers, which you can access and control by toggling between them. All connected computers share one VGA monitor and one USB keyboard/mouse, which saves space on your desk or workspace. Built-in four-foot (1.2-meter) VGA, USB and audio cables save you the expense and effort of buying separate cable kits for each computer. The B032-VUA4 supports video resolutions up to 2048 x 1536 (DDC2B) on a VGA monitor (P502-006-SM VGA coaxial cable sold separately).
Switching Between Computers Is Fast and Easy
Use hotkey commands or a connected mouse for quick and easy switching among computers. You can also use the Auto Scan feature to scan all connected computers automatically in five-second intervals. Port LEDs indicate which computer is currently selected. Computers may be added, removed or replaced without disconnecting or rebooting other connected computers.
Optional USB Hub Lets You Share Peripherals between Computers
Connecting an optional USB hub (sold separately) to the USB console mouse port lets you share USB peripherals, such as printers, hard drives, scanners and webcams, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs.
Simple Plug-and-Play Installation and Operation
The heavy-duty metal housing can be placed on a desktop or other level surface that safely supports the weight of the KVM switch and attached cables. It requires no extra software, external power or other complicated setup procedures. It works with any computer with available VGA and USB ports (the UR024-001 USB cable is an optional accessory). It also works with gaming keyboards and wireless keyboards/mice.
Warranty
Additional Warranty Information: <ul><li> <br /></li></ul>
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights

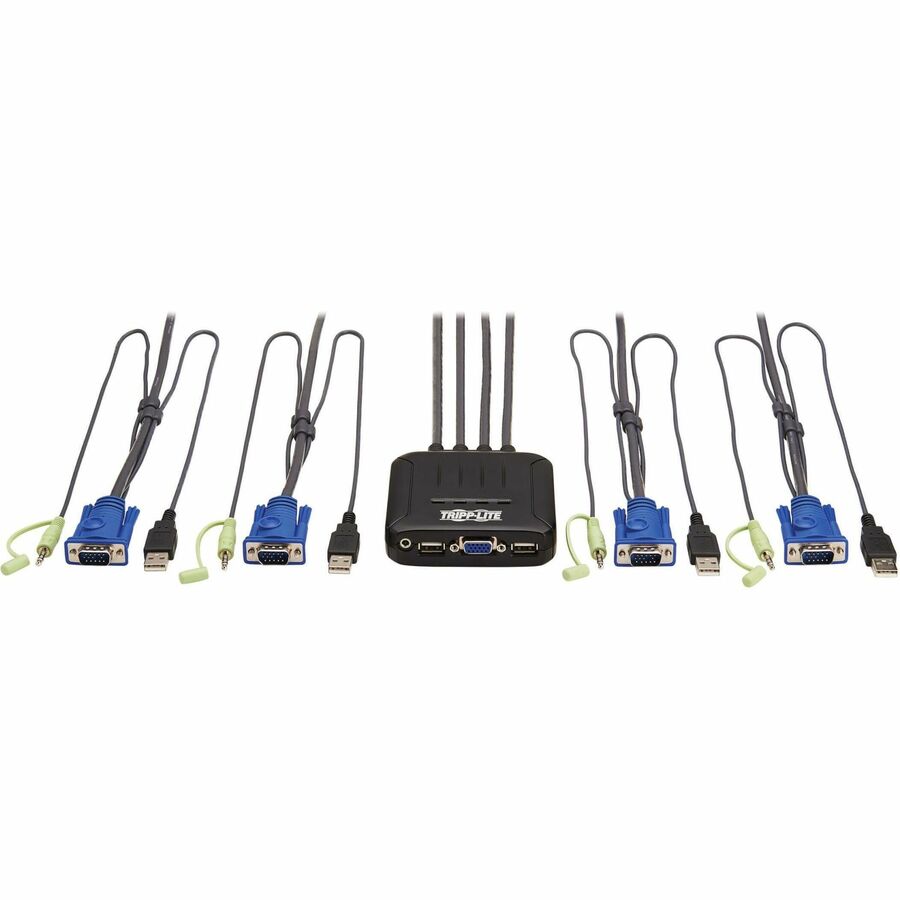

Features built-in 4 ft. VGA, USB and audio cables for connecting to computers
Hotkeys allow fast, easy toggling between connected computers
Connect a VGA monitor with P502-006-SM cable for 2048 x 1536 (DDC2B) resolutions
Connect USB peripherals for sharing via optional USB hub or USB cable
Works with all major operating systems, including Windows, macOS and Linux
3-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
B032-VUA4
Brand Name
Tripp Lite series
Product Model
B032-VUA4
Product Name
4-Port VGA KVM Switch with Built-In VGA, USB and 3.5 mm Audio Cables
Product Type
KVM Switchbox
Interfaces/Ports
USB
Yes
VGA
Yes
Number of USB Ports
4
Number of VGA Ports
4
Physical Characteristics
Height
9.7"
Width
38.4"
Depth
37"
Weight (Approximate)
1.28 lb
Technical Information
Number of Computers Supported
4
Number of Local Users Supported
1
Features
LED Indicator, Plug and Play
Video
Maximum Video Resolution
2048 x 1536
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Miscellaneous

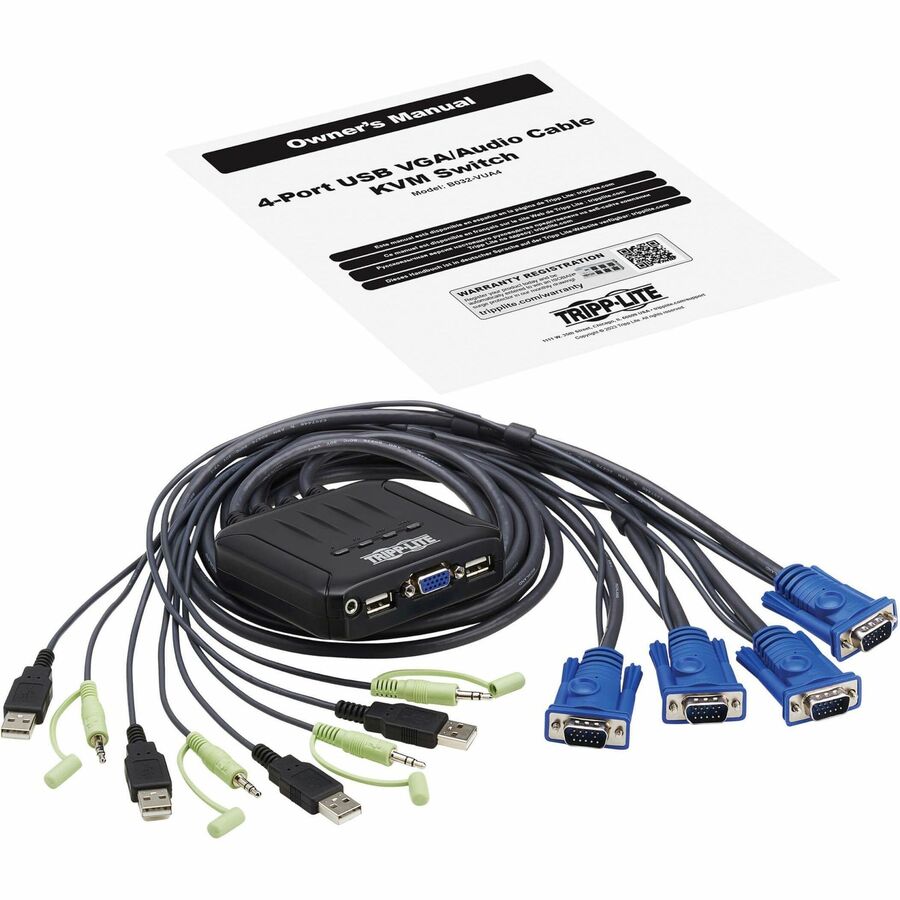

Package Contents
4-Port VGA KVM Switch with Built-In VGA, USB and 3.5 mm Audio Cables
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
