Tripp Lite by Eaton 4-Port DisplayPort KVM Switch with Audio Cables and USB 3.0 SuperSpeed Hub

The desktop B004-DPUA4-K 4-Port DisplayPort KVM Switch lets you access, control, boot and reboot four DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse. Switching among DisplayPort computers is quick and simple using keyboard hotkeys or buttons on the unit.

You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks, and the two-port USB 3.0 SuperSpeed hub allows you to connect peripherals, such as a webcam, flash drive, printer or scanner, and share them among computers. Because the audio and USB 3.0 hub ports can be accessed independently, you can, for instance, use a printer connected to the hub to print data from one computer while also listening to music from another computer.

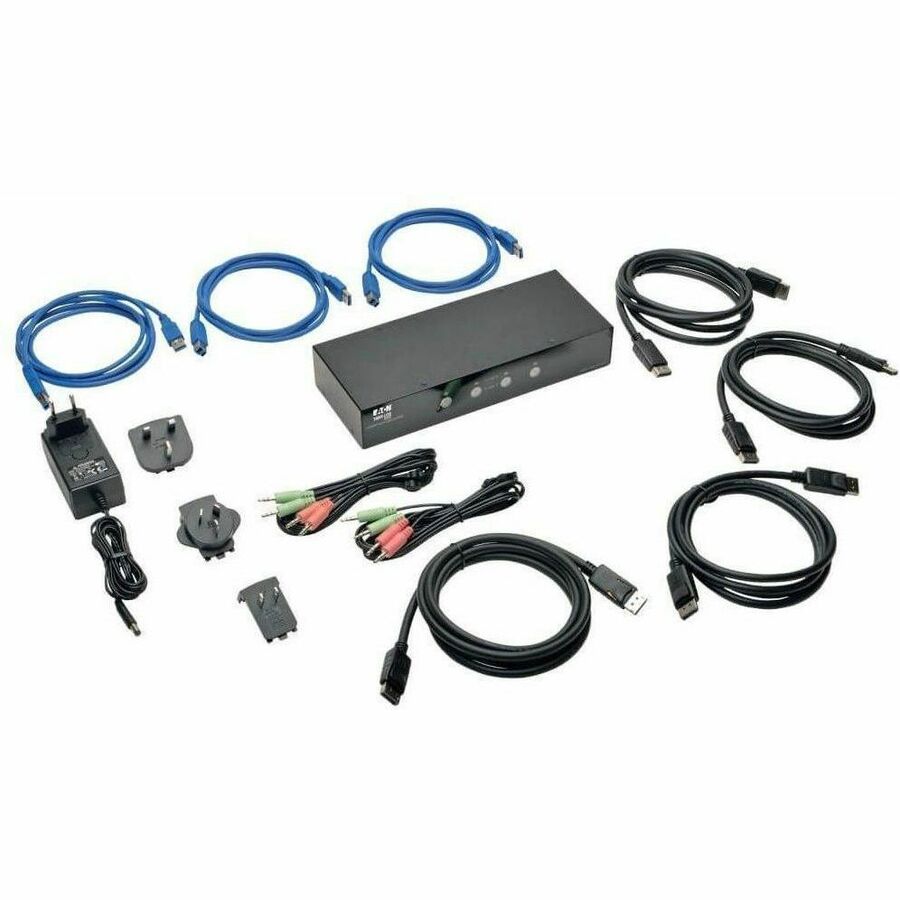

All necessary cables are included. The B004-DPUA4-K supports digital video resolutions up to 2560 x 1600 (including 1080p), 2-channel stereo audio and data transfer rates up to 5 Gbps. The built-in DDC emulator sends the console monitor's EDID information to all connected computers to ensure top video quality and prevent any delay or change in video resolution when switching computers.

The B004-DPUA4-K is easy to set up with no software to install and supports Windows, Mac, Linux and Sun. The USB 3.0 hub is backward-compatible with USB 2.0 and USB 1.1 devices. More from the Manufacturer

Control Four Displayport-Enabled Computers and Enjoy Independent Audio Switching

With the B004-DPUA4-K, you can switch between four DisplayPort computers using keyboard hotkeys or front-panel buttons. The switch’s built-in DDC emulator sends the console monitor’s Extended Display Identification Data (EDID) to the other connected computers for top-quality video without delay. Digital video resolutions up to 2560 x 1600 are supported, including 1080p. The Auto-Scan feature cycles between computers at regular intervals for observation of activity at a glance.

Built-in 3.5 mm mini-stereo speaker and microphone jacks allow you to share audio equipment between the four computers. You can listen to audio files on one computer while accessing another. The B004-DPUA4-K supports 2-channel stereo audio.

Share Peripherals, Plug-and-Play Design and 3-Year Warranty

With its 2-port USB 3.0 SuperSpeed hub, the B004-DPUA4-K lets you share peripherals such as printers, scanners, webcams or flash drives and print documents from one computer while accessing a different computer. The SuperSpeed hub supports data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices.

This KVM switch is easy to set up with no software or drivers to install. It is compatible with all major operating systems. We even include all necessary cables to get you started without delay.

For peace of mind, the B004-DPUA4-K comes backed by a three-year warranty. As part of Tripp Lite’s commitment to environmental responsibility, this DisplayPort KVM switch is manufactured in compliance with strict RoHS specifications.
