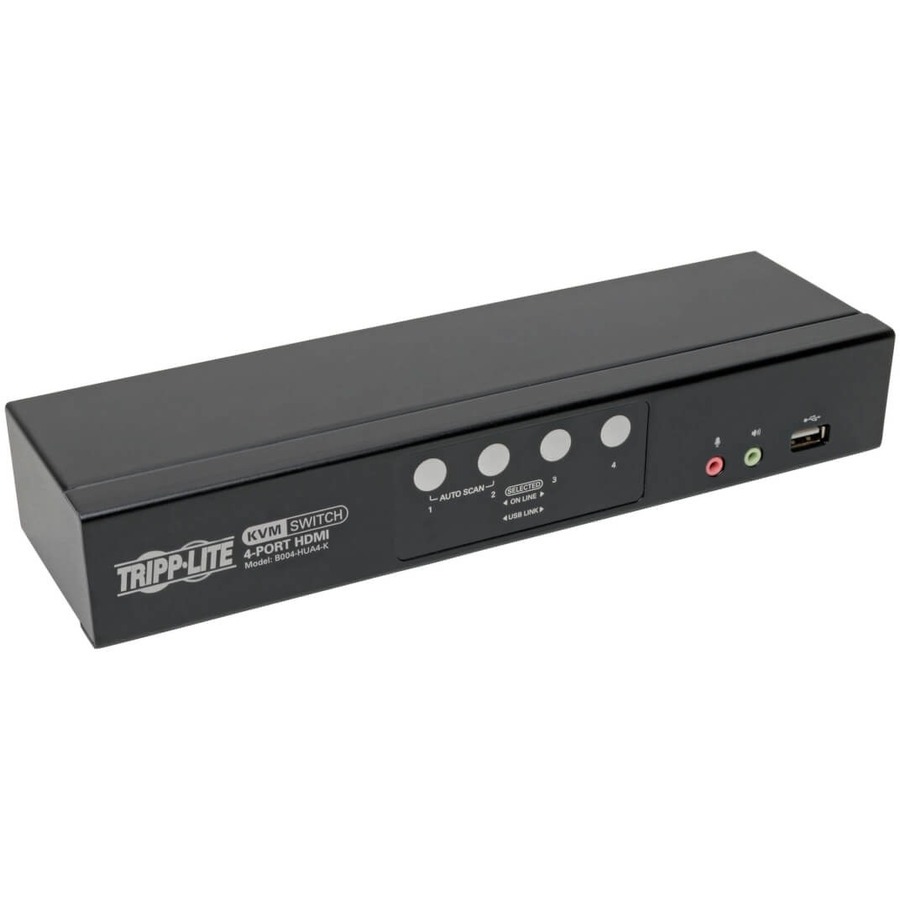

Eaton Tripp Lite Series 4-Port HDMI/USB KVM Switch with Audio/Video and USB Peripheral Sharing

Features

Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse

This compact four-port KVM switch lets you access, control, boot and reboot four computers or other devices with HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to four media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes and DVRs, and other HDMI-enabled devices. All four computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. Switching Between Computers Is Fast and Easy

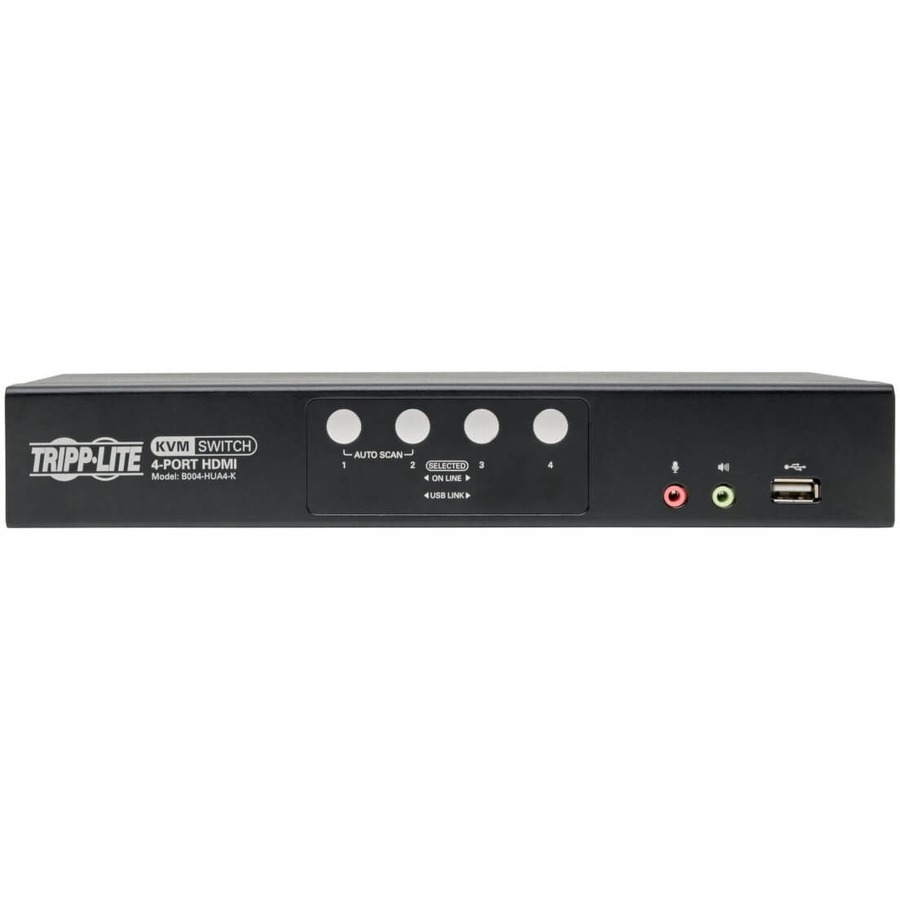

Use the front-panel push buttons or hotkey commands for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all four connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup

Connect your HDMI monitor, keyboard, mouse, and speakers to the switch's console ports. Then, use the included HDMI, USB-B and 3.5 mm audio cables to connect your computers to the KVM switch. The plug-and-play KVM switch requires no software or drivers, so you can connect and use it immediately. The B004-HUA4-K works with all major operating systems, including Windows, Mac and Linux.

USB Hub Lets You Share Peripherals between Computers

The built-in two-port USB 2.0 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between the four connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.

Transmits Crystal-Clear 1080p Video and Digital Audio

The B004-HUA4-K KVM switch supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 2.1-channel surround sound audio, and USB 2.0 data transfer rates up to 480 Mbps. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

Typical Applications

• Share the keyboard, mouse and HDMI display of a desktop computer with multiple laptop computers

• Connect up to 4 gaming consoles, media centers and other A/V devices for a home theater system with 1080p resolution

• Improve productivity at work with 4-way system control

• Save money and space by sharing USB peripherals, such as a printer and external hard drive, among all computers

System Requirements

Console Requirements

• Monitor with HDMI connector (should support the highest resolution of any connected computer)

• USB keyboard/mouse

• Microphone/speakers with 3.5 mm mini stereo connectors (optional)

Computer Requirements

• HDMI connector

• USB-A connector

• 3.5 mm mini stereo jacks (optional)

• Windows, Mac, Novell, UNIX or Linux operating system

More from the Manufacturer

KVM Switch Controls 4 HDMI Computers and 2 USB Peripherals from a Single Keyboard, Monitor and Mouse

KVM switch with 4 ports for connecting and controlling HDMI-enabled computers

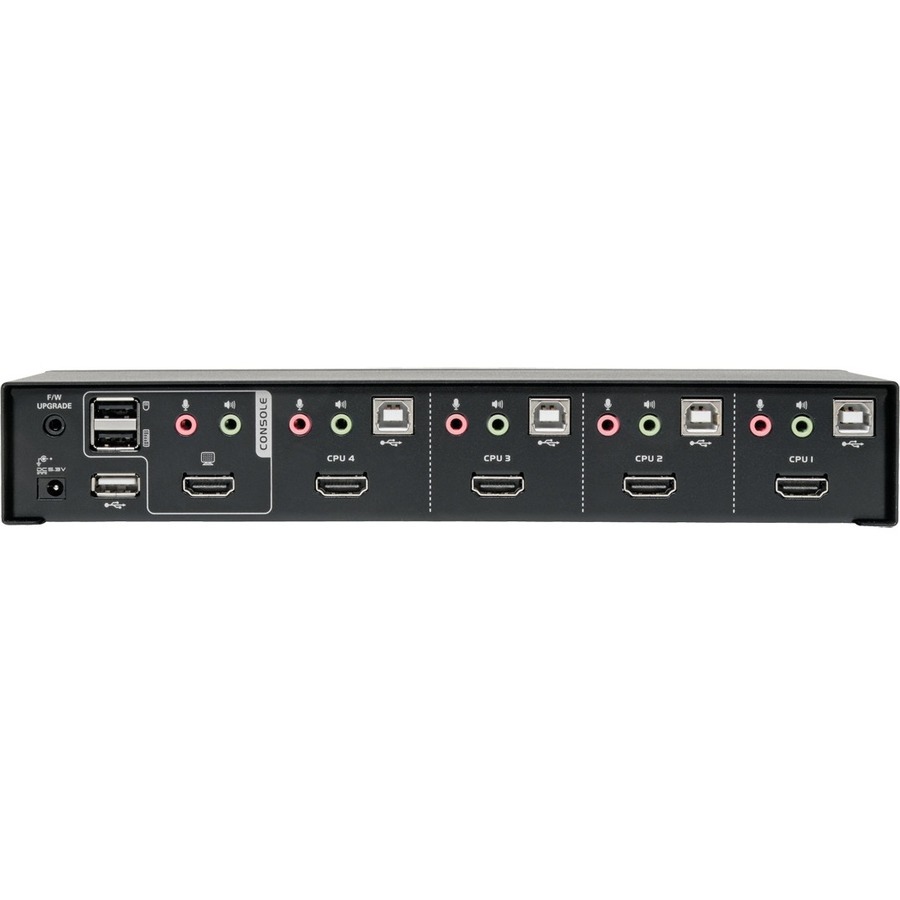

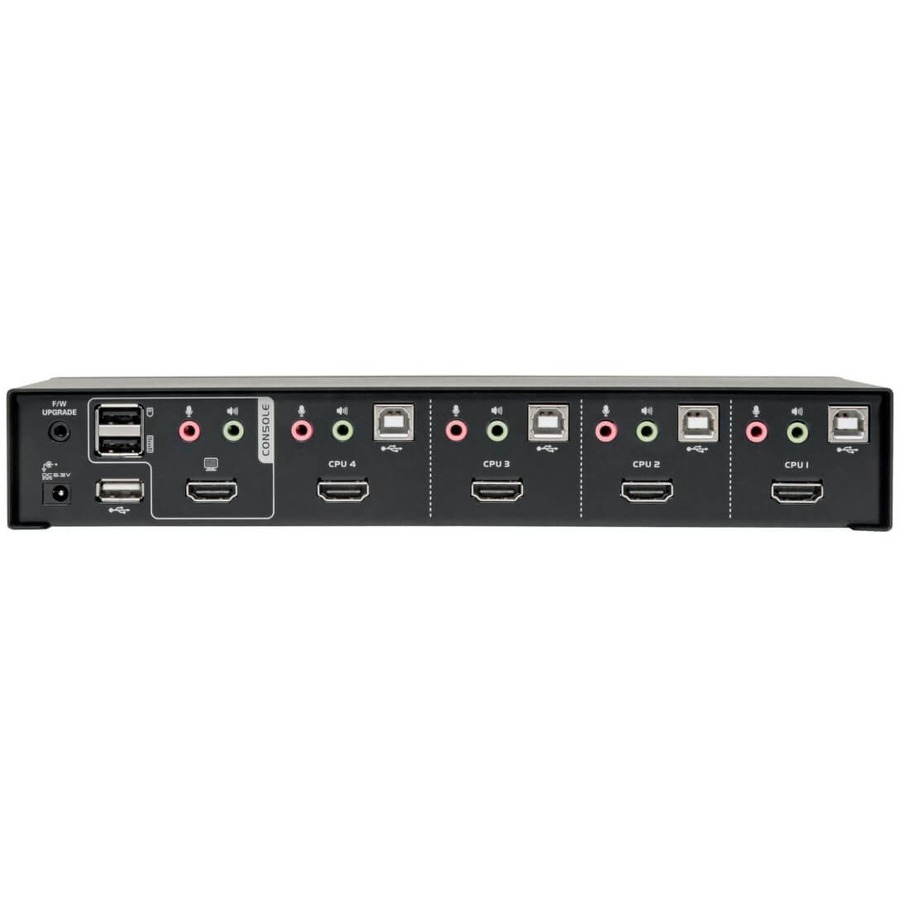

Console port for HDMI monitor connection, USB keyboard/mouse and 3.5 mm audio

Manual push buttons and hotkey commands for switching between computers

3.5 mm audio ports (x8), two for each computer connection

2 USB 2.0 USB-A ports for connecting peripheral devices like printers and removable hard drives

Supports HD resolutions up to 1920 x 1200 (@ 60 Hz) for 1080p video

3.5 mm stereo jacks provide 2.1-channel surround sound audio input to each computer

Compatible with Windows, Mac and Linux operation systems

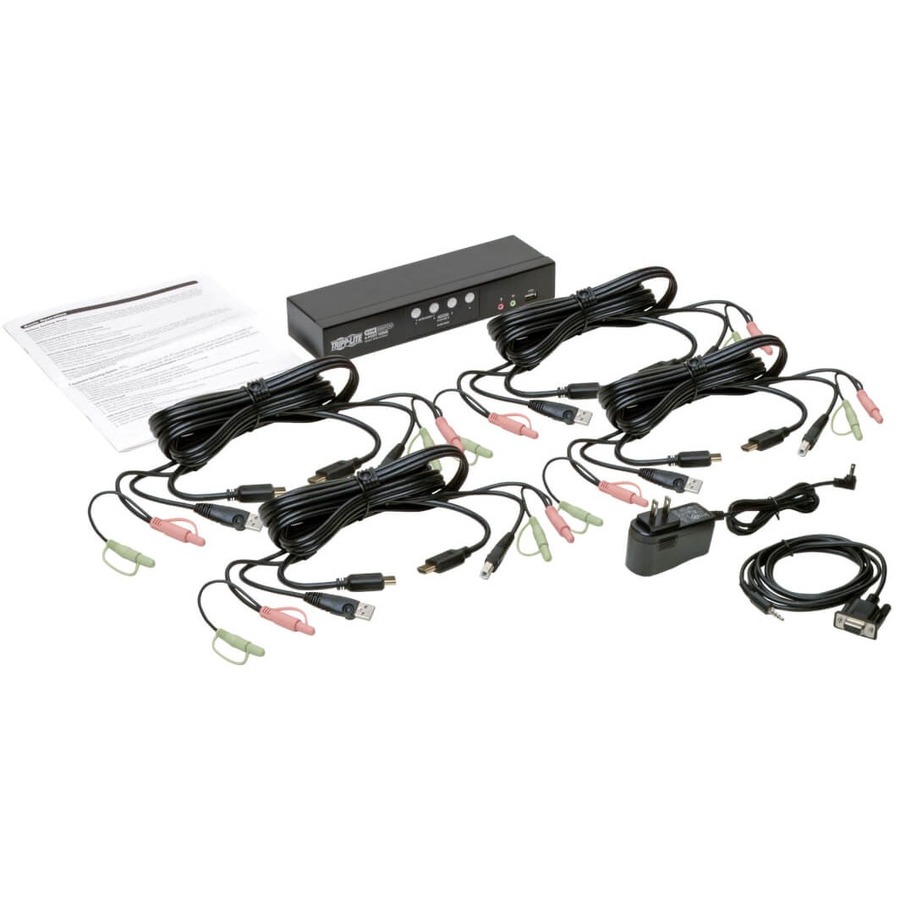

Comes with 4 cable kits and external power supply

Typical Applications

Work with 4 different connected computers through a single keyboard/mouse/monitor setup

Share the keyboard, mouse and HDMI display of a desktop computer with multiple laptop computers

Connect up to 4 gaming consoles, media centers and other A/V devices for a home theater system with 1080p resolution

Improve productivity at work with 4-way system control

Save money and space by sharing USB peripherals, such as a printer and external hard drive, among all computers

Manage a Variety of Devices From a Single Console

In addition to desktop and notebook computers, the B004-HUA4-K KVM switch also connects up to 4 media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes and DVRs, and other HDMI-enabled devices. Its 2 USB 2.0 ports (USB-A female) allow you to share USB peripherals, like printers or hard drives, among connected devices.

Simple Switching Between Devices for Ease of Use

The B004-HUA4-K’s manual push buttons and hotkey commands allow you to quickly switch between devices without needing to move to a new keyboard, mouse or monitor. Its 4 microphone ports can record group audio from separate sources to create a podcast on the console computer.
