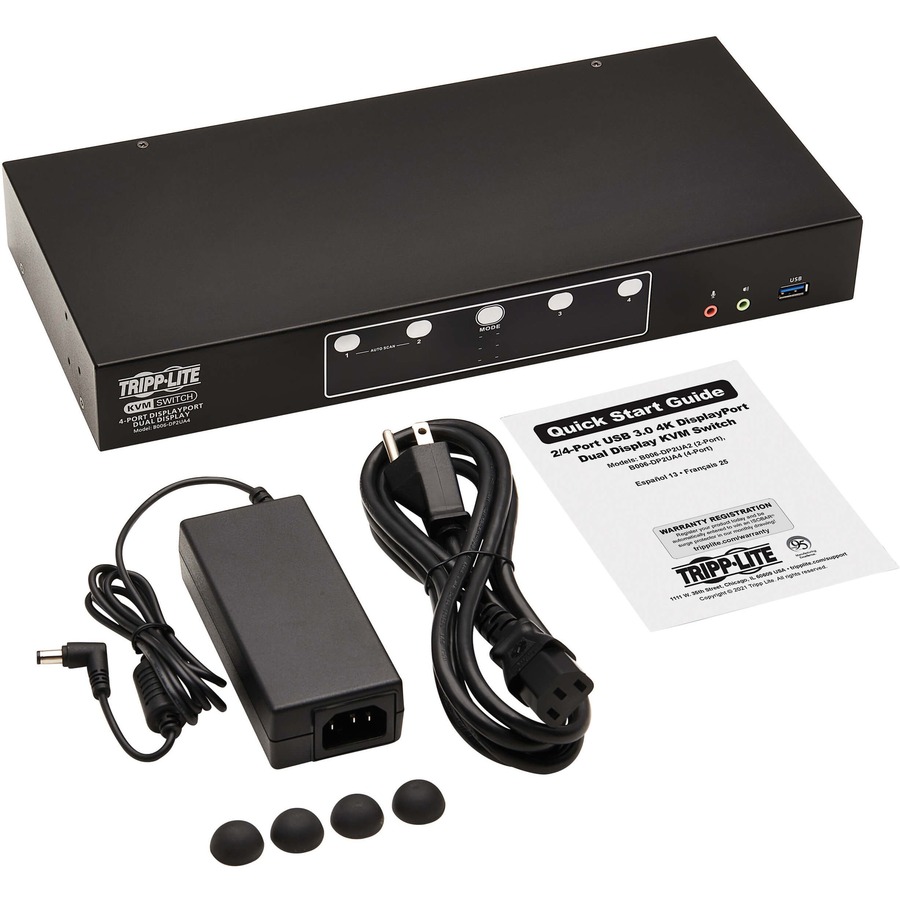

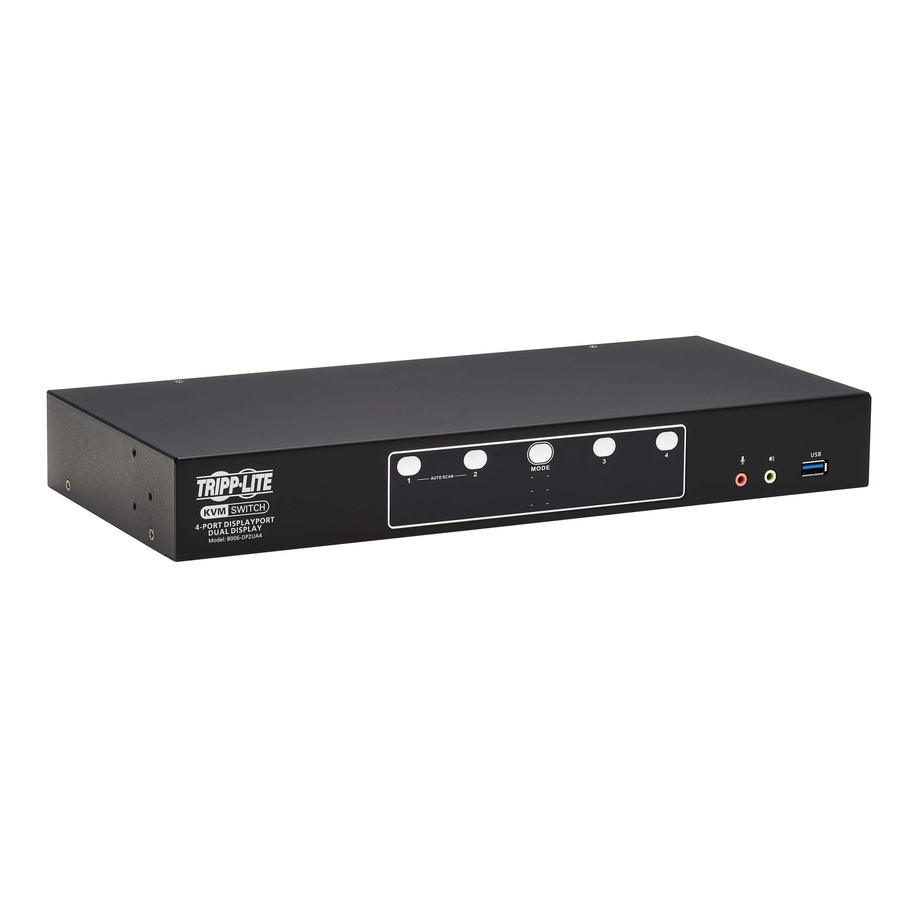

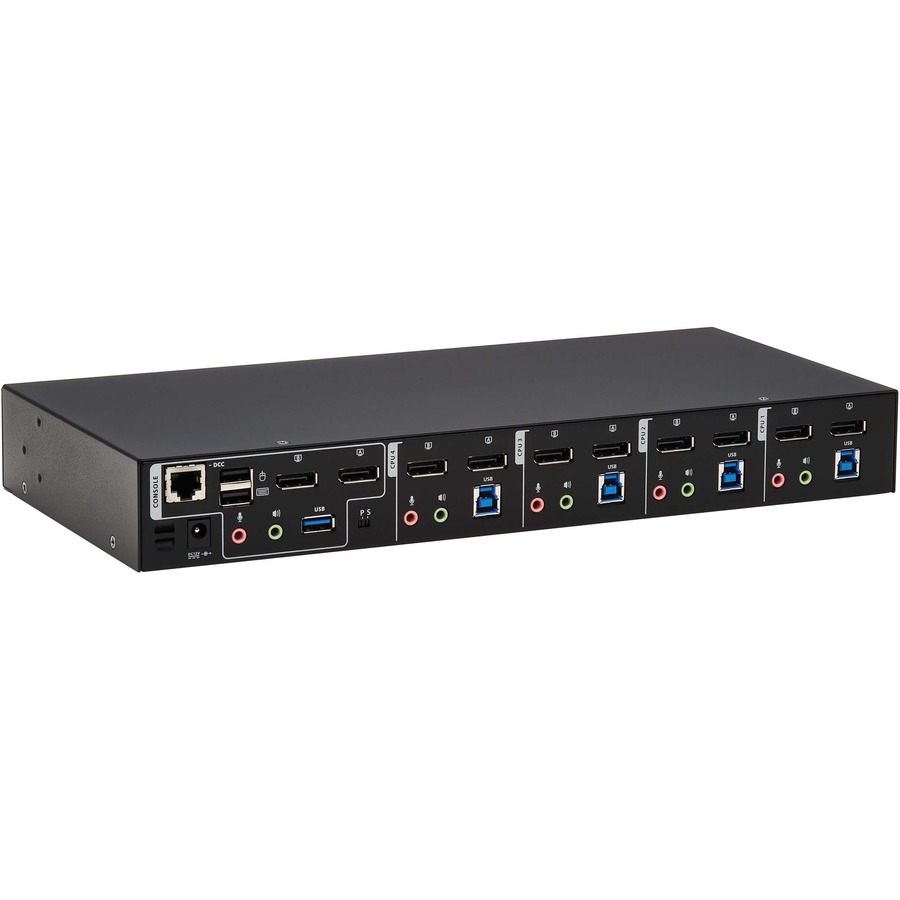

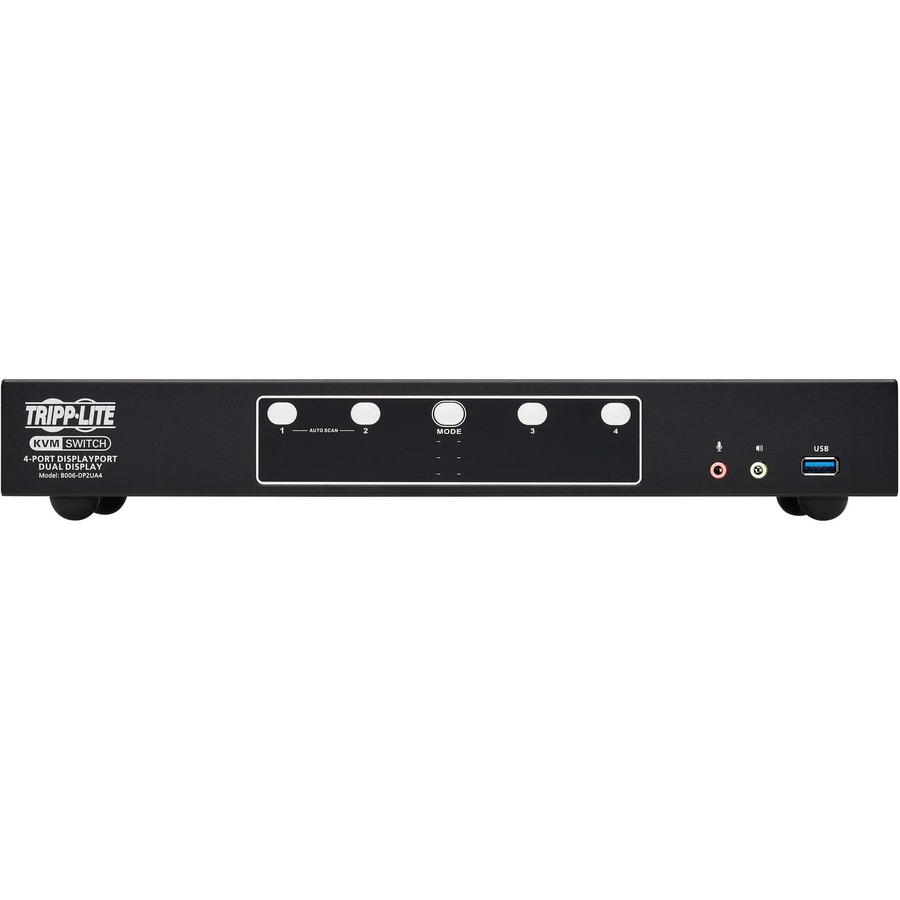

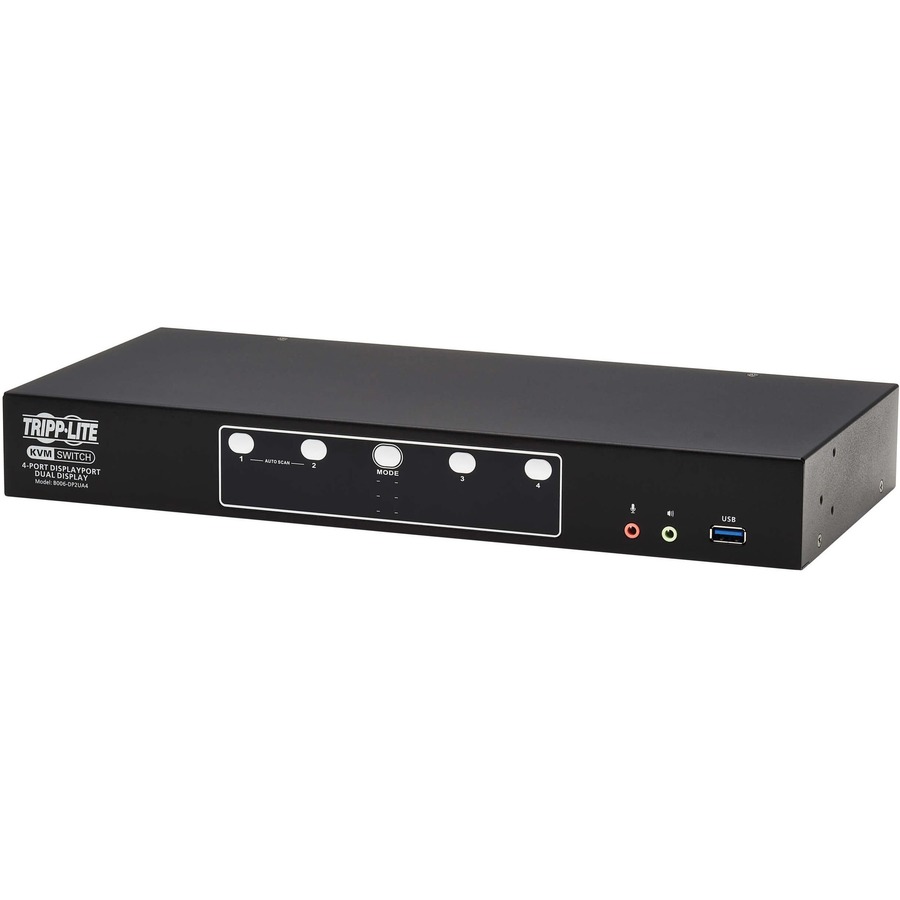

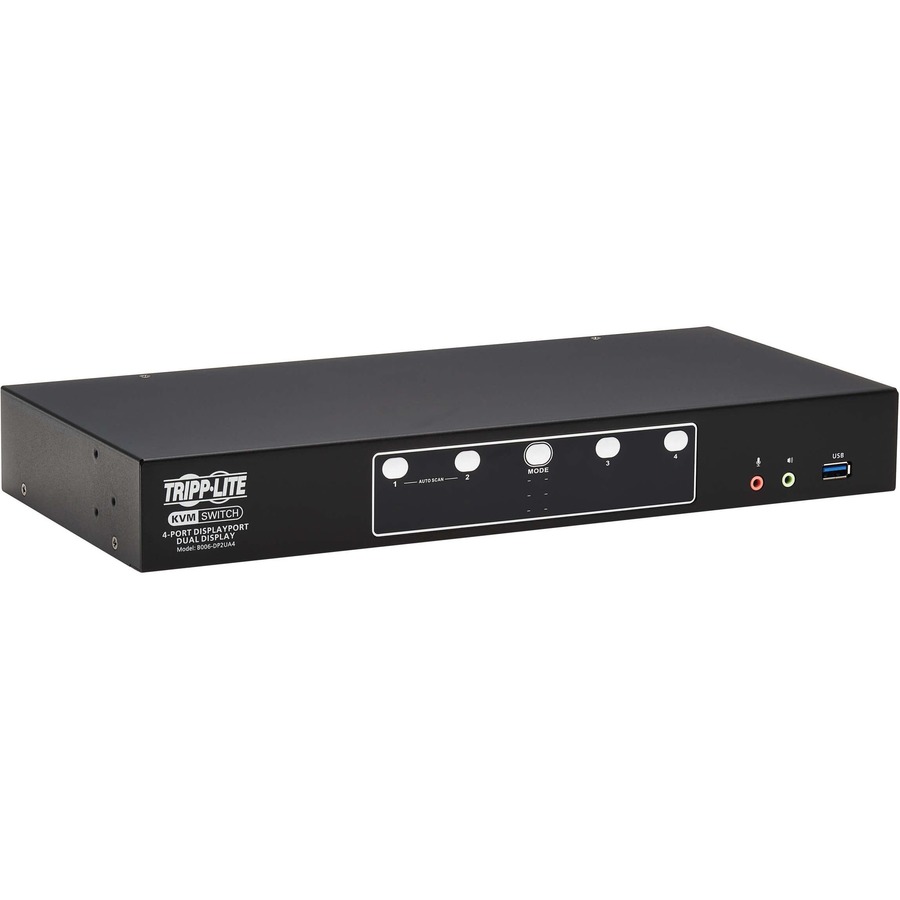

Tripp Lite by Eaton 4-Port DisplayPort Dual-Display KVM Switch - 4K 60 Hz USB 3.2 Gen 1 HDCP 2.2 USB Sharing
4 Computer(s) - 1 Local User(s) - 4096 x 2160 - 50 Hz, 60 Hz - 1 x Network (RJ-45) - 8 x USB - Desktop, Rack-mountable - 10 x DisplayPort
- SKU
- B006-DP2UA4
- Category
- KVM Switchboxes
MSRP$1,149.48
$725.99
Save 37%In stock: 188
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B006-DP2UA4
- Category
- KVM Switchboxes
Overview
Features l Connects Four Computers to Two 4K Monitors and a Single Keyboard/Mouse
This dual-monitor KVM switch lets you access, control, boot and reboot four computers or other devices with DisplayPort connectors and switch back and forth between them. It's ideal for work-from-home applications in which you'd like to share two monitors between your home and work computers. All computers share two DisplayPort 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.
Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or RS-232 commands for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.
Transmits Crystal-Clear 4K Video with Digital Audio
The B006-DP2UA4 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two DisplayPort monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a second computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-DP2UA4 KVM switches for a quad-display installation.
USB Hub Lets You Share Peripherals between Computers
Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.
Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. It can also be mounted at the front or rear of a standard 19-inch rack with user-supplied hardware. The included DC power supply connects to any standard AC power source.
System Requirements
• DisplayPort monitors
• USB mouse/keyboard
• Computers with DisplayPort and USB-A ports (audio ports optional)
• Windows 7 or 10, macOS 10 or higher, Linux with kernel .15 or higher
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Supports both 4K UHD and 4K DCI resolutions @ 60 Hz for superior video quality
- Dual USB 3.2 Gen 1 hub ports let you share USB peripherals with all computers
- Push buttons, hotkeys, mouse or RS-232 allow easy toggling between computers
- Dual-monitor support enables convenient multitasking and increased productivity
- Works with all major operating systems, including Windows, macOS and Linux
- 3-year limited warranty
Specifications
| Package Contents |
|
|---|---|
| Product Type | KVM Switchbox |
| Manufacturer Part Number | B006-DP2UA4 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 3.52 lb |
| Form Factor | Desktop, Rack-mountable |
| Frequency | 50 Hz, 60 Hz |
| Manufacturer | Eaton Corporation |
| Product Model | B006-DP2UA4 |
| Product Name | B006-DP2UA4 DisplayPort Dual-Display KVM Switch |
| Brand Name | Tripp Lite series |
| Input Voltage Range | 100â?"240V |
| Country of Origin | Taiwan |
| Height | 13.2" |
| Width | 1.7" |
| Depth | 6.1" |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 4096 x 2160 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 8 |
| DisplayPort | Yes |
| Number of DisplayPorts | 10 |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
