Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
B006-VU4-1
Category
KVM Switchboxes
Overview

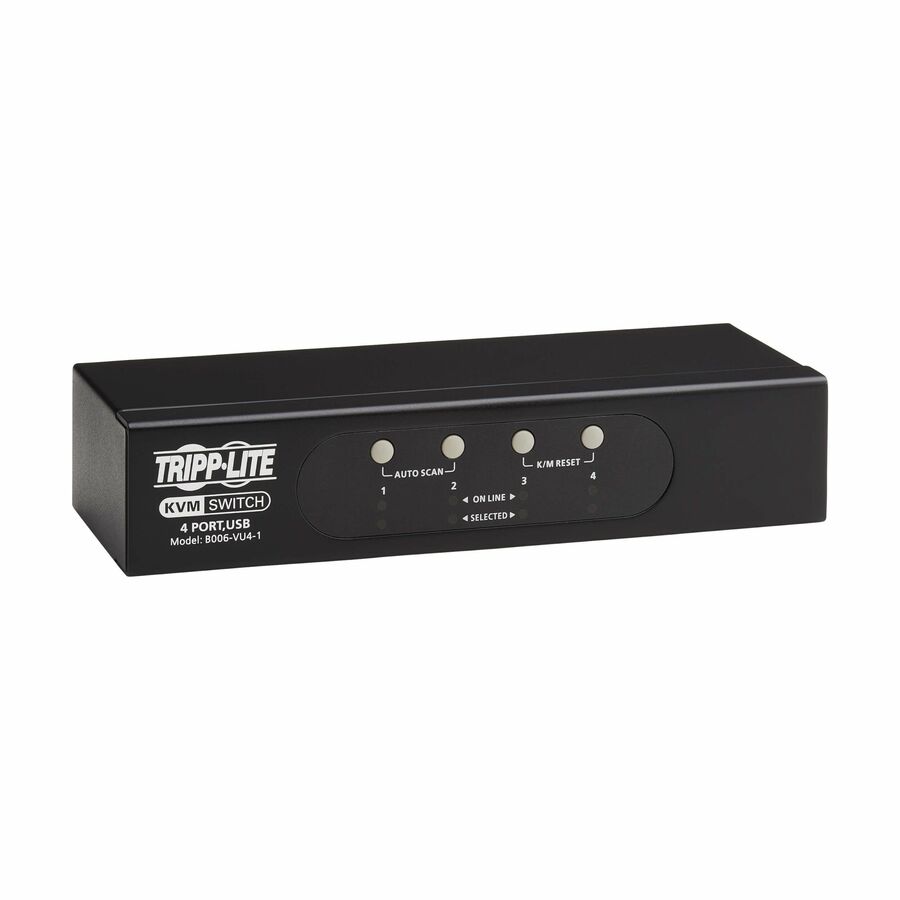

Features | Connects 4 Computers to a VGA Monitor and a Single Keyboard/Mouse
This single-monitor KVM switch lets you connect as many as four computers, which you can access and control by toggling between them. All connected computers share one VGA monitor and one USB or PS/2 keyboard/mouse, which saves space on your desk or workspace. The B006-VU4-1 supports video resolutions up to 2048 x 1536 (DDC2B).
Switching Between Computers Is Fast and Easy

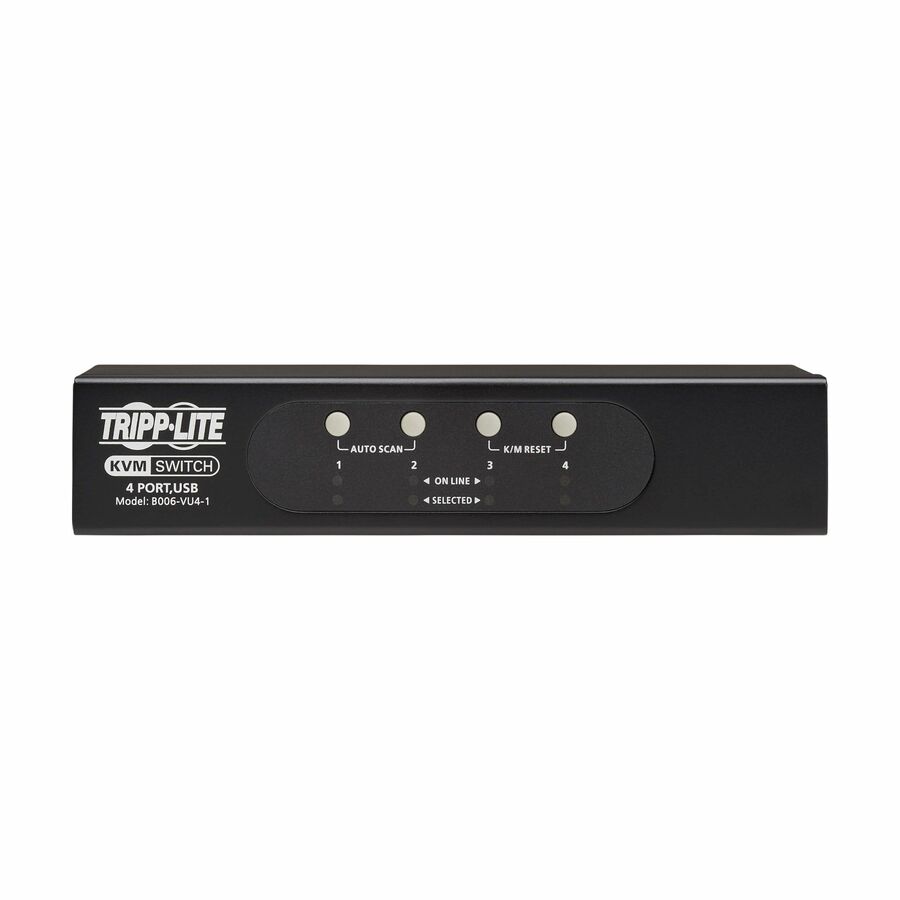

Use the front-panel push buttons, hotkey commands or connected mouse for quick and easy switching among computers. You can also use the Auto Scan feature to scan all connected computers automatically in five-second intervals. LEDs indicate which computer is currently selected. Computers may be added, removed or replaced without disconnecting or rebooting other connected computers.
Simple Plug-and-Play Installation and Operation
The heavy-duty metal housing can be placed on a desktop or other level surface that safely supports the weight of the KVM switch and attached cables. It requires no extra software, external power or other complicated setup procedures. It works with any computer with an available VGA port (the P778-006 cable kit is recommended) and USB or PS/2 port.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Supports VGA video resolutions up to 2048 x 1536 (DDC2B)
Push buttons and hotkeys allow fast, easy toggling between connected computers
Auto Scan mode lets you monitor connected computers without switching to them
Easy plug-and-play installation with no software or external power required
Works with all major operating systems, including Windows, macOS and Linux
System Requirements
VGA monitor
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
B006-VU4-1
Brand Name
Tripp Lite series
Product Model
B006-VU4-1
Product Name
B006-VU4-1 4-Port VGA KVM Switch
Product Type
KVM Switchbox

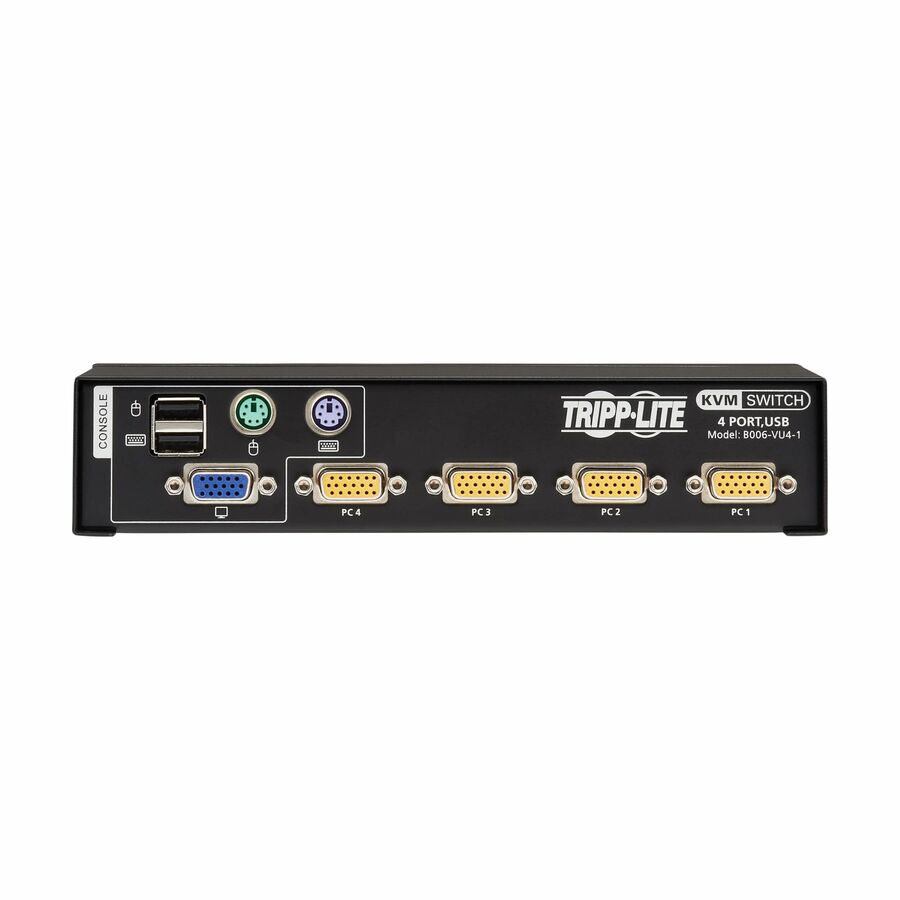

Interfaces/Ports
USB
Yes
VGA
Yes
Number of PS/2 Ports
2
Number of USB Ports
2
Number of VGA Ports
5
Physical Characteristics
Form Factor
Desktop
Height
0.6"
Width
1.2"
Depth
3.1"
Weight (Approximate)
1.70 lb
Technical Information
Number of Computers Supported
4
Number of Local Users Supported
1
Features
LED Indicator, Plug and Play, Bus Powered
Video
Graphic Mode
QXGA
Maximum Video Resolution
2048 x 1536
Warranty
Limited Warranty
3 Year
Miscellaneous

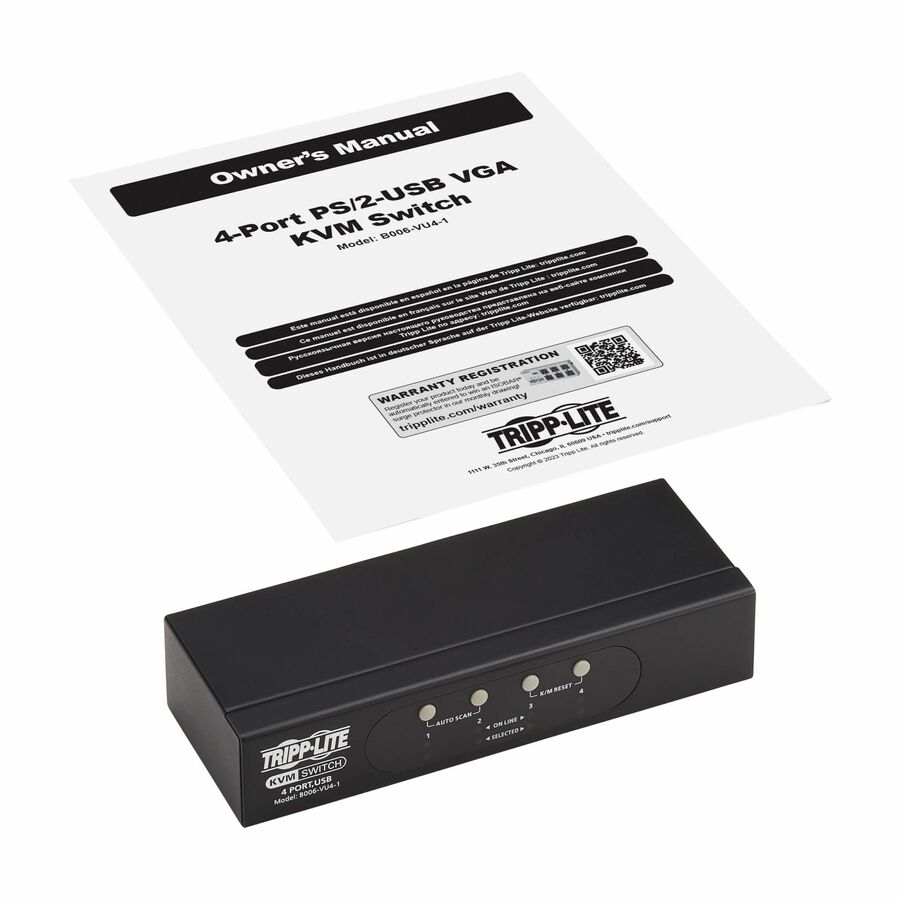

Package Contents
B006-VU4-1 4-Port VGA KVM Switch
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
