for Desktop PC, Notebook, TV - Charging Capability - USB4 (Gen 3x2) Type C - 8K @ 60Hz, 4K @ 120Hz, 4K @ 60Hz - 7680 x 4320, 3840 x 2160 - 4 x USB Ports - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - Wired - 2.5 Gigabit Ethernet - Windows, ChromeOS - 100W
SKU
Category
Docking Stations
MSRP$119.99
$109.33
Save 9%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Club 3D through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Docking Stations
Overview

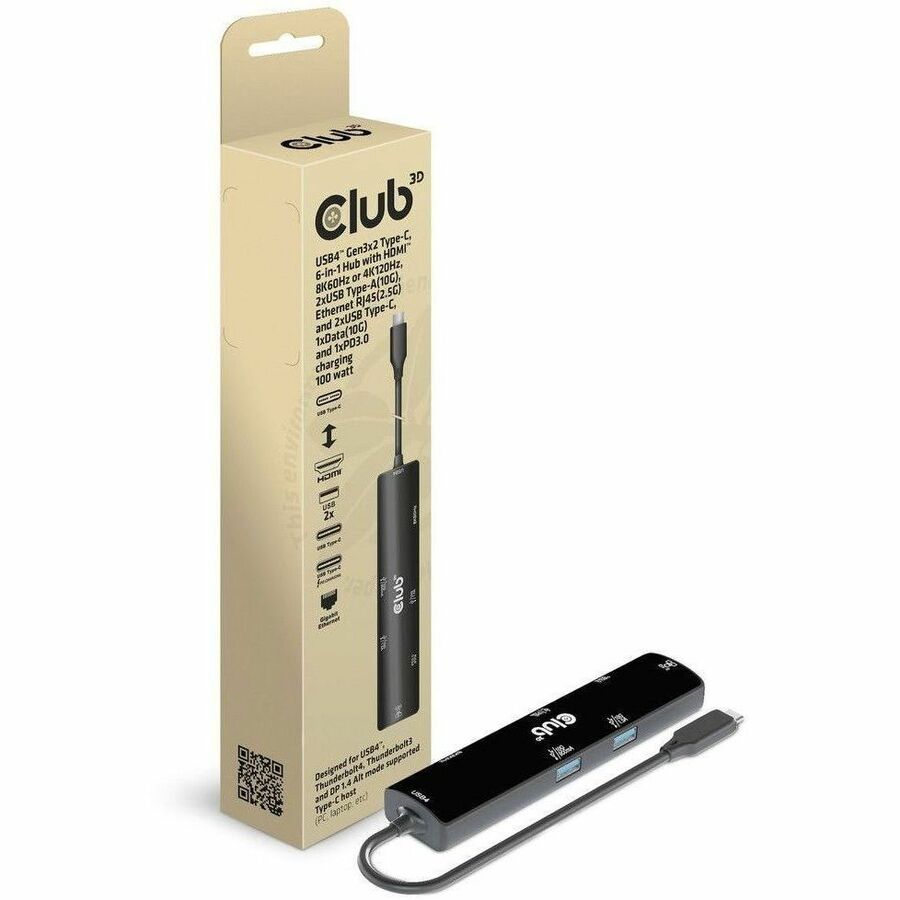

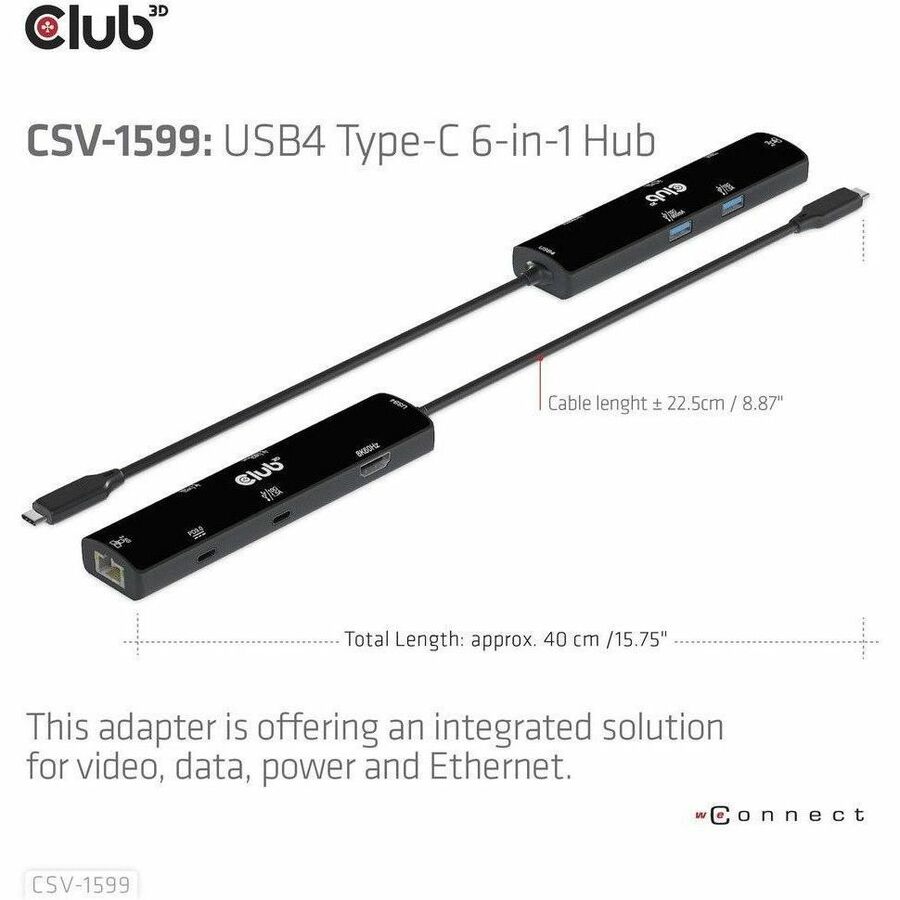

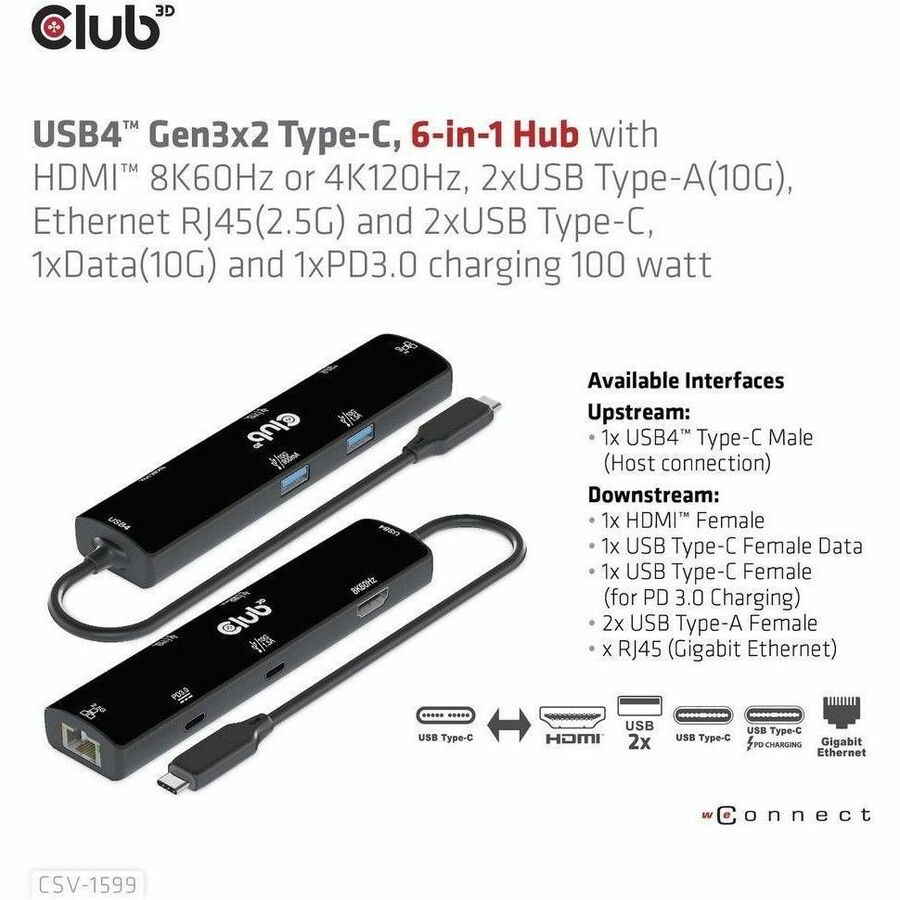

The Club 3D CSV-1599 is a USB4 Gen3x2 Type-C, 6-in-1 Hub with HDMI 8K60Hz or 4K120Hz, 2xUSB Type-A(10G), Ethernet RJ45(2.5G) and 2xUSB Type-C, 1x Data(10G) and 1xPD3.0 charging 100 watt, this adapter is offering an integrated solution for video, data, power and Ethernet. It has a HDMI?(8K60Hz) for video transmission, 3 USB data ports (2 USB-A 10G, 1 Type-C 10G)for data transmission, a 2.5Gbps Ethernet port for surfing on line. Besides, this adapter is equipped with Type-C PD3.0 Charging port with max 100W power supply. It can work on USB4?, Thunderbolt4, Thunderbolt3 and DP Alt mode (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
Warranty
Limited Warranty: 24 Month
Highlights

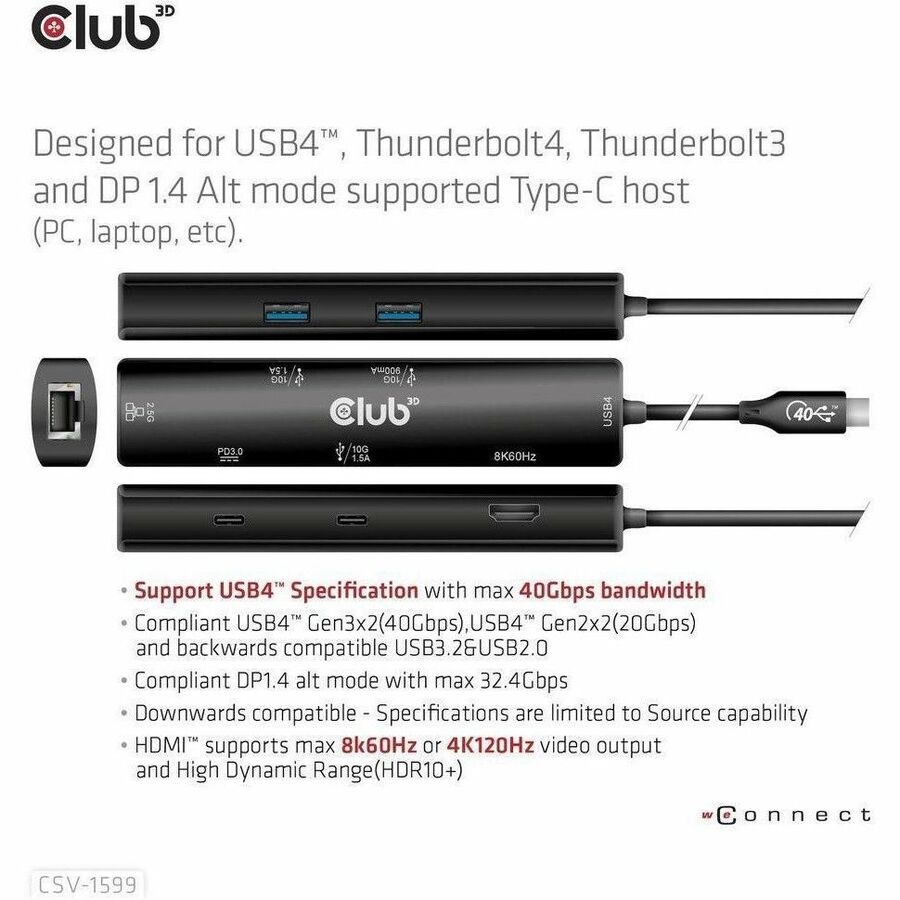

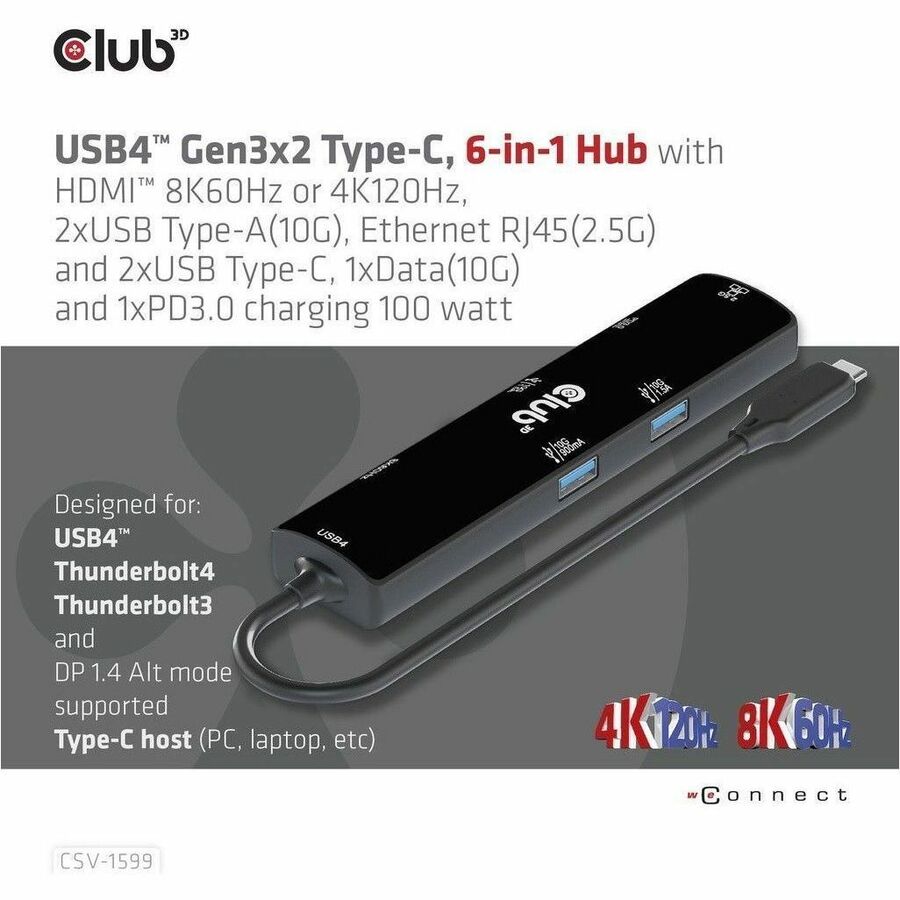

Designed for USB4?, Thunderbolt4, Thunderbolt3 and DP 1.4 Alt mode supported Type-C host (PC, laptop, etc).
Downwards compatible - Specifications are limited to Source capability
Support USB4 Specification with max 40Gbps bandwidth
Compliant USB4 Gen3x2(40Gbps),USB4 Gen2x2(20Gbps) and backwards compatible USB3.2&USB2.0
Compliant DP1.4 alt mode with max 32.4Gbps
HDMI supports max 8k60Hz or 4K120Hz video output and High Dynamic Range(HDR10+)
USB Type-C data port and 2 USB Type-A support USB 3.2 Gen2 SuperSpeed 10Gbps
One USB Type-A and USB Type-C data port support 5V/1.5A downstream charging
Fast Ethernet RJ45 supports 10M/100M/1000M/2.5G bandwidth
One USB Type-C PD Charging support PD3.0 with max 100W PD Charging,15W is dedicated to the functioning of this product, the rest power (85W) will be passed to charge for the host
Specifications
General Information
Manufacturer
Club 3D
Manufacturer Part Number
CSV-1599
Brand Name
Club 3D
Product Model
CSV-1599
Product Name
CSV-1599 Docking Station
Product Type
Docking Station
Interfaces/Ports
Host Interface
USB4 (Gen 3x2) Type C
Total Number of USB Ports
4
Number of USB 3.2 Gen 2 Type-A Ports
2
Number of USB 3.2 Gen 2 Type-C Ports
1
Number of USB Type-C Ports
2
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
1 x USB Type-C Female Data - Max 10Gbps data transmission, 1 x USB Type-C Female (for PD 3.0 Charging)
