for Headset, Mouse, Keyboard, Workstation, Smartphone, Notebook, Tablet, Desktop PC, Monitor - Memory Card Reader - SD, microSD - 100 W - USB Type C - 3 Displays Supported - 4K - 3840 x 2160, 1920 x 1200 - 5 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - VGA - 1 x DisplayPorts - DisplayPort - Black - Wired - Gigabit Ethernet - Windows, macOS
MSRP$135.99
$118.30
Save 13%In stock: 9
Genuine Club 3D through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

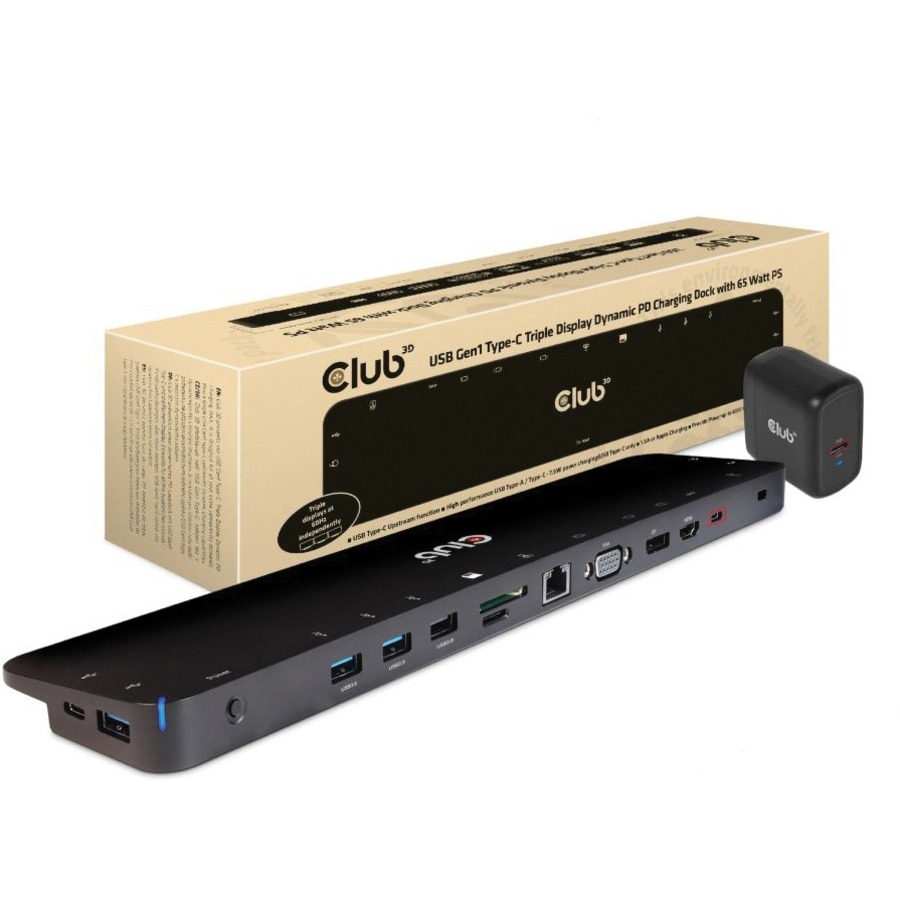

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock, is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI?, DisplayPort?, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply. So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, Laptop, Mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort Alt Mode
Features:
• Supports DP Alt Mode and PD 3.0
• Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
• One USB Gen1 Type-C Data port
• One USB Gen1 Type-C port supports PD charging with max 100W(20V/5A)
• Bundled with 65W Power Supply (for Notebooks with current consumption up to 65W)
• HDMI 4K 30 Hz
• DP 4K 30 Hz
• VGA 1920x1200 60Hz
• Triple Display support
• One port IEEE 802.3 Ethernet support for up to 1000BASE-TX
• SD- and Micro-SD Slots work simultaneously
• Audio port(Stereo), supports both micro- and head-phone
• Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD PowerSupply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
| Package Contents |
|
|---|---|
| Host Interface | USB Type C |
| Product Type | Docking Station |
| Device Supported | Headset, Mouse, Keyboard, Workstation, Smartphone, Notebook, Tablet, Desktop PC, Monitor |
| Manufacturer Part Number | CSV-1564W65 |
| Weight (Approximate) | 8.82 oz |
| Connectivity Technology | Wired |
| Manufacturer | Club 3D |
| Product Model | CSV-1564W65 |
| Product Name | CSV-1564W65 Docking Station |
| Brand Name | Club 3D |
| Operating System Supported | Windows, macOS |
| Memory Card Supported | SD, microSD |
| Height | 13.78" |
| Width | 2.95" |
| Depth | 0.79" |
| Environmentally Friendly | Yes |
| Memory Card Reader | Yes |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| DisplayPort | Yes |
| Number of Displays Supported | 3 |
| Number of DisplayPorts | 1 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 Type-C Female for connecting to Host |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 5 |
| Product Color | Black |
| Supported Resolutions | 3840 x 2160, 1920 x 1200 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
