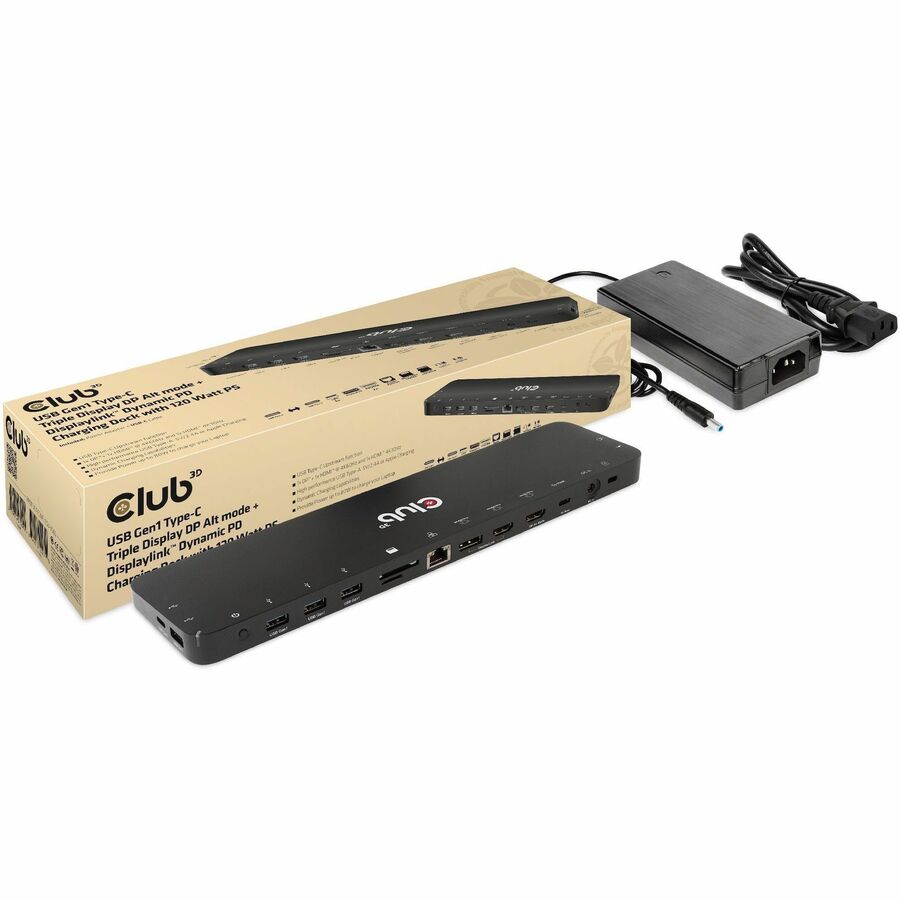

Club 3D CSV-1566 Docking Station

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP Alt mode + Displaylink?/ USB mode? Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio,video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI?, one from DP?1.2 Alt mode, one from USB mode, 1 Displayport from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile device(Apple,samsung phones, pads,etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP?1.2 Alt mode supported USB Type-C and -A hosts.

Features:

• Support DP1.2 Alt mode and Displaylink?/ USB mode

• Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter)to be multiple video,data and power ports

• Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and window system

• HDMI 1 (DP Alt mode) supports max 4K/30Hz

• HDMI 2 (USB mode) supports max 4K/60Hz

• DP?(USB mode) support max 4K/60Hz

• Support DP++

• Support smart charging with max 5V/2.4A

• Support Gigabit Ethernet to get access to super fast network

• Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously

• Support audio in and out

• Support max 120W DC power in and bypass 80W to host

• Short-circuit, over-current, over-voltage protection
