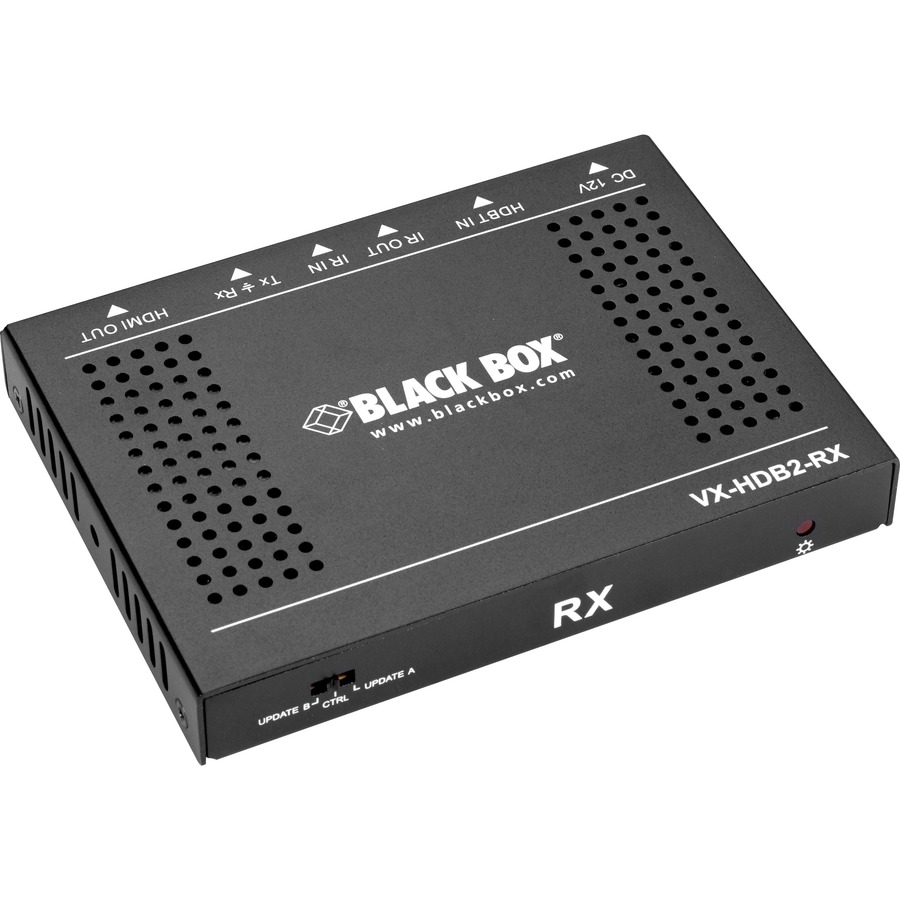

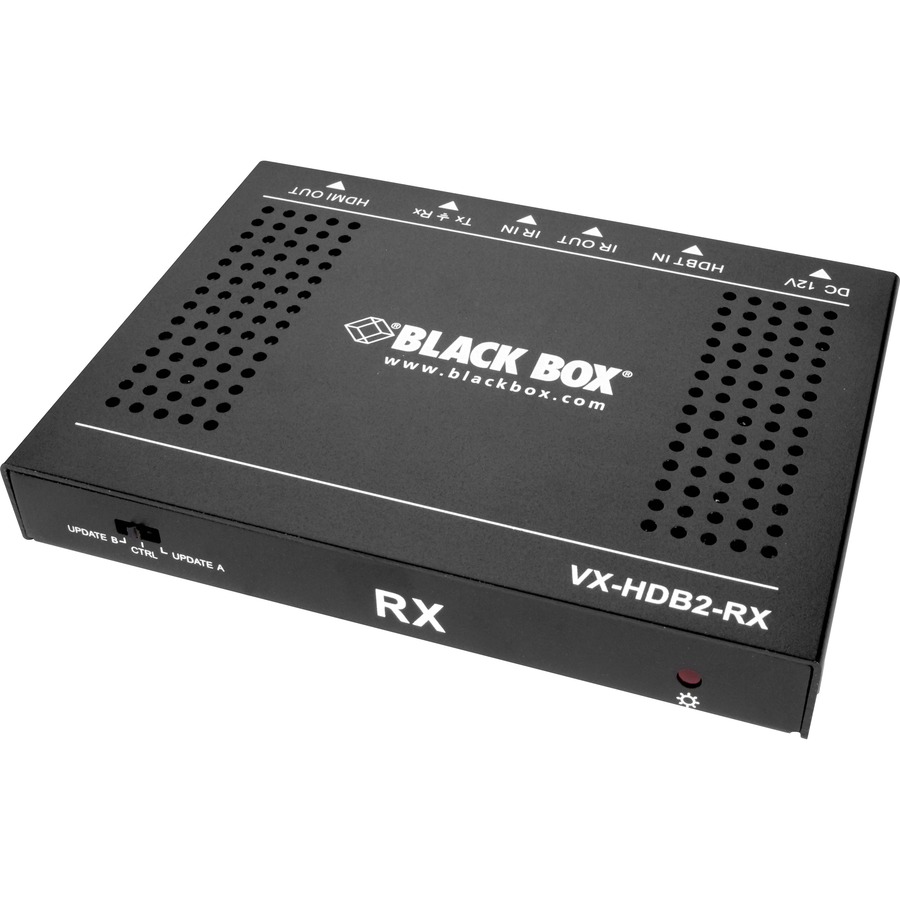

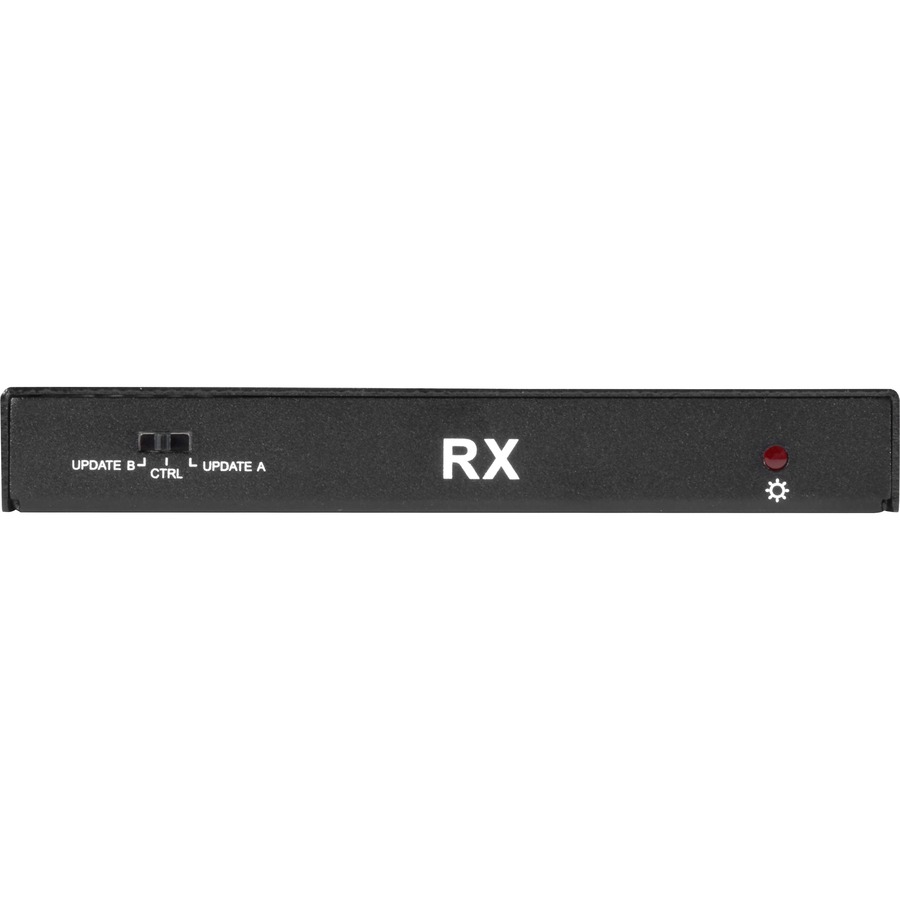

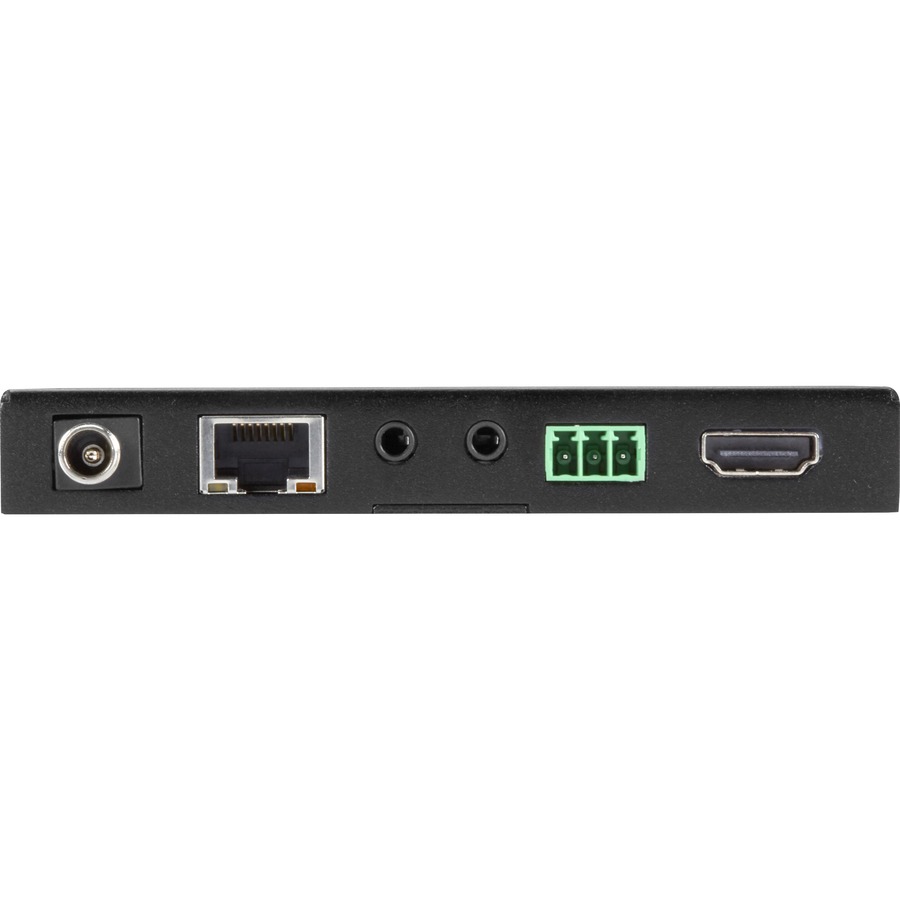

Black Box HDR CATx Video Extender RX - 4K HDMI 2.0, 60Hz, 4:4:4 Chroma
Black Box

Black Box HDR CATx Video Extender RX - 4K HDMI 2.0, 60Hz, 4:4:4 Chroma

1 Output Device - 229 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - Twisted Pair - Category 6a

SKU
VX-HDB2-RX
Category
Audio & Video Consoles/Extenders

MSRP$304.27

$238.15

Save 22%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
VX-HDB2-RX
Category
Audio & Video Consoles/Extenders

Overview

The HDMI 2.0 4K 60Hz 4:4:4 HDR CATx Video Extender, PoC IR, RS-232 consists of a transmitter and a receiver. It extends an 1080p/4K HDMI signal over CAT5e/CAT6a cable up to 229 feet (70 meters) or 131 feet (40 meters) using PoC. It also enables IR and RS-232 passthrough to control a source or display device remotely. The extender uses visually lossless video compression technology (VLC) to ensure the HD lossless transmission of HDR and 4K @ 60 Hz/4:4:4 over CAT5e/CAT6a cable.

Highlights

  • Supports 4K/UHD/60 Hz/4:4:4
  • Supports HDMI 2.0 and HDCP 2.2 and is backwards-compatible to the previous versions
  • Maximum transmission distance is up to 131 feet (40 meters) for 4K x 2K and up to 229 feet (70 meters) for 1080p
  • Uses CEC, IR, and RS-232 passthrough for long-distance control
  • Includes bi-directional PoC for simplied wiring
  • Supports HDR
  • Includes a DIP switch for Control, Update A, and Update B

Specifications

Package Contents
  • Video Extender Receiver
  • 8 x Plastic Cushions
  • 1 x 3-PIN Phoenix Connector
Product TypeVideo Extender Receiver
Manufacturer Part NumberVX-HDB2-RX
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerBlack Box Corporation
Product NameHDR CATx Video Extender RX - 4K HDMI 2.0, 60Hz, 4:4:4 Chroma
Brand NameBlack Box
Country of OriginChina
Graphics Modes4K
Environmentally FriendlyYes
Twisted Pair Cable StandardCategory 6a
Maximum Operating Distance229 ft
Product ConditionNew
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Transmitter Height5"
Transmitter Width7"
Transmitter Depth7"
Receiver Height5"
Receiver Width7"
Receiver Depth7"
Receiver Weight (Approximate)5.39 oz
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
