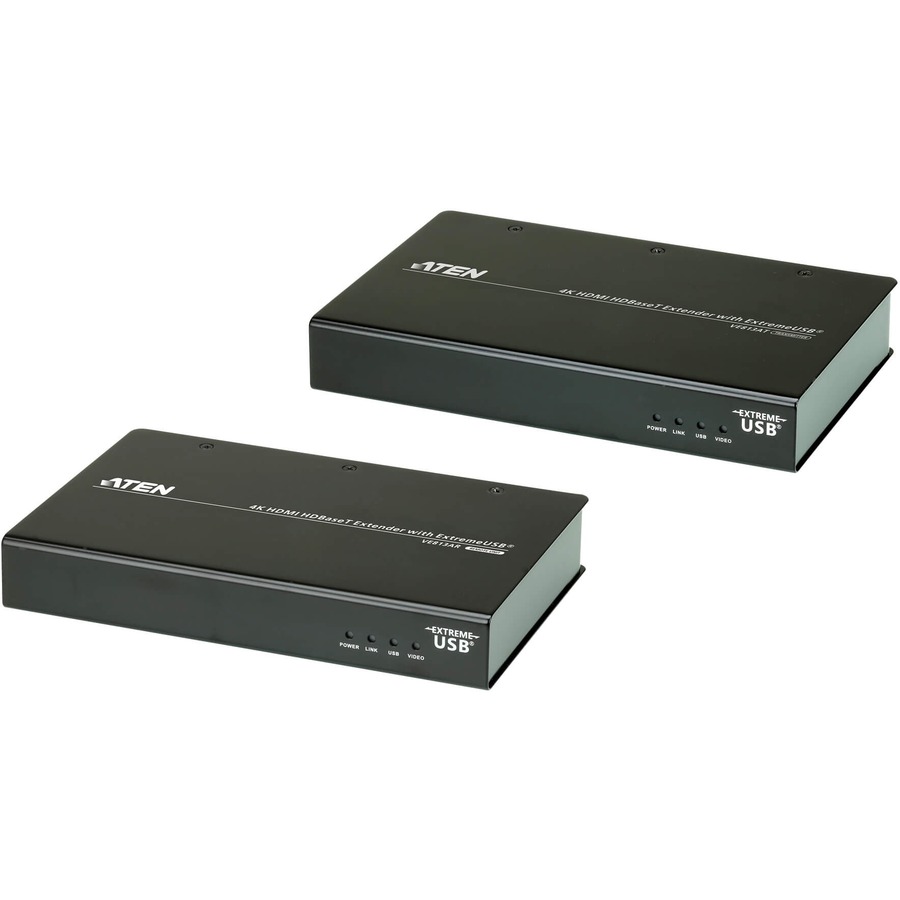

ATEN 4K HDMI HDBaseT Extender with ExtremeUSB (4K@100m) (HDBaseT Class A)-TAA Compliant
1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable - For PC
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VE813A
Category
KVM Consoles/Extenders
Overview
The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.
More from the Manufacturer
Highlights
Implements HDBaseT extension technology using only one Cat 5e/6/6a cable that connects the transmitter and receiver
Anti-jamming - high quality video transmissions via HDBaseT technology that resists signal interference
Supports Dolby True HD and DTS HD Master Audio
ExtremeUSB® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
USB 2.0 Support- connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Works with all major operating systems: Windows®, OS X®, and Linux®
Rack-mountable
Specifications
Package Contents
1 x VE813AT 4K HDMI HDBaseT Extender with ExtremeUSB (Transmitter)
1 x VE813AR 4K HDMI HDBaseT Extender with ExtremeUSB (Receiver)
1 x HDMI Cable (1.8m/6ft)
1 x USB Cable (1.8m/6ft)
2 x Power Adapters
1 x Mounting Kit
1 x User Instructions
Product Type
KVM Console/Extender
Input Voltage
5 V DC
Manufacturer Part Number
VE813A
Platform Supported
PC
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VE813A
Product Name
4K HDMI HDBaseT Extender with ExtremeUSB (4K@100m) (HDBaseT Class A)
Power Consumption
5.75 W
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Graphic Mode
4K
Maximum Operating Distance
328.08 ft
USB
Yes
HDMI
Yes
Number of HDMI Ports
2
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
4
Number of Computers Supported
1
Number of Remote Users Supported
1
Transmitter Height
1.13"
Transmitter Width
4.57"
Transmitter Depth
7.17"
Receiver Height
1.13"
Receiver Width
4.57"
Receiver Depth
7.17"
Transmitter Weight (Approximate)
1.34 lb
Receiver Weight (Approximate)
1.37 lb
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
