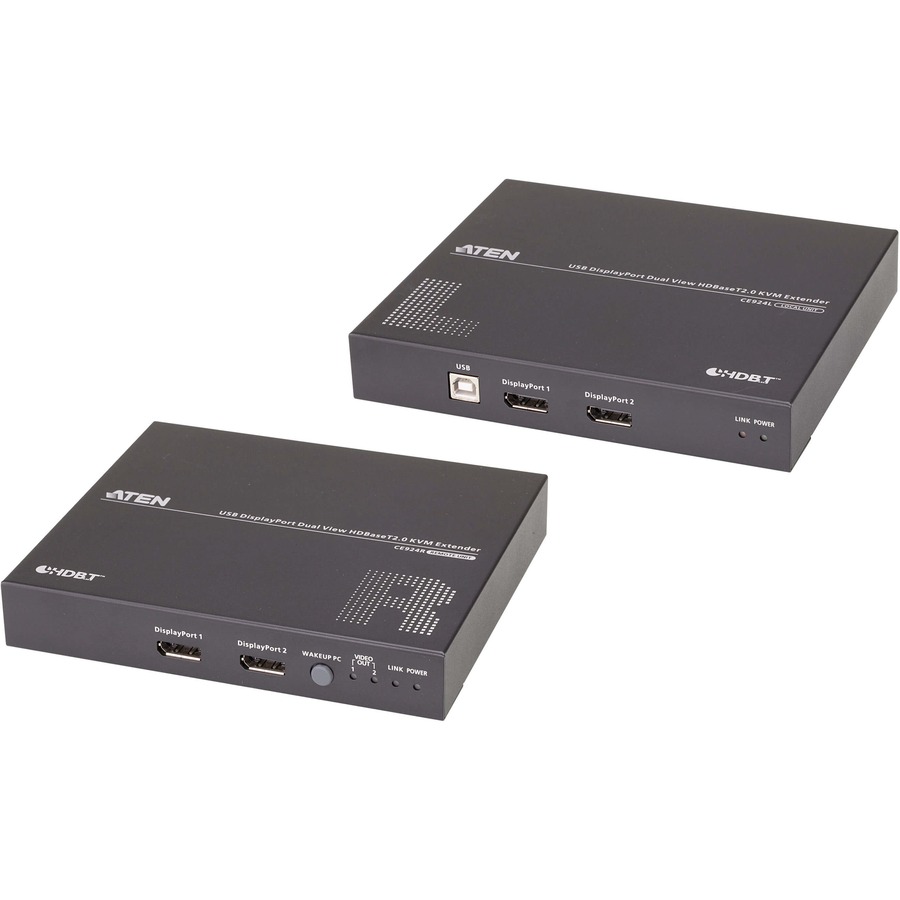

ATEN USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)
2 Computer(s) - 2 Local User(s) - 328.08 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - DisplayPort - Rack-mountable
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE924
Category
KVM Consoles/Extenders
Overview
The ATEN CE924 USB DisplayPort Dual View HDBaseT? 2.0 KVM Extender integrates the latest HDBaseT? 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT? 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Highlights
Allows dual view DisplayPort access to a computer and KVM control from a remote console
Supports HDBaseT 2.0 technology: Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable : Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions: Status detection and LED indication for HDBaseT? signal transmission on the remote unit
EDID Buffer for smooth power-up and the highest quality display
Single category cable to transmit AV and control signal : HDBaseT Standard mode up to 4K @ 100 m (via Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080p) : HDBaseT Long-Reach mode up to 1080P @ 150 m (single view only; dual-view resolution up to 720p)
Supports 4 ports USB 2.0 full speed hub on the receiver - allowing to connect up to 4 various USB 2.0 peripheral
HDCP Compatible
Supports individual 2-channel stereo audio for high-quality audio applications
Supports PC wakeup function via single pushbutton through RS-232 channel
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Specifications
Package Contents

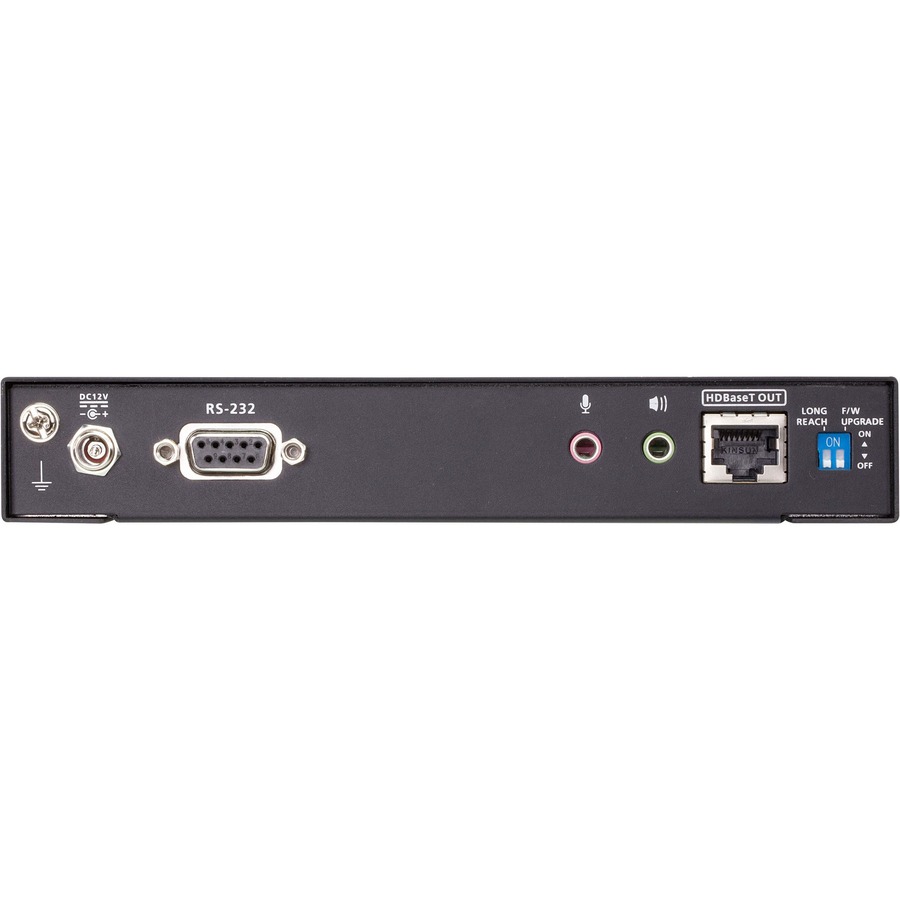

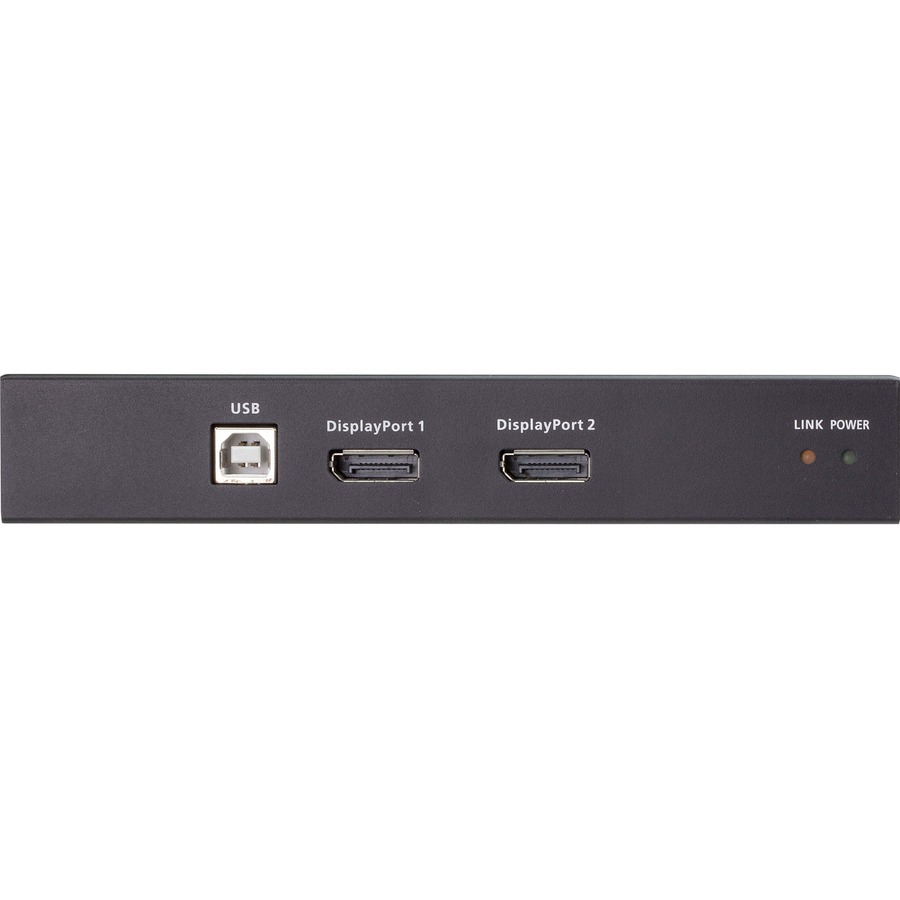

1 x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)

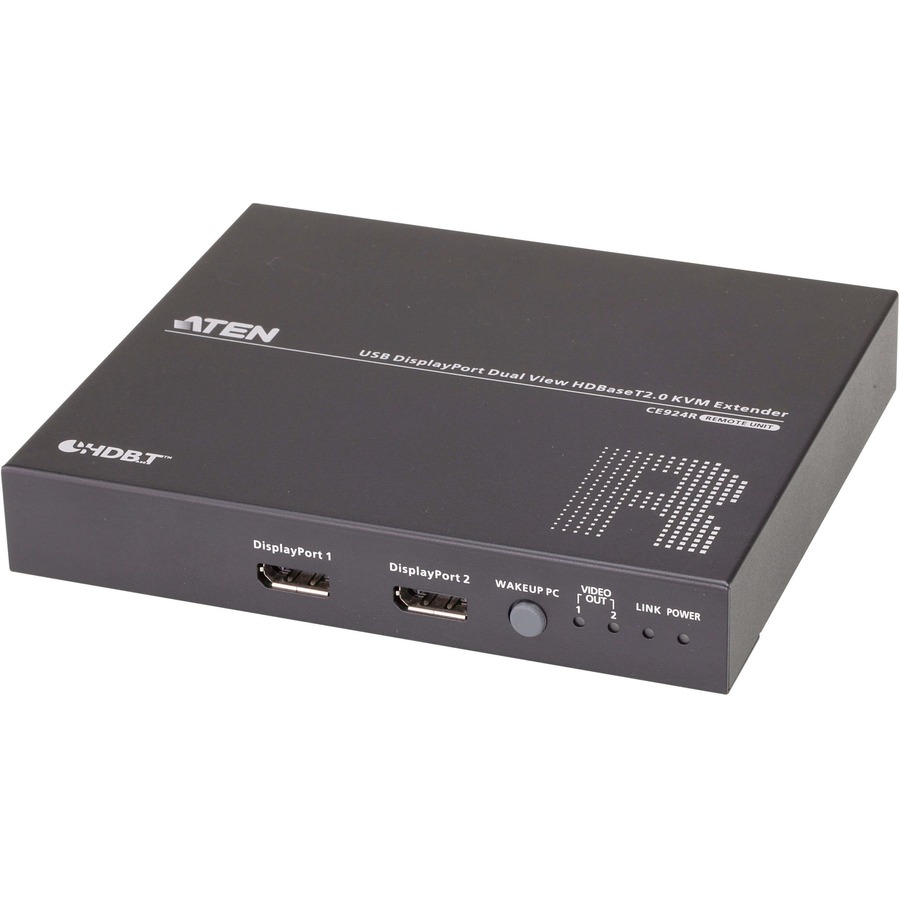

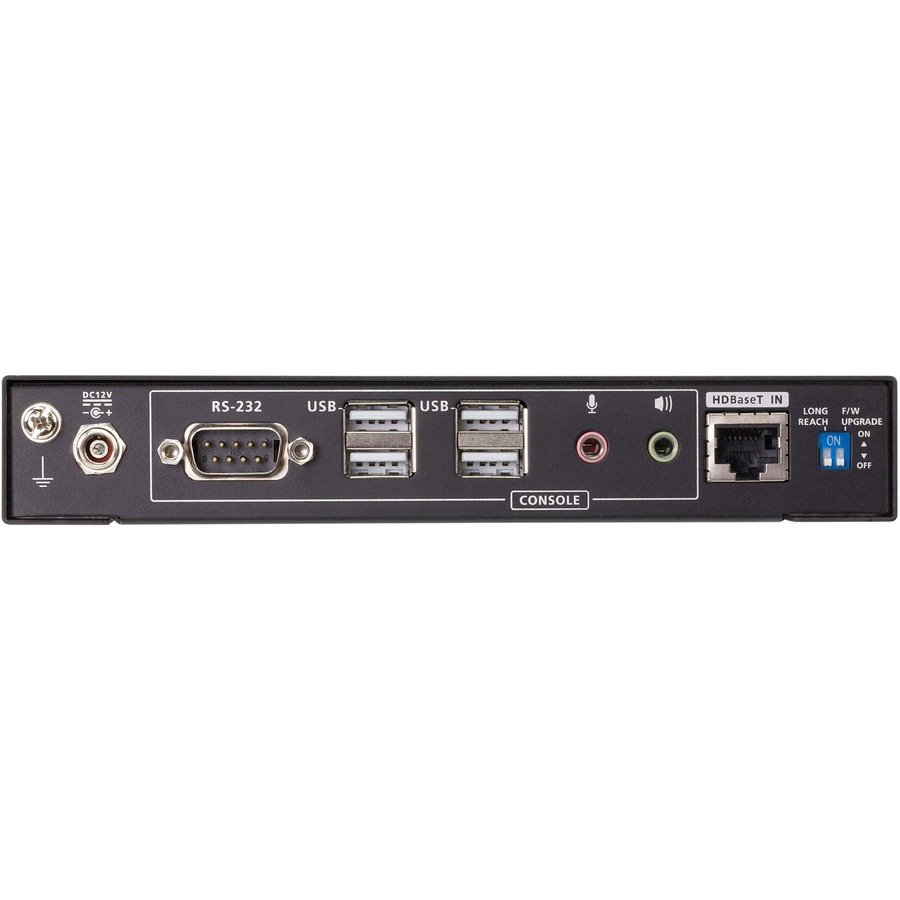

1 x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2 x DisplayPort cables
1 x Pink audio jack cable set
1 x Green audio jack cable set
1 x USB Type-A to Type-B cable
2 x Power adapters
2 x Mounting kits
1 x User instructions
Product Type
KVM Extender
Manufacturer Part Number
CE924
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
CE924
Product Name
USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)
Brand Name
ATEN
Country of Origin
Taiwan
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Graphic Mode
4K
Maximum Operating Distance
328.08 ft
USB
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
5
DisplayPort
Yes
Number of Computers Supported
2
Number of Local Users Supported
2
Transmitter Height
1.13"
Transmitter Width
6.07"
Transmitter Depth
6.86"
Receiver Height
1.13"
Receiver Width
6.13"
Receiver Depth
6.86"
Transmitter Weight (Approximate)
1.81 lb
Receiver Weight (Approximate)
1.87 lb
Device Type
KVM Extender
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS)
