ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant
ATEN Technology

ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant

492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable

SKU
CE820
Category
KVM Consoles/Extenders

MSRP$1,257.00

$886.52

Save 29%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE820
Category
KVM Consoles/Extenders

Overview

The ATEN CE820 USB HDMI HDBaseT? 2.0 KVM Extender integrates the latest HDBaseT? 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT? 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Highlights

  • Supports HDBaseT? 2.0 technology
  • Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
  • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
  • Status detection and LED indication for HDBaseT? signal transmission on remote unit
  • EDID Buffer for smooth power-up and the highest quality display
  • HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
  • Long distance with superior video quality
  • HDBaseT? Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
  • HDBaseT? Long-Reach mode up to 1080P @ 150 m
  • Long Reach mode switch - switches between HDBaseT? Standard and Long Reach modes in a snap

Specifications

Package Contents

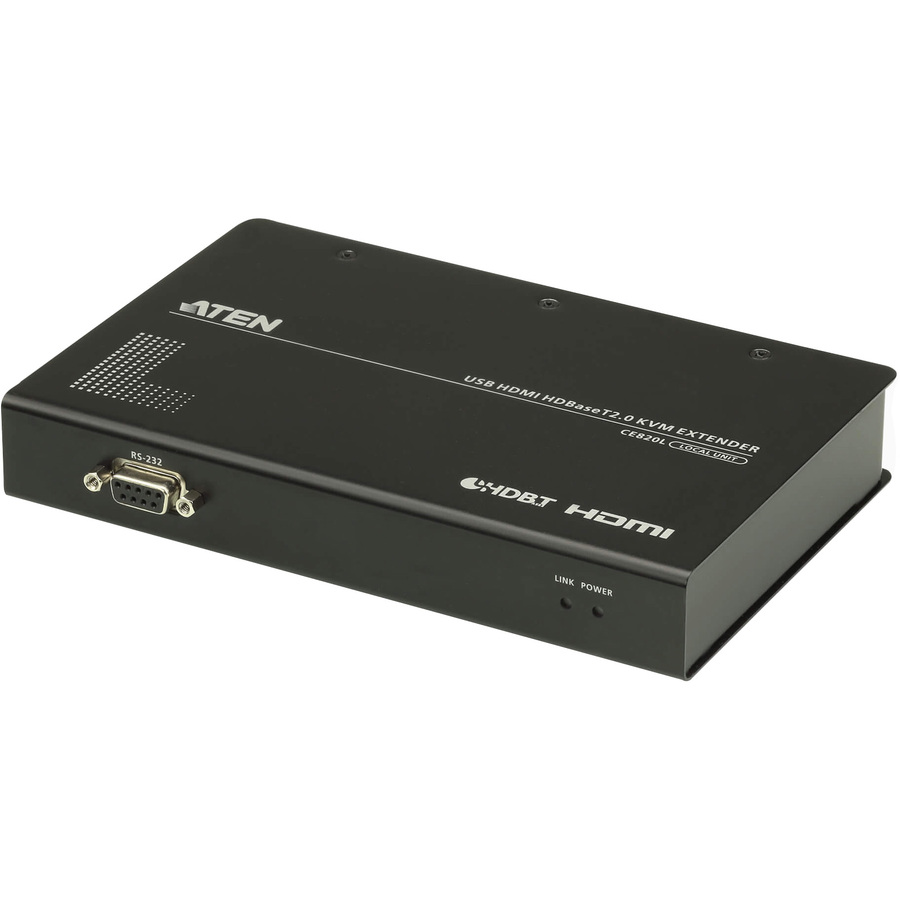

  • 1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

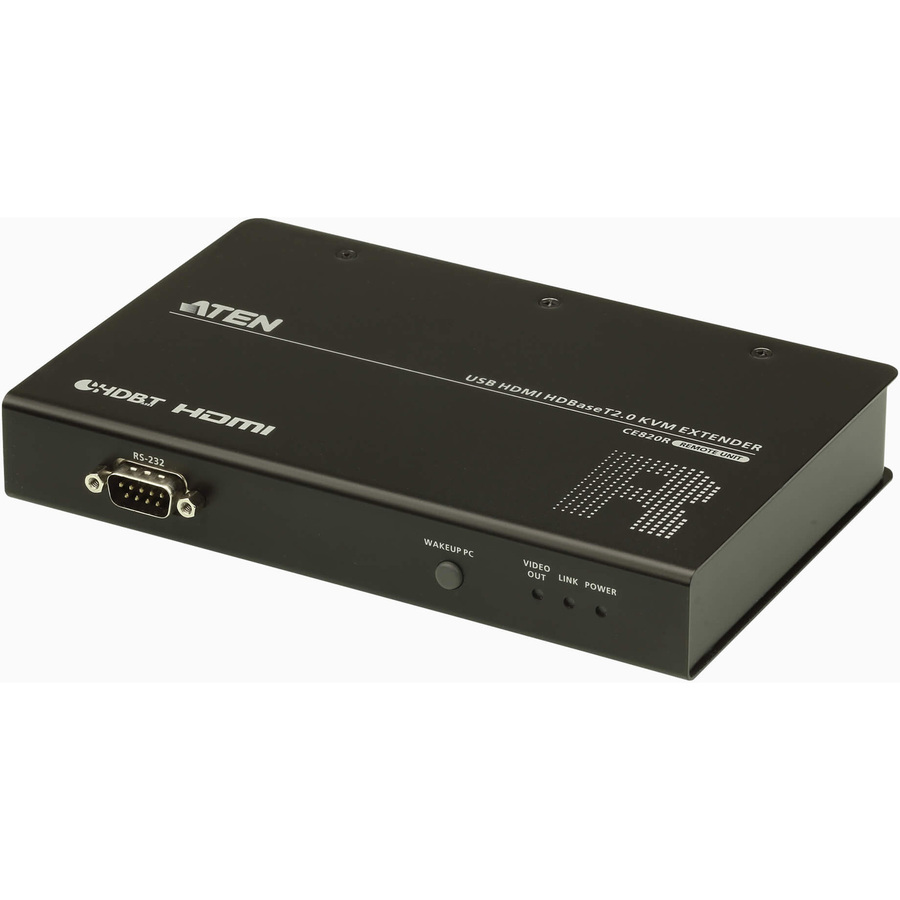

  • 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
  • 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
  • 2 x Power Adapters
  • 2 x Mounting Kits
  • 8 x Foot Pads
  • 1 x User Instructions
Product TypeKVM Console/Extender
Input Voltage5 V DC
Manufacturer Part NumberCE820
Limited Warranty3 Year
Connectivity TechnologyWired
Form FactorRack-mountable
ManufacturerATEN Technology, Inc
MicrophoneYes
Product ModelCE820
Product NameUSB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)
Brand NameATEN
Country of OriginTaiwan
Environmentally FriendlyYes
Maximum Video Resolution4096 x 2160
Graphic Mode4K
Maximum Operating Distance492.13 ft
USBYes
HDMIYes
Number of HDMI Ports2
HeadphoneYes
Number of Network (RJ-45) Ports4
Network (RJ-45)Yes
Number of USB Ports4
Transmitter Height1.13"
Transmitter Width4.80"
Transmitter Depth7.17"
Receiver Height1.13"
Receiver Width4.80"
Receiver Depth7.17"
Transmitter Weight (Approximate)1.43 lb
Receiver Weight (Approximate)1.39 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
