High Performance KVM |Supports 4K UHD or DCI @60 Hz |CE FCC UL TAA
MSRP$4,338.00
$3,395.76
Save 22%In stock: 154
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

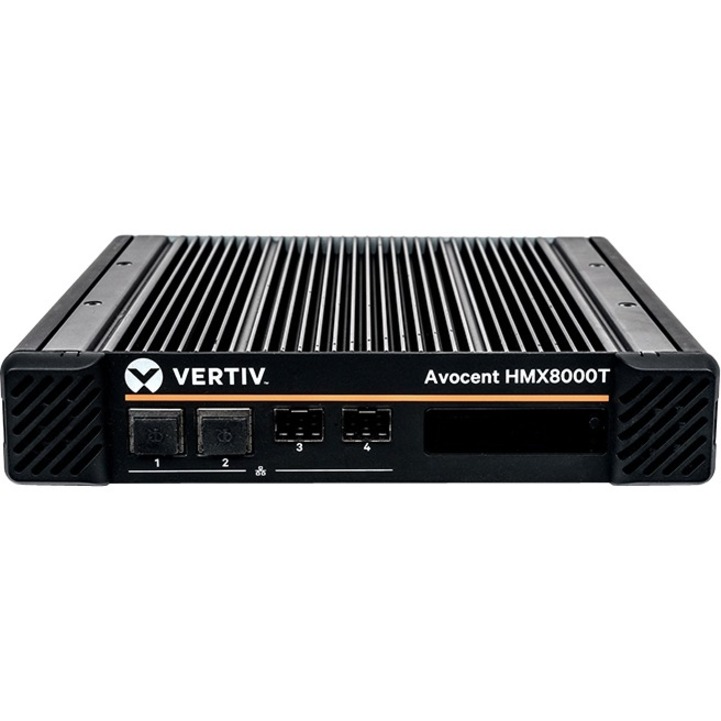

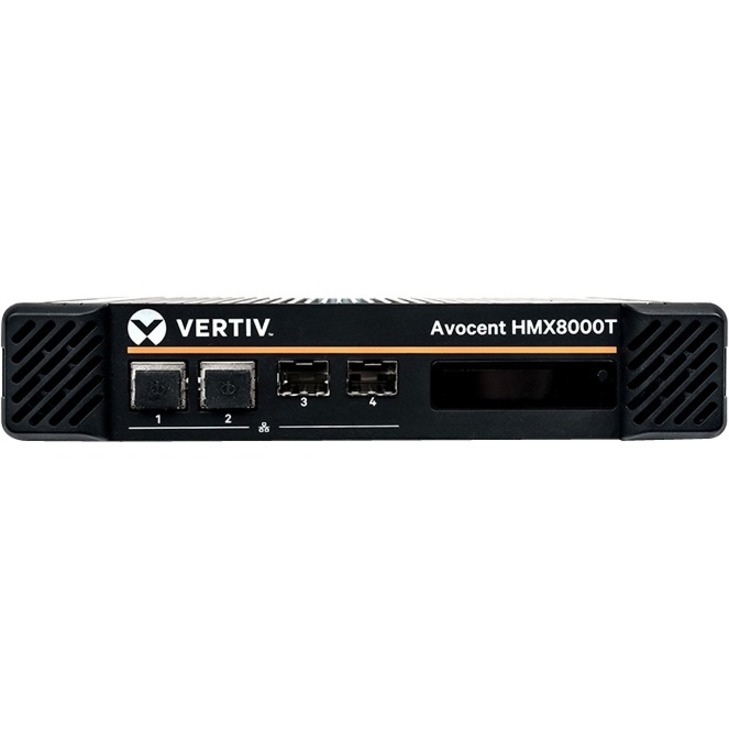

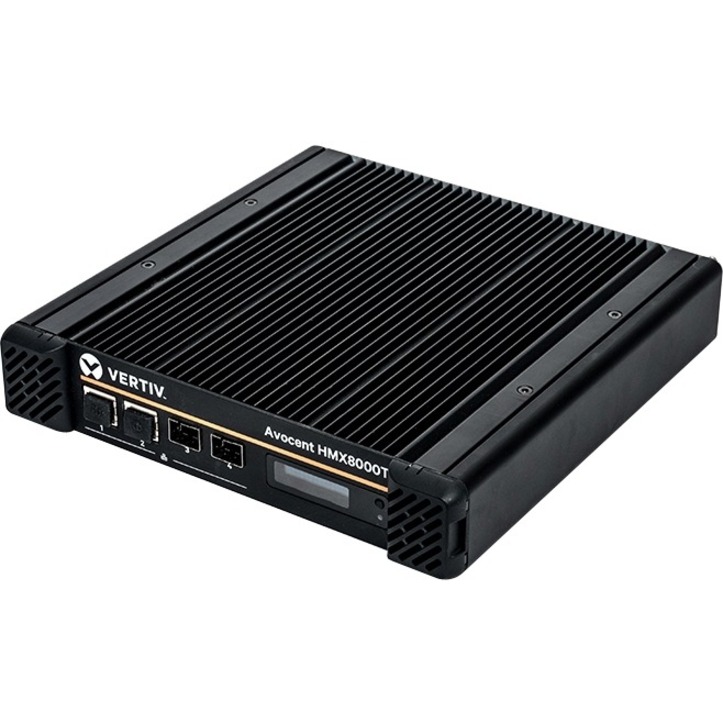

The Vertiv Avocent HMX8000T - IP KVM Transmitter (HMX8000T) is a high performance KVM extender that offers 4K video over a single fiber connection, along with audio and USB. Dual head 4K can be achieved with additional fiber connection. It delivers pixel-perfect, color accurate picture quality at 4K 60Hz and USB2.0 for fast switching. The 1U transmitter enables users to locate critical computing hardware in secure, temperature-controlled environment, away from the user work station to maintain component integrity. It provides access to system computers via a standard IP infrastructure network, allowing users the ability to share computing resources. System control is managed from a single access point through confirmed verification tools. This KVM system is ideal for demanding applications such as media, control rooms and collaborative environments. It is used in broadcasting, post production and many other industries where high resolution and zero latency are required. More from the Manufacturer
4K Video Over 10Gb Fiber Connection
The Vertiv Avocent HMX8000 IP KVM System is a high performance KVM system that provides access to system computers via a standard IP infrastructure network, allowing users the ability to access and share computing resources.it offers 4K video over a single fiber connection, along with audio and USB. It is ideal for demanding applications that require high resolution and zero latency such as in broadcasting, sports venues, pre- and post-production editing, control rooms and collaborative environments. An IP-based KVM (keyboard, video, mouse) extender, it allows critical computing hardware to be housed remotely from the user workstation in a secure, temperature-controlled environment. It is designed to improve productivity, reduce IT costs and produce better business results. This KVM system provides powerful administrative tools and connection-management control for the network resources without compromising quality.
4K video @ 60 Hz -Security via TLS certificate-based encryption
Local area network (LAN) operation with unlimited extension distances; no need for dedicated cabling between user and computer
Onscreen (OSD) display at each user station; remote OSD allows video to be pushed and controlled at another station or video wall
System backups stored internally, externally or via email
Updates may be scheduled hourly, daily or weekly
4K Quality Video
The Vertiv Avocent HMX8000 KVM systems provide pixel-perfect, color accurate picture quality at 4K 60Hz. They deliver real-time, high quality experience that is ideal for demanding and exacting applications. These KVM systems support high quality DVI-D video as well as a comprehensive list of peripheral devices including audio, USB, keyboard, mouse and other devices..
10Gb Ethernet Capability
The HMX8000 KVM systems can transfer information through fiber at 10Gb, increasing productivity and management efficiency. Also, hotkey capability and USB2.0 compatibility allow fast switching. With the ability to switch between target computers in less than a second, users can save time via quick access to critical machines.
Security Remote Access
These IP KVM systems offer a true matrix solution, allowing critical computer hardware to remain in a secure and temperature-controlled environment away from the user workstation while maintaining desktop resolution. This KVM system allows access to any target computer from any access point with IP network so there is no distance limitation.
Broadcast and Video Production
These Vertiv Avocent HMX8000 KVM systems facilitate the creating and editing high-quality broadcast and professional video productions by providing uncompromised video quality or control. The HMX 8000 KVMs offer 4K video capability and ability to transfer information through fiber at 10Gb. The HMX8000 provides flexibility in allowing critical computing hardware that resides in a secure and temperature-controlled environment to remain secure without compromising desktop experience.
Security, Control and Speed
With less than a second switching between target computers and a fully redundant system with auto failover, the HMX8000 KVMs are also used in control rooms, labs, security centers, workstation extensions and other industries where a “many-to-many” configuration is required. Centralized management from a single point ensures security with user administration and verification functions. These KVMs offer quick access to multiple devices from a single access point and include hotkey capabilities.
Remote Access Management
These IP KVM systems can benefit environments where the distance between the user and the computer cannot be limited, such as campuses, arenas or stadiums. These high performance KVM systems make it easy for cooperative sharing of computers while updating and multicasting video and key information to any receiver destination. Any screen application that requires rapid updating can easily be managed through the matrix system by authorized, verified users.
HMX5000
Transmitter (TX)
HMX5100T
HMX5200
1 x DVI-D (5100’s)
1 X VGA, DVI-D, DP (5150)
2 x DVID (5200’s)
1 x USB type B
2 x 3.5mm audio jack 1 X DB9 port Ethernet: 2 x RJ45
1 x SFP cage (MM/SM Fiber or Copper)
Receiver (RX)
HMX5100R
HMX5200R
1 x DVI-D (5100’s) 2 x DVID (5200’s and 6200’s) 4 x USB type A 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket Ethernet: 2 x RJ45 1 x SFP cage (MM/SM Fiber or Copper)
Single/Dual Head
5100 Series - Single
5200 Series - Dual
USB
Supports USB 2.0 devices (low, full and high speed).
Video Resolution
Up to 1920x1200@60 Hz
Audio
Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
Ethernet
1 GB Ethernet for Matrix switching access
10/100 Ethernet for Setup/Administration
Form Feature
Box
Compliance
CE FCC
UL
TAA
HMX6000
Transmitter (TX)
HMX6200T
HMX6210T(VNC)
1 X VGA, DVI-D
2 x DVID (6200’s)
1 x USB type B
2 x 3.5mm audio jack 1 X DB9 port Ethernet: 2 x RJ45 (VNC access on the 6210T)
1 x SFP cage (MM/SM Fiber or Copper)
Receiver (RX)
HMX6200R
1 x DVI-D (5100’s) 2 x DVID (5200’s and 6200’s) 4 x USB type A 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket Ethernet: 2 x RJ45 1 x SFP cage (MM/SM Fiber or Copper)
Single/Dual Head
All Dual Head
USB
Supports USB 2.0 devices (low, full and high speed).
Isochronous devices are not supported (e.g. USB audio or video devices) natively. The USB6000 device can be added for Isochronous device.
Video Resolution
Up to 2560x1600 @ 60 Hz.
Audio
Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
Ethernet
1 GB Ethernet for Matrix switching access
10/100 Ethernet for Setup/Administration
Form Feature
Box
Compliance
CE FCC
UL
TAA
HMX8000
Transmitter (TX)

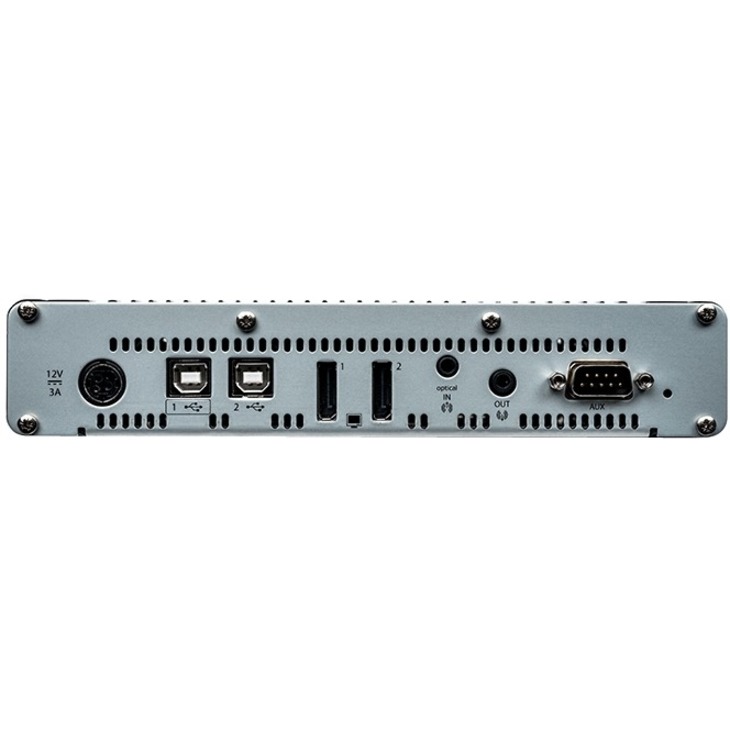

HMX8000T
2 x DisplayPort™,
2 x USB type B
2 x 3.5mm audio jack
1 x DB9 port Ethernet: 2 RJ45
2x SFP+ cages (MM or SM Fiber support)
Receiver (RX)
HMX8000R
2x DisplayPort™, 5x USB type A, 2x 3.5mm audio jack sockets, 1x 3.5mm SPDIF socket Ethernet: 1 RJ45 2x SFP+ cages (MM or SM Fiber support)
Single/Dual Head
All Dual Head
USB
4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch. USB device seen as: 7 or 13 port hub
Video Resolution
Supports 4K UHD or DCI and refresh rates to 60Hz 4K video over single 10Gb fiber. Add second 10 Gb fiber for dual head
Audio
Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
Ethernet
10 GbE (No 10/100/1000 support)
Form Feature
Box
Compliance
CE FCC
UL
TAA
HMX5150
Transmitter (TX)
HMX5150T
1 x (DP or VGA or DVI-D)
Receiver (RX)
NA
Single/Dual Head
Single Head Only (DP,VGA,DVI-D)
USB
Supports USB2.0 full and low speed (No HS support) USB features: Keyboard, mouse and touch.
USB device seen as: 7 or 13 port hub
Video Resolution
Up to 1920x1200@60 Hz
Audio
Line in/out USB audio 2 channel 16bit 48KHz
Ethernet
1GbE (No 10/100 support)
Form Feature
Dongle
Compliance
CE
FCC
Limited Warranty: 2 Year
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
| General Information | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | HMX8000T-400 |
| Brand Name | Vertiv AVOCENT |
| Product Series | HMX8000T |
| Product Model | HMX8000 |
| Product Name | HMX 8000 Transmitter |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | No |
| USB | Yes |
| DVI | No |
| Headphone | Yes |
| Microphone | Yes |
| HDMI | No |
| VGA | No |
| DisplayPort | Yes |
| Proprietary Interface | Yes |
| Number of HDMI Ports | 0 |
| Number of VGA Ports | 0 |
| Number of Network (RJ-45) Ports | 2 |
| Number of PS/2 Ports | 0 |
| Number of USB Ports | 2 |
| Number of DVI Ports | 0 |
| Physical Characteristics | |
| Rack Height | 1U |
| Transmitter Depth | 1.60" |
| Power Description | |
| Input Voltage | 12 V AC |
| Power Consumption | 20 W |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Digital |
| Device Type | High Performance KVM |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Platform Supported | Linux, Mac, PC |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
