WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - 1 x DVI - 5 V DC Input Voltage - Rack-mountable
MSRP$1,410.00
$1,103.74
Save 22%In stock: 92
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

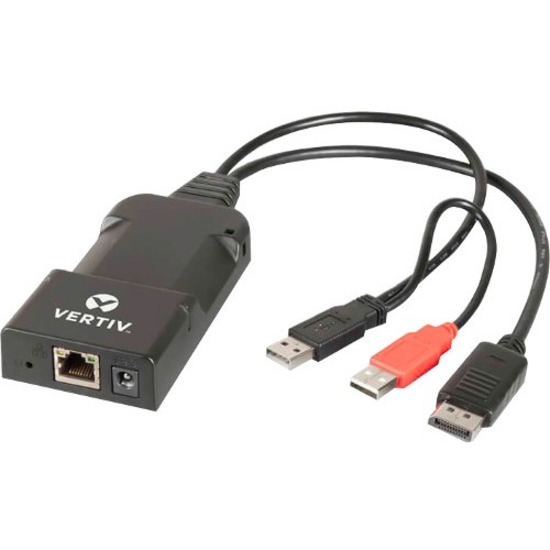

Avocent® High Performance HMX 5150/5160T/6150T are zero-U transmitters that are part of the Avocent® HMX 5000/6000/8000 series system product line. These high performance, IP-based KVM (Keyboard, Video, Mouse) dongles can be used in either extender or matrix mode and enable the use of standard IT infrastructure to extend computers away from the user environment.
The Avocent HMX 5150T/5160T/6150T are backwards compatible with the existing Avocent HMX Advanced Manager and current Tx and Rx offerings. The 5150T/ 5160T offers resolution up to 1920x1200 @ 60Hz and is available with either VGA or DVI-D connectors. The 6150T supports up to 2K (2560x1600) @ 60Hz resolution via HDMI or DP and offers USB 2.0 True Emulation & High Speed.
• Zero-U form
• IP-based: use your existing network
• USB and low
• power consumption
• Supports video resolutions up to 2560 x 1600 @60Hz
• Easy retrofit into existing infrastructure
• Plug and play
• Available in DP, HDMI, DVI-D and VGA
Features | Zero-U Size
The Avocent HMX 5150T/6150T takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation.
IP-Based
Use your existing networking infrastructure to extend or matrix your computing resources to your users.
USB and Low Power Consumption
Both the 5150T and 6150T family can be powered from USB which does not require an external PSU. Additionally, through the USB, these devises require less than 3 Watts; less than a quarter of the energy when compared with other solutions.
Multiple Video Options
The Avocent HMX 5150T/5160T supports resolutions up to 1920x1200@60H via VGA or DVI-D and the HMX6150T supports resolutions up to 2K (2560x1600) @ 60Hz via DP or HDMI.
USB 2.0
USB 2.0 enables you to connect any USB HID (human interface device) from mouse and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. The Avocent HMX 5160T and 6150T also support high speed devices such as USB hard drives.
Seamless Integration With The Avocent HMX 5000/6000/8000 Series
The Avocent HMX 5150T/5160T/6150T can integrate seamlessly into your existing Avocent HMX 5000/6000/8000 Series setup, replacing or working in conjunction with your existing Avocent HMX endpoints.
EDID Management
The Avocent HMX 5150T/5160T/6150T has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed.
Digital KVM Matrix
With the addition of an Avocent HMX Advanced Manager, you can turn multiple point-to-point extenders into a fullymatrixed KVM solution that enables any workstation to connect to any authorized computer in the system.
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
| General Information | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | HMX5160T-DVID |
| Brand Name | Vertiv AVOCENT |
| Product Name | 5160T Zero-U IP KVM Transmitter |
| Product Type | KVM Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Number of DVI Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Width | 2.17" |
| Transmitter Depth | 0.98" |
| Transmitter Weight (Approximate) | 7.05 oz |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Consumption | 5 W |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Digital |
| Device Type | Matrix KVM |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
Matched on 1920 x 1200 · Wired
