Eaton Tripp Lite Series KVM Extender with VGA and USB Connections, Up to 330 ft.
330 ft Range - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x VGA - 240 V AC Input Voltage - For Windows, Mac
- SKU
- B013-330-USB
- Category
- KVM Consoles/Extenders
MSRP$600.06
$391.34
Save 35%In stock: 112
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B013-330-USB
- Category
- KVM Consoles/Extenders
Overview

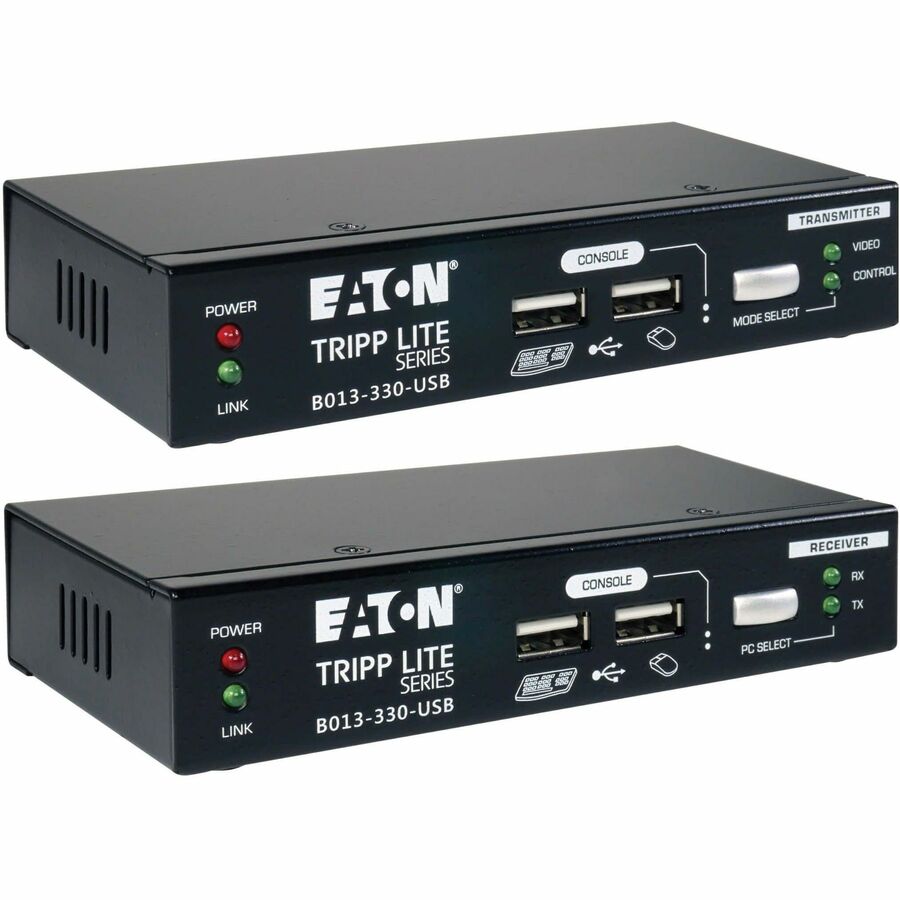

Extends Console up to 330 ft. from Computer, KVM or Server
This KVM extender lets you control a computer, server or KVM switch from up to 330 feet (100 meters) away. Just connect the included transmitter and receiver with a Cat5 UTP cable (sold separately). Console ports on both the transmitter and receiver allow local or remote control of the connected device. Plus, the receiver doubles as a two-port KVM, allowing the connection of a local computer.
Recommended for Small to Medium-Sized Businesses (SMBs)
Being able to extend VGA video and USB signals up to 330 feet is ideal in commercial office spaces where the computers are not close to your workstation, as well as SMB applications needed KVM switches without requiring an IP network for long-distance control. The B013-330-USB supports VGA video resolutions up to 1920 x 1200.
Pure Hardware Solution Is Easy to Install and Operate
The B013-330-USB supports all major operating systems, including Windows and macOS. All necessary cables are included as a convenient off-the-shelf package, making the KVM Extender simple to maintain. As a pure hardware solution, you don't have to worry about software/network conflicts. This KVM Extender is compatible with any computers using VGA and USB connections.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Extends VGA video + USB keyboard/mouse from your computer up to 330 ft.

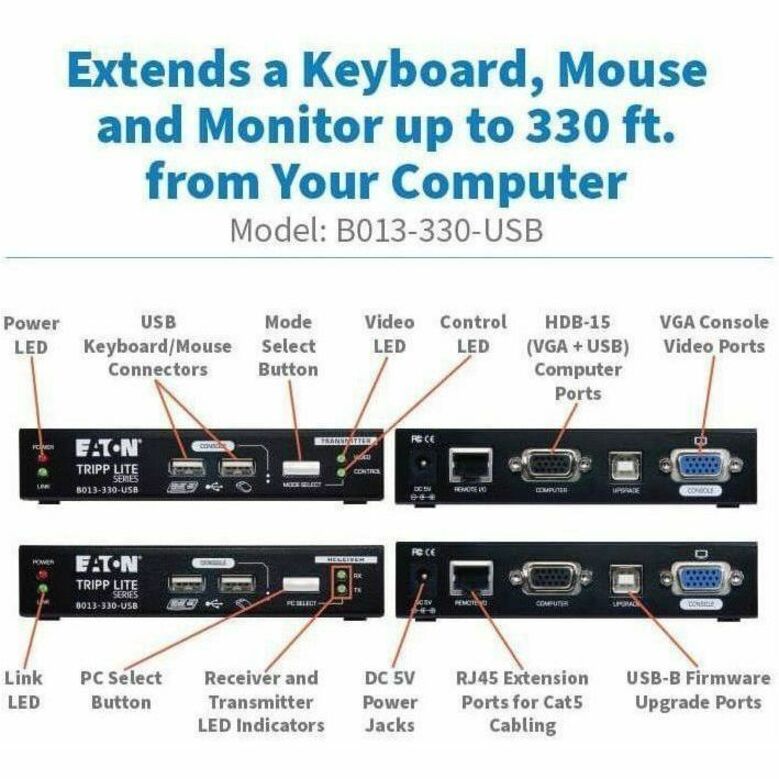

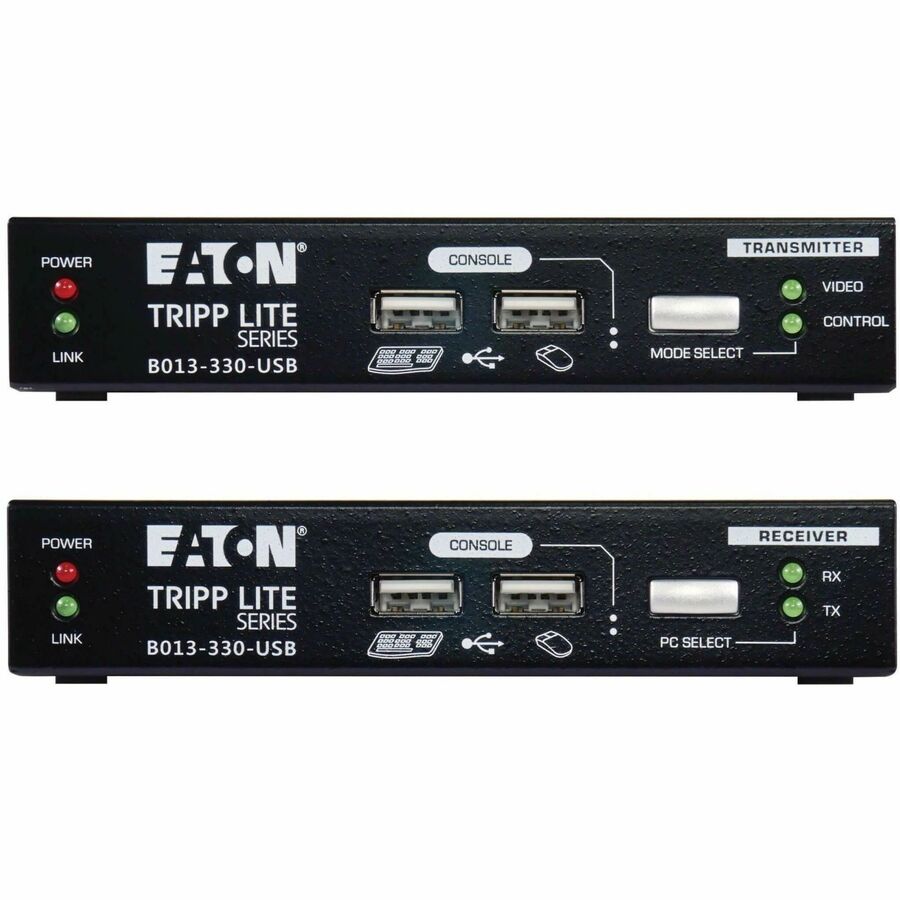

- Console ports on each end allow for local or remote control of connected computer
- Receiver doubles as 2-port KVM, allowing for connection of a local computer
- Supports VGA video resolutions up to 1920 x 1200, including 1080p
- Easy to install and operate with all necessary cables included
Specifications

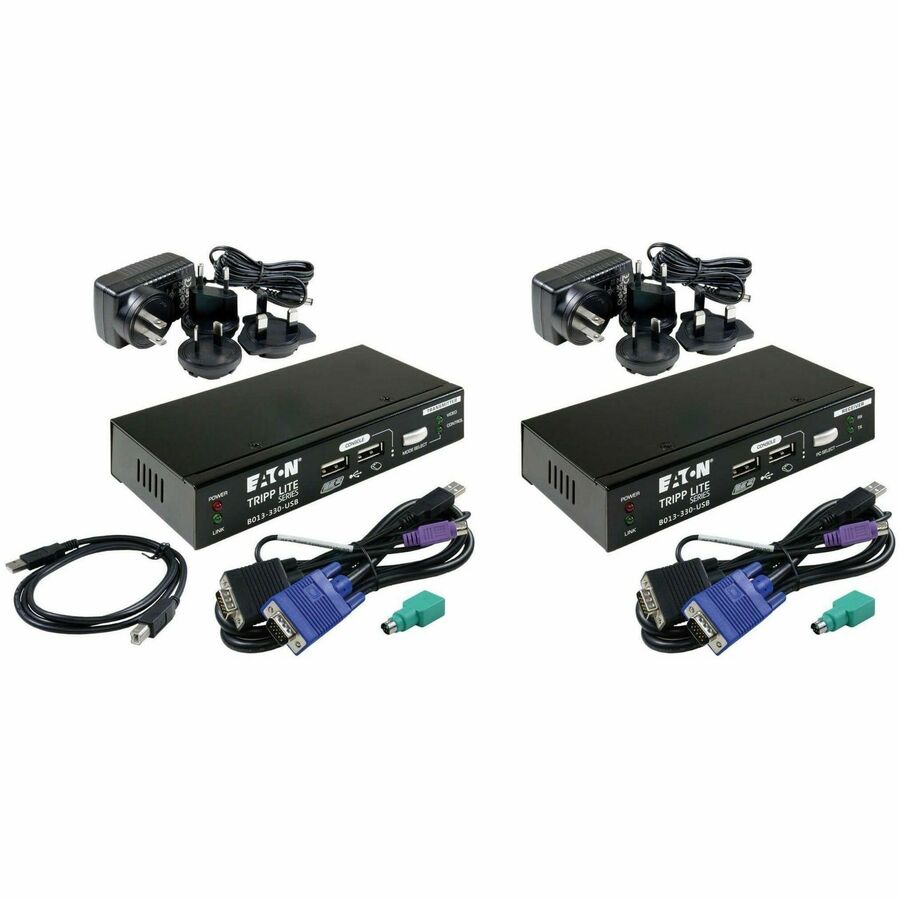

| Package Contents | KVM Extender with VGA and USB Connections, Up to 330 ft. (2) USB KVM combo cables USB-A to USB-B upgrade cable (M/M) (2) External power supplies (Input: 100-240V, 50/60 Hz, 0.6A; Output: 5V 2A) with 6 ft. (1.8 m) cord (8) International plug adapters Quick Start Guide |
|---|---|
| Product Type | KVM Extender |
| Input Voltage | 240 V AC |
| Manufacturer Part Number | B013-330-USB |
| Packaged Quantity | Box |
| Platform Supported | Windows, Mac |
| Limited Warranty | 3 Year |
| Connectivity Technology | Wired |
| Manufacturer | Eaton Corporation |
| Product Model | B013-330-USB |
| Product Name | KVM Extender with VGA and USB Connections, Up to 330 ft. |
| Brand Name | Tripp Lite series |
| Input Voltage Range | 100-240V |
| Country of Origin | China |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 330 ft |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 6 |
| Number of VGA Ports | 4 |
| Transmitter Height | 1.02" |
| Transmitter Width | 5.15" |
| Transmitter Depth | 2.55" |
| Receiver Height | 1.02" |
| Receiver Width | 5.15" |
| Receiver Depth | 2.55" |
| Transmitter Weight (Approximate) | 10.22 oz |
| Receiver Weight (Approximate) | 10.22 oz |
| Device Type | KVM Extender |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
