1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 3 x USB - 1 x HDMI - DisplayPort - 120 V AC, 230 V AC Input Voltage - Rack-mountable - TAA Compliant
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

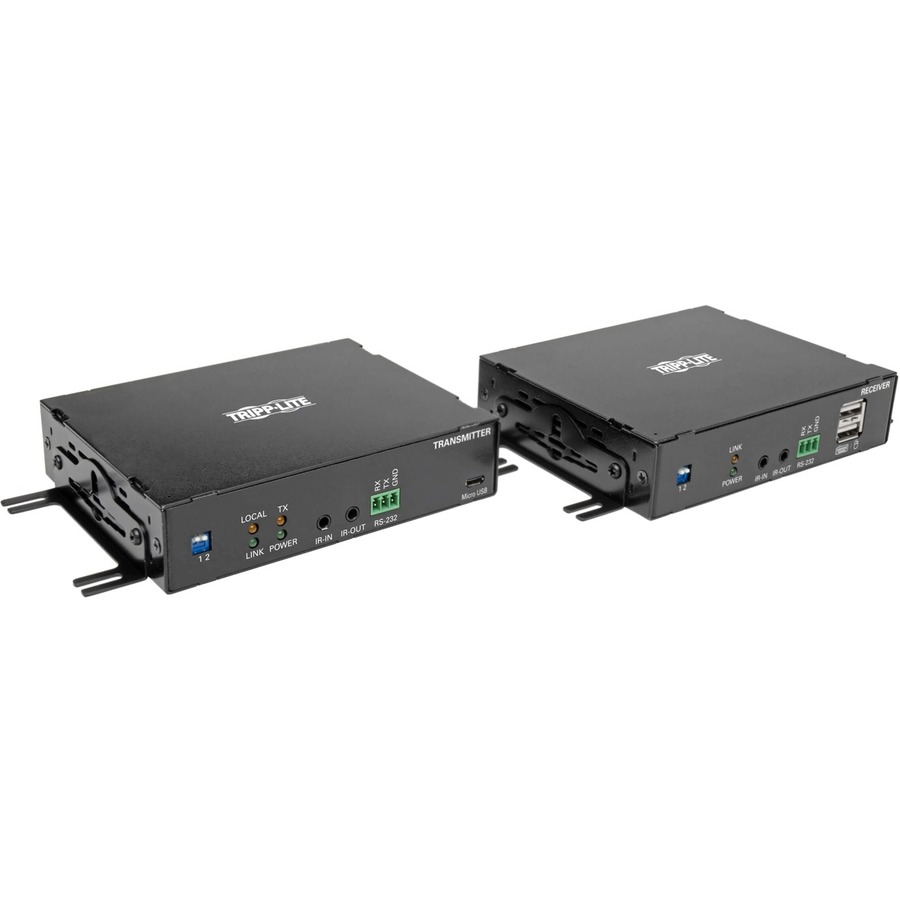

Transmitter/receiver kit extends a 4K DisplayPort signal via multimode fiber cable to a DisplayPort monitor up to 985 ft. away.
Features
DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-MM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling.
Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-MM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

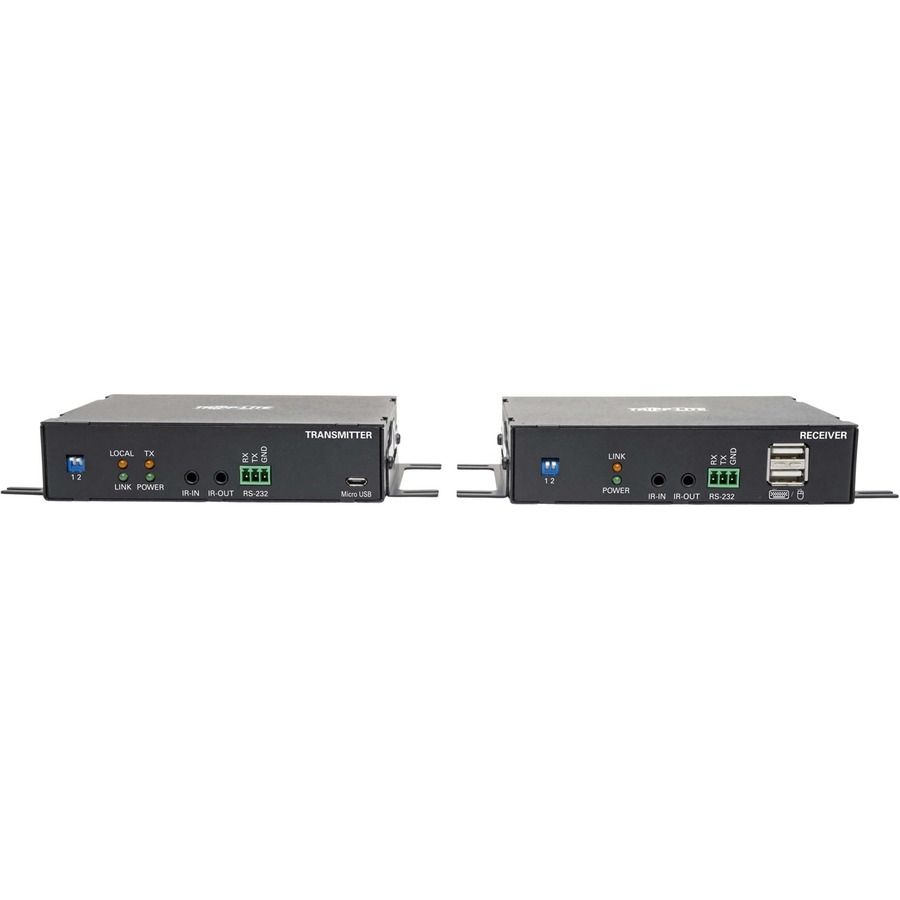

DIP Switches Extend Your Choice of USB, IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use

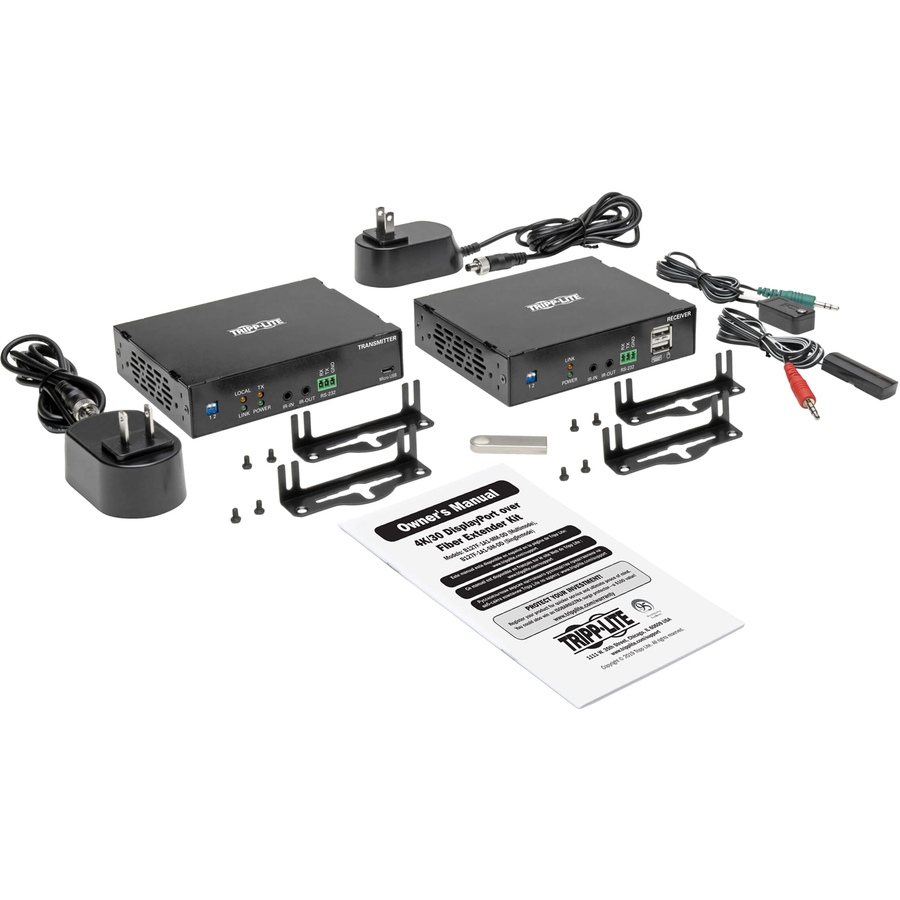

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then, connect the two units using a duplex multimode LC fiber cable (Tripp Lite N820-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 985 feet away.
TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-MM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. More from the Manufacturer
DisplayPort Over Fiber Kit Accommodates Long Cable Runs
The B127F-1A1-MM-DD extender kit transmits a DisplayPort signal over multimode fiber cable up to 985 ft. (300 m) from the transmitter unit to the receiver unit, letting you reach your audience in an environment where source and display devices are widely dispersed. By transmitting over optical lines, it protects signals against electromagnetic interference better than copper cables. Its EDID and multi-resolution capabilities mean you won’t sacrifice 4K signal quality on your main display if a lower-quality 1080p local monitor is connected.
Accommodate the Equipment You Have
DIP switches let you choose from IR remote control, USB control or RS-232 control for legacy A/V systems and peripherals like barcode scanners, label makers and older network switches.
Multi-resolution support and EDID auto-adjustment preserve picture quality on high-resolution displays when lower-quality devices are connected.
Included international plug adapters: NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS1363 (UK) and AS/NZ 3112 (Australia).
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127F-1A1-MM-DD |
| Brand Name | Tripp Lite series |
| Product Model | B127F-1A1-MM-DD |
| Product Name | B127F-1A1-MM-DD Video Extender Transmitter/Receiver |
| Product Type | KVM Console/Extender |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 1 |
| Number of USB Ports | 3 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.06" |
| Transmitter Width | 4.53" |
| Transmitter Depth | 2.46" |
| Receiver Height | 1.06" |
| Receiver Width | 4.53" |
| Receiver Depth | 2.46" |
| Transmitter Weight (Approximate) | 1.10 lb |
| Receiver Weight (Approximate) | 1.10 lb |
| Power Description | |
| Input Voltage | 120 V AC, 240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 1000 ft |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
