Tripp Lite by Eaton DisplayPort over Fiber Extender Kit Transmitter/Receiver 4K 4:4:4 Singlemode LC Up to 6.2 mi. TAA

Transmitter/receiver kit extends a 4K DisplayPort signal via singlemode fiber cable to a DisplayPort monitor up to 6.2 miles away.

Features

DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.

Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color

The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

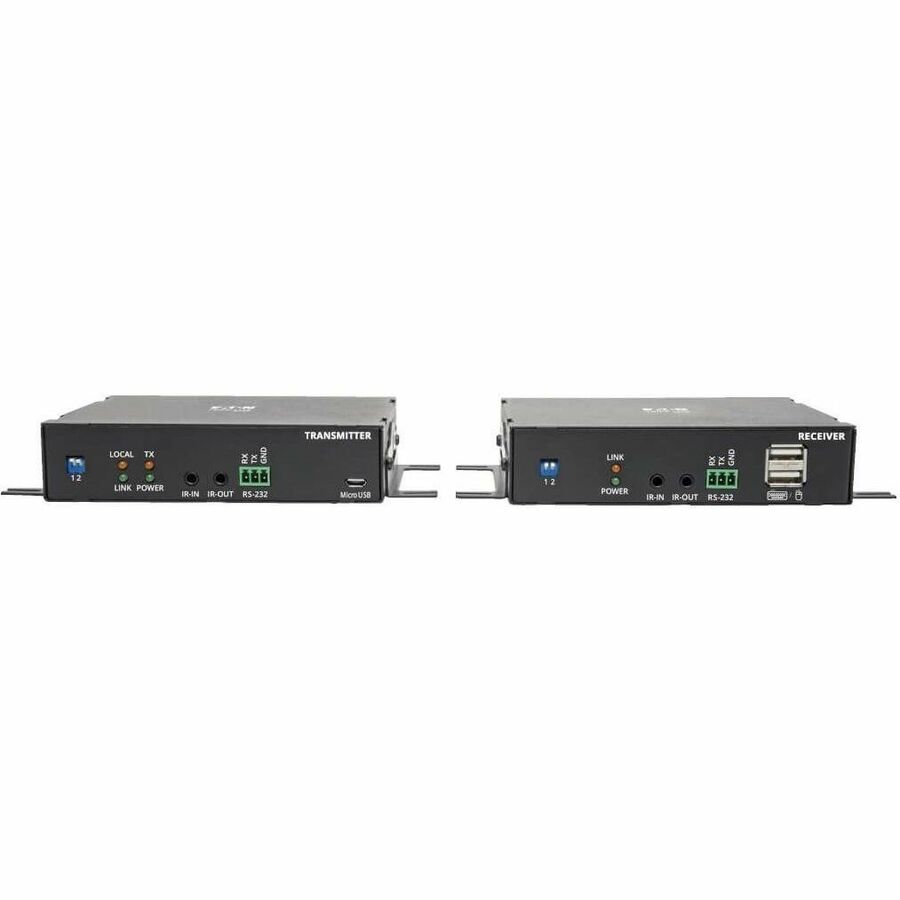

DIP Switches Extend Your Choice of USB, IR or RS-232 Signals

The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.

Plug-and-Play Operation for Quick Setup and Immediate Use

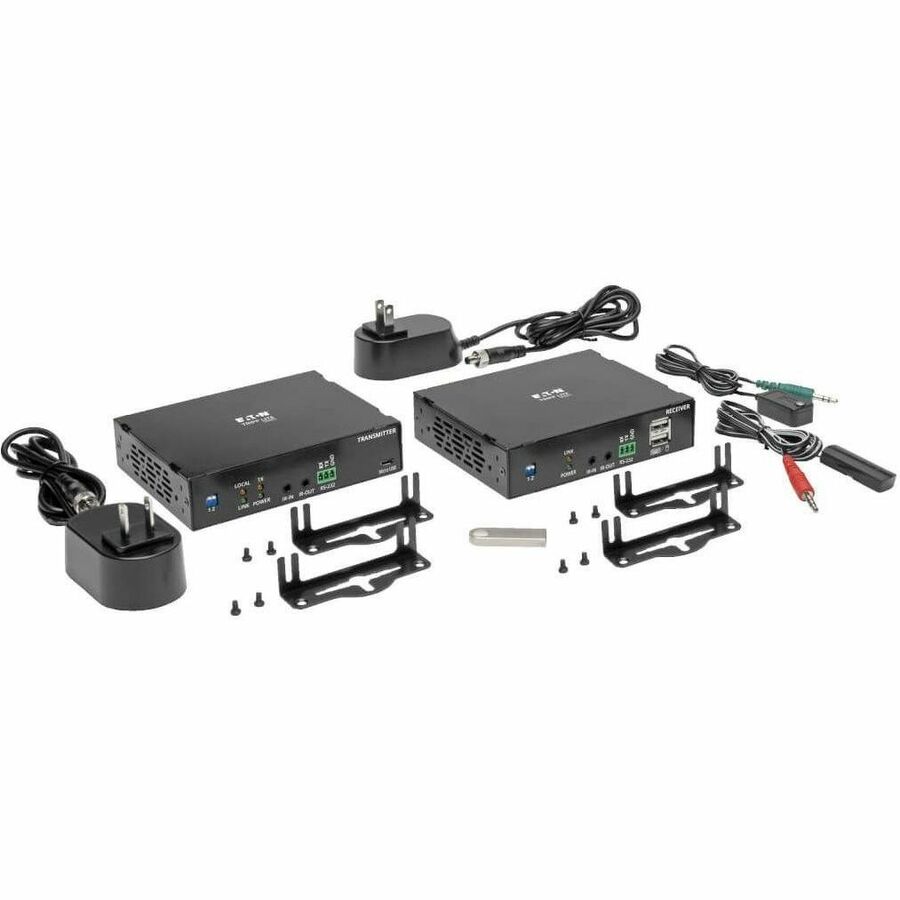

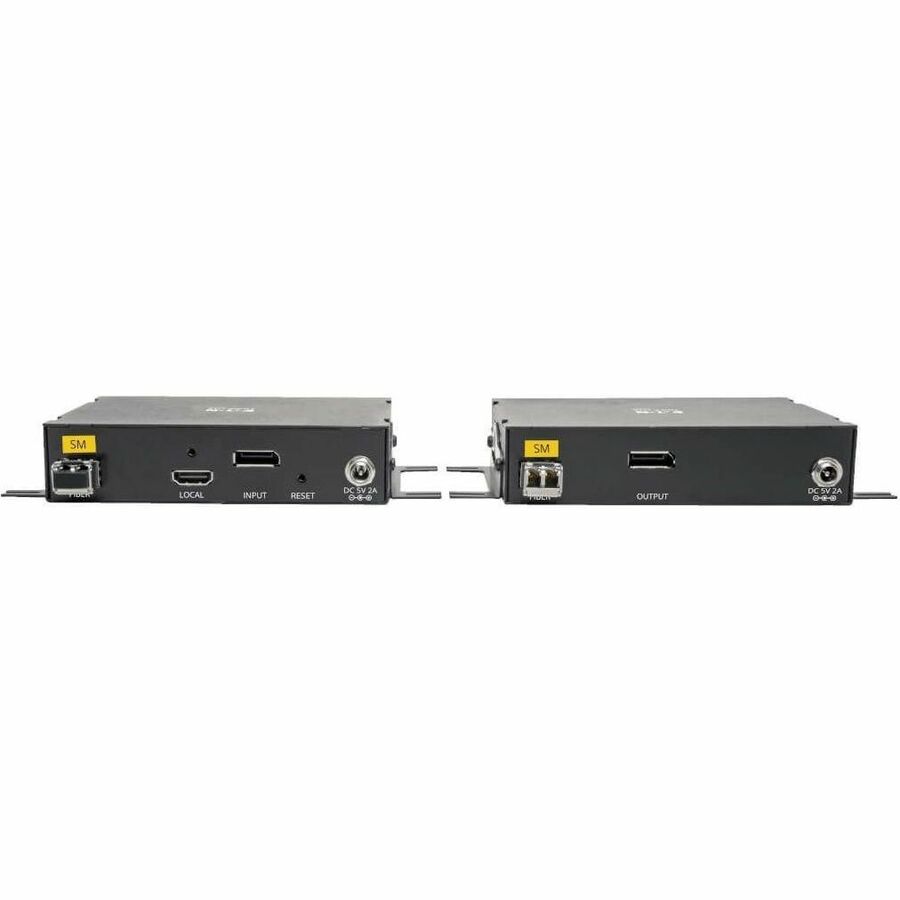

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N520-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 6.2 miles away.

TAA-Compliant for GSA Schedule Purchases

The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. More from the Manufacturer

Display 4K UHD Video with Dolby Audio

This extender transmits Ultra High-Definition (UHD), High Dynamic Range (HDR) video for richer contrast and expanded color accuracy.

· Video resolutions up to 3840 x 2160 at 30 Hz

· HDR video support

· Meets DisplayPort 1.2a standards, including 4:4:4 chroma subsampling for richer colors

· Supports uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio

Convenient, User-Friendly OperationThe B127F-1A1-SM-DD features plug-and-play setup with no software required for easy, immediate installation. Included IR sensors let you control the source content from the display; for example, while showing content from a cable box on a remote display, you can use the cable box remote control to manage the content directly from the display, without needing to be within the box’s native signal range.

Accommodate the Equipment You Have

DIP switches let you choose from IR remote control, USB control or RS-232 control for legacy A/V systems and peripherals like barcode scanners, label makers and older network switches.

Multi-resolution support and EDID auto-adjustment preserve picture quality on high-resolution displays when lower-quality devices are connected.

Included international plug adapters: NEMA 1-15P (North America), CEE 7/16 Schuko (Europe), BS1363 (UK) and AS/NZ 3112 (Australia).
