Tripp Lite by Eaton HDMI HDBaseT KVM Console Extender over Cat6 - 2 USB Ports IR 4K 30 Hz (130 ft.) 1080p (230 ft.)

Features

KVM Console Extender for Digital Signage or Extending Video in Offices or Command Centers

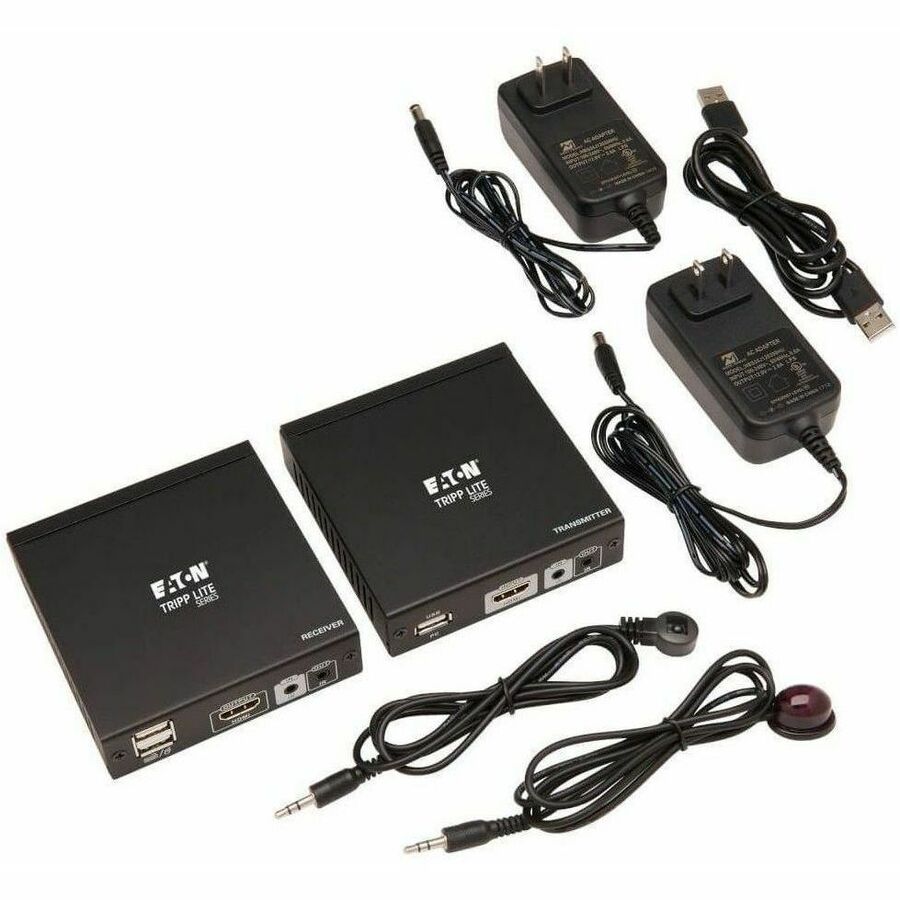

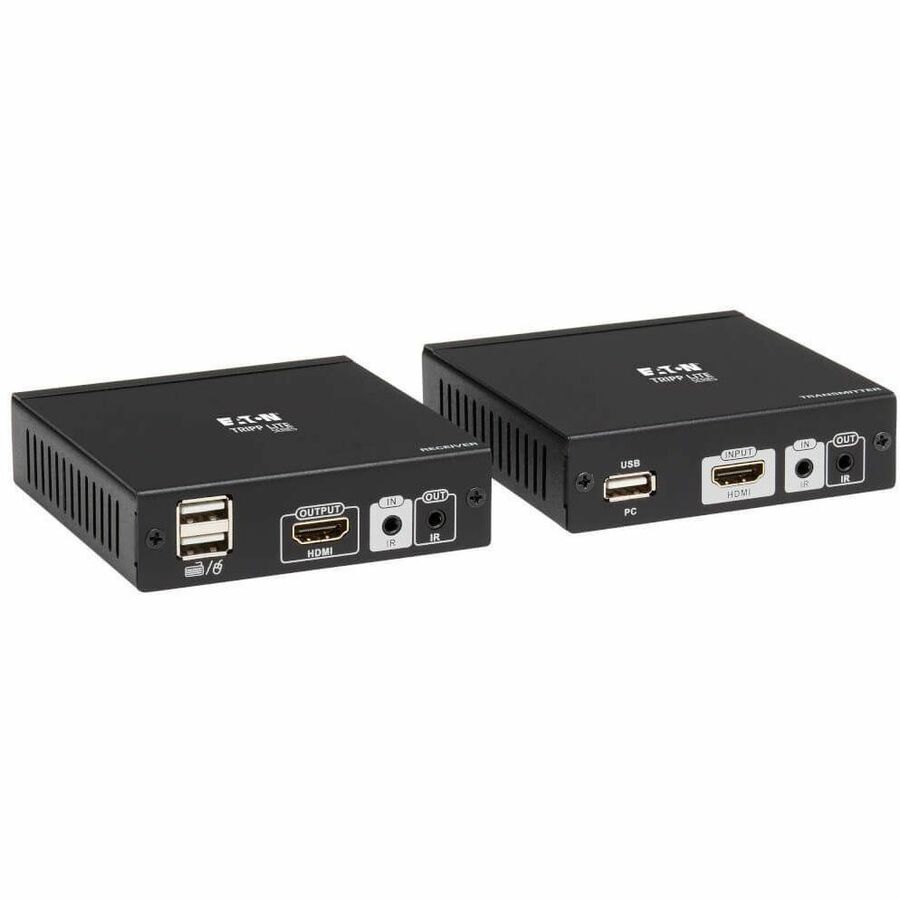

This extender kit includes a transmitter (local unit) and a receiver (remote unit) that work in tandem to extend and distribute HDMI audio/video, USB and IR (infrared) remote signals. Using Cat6 cabling (sold separately), the B013-HU-4K transmits 1080p video from a computer, Blu-ray player or other media center to an HDMI display or interactive whiteboard located up to 230 feet away. By connecting a keyboard and mouse to the receiver's dual USB ports, you can also control the source device from that same distance.

Recommended for Digital Signage or Extending Video Across Offices or Command Centers

Especially useful in control or security applications, the B013-HU-4K is ideal for command centers, data control centers, banks, governments, enterprise applications and especially any harsh environments, such as factories and warehouses. By extending audio/video signals, you can safely store your source computer in a cabinet or other enclosure, keeping it free of dust and blocking noise created by its fans, while watching the display in a different room or even a warehouse or factory floor.

Transmits Both 1080p and Uncompressed 4K Video and LPCM Audio with Zero Latency

This HDBaseT kit extends 1080p video resolutions up to 230 feet, as well as 4K video (3840 x 2160 at 30 Hz) up to 130 feet with 24-bit Deep Color (8 bits per channel). It also supports uncompressed LPCM, compressed DTS-HD and compressed Dolby TrueHD audio with no signal loss or added latency.

IR Pass-Through Technology Lets You Control the Video from the Next Room

Full bi-directional IR extension lets you control the source device with its remote (play, pause, fast forward, etc.), while you're standing near the receiver in another room. Video and audio will play without stalling or delayed data transmission. Make sure the transmitter's IR bulb is within sight of the source and the receiver's IR bulb is in range of the source's remote.

Plug-and-Play Operation for Quick Setup and Immediate Use

The included transmitter and receiver units work right out of the box with no software required. Because they connect using existing network infrastructure, you avoid the hassle and expense of running new Cat5e/6 cables. LED indicators alert you of power and connection status of both units at a glance.

Typical Applications

• Keep your video sources in a secure or quiet location, with a display located elsewhere for viewing by the intended audience

• Extend 4K video over existing Cat6 cabling to cut costs on infrastructure

• Create an easily updatable video board communicating dynamic information, such as a restaurant menu or a theater schedule

• Display arrivals, departures and up-to-the-minute information in an airport or train station

• Connect an interactive whiteboard to use for visual aids in your lecture or presentation

System Requirements

• Source devices with HDMI output (media server, Blu-ray player, PC)

• Display device with HDMI input (HDTV, projector, whiteboard)

• USB keyboard and mouse

More from the Manufacturer

Transmitter/Receiver Combo Extends HDMI, USB & IR Signals Up to 230 ft.

The B013-HU-4K over Cat6 Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend HDMI audio/video, USB and IR remote control signals from a computer, Blu-ray player or media center to an HDMI display up to 230 ft. away. By extending signals, you can safely store the source in an enclosure to keep it secure from tampering and free of dust and debris.

Typical Applications

Keep video sources in a secure or quiet location while display is located elsewhere

Extend 4K video over existing Cat6 cabling to cut costs

Create an easily updatable video board in fast-moving industries

Display up-to-date travel information in airports and train stations

Connect to an interactive whiteboard in lectures or presentations

Supports the Latest Video and Audio Resolutions

The B013-HU-4K transmits both 1080p and uncompressed 4K video and LPCM audio with zero latency.

Delivers 4K picture quality at Ultra HD resolutions (3840 x 2160 @ 30 Hz) up to 130 ft.

Extends 1080p video resolutions up to 230 ft.

Supports uncompressed LPCM, compressed DTS-HD and compressed Dolby TrueHD audio

Control Video from Another Room

Full bi-directional IR extension lets users control the source device while standing near the receiver in another room with no stalling or delayed data transmission.

Safely store the source in another location without sacrificing control

IR-In and IR-Out cables are included

Access the Source Remotely

While at the display, the receiver’s dual USB ports provide source device control when connected to a keyboard and mouse.

View and control the video source without leaving the remote display

Eliminate the need to go back and forth between the source and display

Ready to Use Right Out of the Package

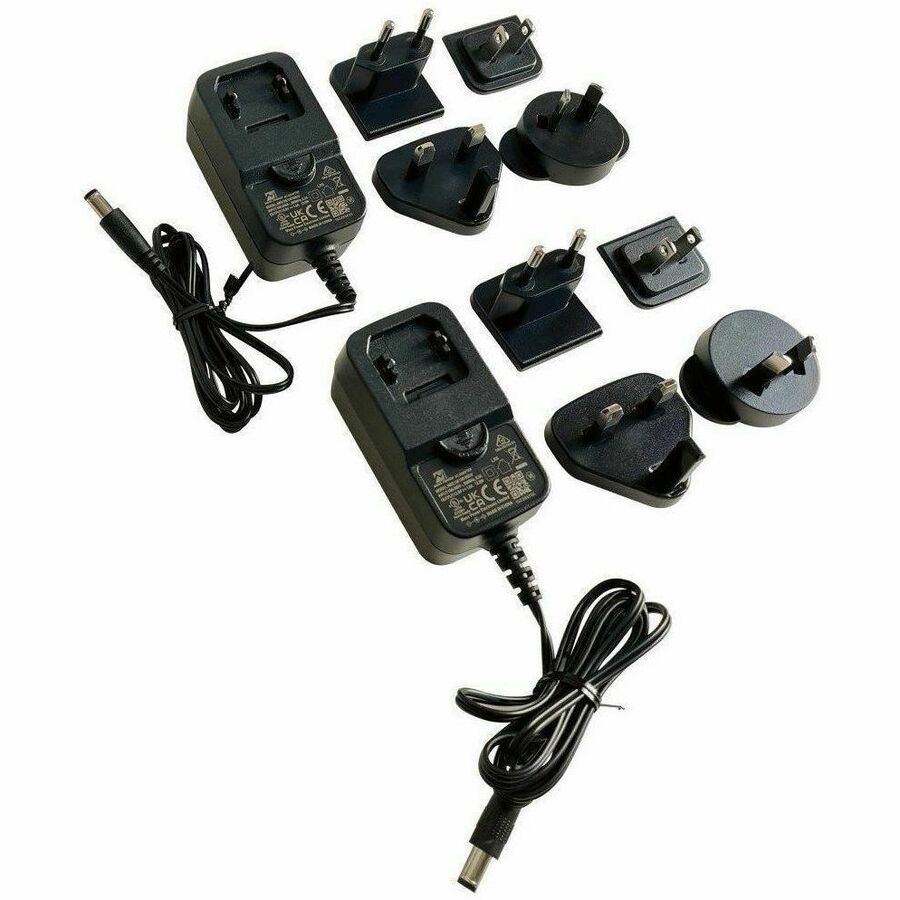

With no software or drivers required, the B013-HU-4K’s transmitter and receiver are completely plug and play. Included international plug adapters provide connection to a wide range of inputs.

Plug-and-play installation

No additional software or drivers required
