1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 492.13 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - 5.3 V DC Input Voltage - Rack-mountable
MSRP$342.00
$247.65
Save 28%In stock: 501
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

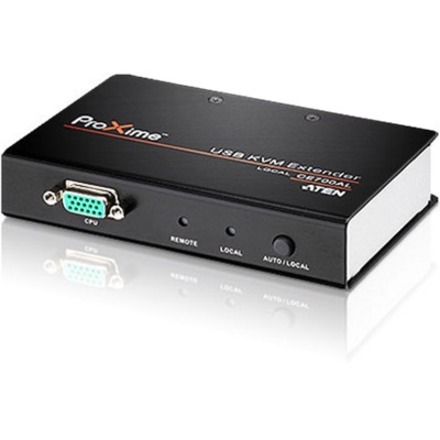

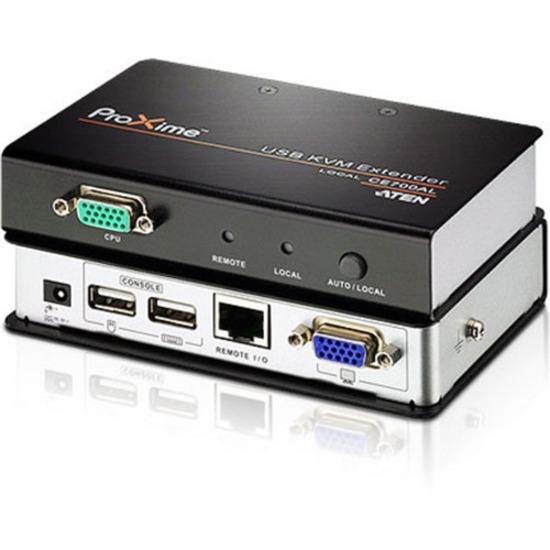

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
More from the Manufacturer
Powered by GfK Etilize
USB VGA Cat 5 KVM Extender (1280 x 1024@150m)

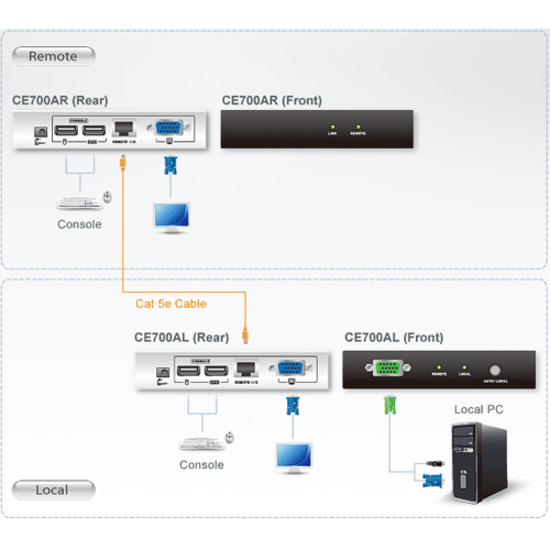

Cat 5e cable connects the Local and Remote Units - up to 150m apart
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Automatic gain control - adjusts signal strength to compensate for distance
The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.
Features
Cat 5e cable connects the Local and Remote Units - up to 150m apart
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Automatic gain control - adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Supports Wide Screen formats *
Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
Multiplatform support - Windows, Linux
Limited Warranty: 2 Year
Simply Better Connections ATEN Technology, Inc. is the technology leader and global manufacturer of KVM and Pro AV connectivity solutions, and the U.S. subsidiary of ATEN International Co., Ltd. (TWSE: 6277), established in 1979. A certified member of the HDBaseT Alliance, holding over 640 industry patents, ATEN offers integrated KVM, Professional Audio (Pro AV), and Intelligent Power solutions, across all industries including corporate , commercial, government , industrial, entertainment, educational and retail environments. A technology-first company, ATEN’s advanced ability to quickly develop customized solutions in KVM, Pro AV, PDU , USB , and data communication lines allows the company to build products that connect, manage and optimize electronics based on customer need. ATEN’s comprehensive portfolio of innovative, reliable products is available worldwide, with local U.S support. For more information, visit: http://www.aten.com/us/en/ Markets & Solutions Broadcasting & Media Today's broadcasting and media environment demands versatile, adaptable, and forward-thinking solutions. With media delivery and technology evolving at a rapid rate, media professionals are now looking toward multi-platform content support, efficient power management, and immersive image delivery. Professionals in the field require the power to access content remotely via stable, secure, and fast multimedia data channels. Corporate The corporate environment requires integrated solutions that are flexible, forward–thinking, and that make communication simple. Corporations need to be able to seamlessly and securely distribute information to key stakeholders around the world. They need KVM and A/V solutions that create a framework for effortless meetings, data sharing, and communication with customers. Education Teaching technology and techniques are evolving quickly. Technology has now become a critical educational resource that has helped lessons to become more personalized, collaborative, and interactive. Educators are taking advantage of various innovations to improve teaching effectiveness, learning outcomes, and even extend the reach of institutional resources.. Government Changes in technology have transformed the way government services operate. Today's tech-savvy citizens expect government agencies to maintain up-to-the-minute, secure, and reliable information that is readily available. To meet these challenges, government departments require a dynamic, scalable communication solution that seamlessly delivers information between different stakeholders and heterogeneous systems.
| General Information | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE700A |
| Brand Name | ATEN |
| Product Line | ProXime |
| Product Model | CE700A |
| Product Name | Proxime CE700A KVM Console/Extender |
| Packaged Quantity | 1 |
| Product Type | KVM Console/Extender |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Proprietary Interface | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 11.29 oz |
| Receiver Weight (Approximate) | 10.93 oz |
| Power Description | |
| Input Voltage | 5.3 V DC |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 492.13 ft |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | China |
