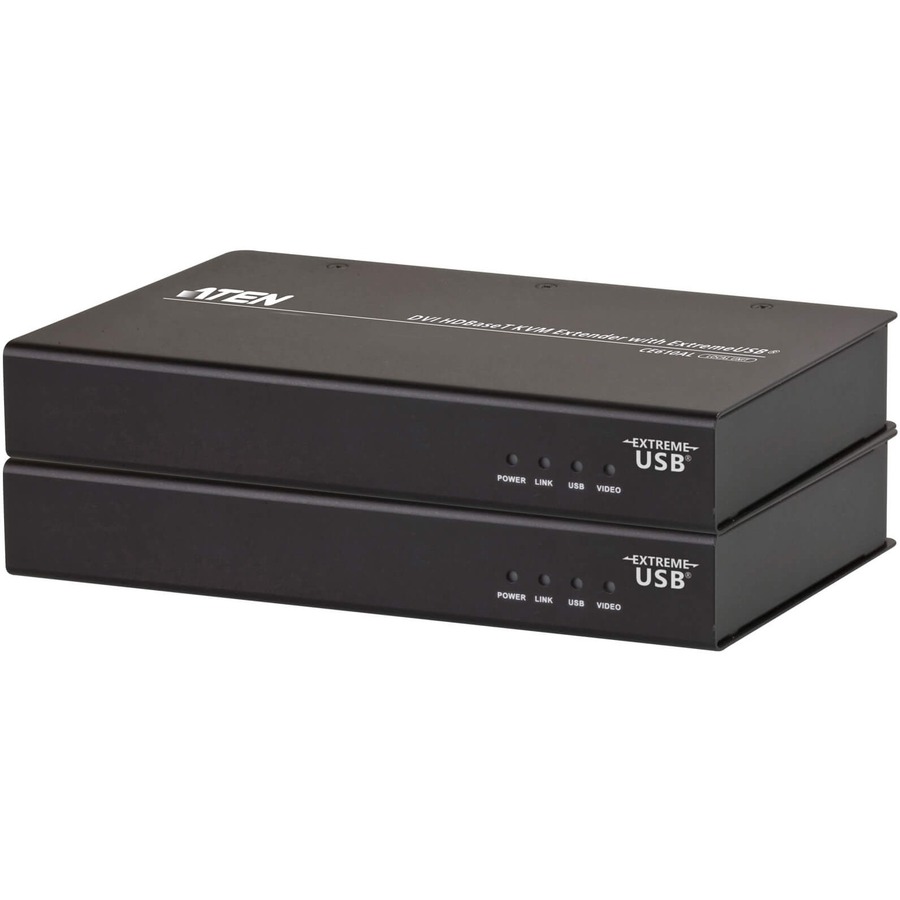

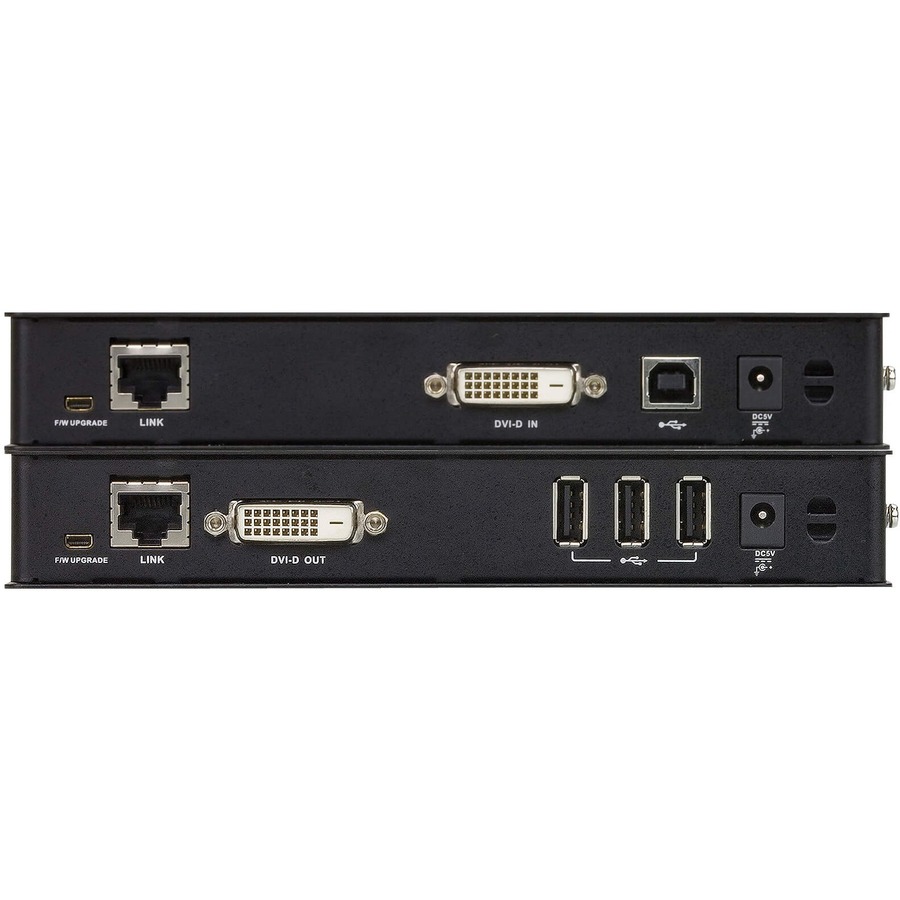

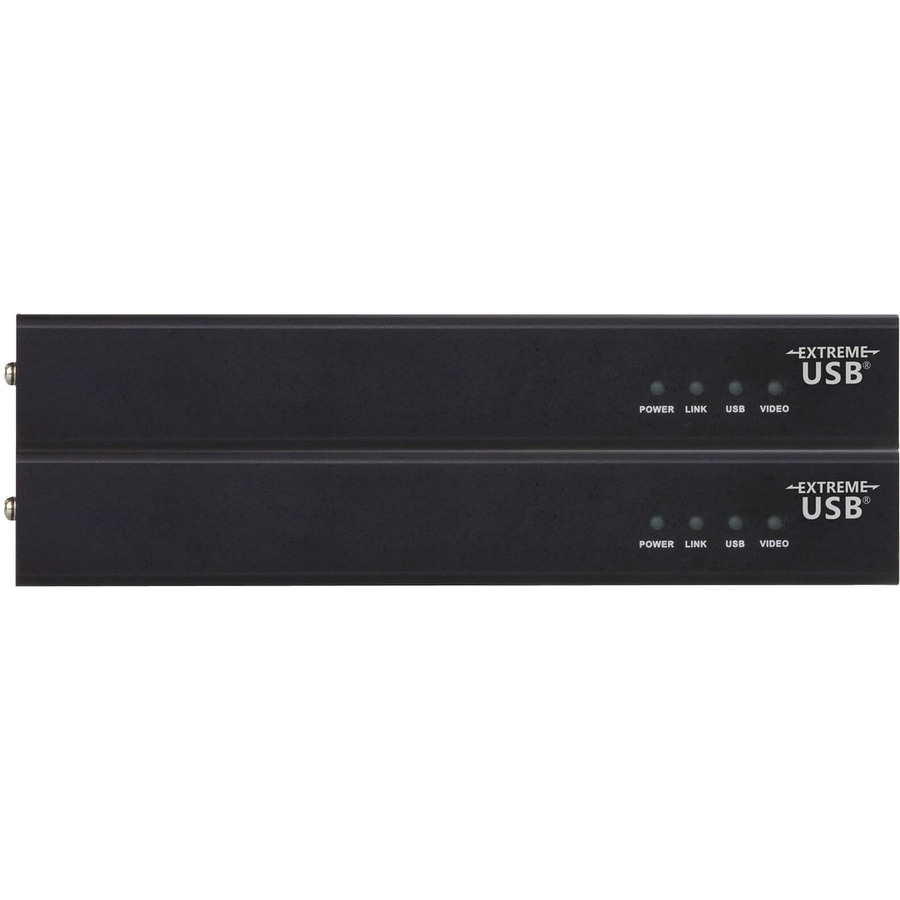

ATEN DVI HDBaseT KVM Extender with ExtremeUSB-TAA Compliant
1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - 2 x DVI - 5 V DC Input Voltage - Rack-mountable - For PC, Mac, Linux
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE610A
Category
KVM Consoles/Extenders
Overview
The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.
Highlights
Uses a single Cat 5e cable to connect the local and remote units
Allows access to a computer or KVM installation from a remote console
Superior Video Quality - up to 1920 x 1200 @ 60 Hz at 100 m
Anti-jamming - resists signal interference during high-quality video transmissions using HDBaseT technology
ExtremeUSB ® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Supports USB 1.1 web cameras
USB 2.0 Support* - connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel other USB devices which require moderate amounts of bandwidth
Extends local PC Video/Keyboard/Mouse to remote side
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Works with all major operating systems: Windows®, OS X®, and Linux®
Specifications
Package Contents
1 x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB (Local Unit)
1 x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB (Remote Unit)
1 x Custom DVI Cable (DVI Dual Link; 1.8m/6ft)
1 x USB Cable (1.8m/6ft)
2 x Power Adapters
1 x Mounting Kit
1 x User Instructions
Product Type
KVM Console/Extender
Input Voltage
5 V DC
Manufacturer Part Number
CE610A
Platform Supported
PC, Mac, Linux
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
CE610A
Product Name
DVI HDBaseT KVM Extender with ExtremeUSB
Power Consumption
15 W
Brand Name
ATEN
Country of Origin
Taiwan
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
Graphic Mode
WUXGA
Maximum Operating Distance
328.08 ft
USB
Yes
DVI
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
6
Number of DVI Ports
2
Number of Computers Supported
1
Number of Remote Users Supported
1
Transmitter Height
1.13"
Transmitter Width
4.64"
Transmitter Depth
7.17"
Receiver Height
1.13"
Receiver Width
4.64"
Receiver Depth
7.17"
Transmitter Weight (Approximate)
1.37 lb
Receiver Weight (Approximate)
1.37 lb
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
