1 Computer(s) - 196.85 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI - 5.3 V DC Input Voltage - Rack-mountable
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CE600
Category
KVM Consoles/Extenders
Overview
The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
More from the Manufacturer
Highlights

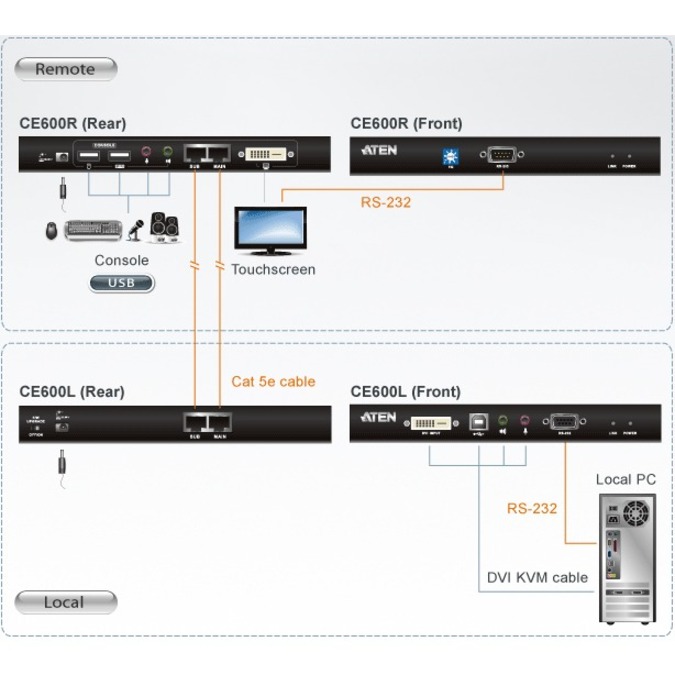

Local and Remote Units connect at distances up to 60 m using Cat 5e cable
Allows access to a computer or KVM installation from a remote console (up to 60 m)
Features ATEN technology that allows A/V transmission over one cat 5e cable
The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
Manual compensation control to adjust signal strength in order to compensate for distance
RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
Audio Enabled - supports stereo speakers and microphone
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Supports Wide Screen formats
Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m - get an excellent, crisp image on your screen over long distance transmissions
Specifications
Package Contents

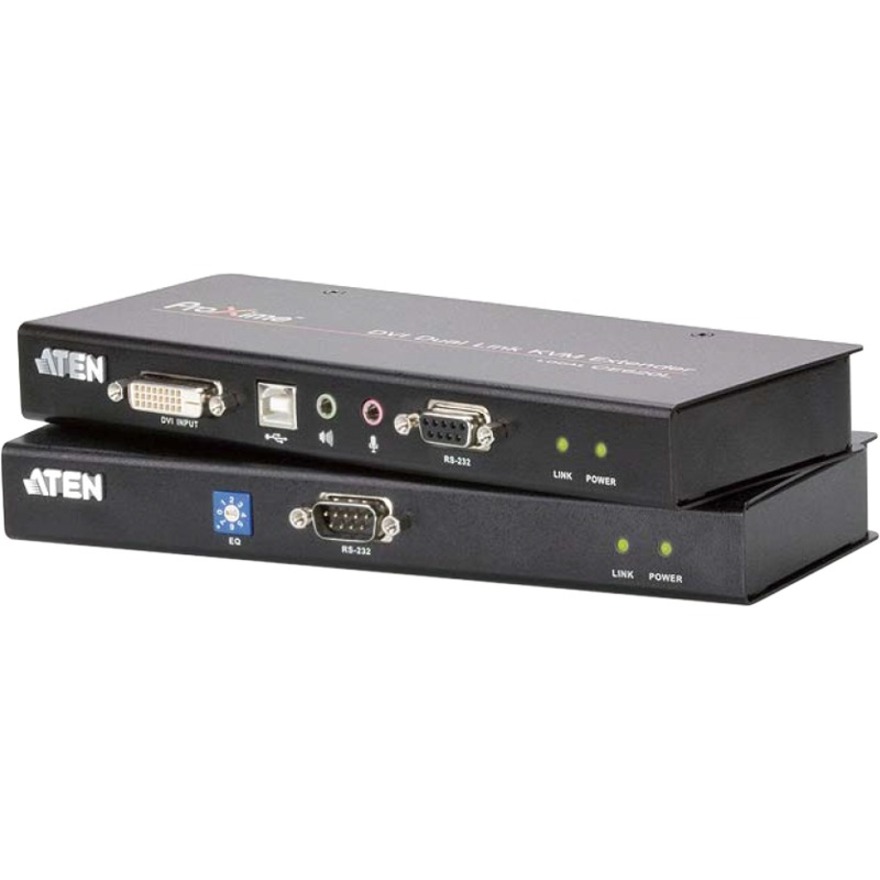

CE600 KVM Console/Extender
1 x KVM Cable
2 x Power Adapter
1 x Rack Mount Kit
1 x User Manual
1 x Quick Start Guide
Product Type
KVM Console/Extender
Input Voltage
5.3 V DC
Manufacturer Part Number
CE600
Connectivity Technology
Wired
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Microphone
Yes
Product Model
CE600
Product Name
CE600 KVM Console/Extender
Brand Name
ATEN
Country of Origin
Taiwan
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
Graphic Mode
WUXGA
Maximum Operating Distance
196.85 ft
USB
Yes
DVI
Yes
Headphone
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
3
Number of DVI Ports
2
KVM Technology
Analog
Number of Computers Supported
1
Transmitter Height
0.98"
Transmitter Width
3.43"
Transmitter Depth
7.95"
Receiver Height
0.98"
Receiver Width
2.18"
Receiver Depth
7.95"
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
