Best Motorized Projection Screens for Classrooms and Boardrooms

The two specifications that decide whether a motorized screen works are the diagonal and the aspect ratio, and both are set by things outside the screen itself. The aspect ratio has to match the projector: a widescreen 16:9 projector paired with a 16:9 screen fills the surface edge to edge, while the same projector on a 16:10 or 4:3 screen either leaves unused bands of surface or throws part of the image past the edge. The screens on this page are listed in 4:3, 16:9 and 16:10 precisely so the surface can be matched to whatever the room's projector natively outputs, rather than the projector being cropped or letterboxed to fit a surface that was chosen first.

Diagonal size is the room's decision. The screen has to be large enough that the back row can read it comfortably and small enough that the front row is not craning or losing the edges — a range set by the depth of the room and the height of the mount. A classroom and a large lecture hall are different sizing problems, and the screens here span both, from the diagonals that suit a standard teaching space to the large formats a boardroom or an auditorium needs. Getting this pairing right is most of the job: a correctly sized screen in the projector's own aspect ratio is a clean image, and a mismatch on either axis is visible from every seat.

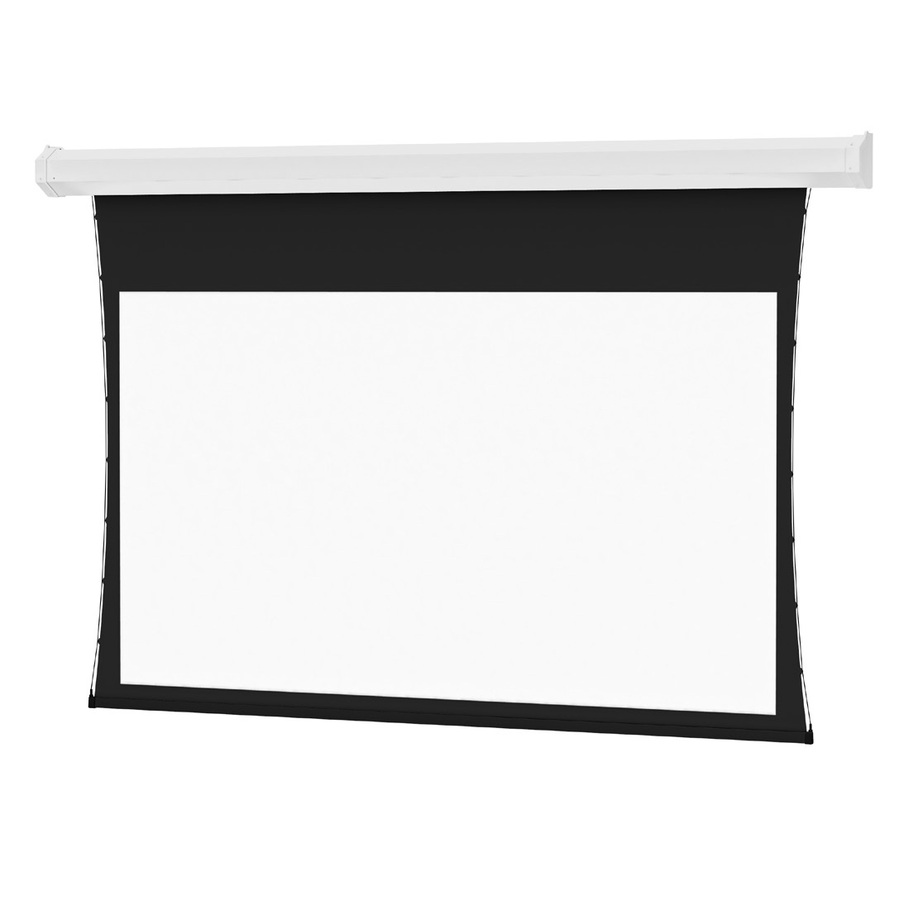

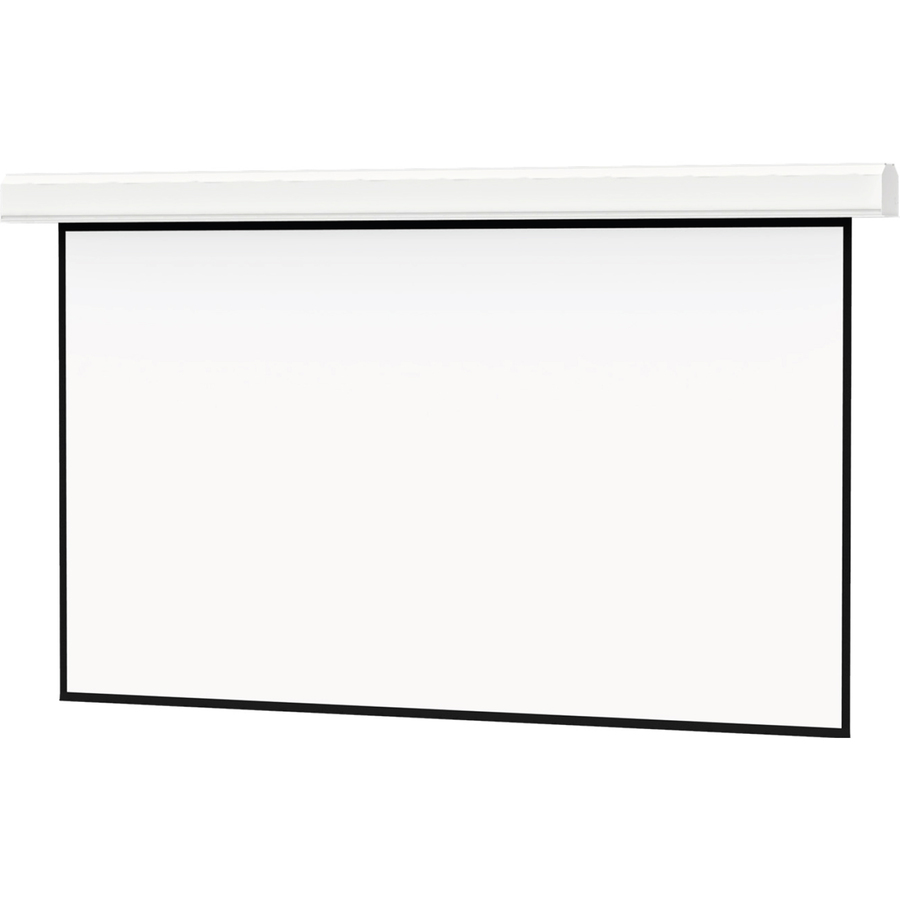

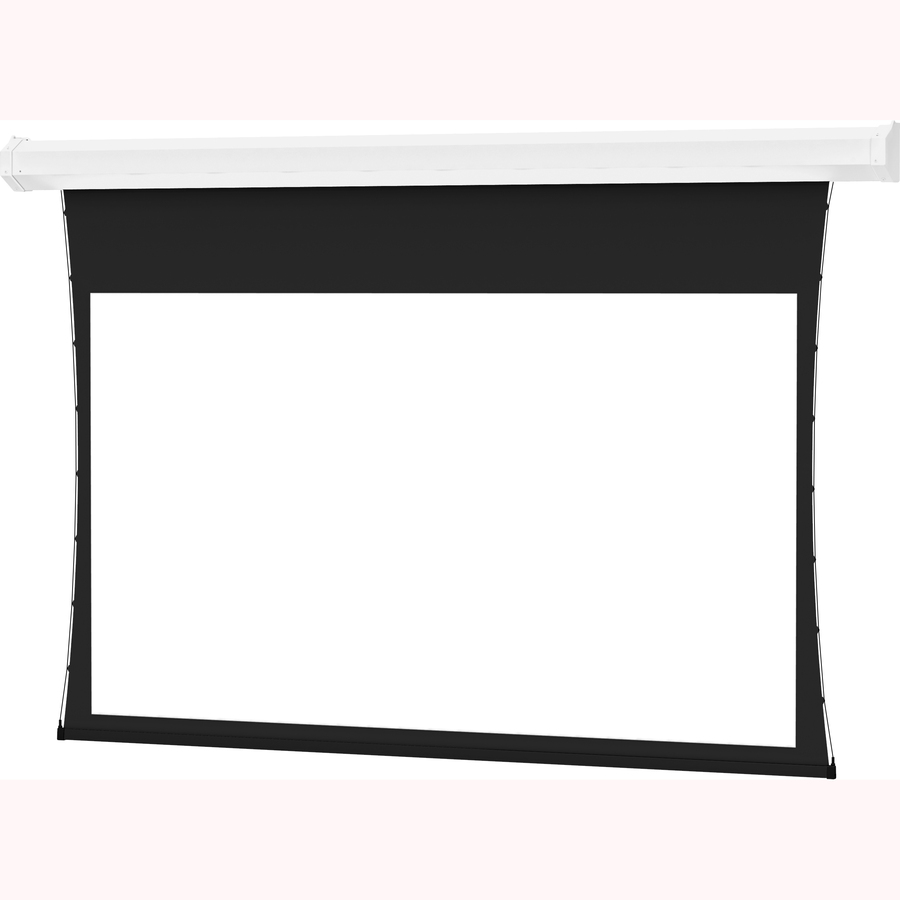

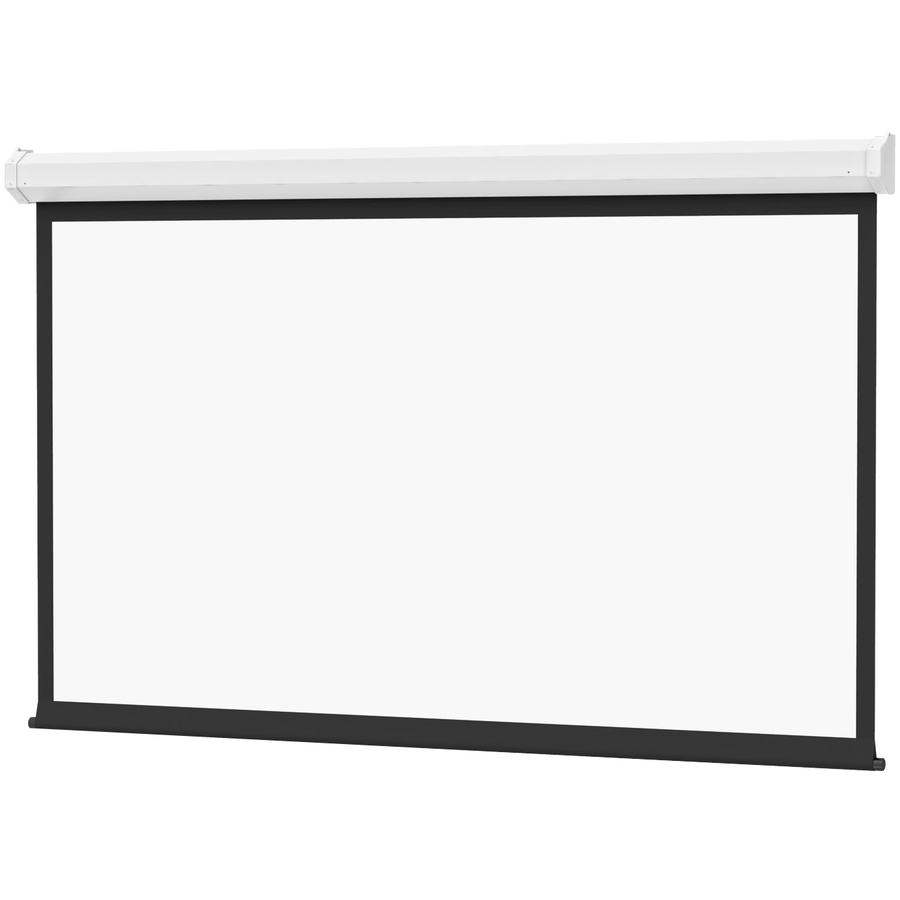

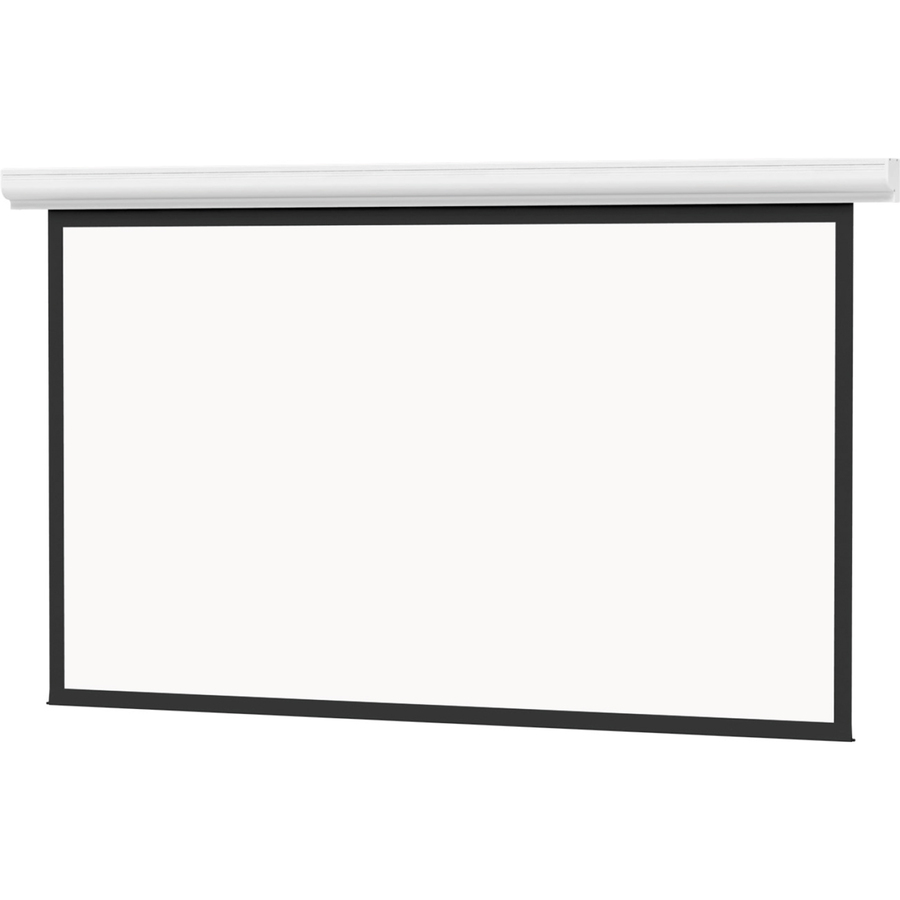

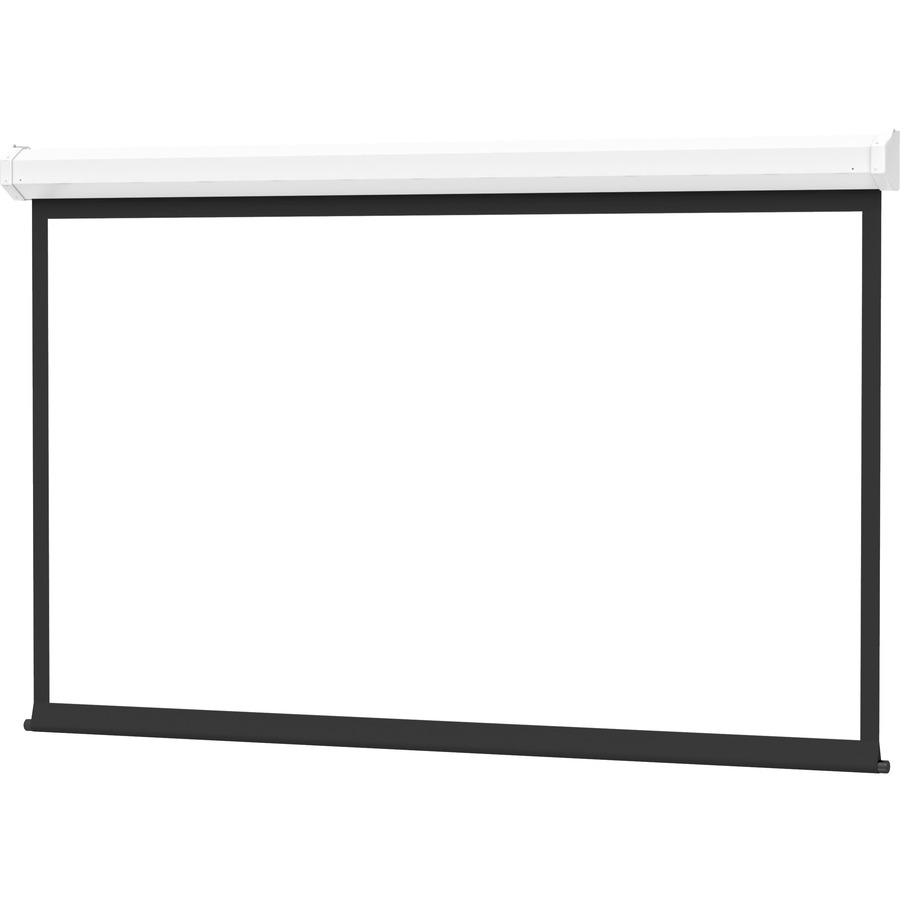

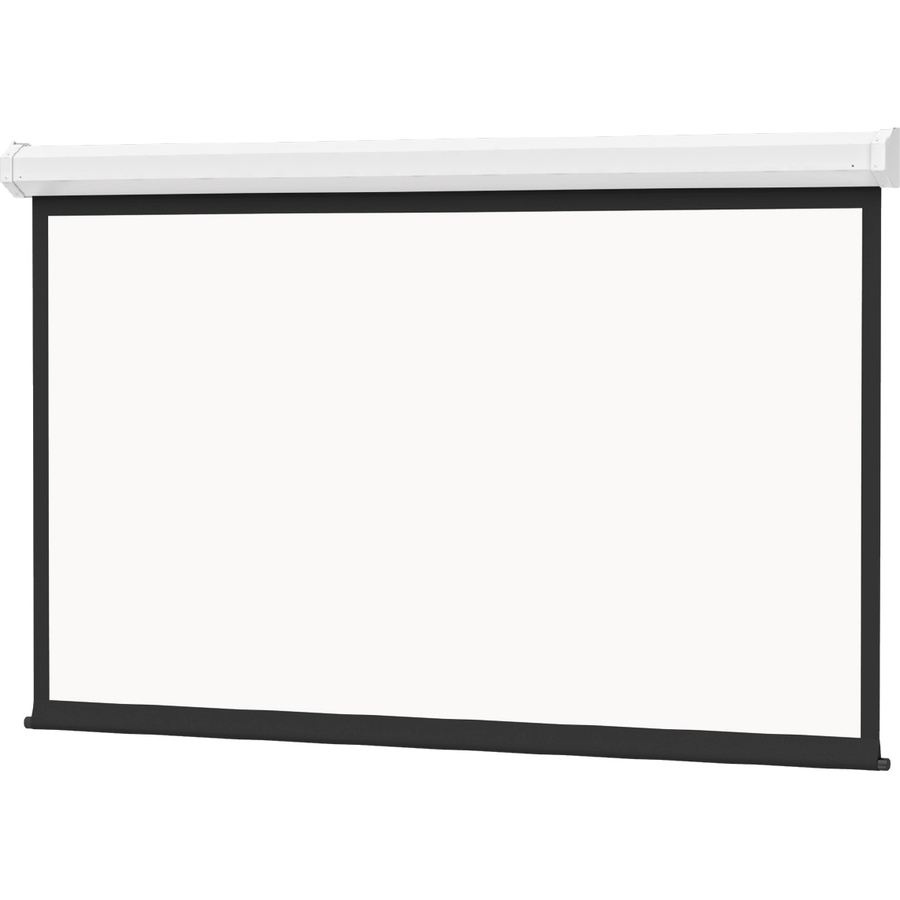

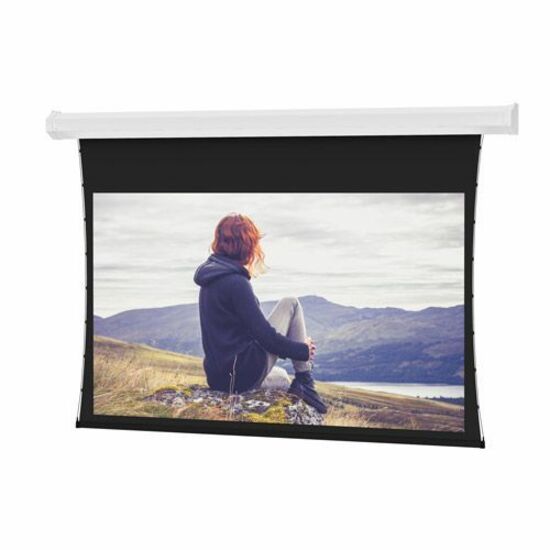

Tensioning is the specification that most divides these screens by price and by room. A non-tensioned electric screen simply drops its vinyl surface and lets it hang, which is smooth enough for the great majority of classrooms and meeting rooms and is the sensible default. A tensioned screen adds side tabs and a bottom bar that hold the surface taut across its whole area, keeping it perfectly planar even where air movement from a vent or a door would otherwise put a gentle wave in a hanging screen — the difference shows up in rooms where the image has to be pristine and in any space with noticeable airflow. Choosing between them is a judgement about the room, not about which is 'better': a tensioned surface is real engineering that most rooms do not need, and a non-tensioned one is the right, economical answer where they do not.

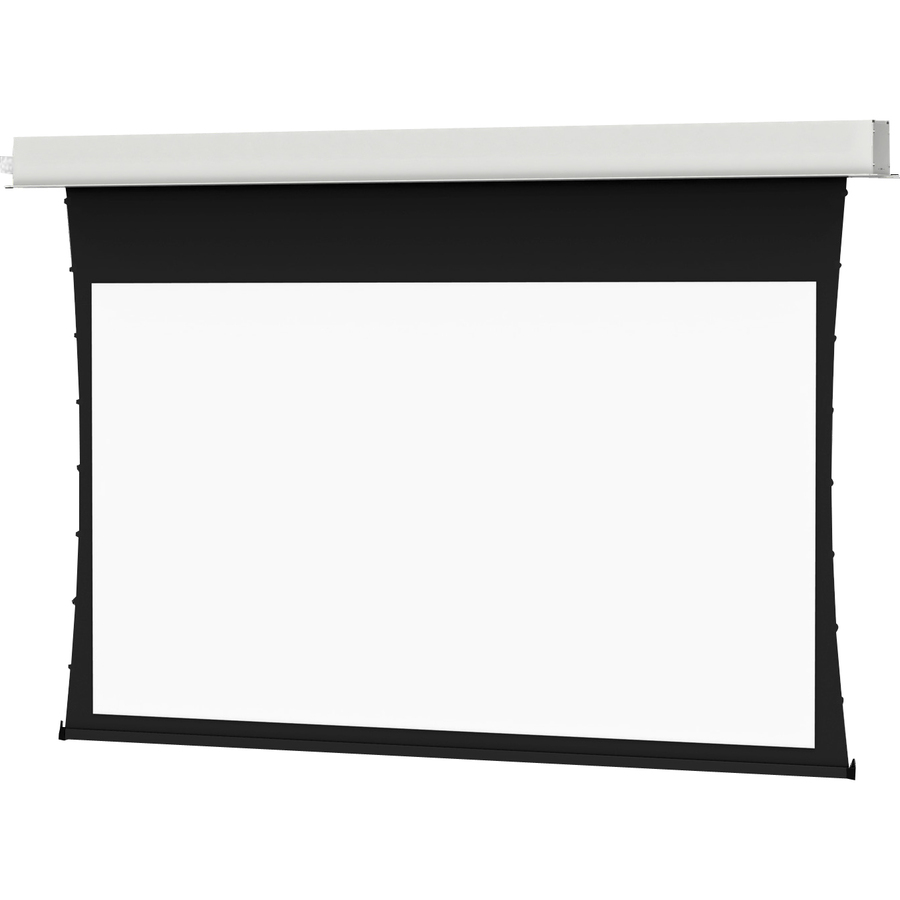

The last two decisions are the mount and the control, and both are best settled before the install rather than after. A ceiling-recessed screen tucks its case above the ceiling line for a room with no visible hardware when the screen is up; a surface-mounted case is simpler where there is no recess to build. Control ranges from a simple wall switch, to a low-voltage trigger that drops the screen automatically when the projector powers on, to integration into a room's AV control system — and the right choice depends on how the room is run and who runs it. Send the room dimensions, the projector's resolution and throw, the ceiling situation and how the AV is controlled, and the screen, its surface, the mount and the control wiring can be specified as one install rather than assembled from parts.
