High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display
MSRP$1,920.00
$1,502.96
Save 22%In stock: 231
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

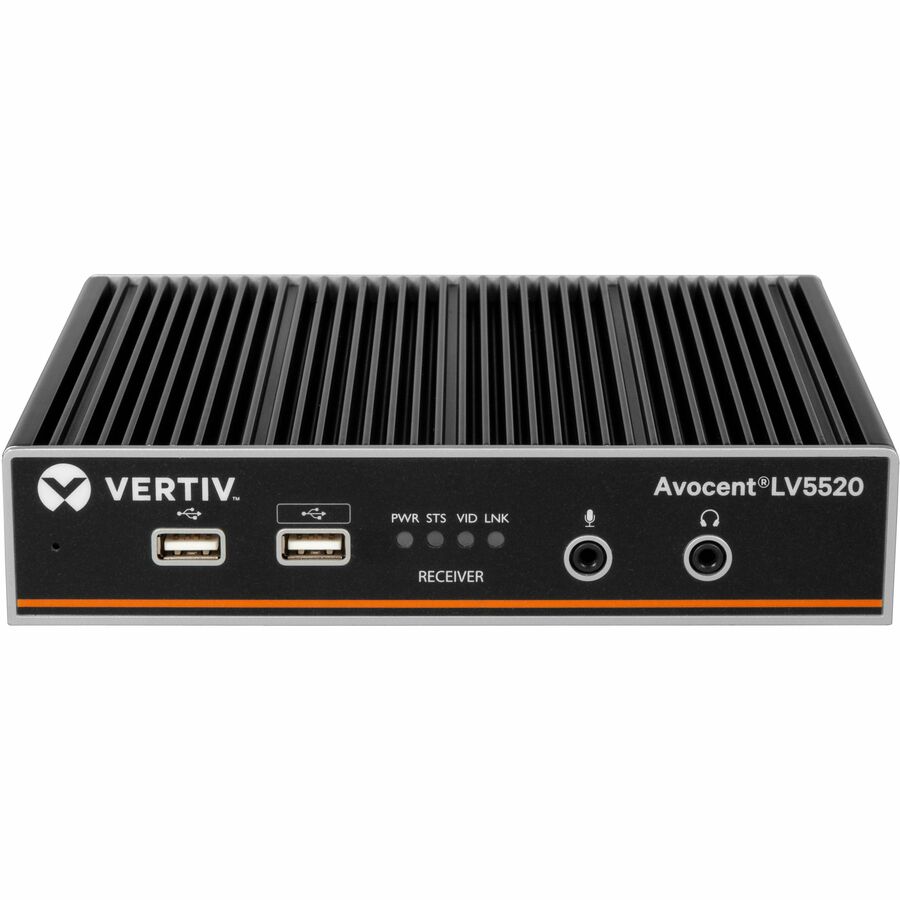

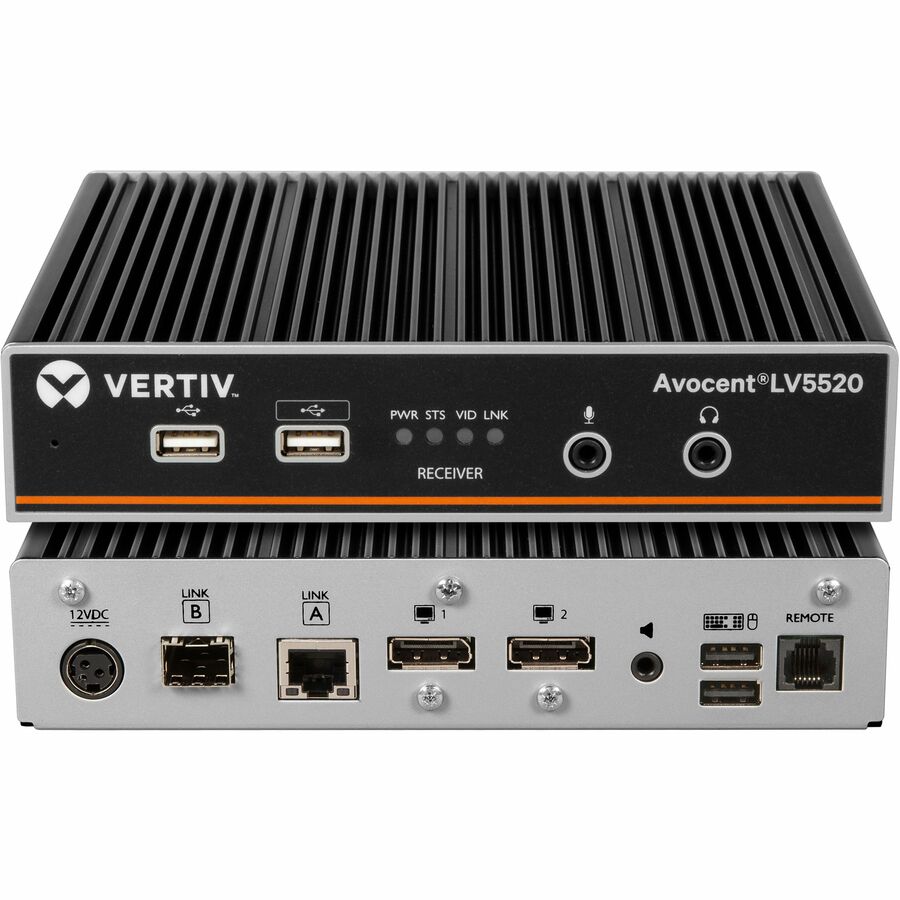

The Vertiv Avocent LongView 5520 Receiver (LV5520R) is the latest in the Avocent high-performance KVM Extender family of products. Coupled with the Avocent LV5520T, the LV5520R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, high-speed USB 2.0 emulation, and HD analog audio, the LV5520R provides an effortless and automatic connection over the IP network without needing extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5520R is ideal for users in broadcasting, control centers, and other industries requiring high performance, 4K video.
More from the Manufacturer
DISPLAYPORT CAPABILITIES FOR 4K VIDEO
The Vertiv Avocent LV5500 KVM extender’s additional Local Pass Through feature the Local console output to duplicate incoming video and audio. Now with the latest fiber option, the LV5000 allows for a much greater extension distance while still providing ultra-high-resolution (UHD 3840x2160) video up to 4K @ 60Hz to multiple projectors using edge blending.
SIMPLE, SECURE REMOTE KVM CONTROL
The Vertiv Avocent LV5000 KVM extender enables the placement of critical computing hardware in a secure and climate-controlled environment, while maintaining the same user experience in workstations up to 330 ft. away. The additional Local Pass Through feature of the LV5500 is allows the Local console output to duplicate incoming video and audio. This declutters workspaces and better secures computing assets housing your critical data.
IMPROVED THERMAL MANAGEMENT
With the Vertiv Avocent LV5000 KVM extender, heat-generating computing equipment can be placed away from employee workplaces, eliminating the need to over-cool those environments. The extender allows computing assets to be in climate-controlled spaces, where the temperature and humidity can be tailored to the needs of the IT systems.
USB 2.0 COMPATIBILITY
The Vertiv Avocent LV5500 Extenders improve productivity and functionality by taking advantage of forward and backward capability with the transparent, hi-speed USB 2.0 ports by connecting to tablets, joysticks, webcams, printers, and more.
FIBER OR COPPER OPTION
The Avocent LV5500 transmitter and receiver can be connected with only a single fiber or copper cable. Expand the range and bandwidth of the KVM extender up to 4 km with the fiber cable option.
LOCAL PORT PASS THROUGH
Single head Avocent LV5500 Extenders allows up to two users, local and remote, simultaneous access to the same machine.
USB 2.0 COMPATIBILITY
Dual head Avocent LV5500 Extenders have USB 2.0 true device emulation, which ensures the computer will boot without the RX connected and allows dual PC operations.
LV5500R-400
Receiver
Single/Dual Head: S
Video Resolution: 4096x2160 @ 60Hz
USB Audio: USB or Stereo (Line In, Line Out)
Connectors: 4 x Tri-color status; LEDs; DisplayPort in and local pass-through out; 2 x USB 2.0 Line in and out analog audio; RJ12 serial port; RJ45 and SFP+ ports
Power: 100-240VAC; 47/63Hz; 12 VDC 18W output from power supply unit.
Storage Temp: -10
° C to 50
° C (14
° F to 122
° F)
Operating Temperature: -0
° C to 40
° C (32
° F to 104
° F)
Humidity: 0% to 80% (non-condensing)
Length: 6in.
Width:8in.
Height: 2in.
Weight: 3lbs.
Approvals/Compliance: CE and FCC
Cable Type Recommendations: CAT5e, CAT6, and Fiber (SM & MM)
Cable Length Rules:
Ethernet specifications rules apply 100m maximum for CAT6 cable and 4km maximum over optical fiber link
LV5500T-400
Transmitter
Single/Dual Head: S
Video Resolution: 4096x2160 @ 60Hz
USB Audio: USB or Stereo (Line In, Line Out)
Connectors: 4 x Tri-color status; LEDs; DisplayPort in and local pass-through out; 2 x USB 2.0 Line in and out analog audio; RJ12 serial port; RJ45 and SFP+ ports
Power: 100-240VAC; 47/63Hz; 12 VDC 18W output from power supply unit.
Storage Temp: -10
° C to 50
° C (14
° F to 122
° F)
Operating Temperature: -0
° C to 40
° C (32
° F to 104
° F)
Humidity: 0% to 80% (non-condensing)
Length: 6in.
Width:8in.
Height: 2in.
Weight: 3lbs.
Approvals/Compliance: CE and FCC
Cable Type Recommendations: CAT5e, CAT6, and Fiber (SM & MM)
Cable Length Rules:
Ethernet specifications rules apply 100m maximum for CAT6 cable and 4km maximum over optical fiber link
LV5520R-400
Receiver
Single/Dual Head: D
Video Resolution: 4096x2160 @ 60Hz
USB Audio: USB or Stereo (Line In, Line Out)

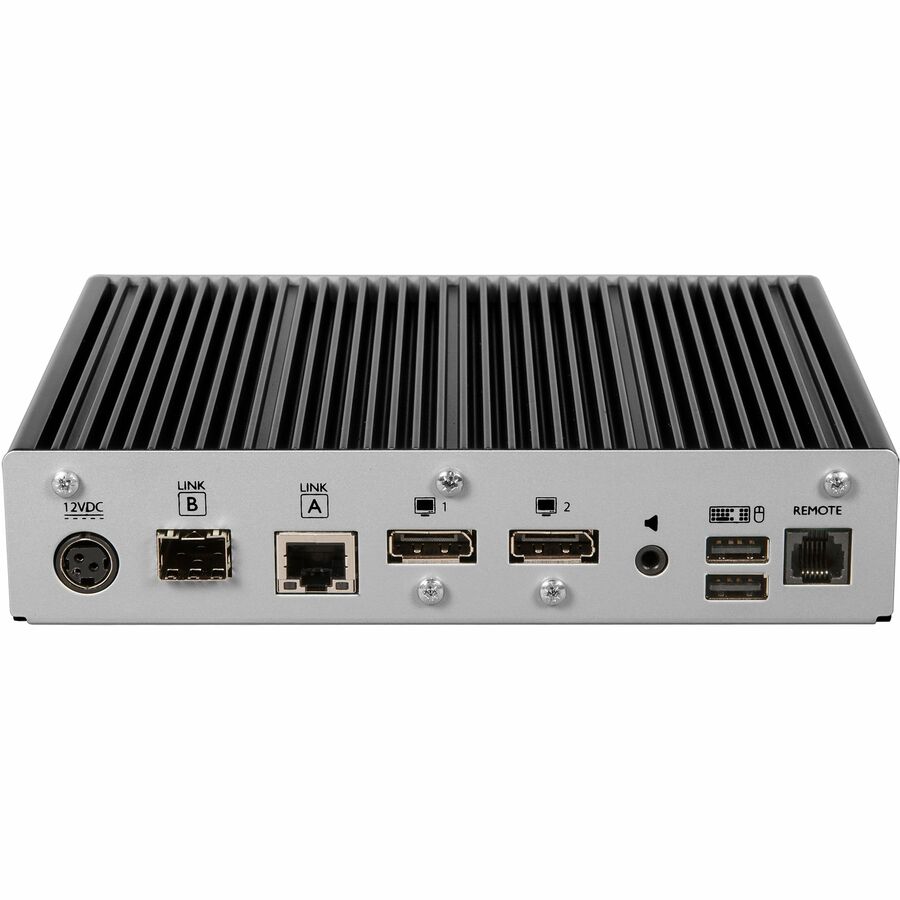

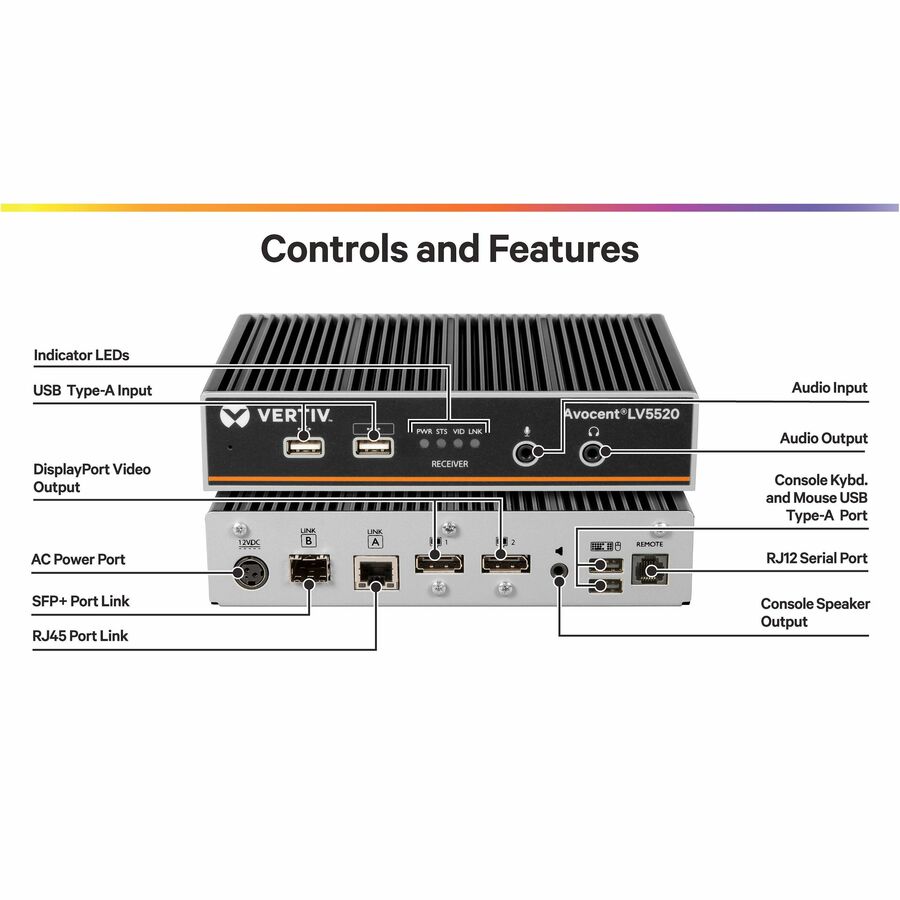

Connectors: 4 x Tri-color status; LEDs; 2 x DisplayPort out (second port is a duplicate); 4 x USB 2.0 full speed Type A; Mic in, headset and speaker out; RJ12 serial port; RJ45 and SFP+ ports
Power: 100-240VAC; 47/63Hz; 12 VDC 18W output from power supply unit.
Storage Temp: -10
° C to 50
° C (14
° F to 122
° F)
Operating Temperature: -0
° C to 40
° C (32
° F to 104
° F)
Humidity: 0% to 80% (non-condensing)
Length: 6in.
Width:8in.
Height: 2in.
Weight: 3lbs.
Approvals/Compliance: CE and FCC
Cable Type Recommendations: CAT5e, CAT6, and Fiber (SM & MM)
Cable Length Rules:
Ethernet specifications rules apply 100m maximum for CAT6 cable and 4km maximum over optical fiber link
LV5520T-400
Transmitter
Single/Dual Head: D
Video Resolution: 4096x2160 @ 60Hz
USB Audio: USB or Stereo (Line In, Line Out)
Connectors: 4 x Tri-color status; LEDs; 2 x DisplayPort out (second port is a duplicate); 4 x USB 2.0 full speed Type A; Mic in, headset and speaker out; RJ12 serial port; RJ45 and SFP+ ports
Power: 100-240VAC; 47/63Hz; 12 VDC 18W output from power supply unit.
Storage Temp: -10
° C to 50
° C (14
° F to 122
° F)
Operating Temperature: -0
° C to 40
° C (32
° F to 104
° F)
Humidity: 0% to 80% (non-condensing)
Length: 6in.
Width:8in.
Height: 2in.
Weight: 3lbs.
Approvals/Compliance: CE and FCC
Cable Type Recommendations: CAT5e, CAT6, and Fiber (SM & MM)
Cable Length Rules:
Ethernet specifications rules apply 100m maximum for CAT6 cable and 4km maximum over optical fiber link
Limited Warranty: 2 Year
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
| General Information | |
|---|---|
| Manufacturer | Vertiv |
| Manufacturer Part Number | LV5520R-400 |
| Brand Name | Vertiv AVOCENT |
| Product Line | LongView |
| Product Series | 5000 |
| Product Model | LV5520R |
| Product Name | LV5520 High-Performance KVM Extender | Receiver |
| Packaged Quantity | 1 |
| Product Type | KVM Extender Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| PS/2 Port | No |
| USB | Yes |
| DVI | No |
| Headphone | Yes |
| Microphone | Yes |
| HDMI | No |
| VGA | No |
| DisplayPort | Yes |
| Proprietary Interface | No |
| Number of HDMI Ports | 0 |
| Number of VGA Ports | 0 |
| Number of Network (RJ-45) Ports | 1 |
| Number of PS/2 Ports | 0 |
| Number of USB Ports | 2 |
| Number of DVI Ports | 0 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Receiver Height | 1.54" |
| Receiver Width | 7.32" |
| Receiver Depth | 5.83" |
| Receiver Weight (Approximate) | 2.73 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 100-240 VAC |
| Power Consumption | 18 W |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Digital |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 0 |
| Maximum Operating Distance | 13123.36 ft |
| Device Type | High Performance KVM |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC, Mac, Unix, Sun, Linux |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
