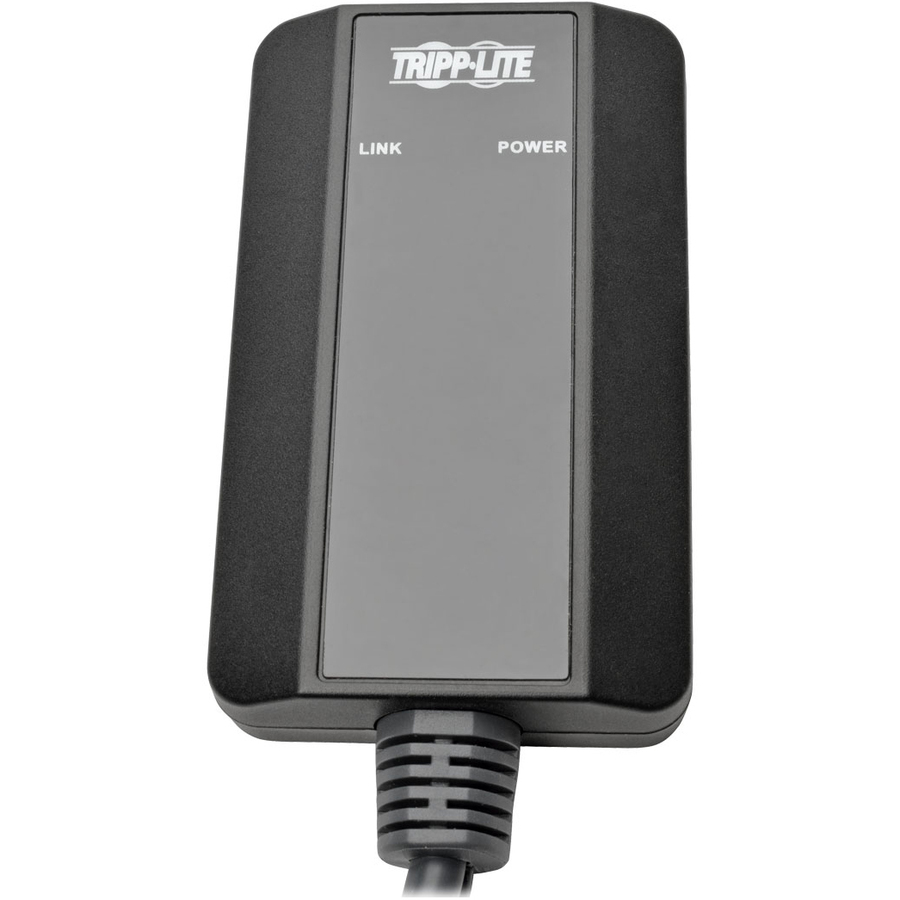

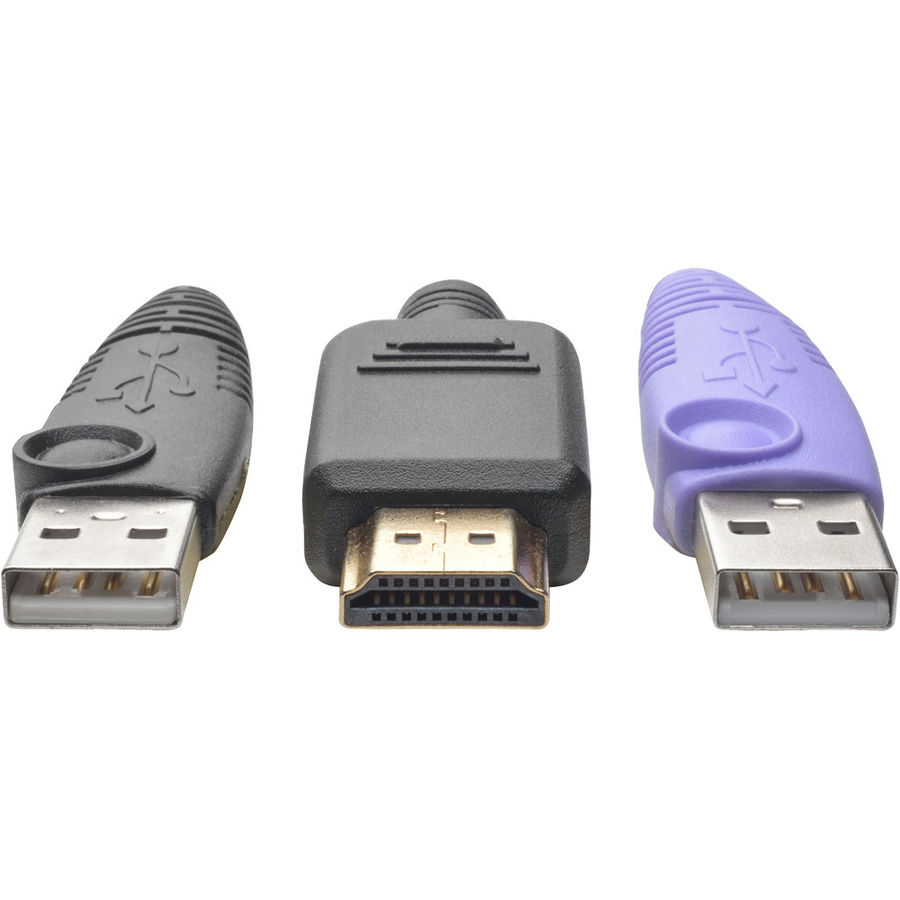

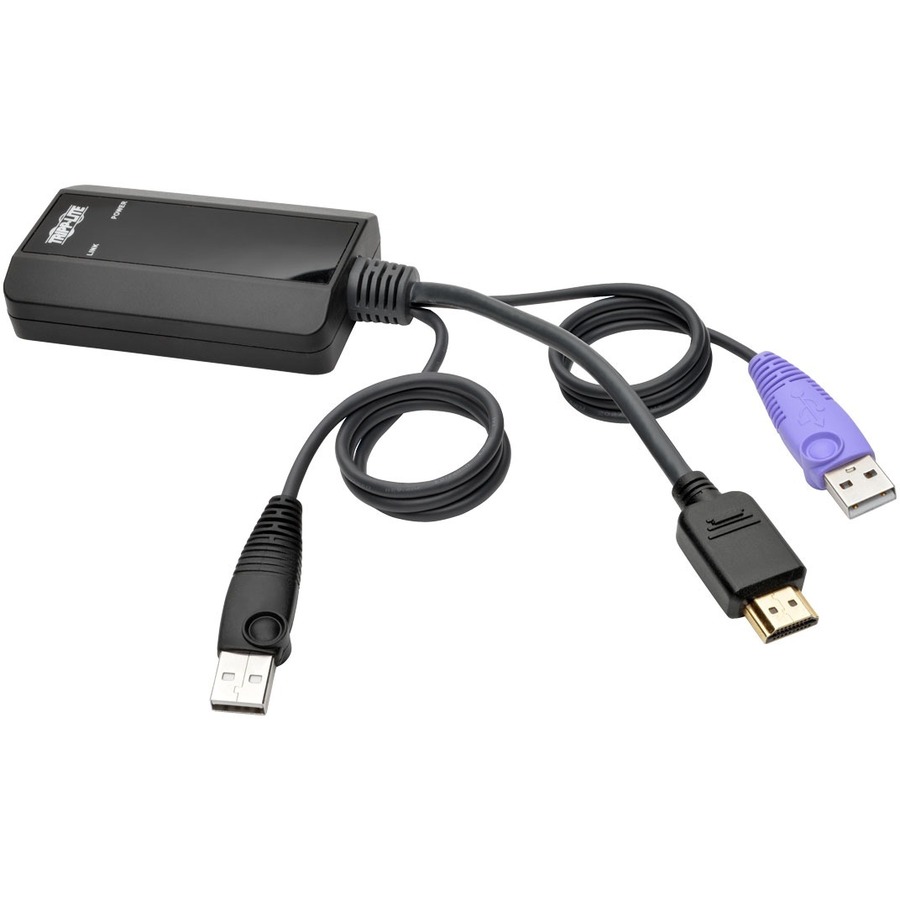

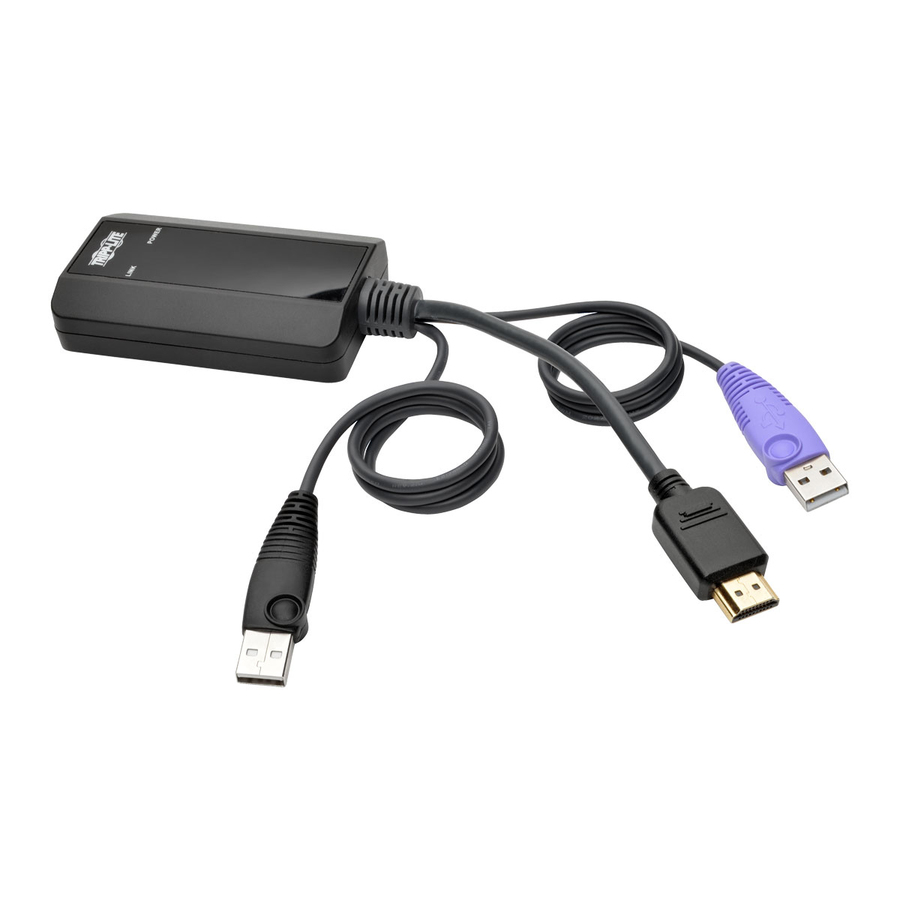

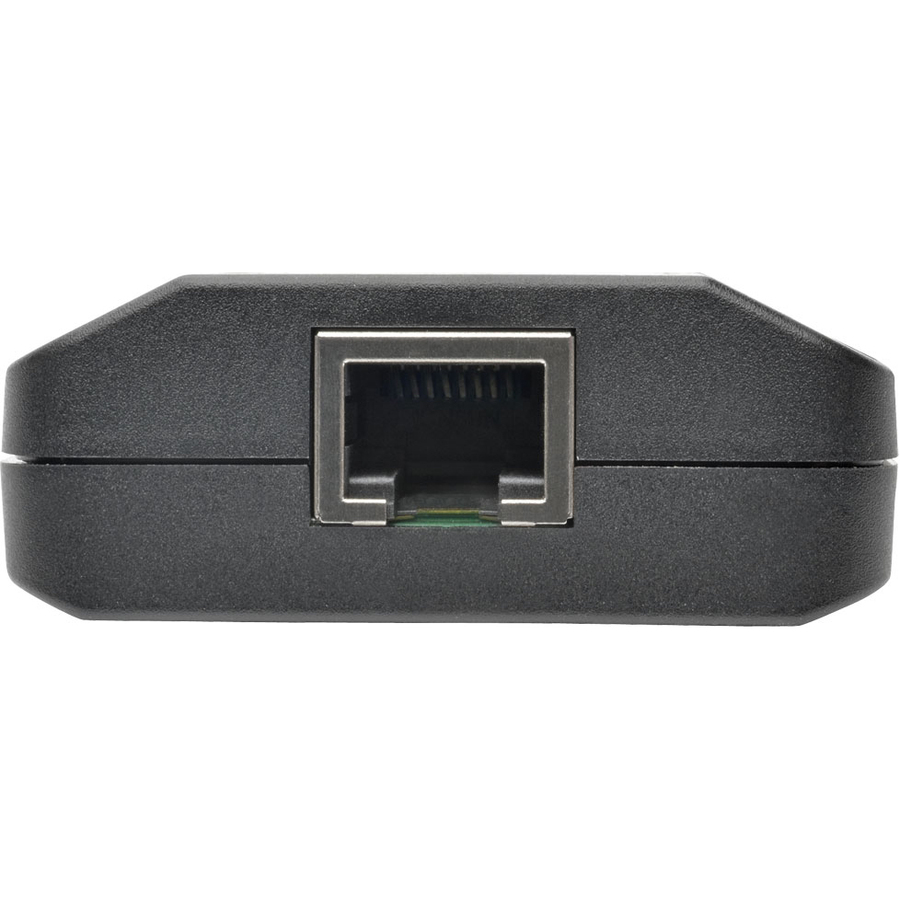

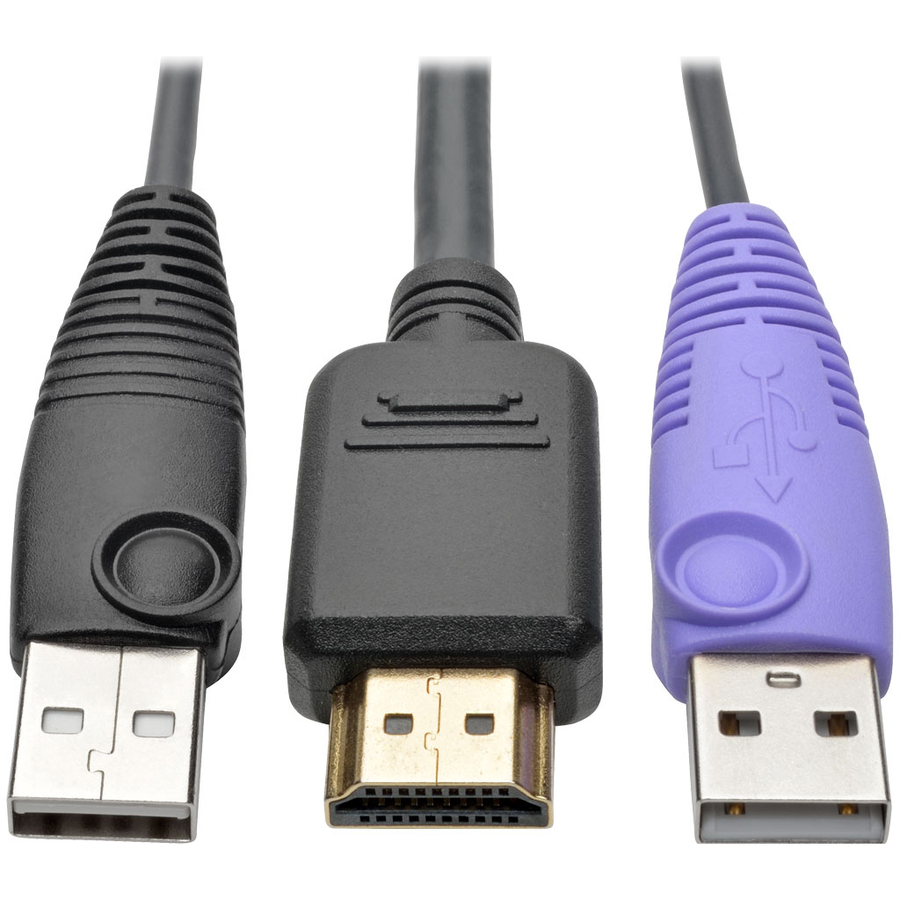

Tripp Lite by Eaton NetDirector HDMI USB Server Interface Unit with Virtual Media and CAC Support (B064-IPG Series) USB and HDMI

The B055-001-UHD NetDirector® HDMI USB Server Interface Unit connects a server, computer or CAC reader with HDMI and/or USB ports to a Tripp Lite B064-IPG Series KVM switch with v1.0.071 or later firmware installed. Using Cat5e/6 cabling, you can locate the KVM switch up to 164 feet (50 meters) from the server.

Allowing the server to access the KVM switch's Virtual Media functionality via low-cost Cat5e/6 cable eliminates the need for bulky KVM cables. This frees up precious space in your server cabinet, and allows for better ventilation and longer cable runs. Running cable through conduit and other tight spaces takes advantage of the increased flexibility when setting up your network application.

No software or external power supply is needed. The unit's compact, lightweight design is plug-and-play for immediate installation and deployment. It complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Convenient, Cost-Effective KVM Connection

• Connects USB/HDMI server to Tripp Lite B064-IPG Series KVM switch with v1.0.071 or later firmware via Cat5e/6 cable

• Allows server to access Virtual Media functionality

• Supports Common Access Card (CAC)

• Maximum distance between server and KVM switch of 164 ft. (50 m)

Eliminates Bulky KVM Cables

• Frees precious space in server cabinet

• Provides better ventilation and longer cable runs

• More flexibility for running cable through conduit and other tight spaces

Plug-and-Play Convenience

• No software or external power supply required

• Ready for immediate installation and deployment

TAA-Compliant

• Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

More from the Manufacturer

Plug-and-Play Convenience and Greater Distance and Flexibility

Get up and running right away – the B055-001-UHD requires no software, drivers or external power supply for operation. The unit’s compact, lightweight design is easy to handle, easy to set up.

Greater Distance—Greater Flexibility.

Using Cat5e/6 cabling allows your server to be located up to 164 ft. away from the KVM switch. By eliminating bulkier KVM cables, the B055-001-UHD also allows cabling to run through conduit and other tight spaces, guaranteeing maximum flexibility when setting up your network application and saving space in your rack or network closet.

TAA-Compliant and Backed by a Three-Year Warranty

The B055-001-UHD is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

For peace of mind, the B055-001-UHD comes with a three-year warranty. It’s also manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
