SKU
MA750.B.ABICG.003
Category
Antennas
Overview

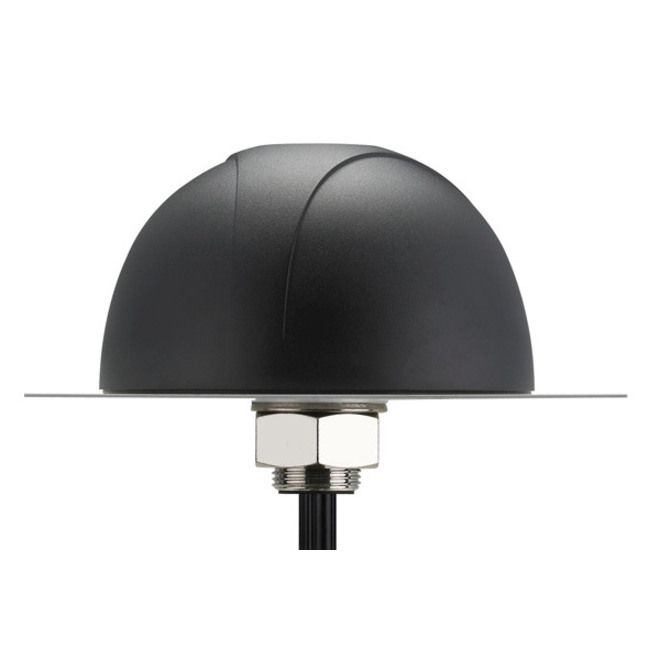

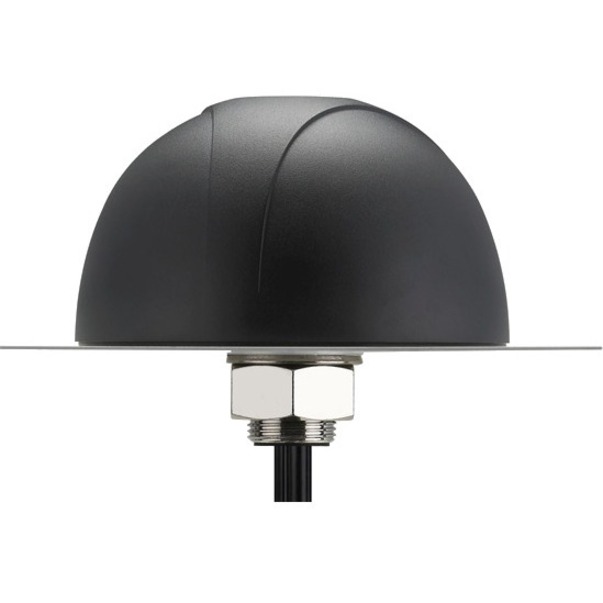

The MA.750 Pantheon antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
This unique antenna delivers powerful MIMO antenna technology for cellular/LTE and Wi-Fi 802.11n and emerging 802.11ac, plus GPS/GLONASS/GALILEO for next generation multiple wireless technology systems, such as telematics. The GPS/GLONASS/GALILEO antenna has a Front End SAW Filter.
Examples are new fleet management and real time video applications that demand high speed video uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.
Five (5) high performance antennas are integrated into an extremely robust IP67 direct/permanent mount antenna package with excellent isolation (20dB+).
he antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32' and 9.70"), critical for buses, trains and other commercial transport applications.
Customized cables and connector version available.
Highlights
2 x cellular (4G/3G/2G) Antennas (MIMO)
(698~960MHz, 1710~2170MHz,2300~2700MHz,
2900-3500MHz)
? 1*MIMO main antenna
? 1*MIMO diversity antenna
1 x GPS/GLONASS/GALILEO 1575.42/1602MHz
Active Antenna
2 x 2.4GHZ/ 5GHz Antennas (MIMO)
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
MA750.B.ABICG.003
Brand Name
Taoglas
Product Line
Pantheon
Product Model
MA750
Product Name
Pantheon MA750 5in1 Permanent Mount GNSS, 4G/3G/2G 2xMIMO, Wi-Fi 2xMIMO
Product Type
Antenna
Package Type
Bulk
Interfaces/Ports
Connector Type
SMA, RP-SMA
Physical Characteristics
Product Color
Black
Height
3.37"
Diameter
5.73"
Form Factor
Screw Mount
Weight (Approximate)
2.84 lb
Technical Information
Directivity
Omni-directional
Operating Frequency Range
698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2300 MHz to 2700 MHz, 2900 MHz to 3500 MHz, 2.4 GHz to 2.5 GHz, 4.5 GHz to 5.85 GHz, 1575.42 MHz, 1602 MHz
Antenna Gain (Isotropic)
32 dBi
Miscellaneous
Application/Usage
GPS, GLONASS, Wireless Data Network, Cellular Network, Outdoor
