700 MHz to 800 MHz, 824 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1575.42 MHz, 1850 MHz to 1990 MHz, 1710 MHz to 2170 MHz, 2400 MHz to 2800 MHz - 3 dBi - GPS, Wireless Data Network, Cellular Network, Outdoor, Wireless Access Point - Black - Omni-directional - SMA Connector
SKU
Category
Antennas
$18.48
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Taoglas through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Antennas
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

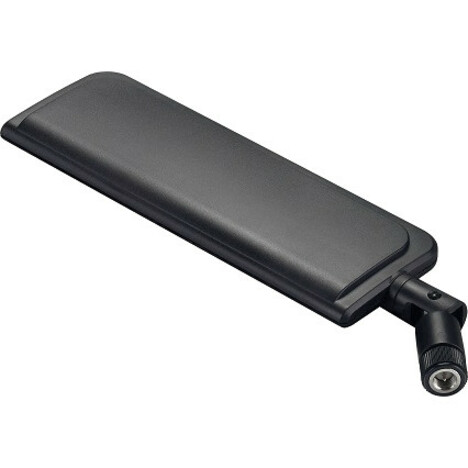

The hinged Apex TG.30 Ultra-Wideband Dipole LTE Antenna - is primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2g/3g/4g) bands worldwide for access points, terminals and routers. The antenna is a ground plane independent antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated. The Apex exhibits high efficiency across the ultra wide band and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, UMTS, WI-FI and even has GPS included for Assisted GPS and/or E911 applications. With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type approval or carrier certification requirements from a RF standpoint. It is an omni-directional antenna and the radiation patterns display this and are stable across all bands.

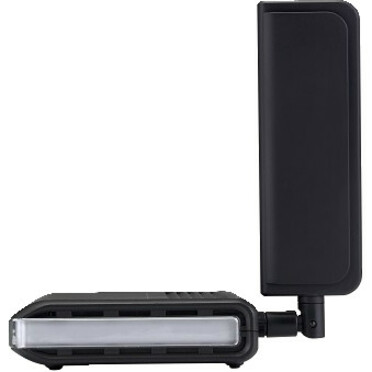

It has a quality robust IP67 UV resistant housing (SMA connector is IP65) for use with wireless terminals. The swivel and hinge mechanism allows the antenna part itself to be orientated in different directions and can help avoid touching off other antennas or objects close by as well as helping with isolation by orientating the antenna in different directions in MIMO systems for when other TG.30 antennas are present on the same device.

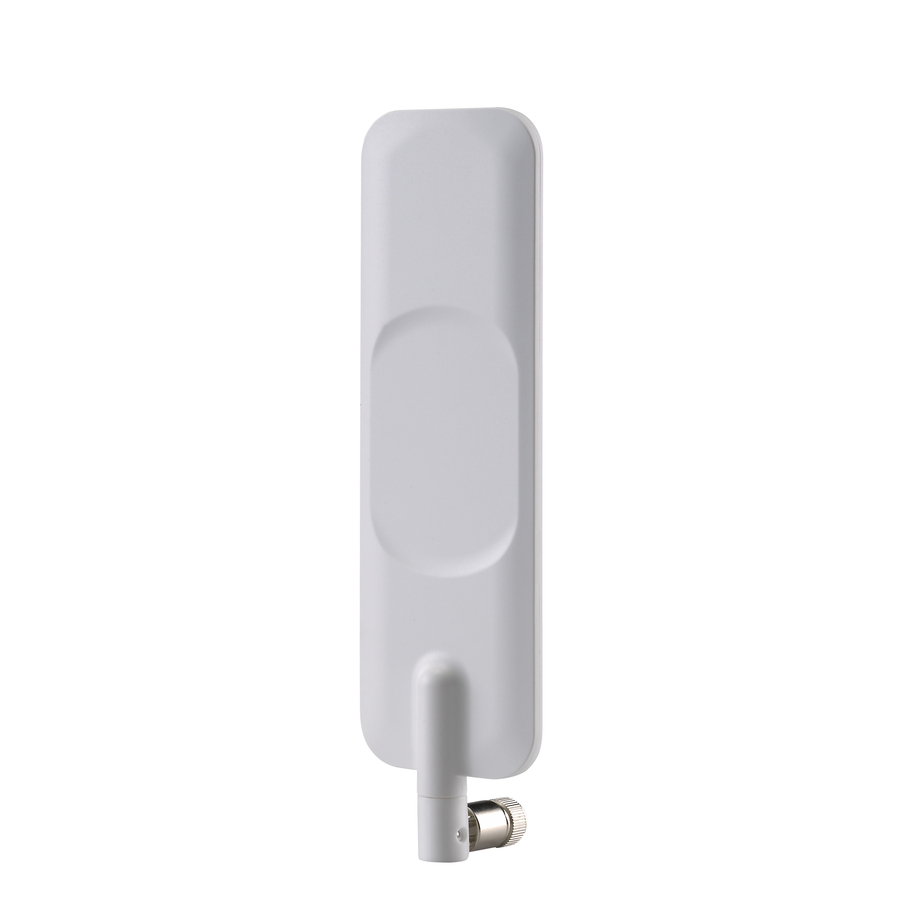

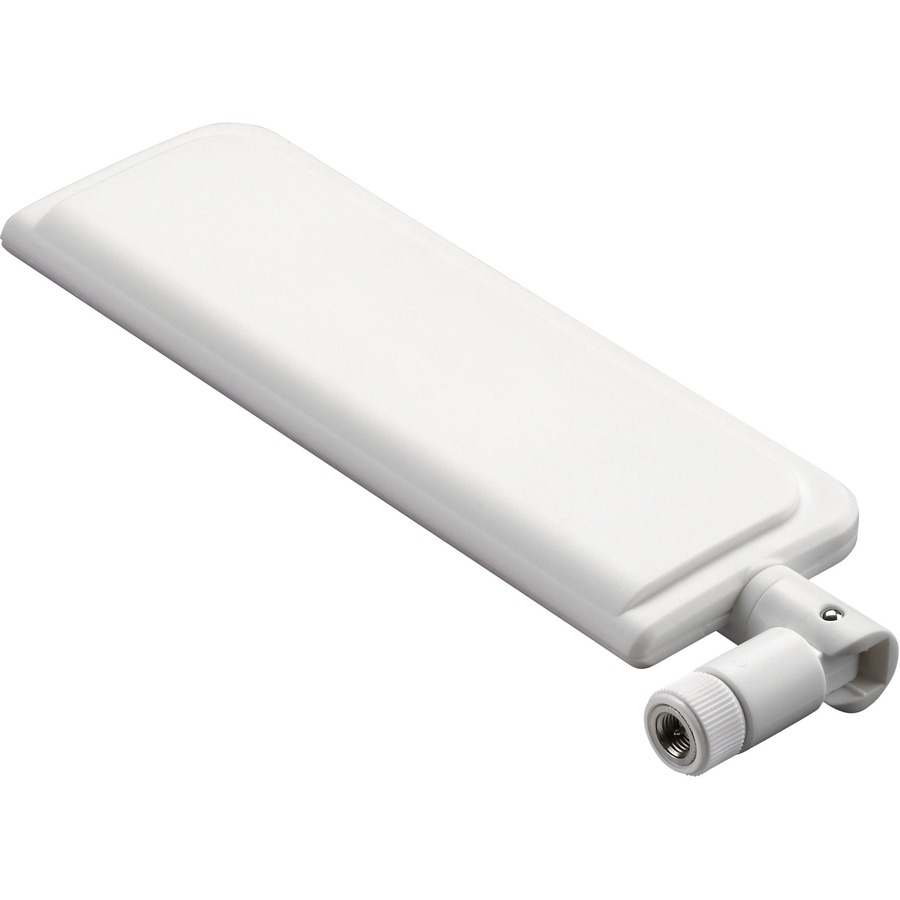

This patented antenna is available in White and Black versions. The antenna blade can swivel 90 degrees from the connector accommodating different installation environments. It is also available with Straight and Right Angle connectors.
