Taoglas Cellular/GPS/GLONASS/ BEiDOU 1561-1575-1602 MHz antenna Hinged SMA Male - All Black
698 MHz to 960 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz, 1710 MHz to 2700 MHz - GPS, GLONASS, Cellular Network - Black - Omni-directional - SMA Connector
SKU
Category
Antennas
$13.46
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Taoglas through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Antennas
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

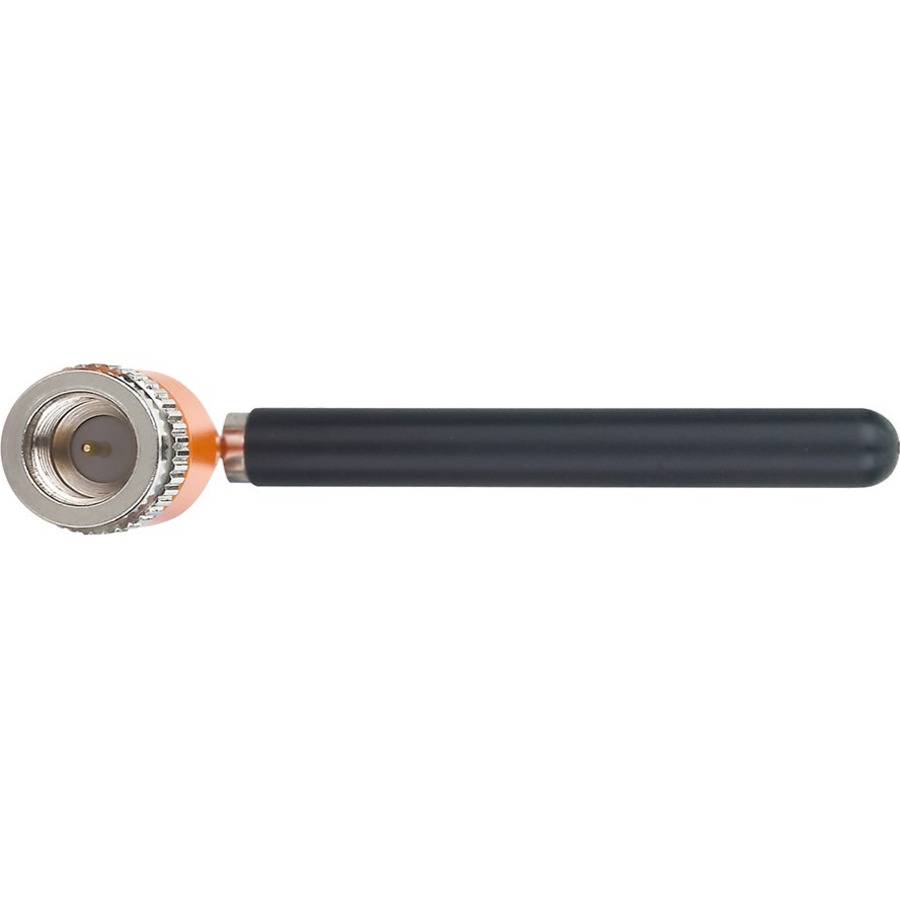

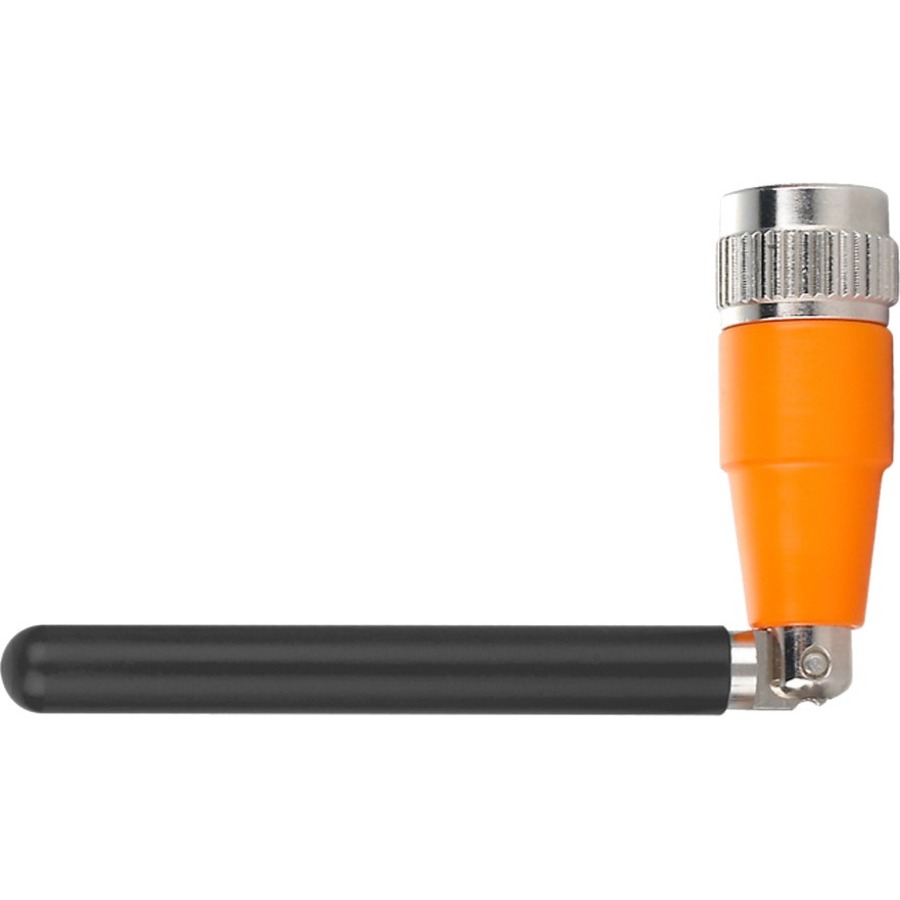

The compact TG.08 with hinged rotatable Fakra Code D connector is a monopole antenna for automotive telematics applications that provides wide coverage among cellular and GNSS frequencies and offers impressively high efficiencies. It fits in crowded device environments.

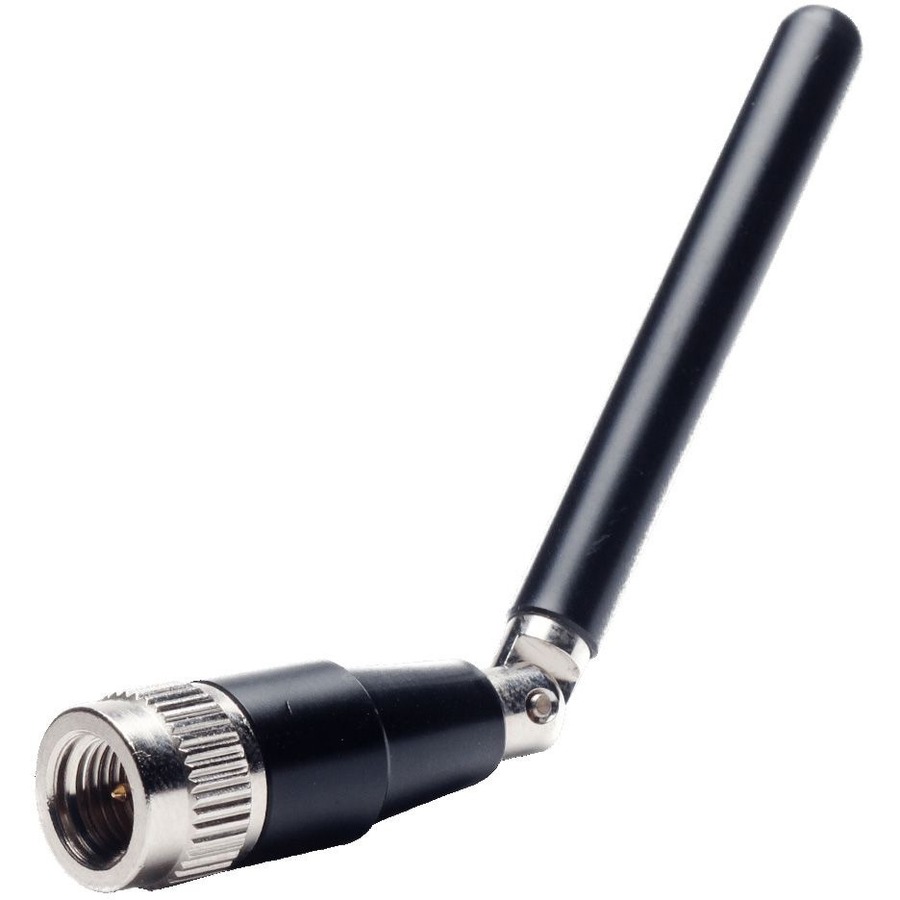

It's robust brass hinge enables TG.08 to be oriented in all directions, allowing users to maximize performance with minimum effort. The Fakra connector gives additional mechanical robustness over a traditional SMA connector since it locks securely with its mate and will not come loose due to vibrations or impacts.
This 72mm long monopole antenna has good efficiency in the 700MHz to 2700MHz range, covering the 2G/3G/4G bands, as well as GPS/GLONASS/BEIDOU. When connected to a ground plane, it can achieve up to 75% efficiency at GPS and LTE bands.
With its cellular and GNSS function, plus compact design, TG.08 is a great antenna for routers, vehicle tracking devices, telematic devices, and remote monitoring systems. It is also ideal for use in cellular modules with Assisted GPS functionality that can be implemented in various devices.
As with all monopole antennas, TG.08 works best when connecting directly to the ground-plane of the device main-board or to the device's metal enclosure. For optimum radiation efficiency care should be taken to keep the radiating element of the antenna as far away from metal as possible.
Warranty
Limited Warranty: 1 Year
Highlights
Compact Terminal mount Cellular/GPS antenna
Compact Passive Monopole Antenna
High Efficiencies at Cellular and GNSS frequencies
