Taoglas 4-in-1 5G/4G MIMO Permanent Mount Antenna
Taoglas

Taoglas 4-in-1 5G/4G MIMO Permanent Mount Antenna

600 MHz to 6000 MHz - Cellular Network, Vehicle - Black - Screw Mount, External - SMA Connector

SKU
MA890.A.BIVW.001
Category
Antennas

MSRP$207.49

$153.71

Save 26%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Taoglas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MA890.A.BIVW.001
Category
Antennas

Overview

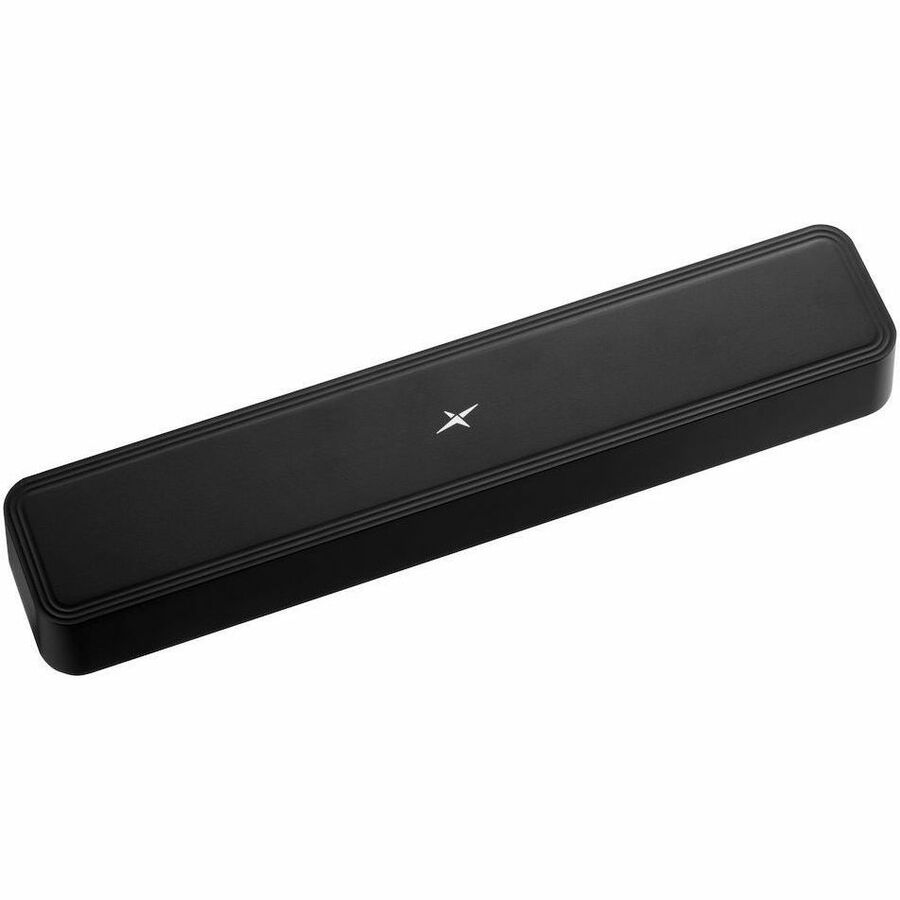

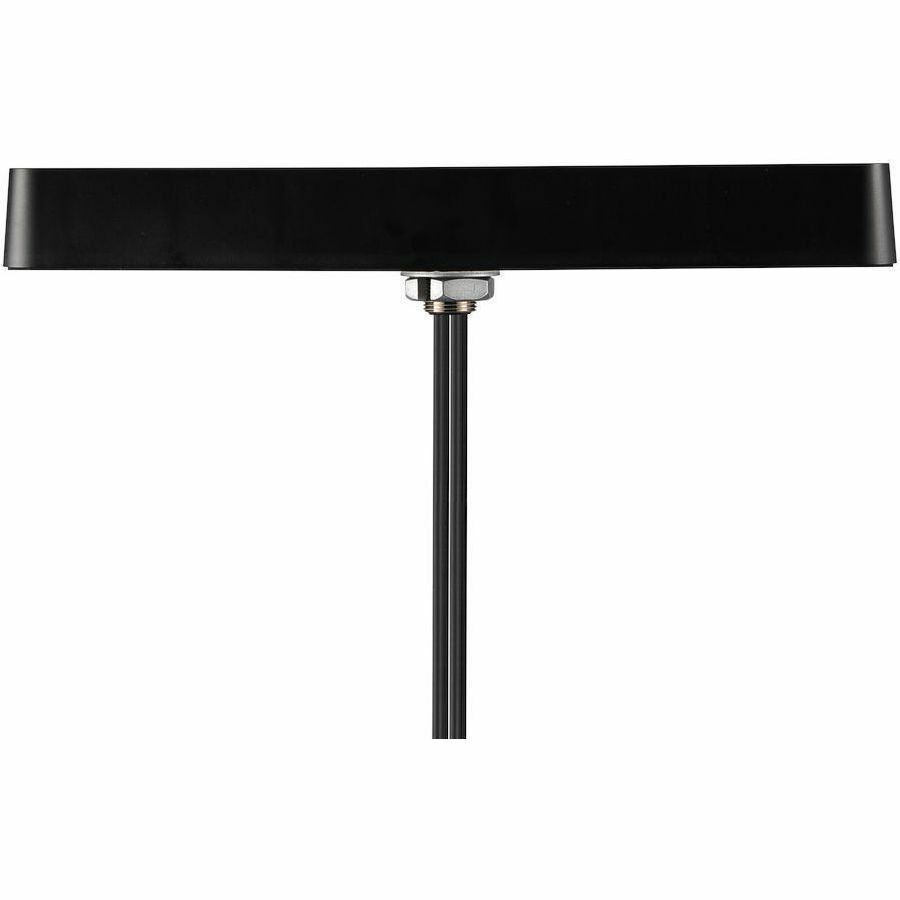

4-in-1 5G/4G MIMO Permanent Mount Antenna

The Taoglas MA890 is a permanent mount antenna designed to cover 5G and 4G cellular bands between 617MHz up to 6GHz. The MA890 is a 4-in-1 antenna with 4 5G MIMO Antennas in one compact enclosure, which has been designed with the future of 5G cellular connectivity in mind. With 5G becoming more prevalent in use it is important to have an antenna that can cover multiple different frequency bands for various uplink and downlink requirements, increasing throughput for a device.

Typical applications include:

• Digital Signage

• Transportation and Autonomous Vehicles

• Private 5G Networks

• Public Safety and First Responders

The MA890 has a robust enclosure for applications which may require installation in harsh environments. It is also IP69K waterproof rated so it is ideal for mounting in areas not protected from rainfall such as on the roof of a bus stop or a digital display.

Highlights

  • Designed to operate at 600 MHz to 6000 MHz frequency
  • Dramatically enhance the performance of cellular network with this antenna
  • Can be mounted as screw mount

Specifications

Application/UsageCellular Network, Vehicle
Product TypeAntenna
Manufacturer Part NumberMA890.A.BIVW.001
Weight (Approximate)2.76 lb
Connector TypeSMA
Form FactorScrew Mount, External
ManufacturerTaoglas
Product Name4-in-1 5G/4G MIMO Permanent Mount Antenna
Brand NameTaoglas
Height1.57"
Width2.76"
Product ColorBlack
Color FamilyBlack
Operating Frequency Range600 MHz to 6000 MHz
