SKU
MA9908.A.001
Category
Antennas
Overview

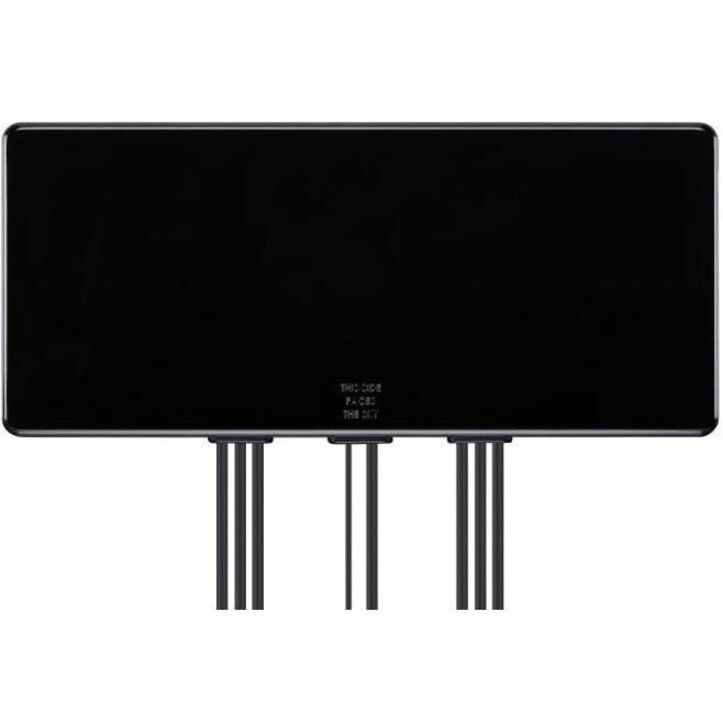

The Taoglas GuardianX MA9908.A.001 is a low profile heavy duty, fully IP67 waterproof external antenna. Combining 8 elements into one antenna, 1 GPS/GLONASS/Galileo, 4 LTE MIMO (698 to 960MHz/1710 to 2170MHz/ 2490 to 2690MHz/ 3300 to 3600MHz) and 3 Dual-band Wi-Fi MIMO 2.4-5.8GHz. This unique product delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/2600MHz and dual band Wi-Fi.
Typical applications include:
• Passenger Bus / Rail / Air Applications.
• Automotive and Heavy Equipment Vehicle Tracking and Telematics
• Remote Asset and Pipeline Monitoring
• HD Video over LTE
• First Responder and Emergency Services
• M2M Applications/IoT
LTE 4G applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput, increased number of drops, and may indeed not make a system connection at all.
Cable length and connector types are customizable. Contact your regional Taoglas sales office for support.
Highlights
Delivers?enhanced performance at 698 MHz to 824 MHz frequency
Get improved signals for your cellular network with this antenna
With its wall mounting feature, you can conveniently install the antenna while keeping the wires and cables organized
Specifications
General Information
Manufacturer
Taoglas
Manufacturer Part Number
MA9908.A.001
Brand Name
Taoglas
Product Name
Antenna
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Height
14.17"
Width
6.30"
Depth
0.65"
Form Factor
Wall Mount, External, Rail Mount, Patch
Weight (Approximate)
2.76 lb
Technical Information
Operating Frequency Range
698 MHz to 824 MHz, 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2490 MHz to 2690 MHz, 5150 MHz to 5850 MHz, 2400 MHz to 2500 MHz
