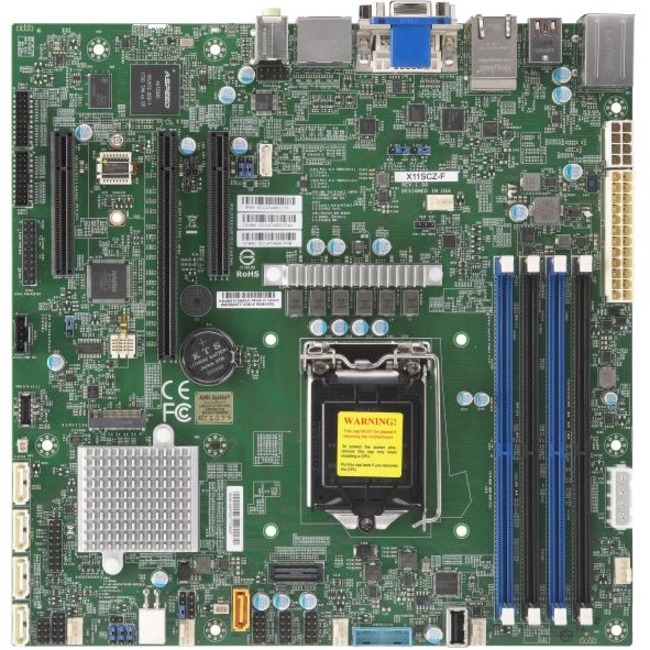

Supermicro X11SCZ-F Workstation Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX
Supermicro

Supermicro X11SCZ-F Workstation Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX

64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - DisplayPort - 5 x SATA Interfaces

SKU
MBD-X11SCZ-F-O
Category
Motherboards

MSRP$438.67

$407.79

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MBD-X11SCZ-F-O
Category
Motherboards

Overview

UP Xeon® Motherboards - Socket H4 (LGA 1151)

Xeon® E-2100 Boards / Socket H4 (LGA 1151)

Supermicro's new X11SCA workstation motherboard comes in a standard ATX form factor packed with features and expandability options including 4k video support. Optimized for the latest Xeon E processors, this platform supports up to 64GB of either ECC or non-ECC DDR4-2666 memory, triple displays with DisplayPort 1.2, HDMI 2.0, DVI-D; dual M.2, U.2, dual GbE LAN ports, and USB 3.1 Gen 2. In addition, there is a front panel USB-C header on the X11SCA motherboard with different versions to add either gigabit wireless 802.11ac with Bluetooth 5.0 (X11SCA-W) or Supermicro IPMI 2.0 with an additional VGA port (X11SCA-F).

Highlights

  • Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Micro ATX form factor for your accessibility convenience and simplicity of usage for Workstation Motherboard

Specifications

Product TypeWorkstation Motherboard
Manufacturer Part NumberMBD-X11SCZ-F-O
Maximum Memory Supported64 GB
Packaged Quantity1
Form FactorMicro ATX
ManufacturerSupermicro Computer, Inc
Product ModelX11SCZ-F
Product NameX11SCZ-F Workstation Motherboard
Package TypeRetail
Processor SupportedCeleron, Pentium, Core i3, Xeon
RAID Levels0, 1, 5, 10
Total Processor Supported1
Controller TypeSerial ATA/600
Processor SocketSocket H4 LGA-1151
Brand NameSupermicro
Memory TechnologyDDR4 SDRAM
Width9.6"
Depth9.6"
Chipset ManufacturerIntel
Chipset ModelC246
Number of Memory Slots4
Graphics Controller ModelAST2500
Audio Channels7.1
Gigabit EthernetYes
Number of SATA Interfaces5
Onboard VideoOn-board Video Chipset
RAID SupportedYes
Number of PCI Express x8 Slots2
Number of PCI Express x16 Slots1
DVIYes
VGAYes
DisplayPortYes
Total Number of USB Ports6
Total Number of Onboard USB Ports9
Total Number of PCI Express Slots3
Memory Form FactorDIMM, UDIMM
Total Number of Expansion Slots3
Number of M.2 Interfaces1
Number of USB 3.1 Ports6
Number of Onboard USB 3.1 Ports2
Memory Speed Supported2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
