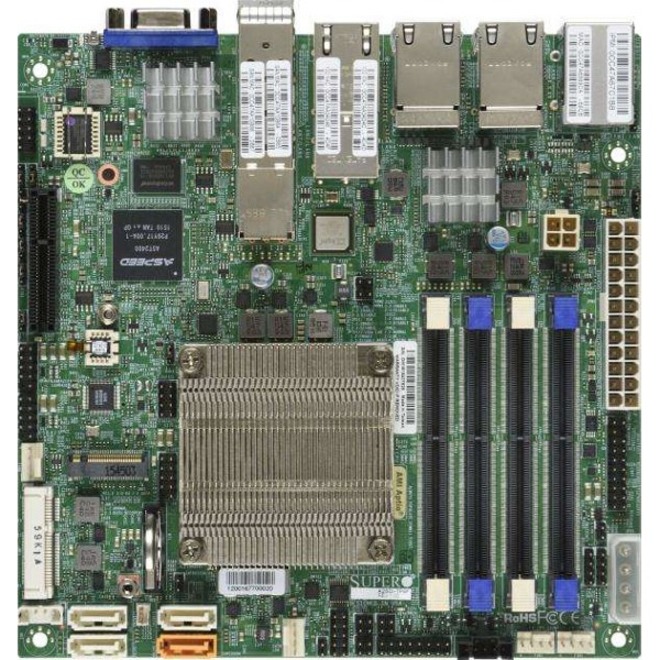

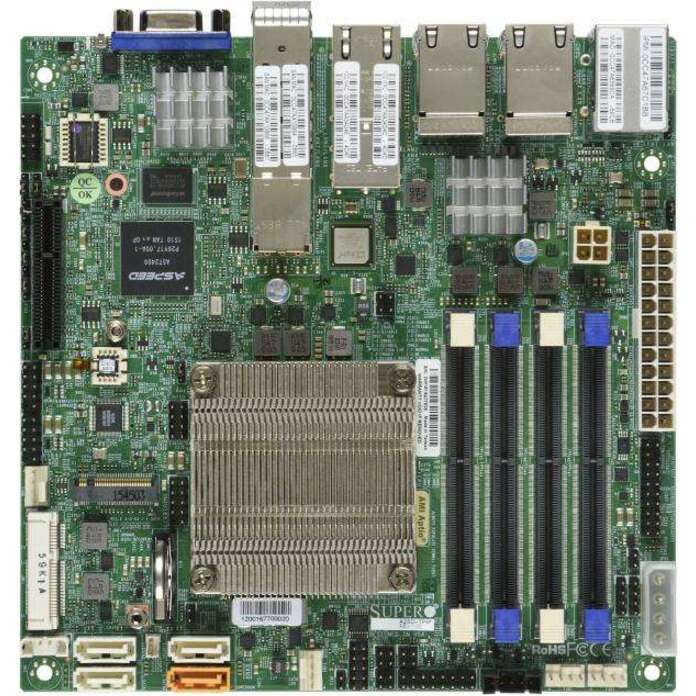

Supermicro A2SDi-TP8F Server Motherboard - Intel Chipset - Socket BGA-1310 - Mini ITX

Atom C3858 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces

SKU: MBD-A2SDI-TP8F-O
Category: Motherboards

MSRP$1,054.67

$968.26

Save 8%

Back ordered

Back ordered — ships when restocked.

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: MBD-A2SDI-TP8F-O
Category: Motherboards

Overview

Atom® Motherboards

C3000 Series BOARDS (System-on-Chip)

Supermicro's motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.

Warranty

Limited Warranty: 1 Year

Highlights

DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor

Specifications

Package Contents	A2SDi-TP8F Server Motherboard 1 x Motherboard Quick Reference Guide 4 x SATA Cables 2 x MINI SAS HD-4 SATA, INT, 50CM, 50CM SB, 30AWG 1 x I/O Shield
Product Type	Server Motherboard
Manufacturer Part Number	MBD-A2SDI-TP8F-O
Maximum Memory Supported	64 GB
Packaged Quantity	1
Limited Warranty	1 Year
Form Factor	Mini ITX
Manufacturer	Supermicro Computer, Inc
Product Model	A2SDi-TP8F
Product Name	A2SDi-TP8F Server Motherboard
Package Type	Retail
Controller Type	Serial ATA/600
Processor Socket	Socket BGA-1310
Brand Name	Supermicro
Memory Technology	DDR4 SDRAM
Width	6.7"
Depth	6.7"
Environmentally Friendly	Yes
Chipset Manufacturer	Intel
Number of Memory Slots	4
Graphics Controller Model	AST2400
Gigabit Ethernet	Yes
Number of SATA Interfaces	4
Onboard Video	On-board Video Chipset
Number of PCI Express x4 Slots	1
VGA	Yes
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Total Number of Onboard USB Ports	4
Total Number of PCI Express Slots	1
Integrated Processor Type	Atom
Integrated Processor Model	C3858
Integrated Processor Speed	2 GHz
Integrated Processor Core	Dodeca-core (12 Core)
Memory Form Factor	DIMM, UDIMM
Total Number of Expansion Slots	2
10Gigabit Ethernet	Yes
Number of M.2 Interfaces	1
Memory Speed Supported	2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
