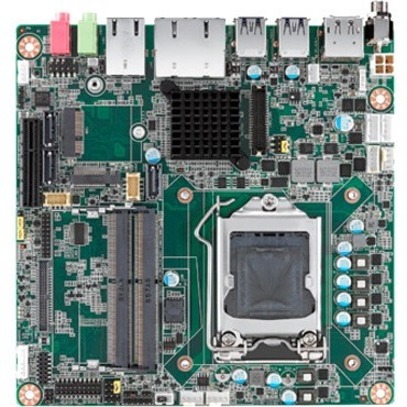

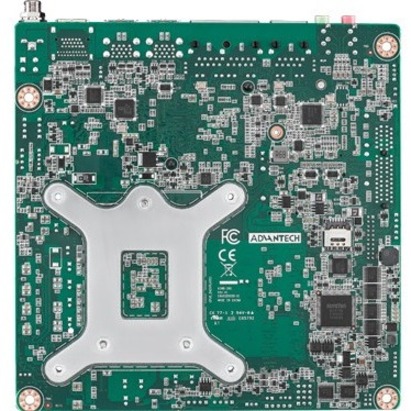

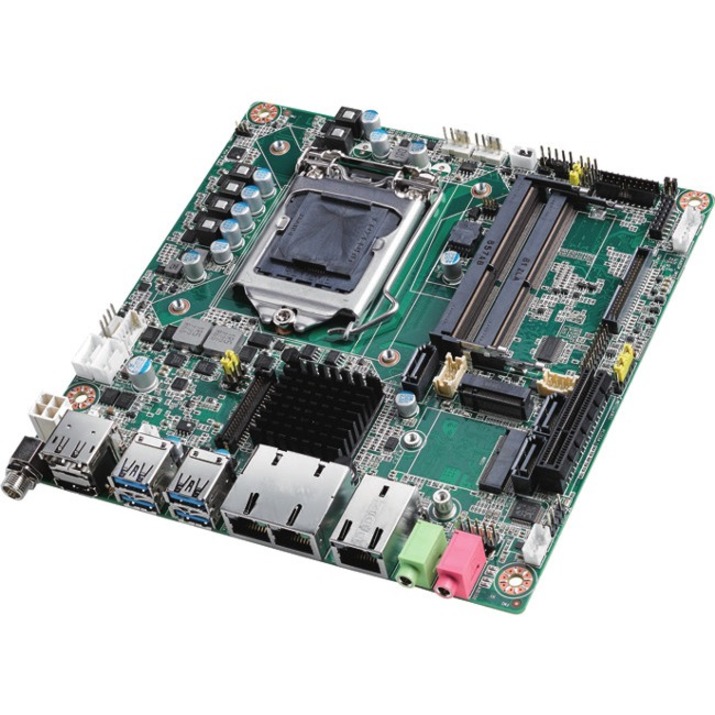

Intel H310 Chipset - Socket H4 LGA-1151 - Mini ITX
64 GB DDR4 SDRAM Maximum RAM - SODIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 3 x SATA Interfaces
SKU
Category
Motherboards
$447.01
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Motherboards
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Highlights
Supports Intel® 9th/8th Gen Core i processor (LGA1151) with Intel H310 chipset
Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM
Supports dual display of DP++/HDMI/LVDs (or eDP)
Supports PCIe x4 (Gen 3), 1 M.2 B key & 1 M.2 E key, 4 USB 3.0 & 4 USB 2.0 and 3 SATA III
Supports 12V DC Input and low profile height
Supports TPM 1.2 / 2.0
Supports WISE-PaaS/DeviceOn and Embedded Software APIs
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
AIMB-286G2-00A1E
Brand Name
Advantech
Product Model
AIMB-286
Product Name
AIMB-286 Desktop Motherboard
Product Type
Desktop Motherboard
I/O Controller
Controller Type
Serial ATA/600
I/O Expansions
Total Number of Expansion Slots
1
Total Number of PCI Express Slots
1
Number of PCI Express x4 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4
HDMI
Yes
DisplayPort
Yes
Number of Network (RJ-45) Ports
2
Memory
Number of Memory Slots
2
Memory Form Factor
SODIMM
Maximum Memory Supported
64 GB
Memory Speed Supported
2666 MHz
Memory Technology
DDR4 SDRAM
Network & Communication
Gigabit Ethernet
Yes
Onboard Interfaces
Number of SATA Interfaces
3
Number of M.2 Interfaces
2
Total Number of Onboard USB Ports
4
Number of Onboard USB 2.0 Ports
4
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H310
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Core i3, Core i5, Core i7, Celeron, Pentium Gold
Video
Onboard Video
CPU Dependent Video
Miscellaneous
Package Contents
AIMB-286 Desktop Motherboard
1 x SATA HDD Cable
1 x SATA Power Cable (1 port, 25cm)
1 x 1-to-2 Serial Port Cable, 22cm
1 x I/O Port Bracket
1 x 1-to-4 Serial Port Cable, 35cm
1 x Startup Manual
1 x ATX 2x10P to 1x3P-2.0 25cm Cable
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
