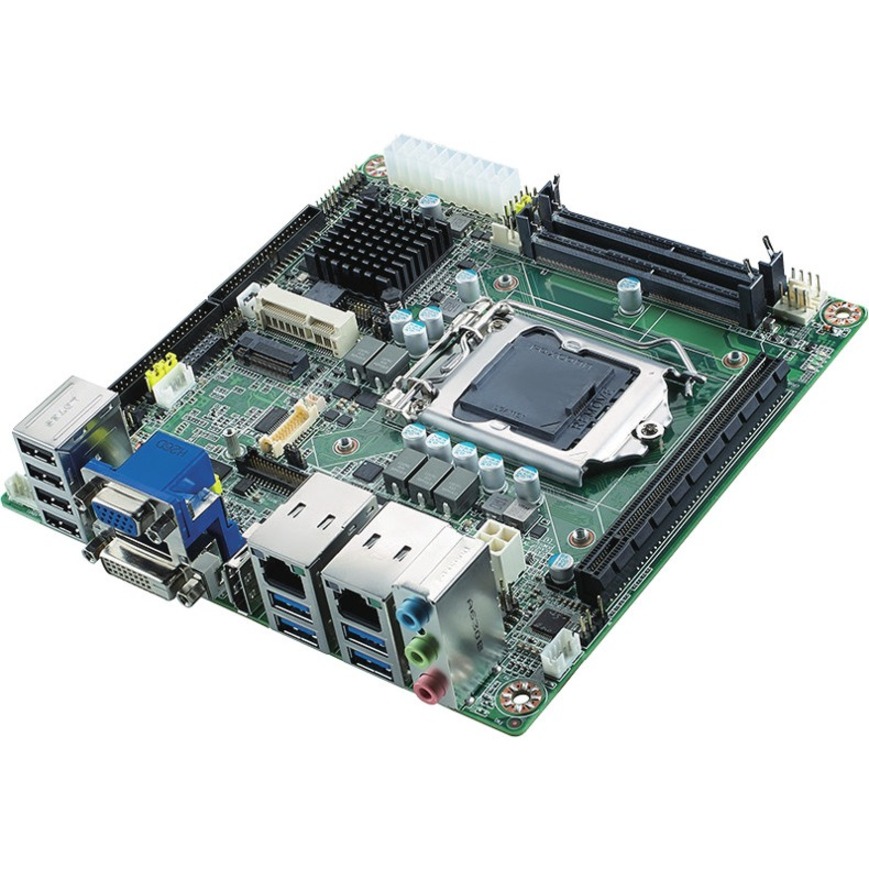

Intel H110 Chipset - Socket H4 LGA-1151 - Mini ITX
32 GB DDR4 SDRAM Maximum RAM - SODIMM - 2 x Memory Slots - Gigabit Ethernet - DisplayPort - 2 x SATA Interfaces
SKU
Category
Motherboards
$349.80
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Motherboards
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Highlights
Supports Intel® 7th Gen Core & 6th Gen Core i processor /Pentium / Celeron (LGA1151) with Intel H110 chipset
Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
Supports Dual display configuration by multiple interface: DP/DVI-D/VGA/ LVDS(eDP)
Supports DirectX 12, OpenGL 4.4, OpenCL 2.0 and outstanding 3D graphics performance
Supports 1 F/S MiniPCIe and 1 M.2 2242 (B key for SSD)
Specifications
Audio
Audio Channels
7.1
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
AIMB-205G2-00A1E
Brand Name
Advantech
Product Model
AIMB-205
Product Name
AIMB-205 Desktop Motherboard
Product Type
Desktop Motherboard
I/O Controller
Controller Type
Serial ATA/600
I/O Expansions
Total Number of Expansion Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
8
Number of USB 2.0 Ports
4
Number of USB 3.0 Ports
4
VGA
Yes
DisplayPort
Yes
DVI
Yes
Number of Network (RJ-45) Ports
2
Memory
Number of Memory Slots
2
Memory Form Factor
SODIMM
Maximum Memory Supported
32 GB
Memory Speed Supported
2400 MHz, 2133 MHz
Memory Technology
DDR4 SDRAM
Network & Communication
Gigabit Ethernet
Yes
Onboard Interfaces
Number of SATA Interfaces
2
Number of M.2 Interfaces
1
Total Number of Onboard USB Ports
6
Number of Onboard USB 2.0 Ports
6
Physical Characteristics
Form Factor
Mini ITX
Width
6.7"
Depth
6.7"
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H110
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
Core i3, Core i5, Core i7, Celeron, Pentium
Video
Onboard Video
CPU Dependent Video
Miscellaneous
Package Contents
AIMB-205 Desktop Motherboard
1 x SATA HDD Cable
2 x 1-to-4 Serial Ports, 35 cm
1 x I/O Port Bracket
1 x Startup Manual
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
