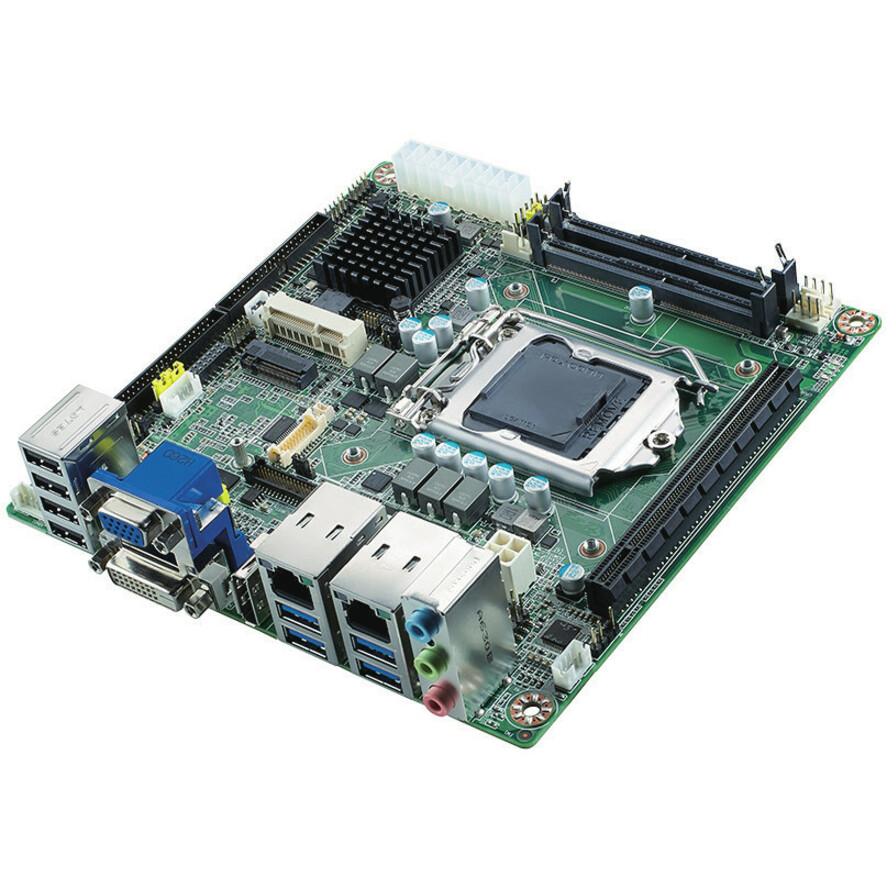

Advantech AIMB-285 A2 Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - Mini ITX
Advantech

Advantech AIMB-285 A2 Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - Mini ITX

32 GB DDR4 SDRAM Maximum RAM - SODIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 2 x SATA Interfaces

SKU
AIMB-285L-00A2E
Category
Motherboards

$259.36

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
AIMB-285L-00A2E
Category
Motherboards

Highlights

  • Supports Intel® 7th & 6th Gen Core? i processor (LGA1151) with Intel H110 chipset
  • Two 260-pin SO-DIMM up to 32GB DDR4 2400/2133 MHz SDRAM
  • Supports Dual display of DP/HDMI/VGA
  • Supports PCIe x4 (Gen 3), 1 F/S miniPCIe and 1 H/S miniPCIe
  • Support 12V DC Input and low profile height
  • Supports 4 USB 3.0, 4 USB 2.0, 3 SATAIII, TPM 1.2 / 2.0 (optional)
  • Supports WISE-PaaS/RMM and Embedded Software APIs

Specifications

Package Contents
  • AIMB-285 A2 Desktop Motherboard
  • 1 x SATA HDD Cable
  • 1 x SATA Power Cable
  • 2 x Serial Port Cable (1 port, 25cm)
  • 1 x I/O Port Bracket
  • 1 x Startup Manual
Product TypeDesktop Motherboard
Manufacturer Part NumberAIMB-285L-00A2E
Maximum Memory Supported32 GB
Form FactorMini ITX
ManufacturerAdvantech Co., Ltd
Product ModelAIMB-285 A2
Product NameAIMB-285 A2 Desktop Motherboard
Processor SupportedCore i3, Core i5, Core i7, Pentium
Total Processor Supported1
Controller TypeSerial ATA/600
Processor SocketSocket H4 LGA-1151
Brand NameAdvantech
Memory TechnologyDDR4 SDRAM
Country of OriginChina
Width6.7"
Depth6.7"
Environmentally FriendlyYes
Chipset ManufacturerIntel
Chipset ModelH110
Number of Memory Slots2
Audio Channels7.1
Gigabit EthernetYes
Number of SATA Interfaces2
Onboard VideoCPU Dependent Video
HDMIYes
Number of Network (RJ-45) Ports1
DisplayPortYes
Total Number of USB Ports4
Number of USB 3.0 Ports4
Number of Onboard USB 2.0 Ports0
Total Number of PCI Express Slots1
Memory Form FactorSODIMM
Total Number of Expansion Slots1
Memory Speed Supported2400 MHz, 2133 MHz
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
