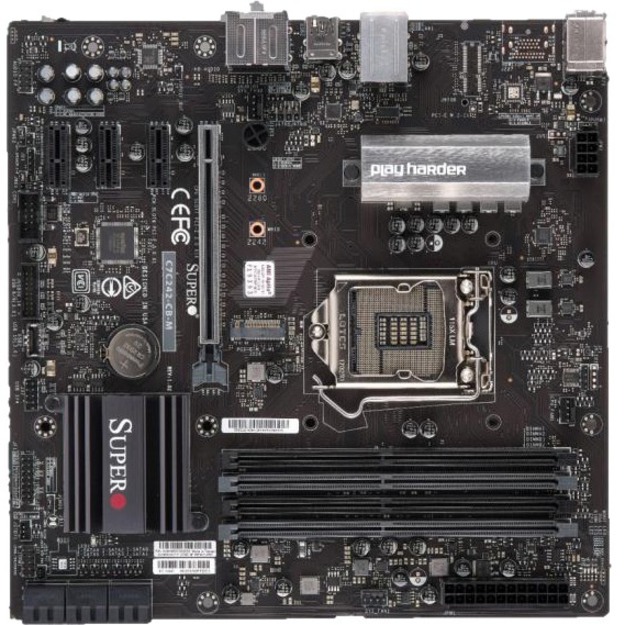

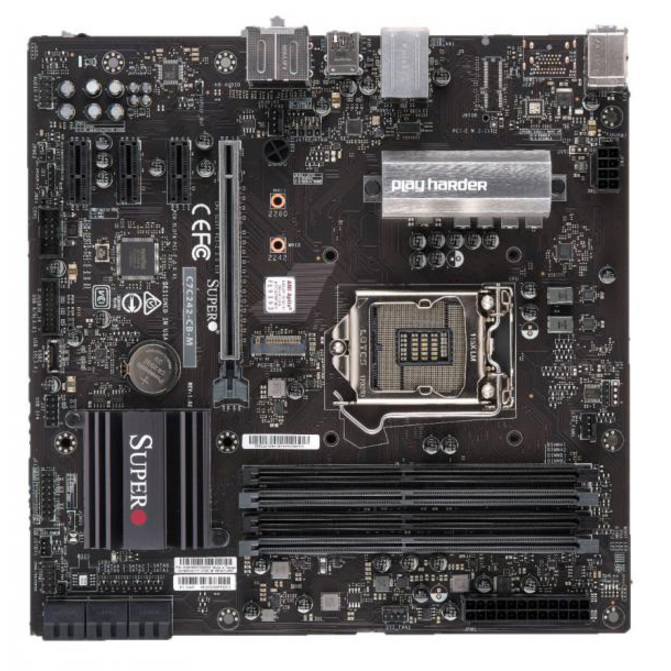

Supermicro C7C242-CB-M Desktop Motherboard - Intel C242 Chipset - Socket H4 LGA-1151 - Micro ATX

64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM, RDIMM, LRDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

SKU: MBD-C7C242-CB-M-O
Category: Motherboards

MSRP$230.67

$214.78

Save 7%

Back ordered

Back ordered — ships when restocked.

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: MBD-C7C242-CB-M-O
Category: Motherboards

Overview

C242 chipset / Socket H4 Boards

Supermicro's new desktop motherboards with single processor Socket H4 designs feature the Intel® C242 chipset which support the Intel® Core? i9/i7/i5/i3/Pentium®/Celeron® Processor, Intel® Xeon® Processor E-2100 series. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD.

Warranty

Limited Warranty: 1 Year

Highlights

Compatible Intel Core i7 processor provides lightning fast speed and peak performance, even for the toughest tasks and intensive games
DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard

Specifications

Package Contents	C7C242-CB-M Desktop Motherboard 1 x C.A. SATA 7P TO 7P 500MM 1 x SATA cable 1 x Driver CD 1 x I/O Shield
Product Type	Desktop Motherboard
Compatibility	Chassis: SC731i-300B SC731i-403B SCDS3A-261B
Manufacturer Part Number	MBD-C7C242-CB-M-O
Maximum Memory Supported	64 GB
Packaged Quantity	1
Limited Warranty	1 Year
Form Factor	Micro ATX
Manufacturer	Supermicro Computer, Inc
Product Model	C7C242-CB-M
Product Name	C7C242-CB-M Desktop Motherboard
Package Type	Retail
Processor Supported	Pentium, Celeron, Core i3, Core i5, Core i7, Core i9, Xeon
Total Processor Supported	1
Controller Type	Serial ATA/600
Processor Socket	Socket H4 LGA-1151
Brand Name	Supermicro
Memory Technology	DDR4 SDRAM
Width	9.6"
Depth	9.6"
Environmentally Friendly	Yes
Chipset Manufacturer	Intel
Chipset Model	C242
Number of Memory Slots	4
Gigabit Ethernet	Yes
Number of SATA Interfaces	6
Number of PCI Express x1 Slots	3
Number of PCI Express x16 Slots	1
Total Number of USB Ports	6
Number of USB 3.0 Ports	1
Total Number of Onboard USB Ports	5
Number of Onboard USB 3.0 Ports	3
Total Number of PCI Express Slots	4
Memory Form Factor	DIMM, UDIMM, RDIMM, LRDIMM
Total Number of Expansion Slots	4
Number of M.2 Interfaces	1
Number of USB 3.1 Ports	2
Memory Speed Supported	2666 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
