SKU
PEX2S953LP
Category
Serial/Parallel Adapters
Overview
This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART Supports max baud rate of up-to 921.4Kbps Provides 5/12V power output on Pin 9 when external power is connected 256-byte depth FIFO per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Specifications

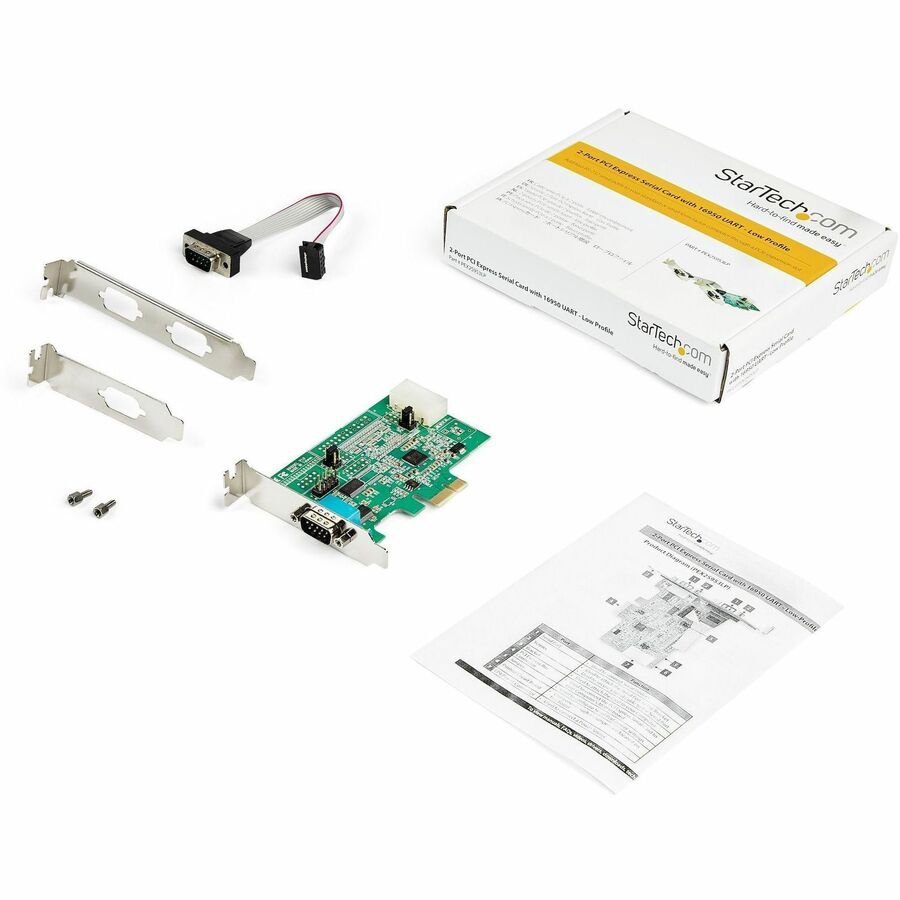

Package Contents
2-Port RS232 Serial Adapter Card with 16950 UART
1 x Full-Profile Bracket
1 x User Manual
Host Interface
PCI Express x1
Product Type
Serial Adapter
Manufacturer Part Number
PEX2S953LP
Packaged Quantity
1
Platform Supported
PC, Linux
Limited Warranty
Lifetime
UART Type
16950
Weight (Approximate)
3.35 oz
Form Factor
Plug-in Card
Manufacturer
StarTech.com
Product Name
2-Port RS232 Serial Adapter Card with 16950 UART
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
3.1"
Width
0.9"
Depth
4.1"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Card Height
Low-profile
Number of Serial Ports (External)
2
TAA Compliant
Yes
Product Color
Green
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
