SKU
PEX2S553
Category
Serial/Parallel Adapters
Overview

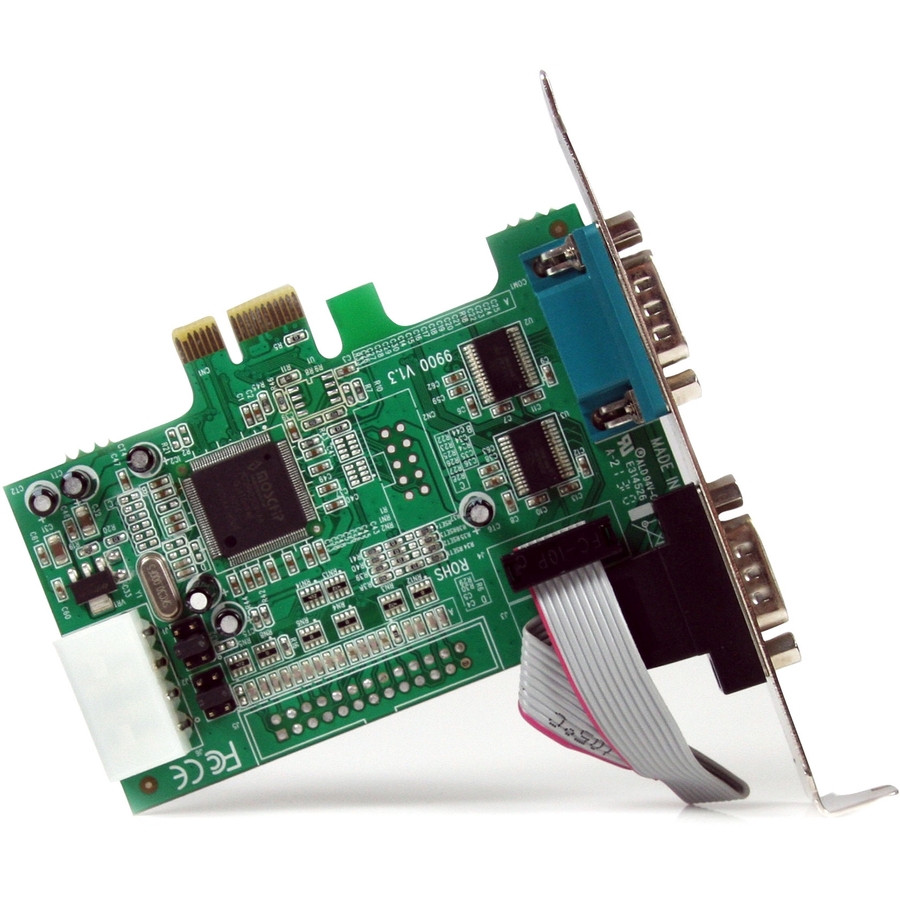

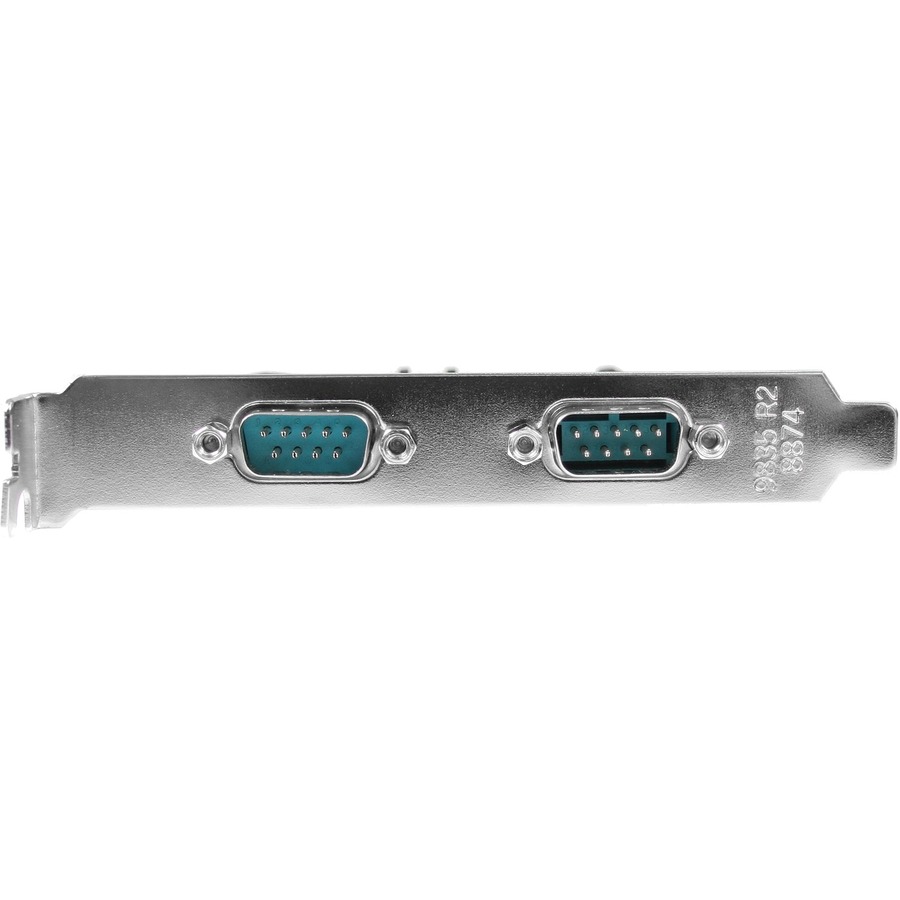

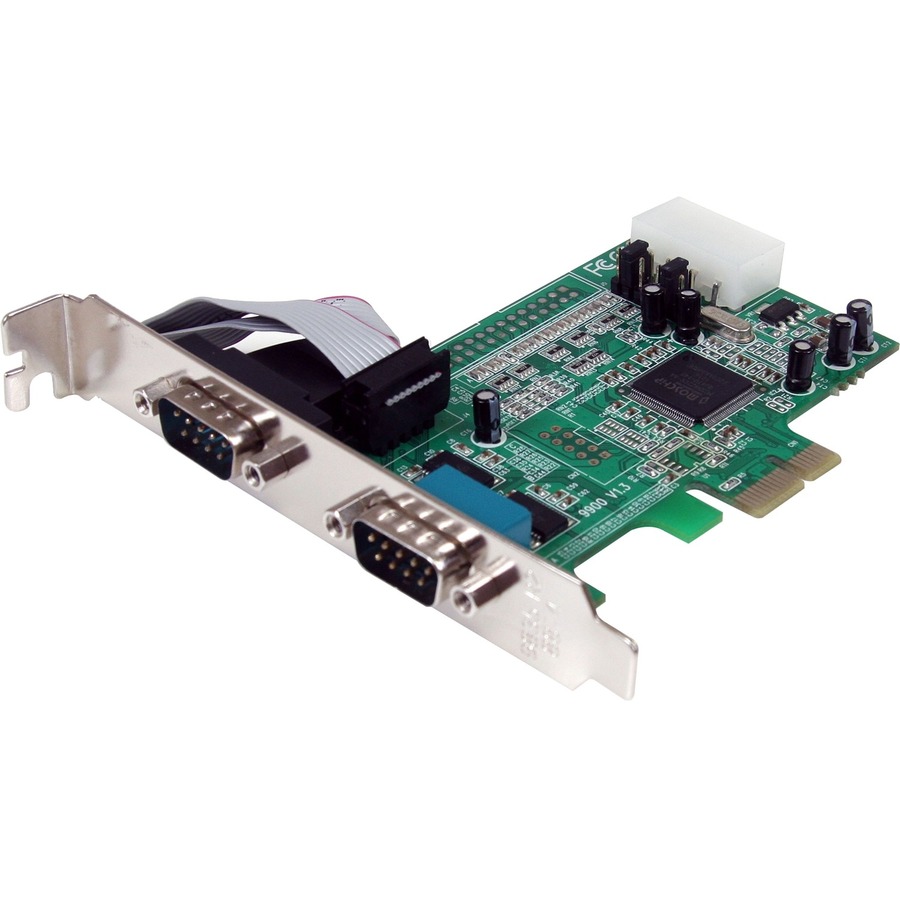

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards. The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above. Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case. This product is a replacement for our PEX2S552 card. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
Compliant with PCI Express base specifications revision 1.0a
Includes half-height/low profile mounting bracket
Selectable power output on pin 9 for the serial port
128-byte deep FIFO per transmitter and receiver
Native single-Chip, single lane PCI Express
Automated out-of-band flow control using CTS/RTS and DSR/DTR
Automated in-band software flow control using programmable Xon/Xoff in both directions
Specifications
Package Contents
2 Port PCIe Serial Adapter Card with 16550
Low Profile Brackets
Driver CD
Instruction Manual
Host Interface
PCI Express x1
Product Type
Serial Adapter
Manufacturer Part Number
PEX2S553
Packaged Quantity
1
Platform Supported
PC, Mac, Linux
Limited Warranty
2 Year
UART Type
16550
Weight (Approximate)
2.20 oz
Form Factor
Plug-in Card
Manufacturer
StarTech.com
Product Model
PEX2S553
Product Name
2 Port PCIe Serial Adapter Card with 16550
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
0.8"
Width
4.7"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Card Height
Half-height/Low-profile
Number of Serial Ports (External)
2
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
