StarTech 2S1P PCI Express Serial Parallel Combo Card
Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot - PCI Express Serial Parallel Card - PCIe Serial Parallel Combo Card Adapter - 2 Port Serial and 1 Port Parallel - Comes with Breakout Cable - Dual Profile - SPP EPP ECP
- SKU
- PEX2S1P553B
- Category
- Serial/Parallel Adapters
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PEX2S1P553B
- Category
- Serial/Parallel Adapters
Overview

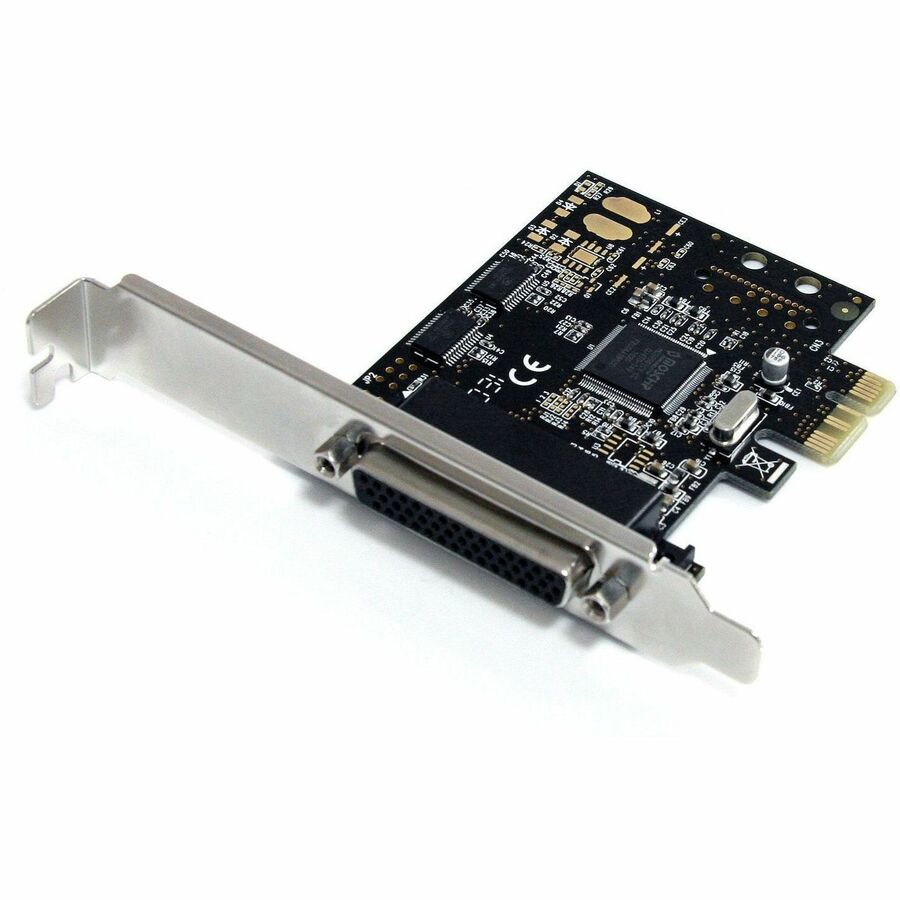

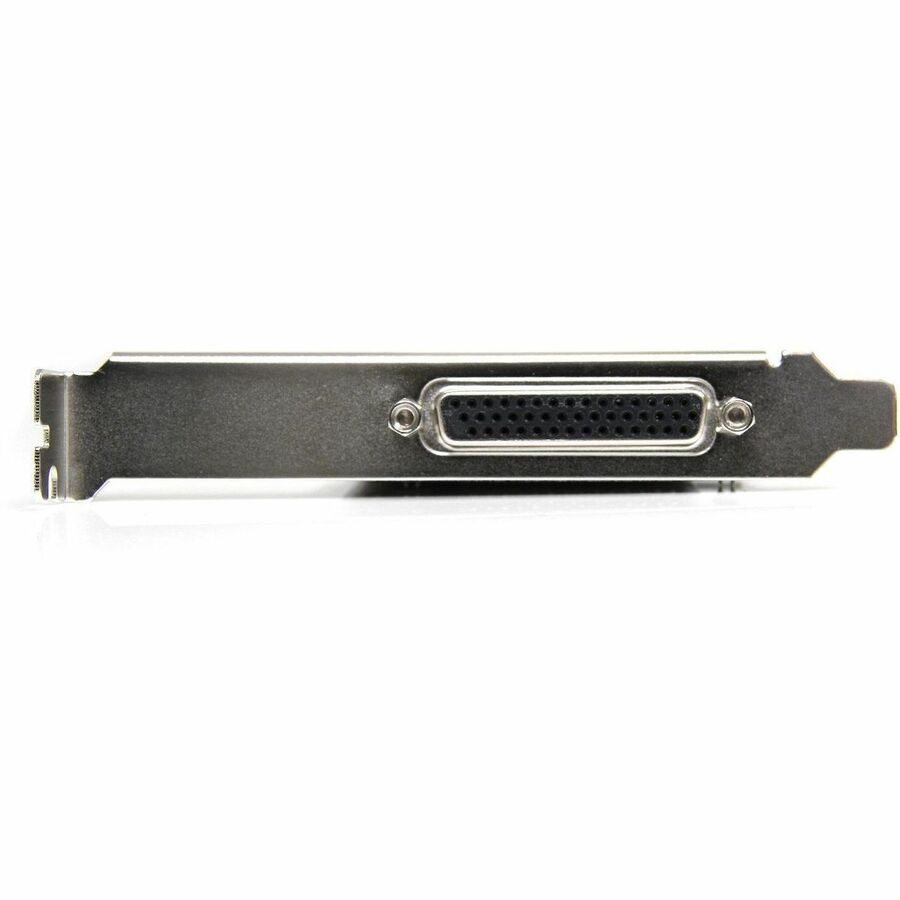

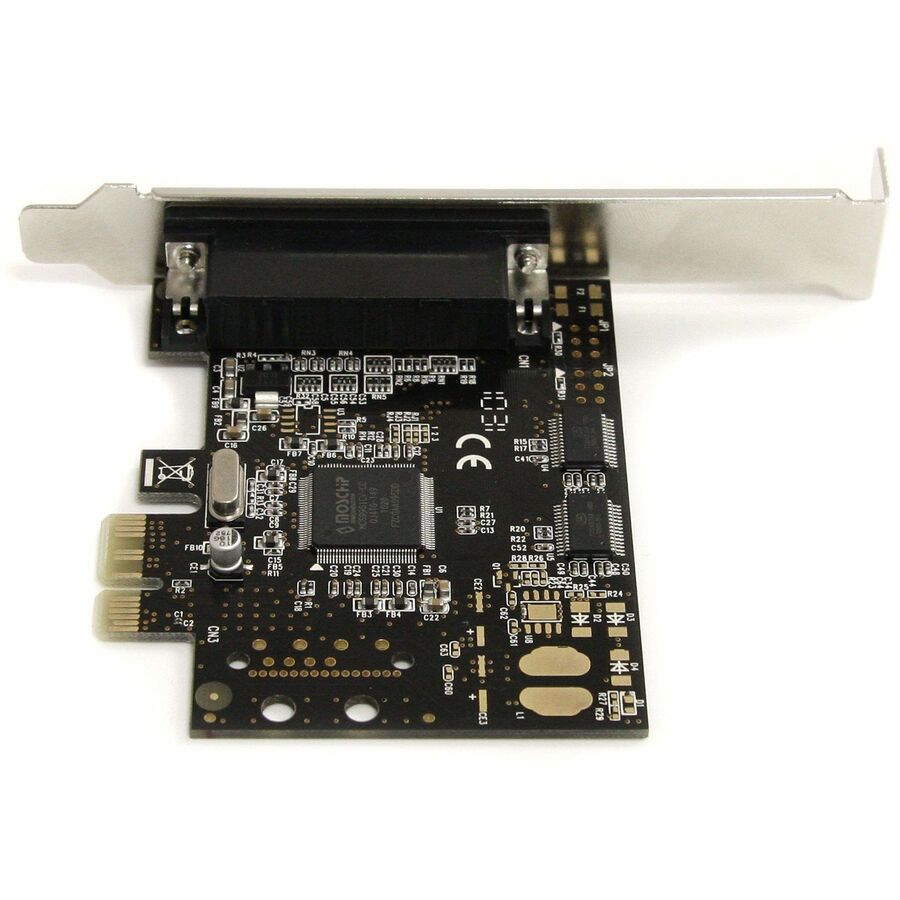

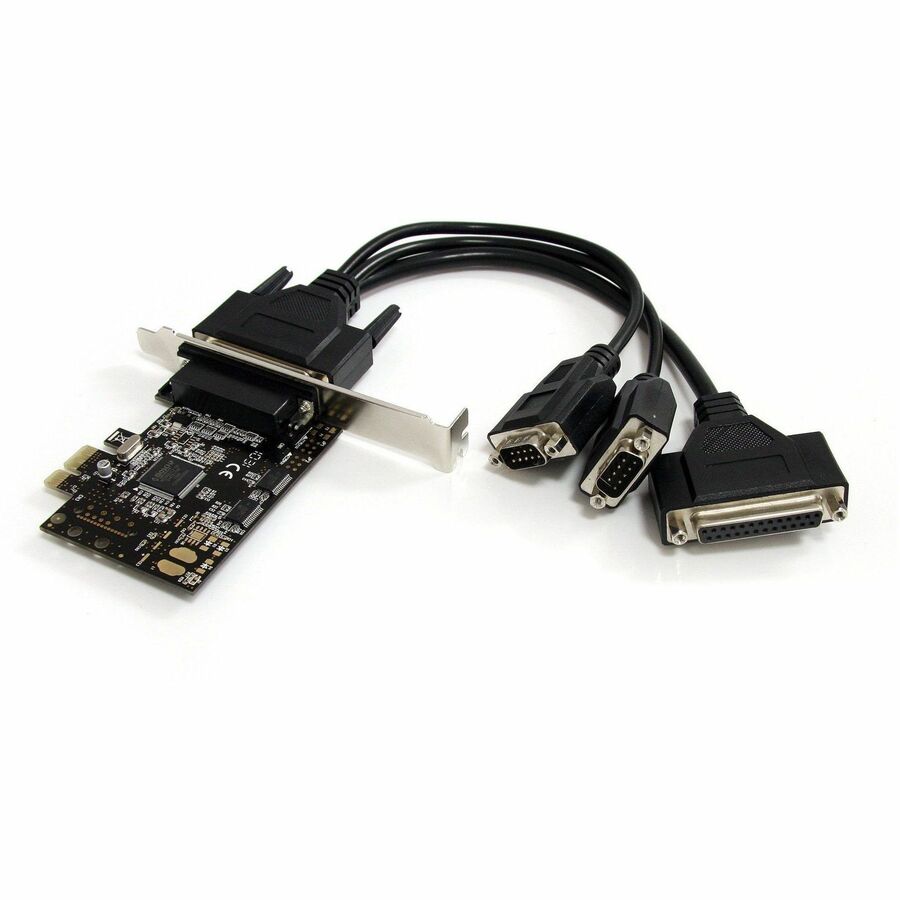

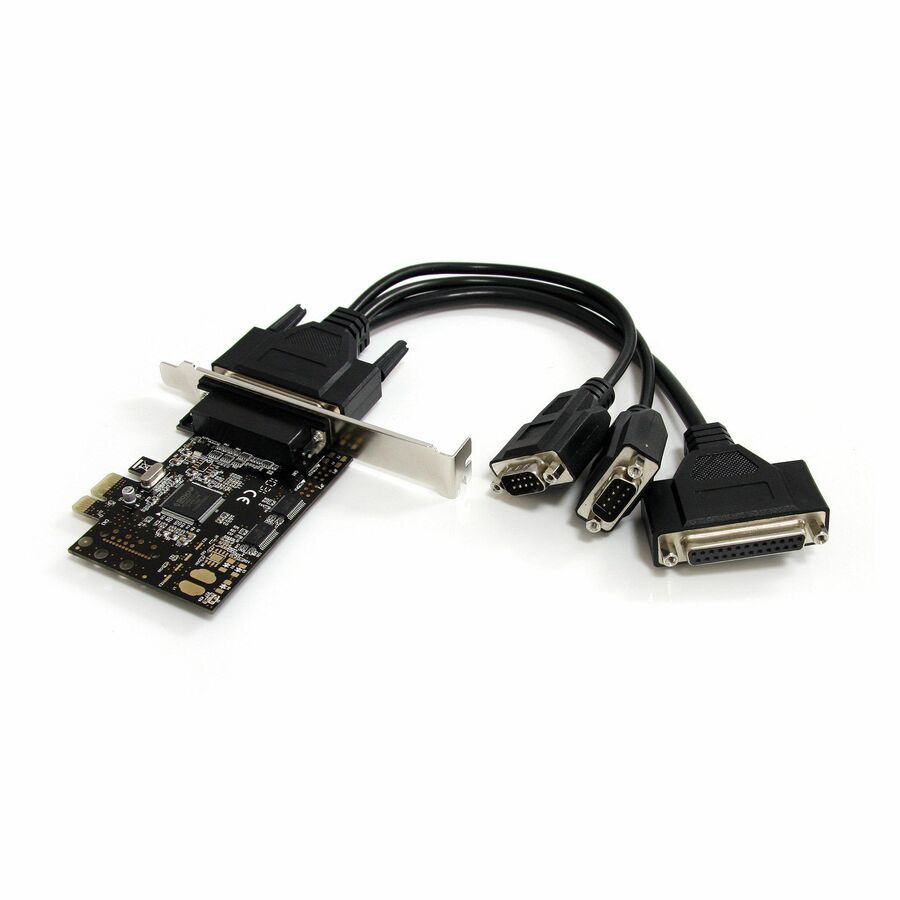

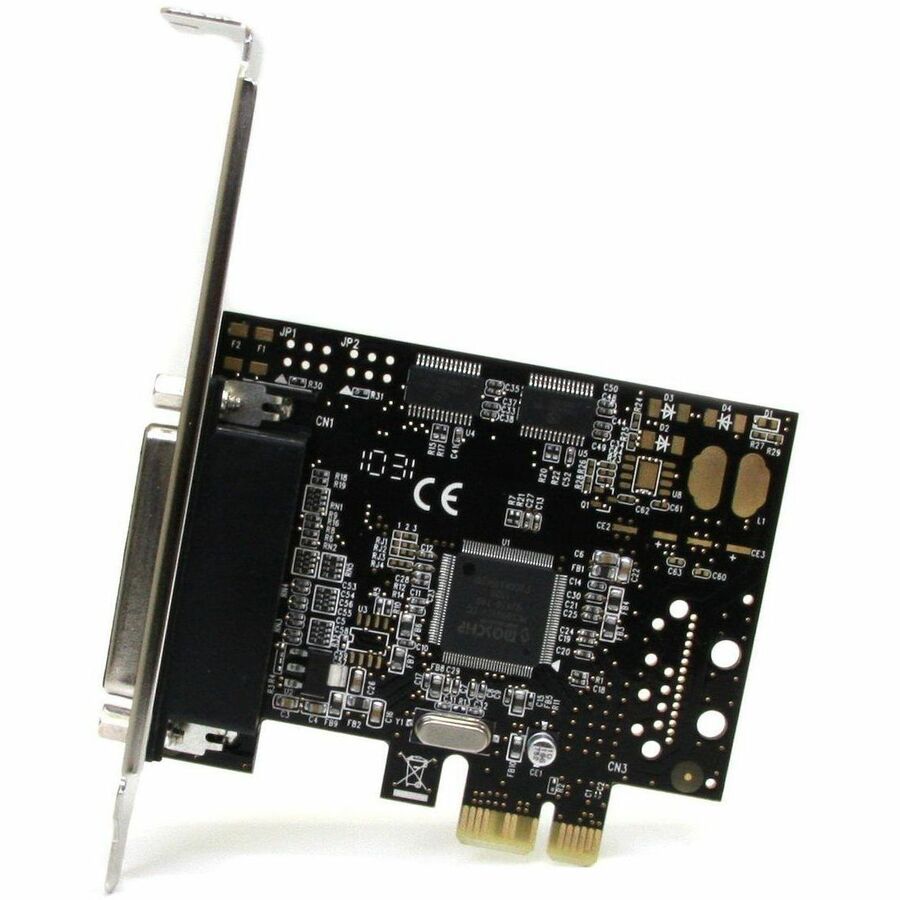

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot. Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X. The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards. This product is a replacement for our PEX2S1P552B card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
- Low profile/half-height design with optional full profile bracket
- Single-chip architecture, no bridge chip
- Supports parallel data transfer rates up to 1.5 Mbps
- Supports serial data transfer rate up to 250 Kbps (per port)
- Compatible with industrial standard 16C450/16C550 UART
- Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port(ECP)
- PCI Express Base Specification 1.0a compliant
- On-chip 256-byte depth FIFO in transmit/receive path of each port
- Single-Lane (x1) PCI-Express host connection
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express x1 |
| Product Type | Serial/Parallel Combo Adapter |
| Manufacturer Part Number | PEX2S1P553B |
| Packaged Quantity | 1 |
| Parallel Port Modes | SPP, EPP, ECP |
| Platform Supported | PC, Mac |
| Limited Warranty | Lifetime |
| UART Type | 16C450, 16C550 |
| Weight (Approximate) | 7.90 oz |
| Form Factor | Plug-in Card |
| Manufacturer | StarTech.com |
| Product Name | 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Height | 3.1" |
| Width | 0.9" |
| Environmentally Friendly | Yes |
| Card Height | Low-profile |
| Number of Serial Ports (External) | 2 |
| Number of Parallel Ports (External) | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
