Overview

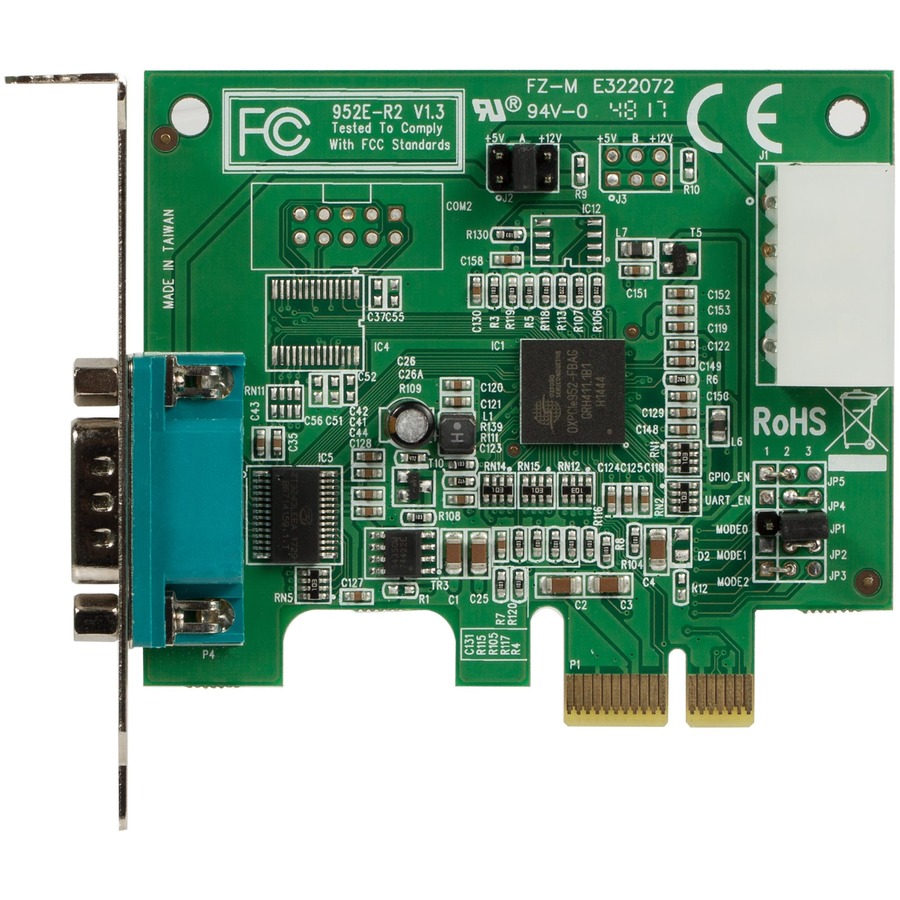

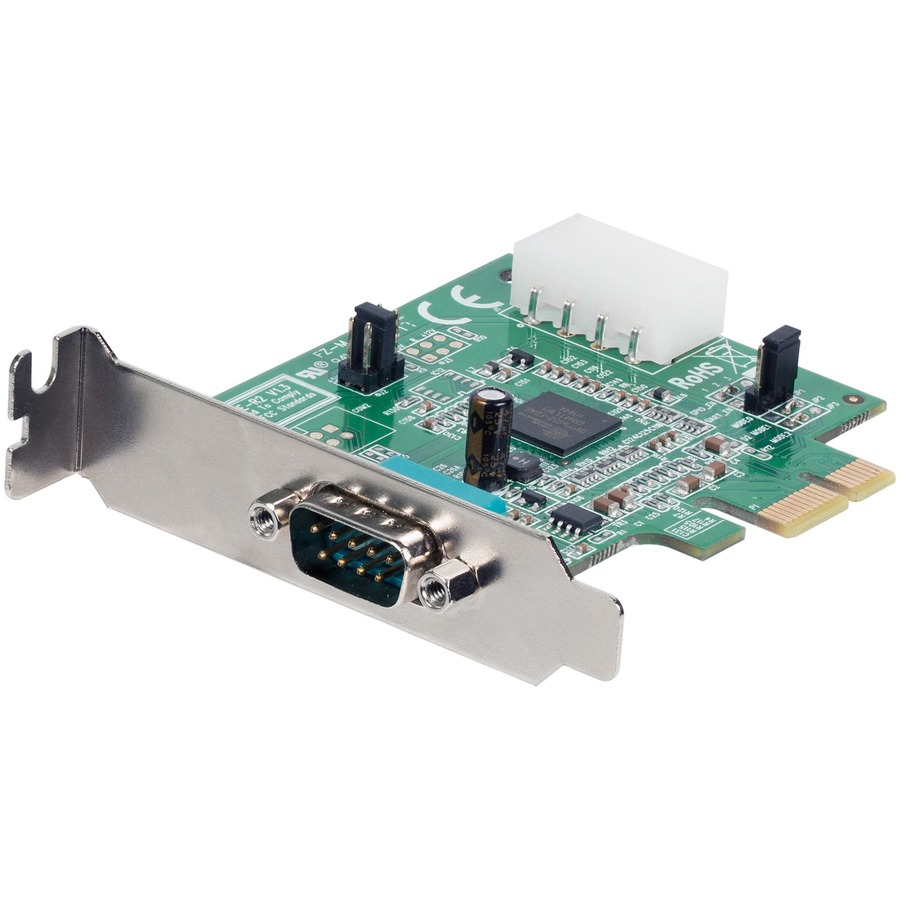

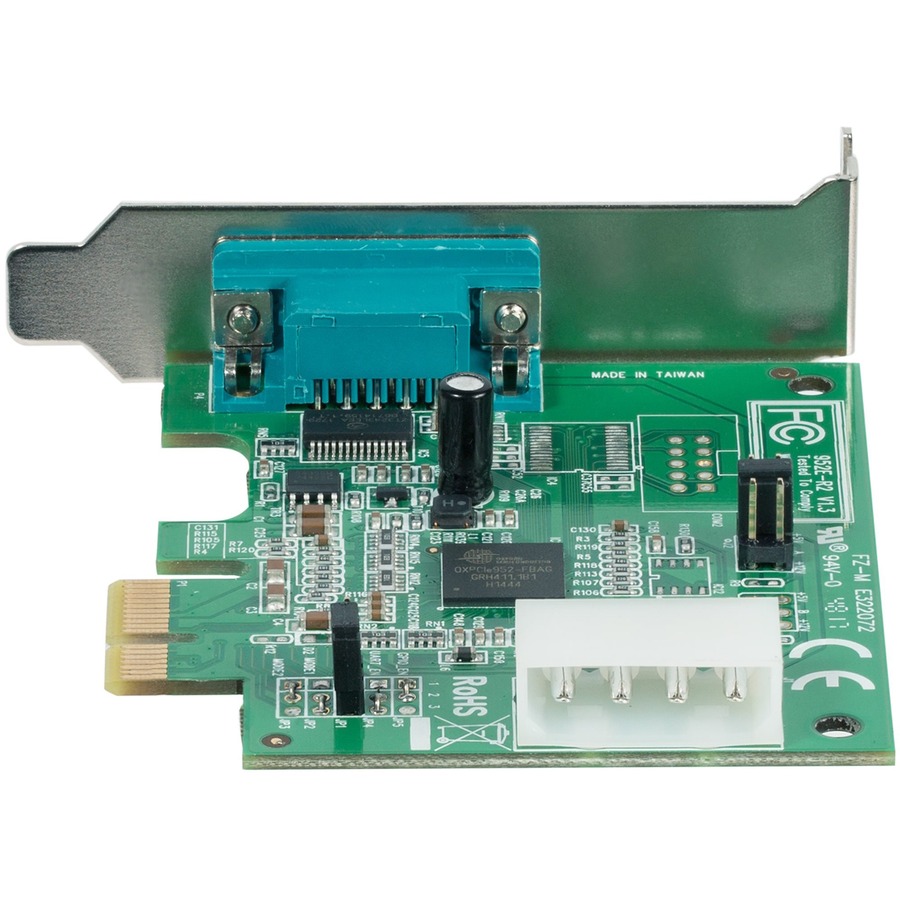

The PEX1S952LP 1 Port Low Profile Native PCI Express RS232 Serial Adapter Card with 16950 UART adds an RS232 (DB9) Serial Port with data rates up to 460 Kbps to a computer through an available low profile PCIe slot, while relying on a native, single-chip design (Oxford OXPCIe952) that harnesses the capability of true PCI Express - ensuring maximum performance and reliability and reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards.
The 1 port RS232 serial card features a half-height pci express mounting bracket that's designed specifically for low profile/small form factor computer cases, and includes an optional standard height bracket as well. Compatible with a broad range of operating systems including Windows® and Linux for easy integration into mixed environments.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Highlights
- REPLACED BY PEX1S953LP: Add 1 high-speed serial RS-232 port to any PC with a PCI Express slot
- Native single-Chip, single lane PCI Express
- One high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps

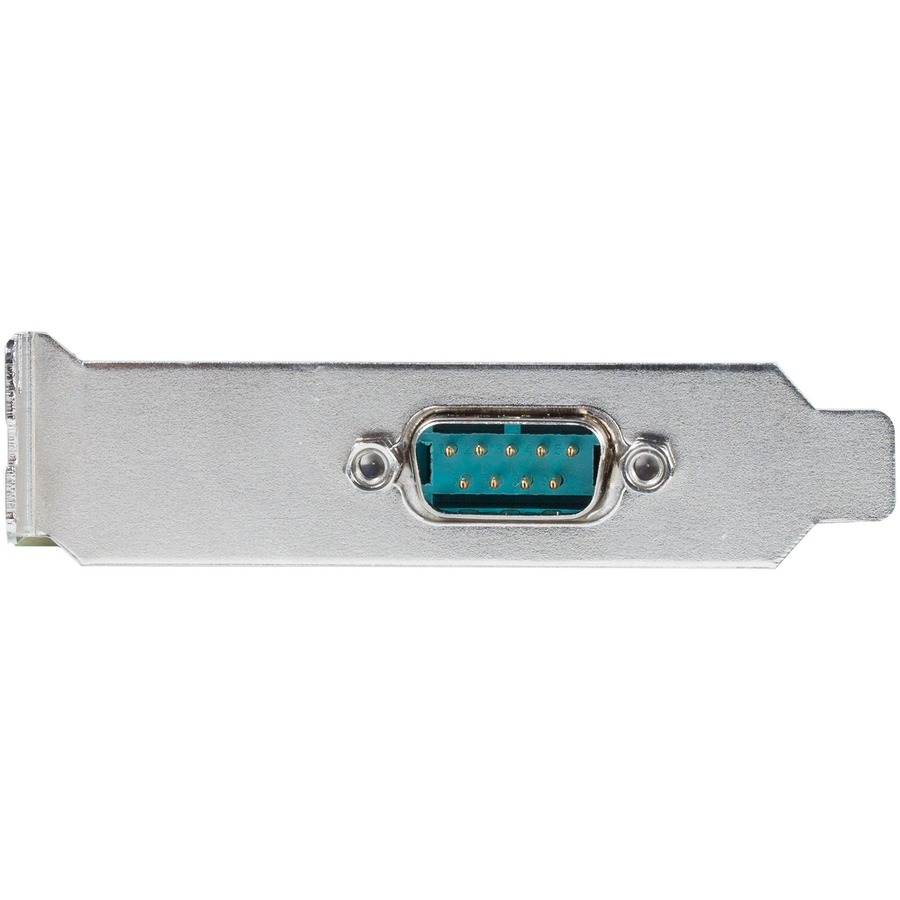

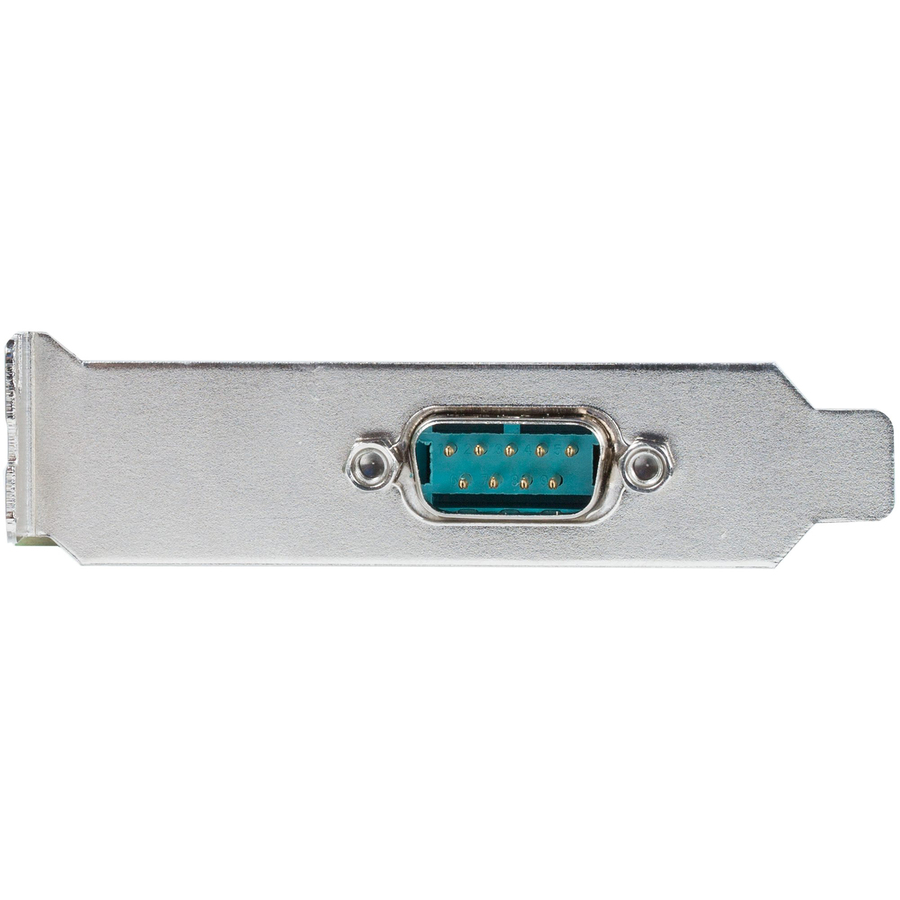

- Ships with low profile/half-height bracket, includes optional standard profile bracket
- Selectable power output on pin 9 for the serial port
- High Performance Single Channel Oxford 950 UART
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
- Compliant with PCI Express base specifications revision 1.0a
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express x1 |
| Product Type | Serial Adapter |
| Manufacturer Part Number | PEX1S952LP |
| Packaged Quantity | 1 |
| Platform Supported | PC, Linux |
| Limited Warranty | Lifetime |
| UART Type | 16950 |
| Weight (Approximate) | 1.69 oz |
| Form Factor | Plug-in Card |
| Manufacturer | StarTech.com |
| Product Name | 1 Port Low Profile Native PCI Express Serial Card w/ 16950 |
| Brand Name | StarTech.com |
| Height | 0.8" |
| Width | 2.6" |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Card Height | Low-profile |
| Number of Serial Ports (External) | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
