StarTech 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, COM Retention, Windows & Linux, TAA
Connect serial RS232 (DB9) devices, using this PC Serial Card. Supports 16C1050 UART. LED lights to monitor activity on the PCI express DB9 card - The UART PCIe card supplies 5/12V over pin 9. Continue using legacy hardware with this RS232 PCIe card
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
21050-PC-SERIAL-CARD
Category
Serial/Parallel Adapters
Overview
Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.
Legacy Connectivity
Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.
Connect with Ease

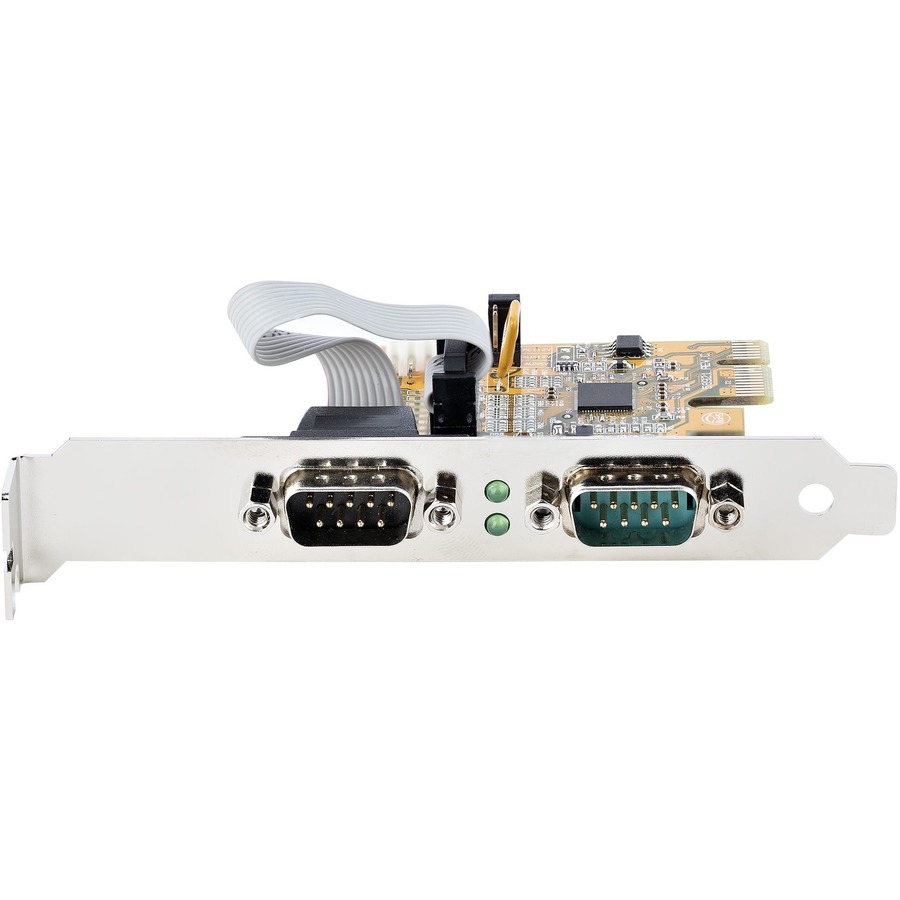

The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.
21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
More from the Manufacturer
More from the Manufacturer
Highlights
PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART on both DB9 male ports. Monitor activity with the built-in LED status lights on the PCI express DB9 card
DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile brackets are included
APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 ports accept screw locking serial cables
DUAL SERIAL PORT CARD SPECS: 16C1050 UART | Max Baud 921.6 Kbps per Port | 256 Byte FIFO | COM Retention | Supports Windows and Linux | Asix AX99100 Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8/9 Data Bits | PCIe 2.0 x1 | Low-profile Brackets
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Additional Warranty Information
2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Package Contents
Two-port PCIe Serial Card
2 x Low-Profile Brackets
1 x Quick-Start Guide
Host Interface
PCI Express x1
Product Type
Serial Adapter
Manufacturer Part Number
21050-PC-SERIAL-CARD
Platform Supported
PC, Linux
Limited Warranty
2 Year
Weight (Approximate)
0 oz
Form Factor
Plug-in Card
Manufacturer
StarTech.com
Product Name
Two-port PCIe Serial Card
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
0.7"
Width
2.6"
Depth
2.6"
Environmentally Friendly
Yes
Card Height
Low-profile
Number of Serial Ports (External)
2
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
