StarTech 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km, TAA
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ET90110WDM2
Category
Transceivers/Media Converters
Overview

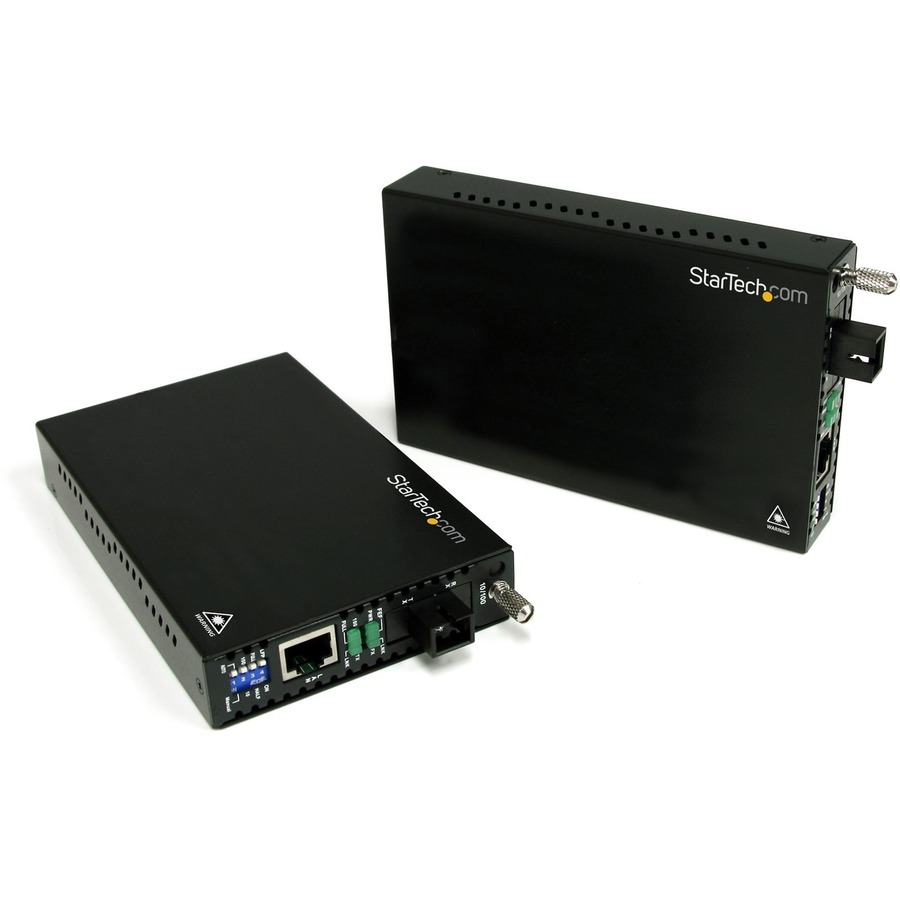

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi). The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling. The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex bi-directional communication
Kit includes local and remote converter module for a complete solution

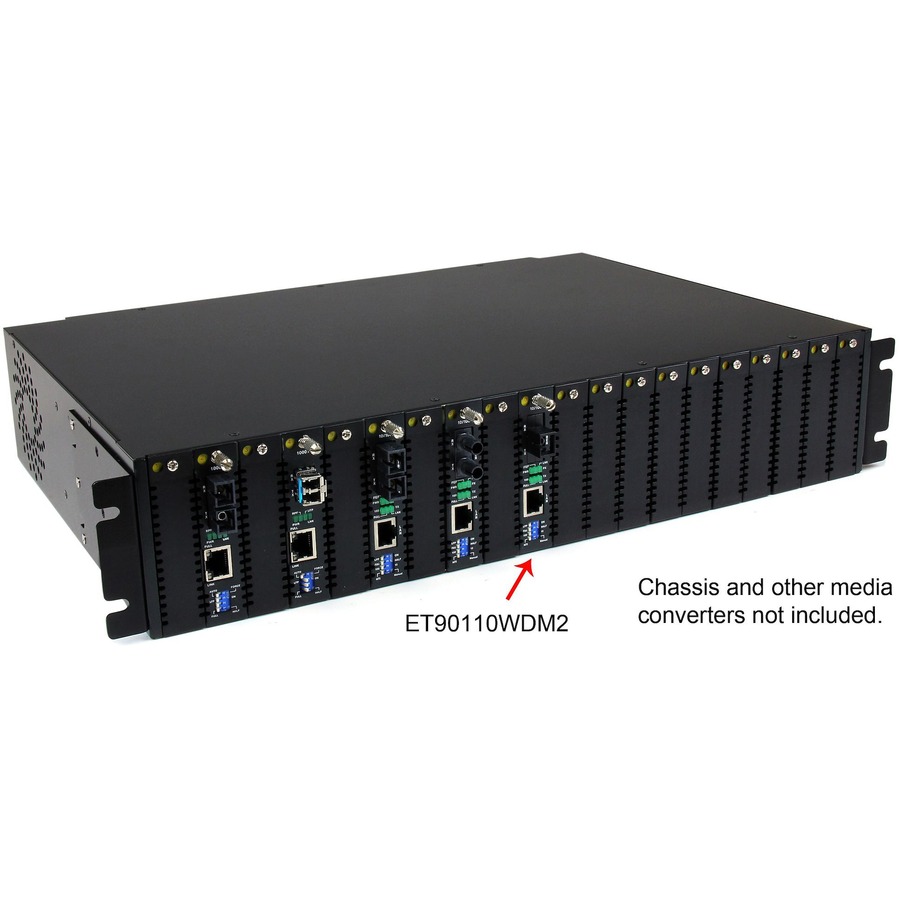

Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
Maximum Fiber Cable Length of 20 Km

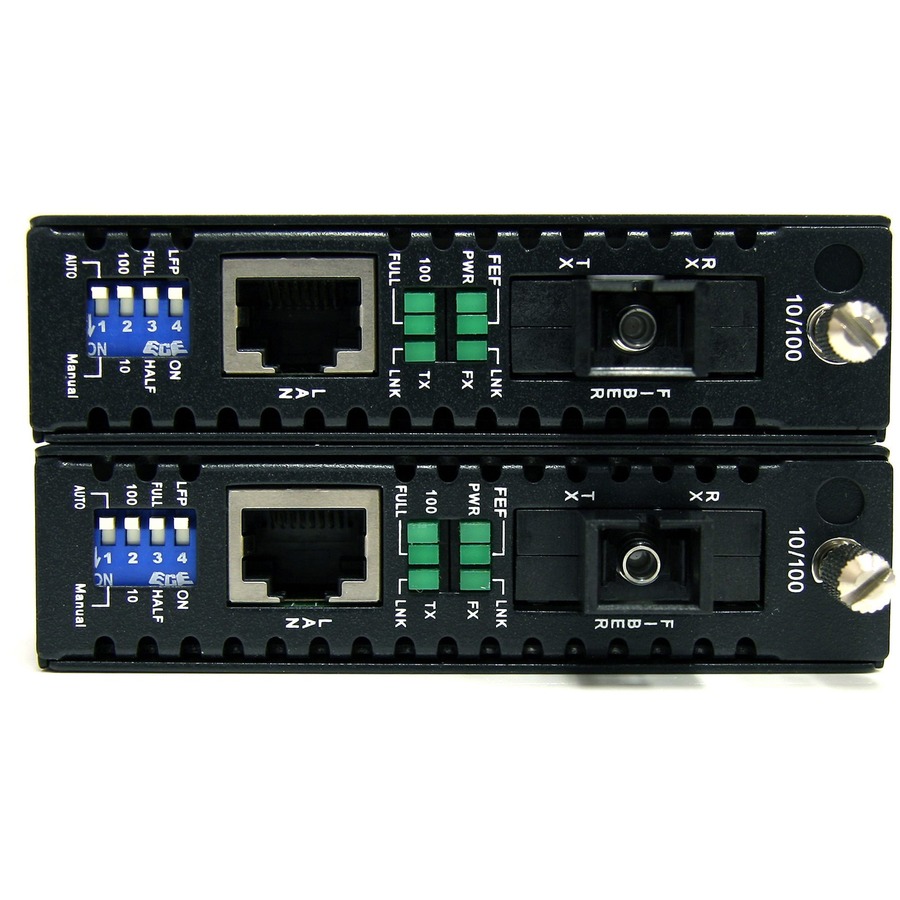

Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
Supports full or half-duplex operation
Easy to use and install
Specifications
Package Contents
1 x Local Media Converter Unit
1 x Remote Media Converter Unit
2 x Universal Power Adapters (NA/EU/UK/AU)
1 x Grounding Screw
1 x Instruction Manual
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ET90110WDM2
Maximum Distance Supported
20 km
Packaged Quantity
1 Each

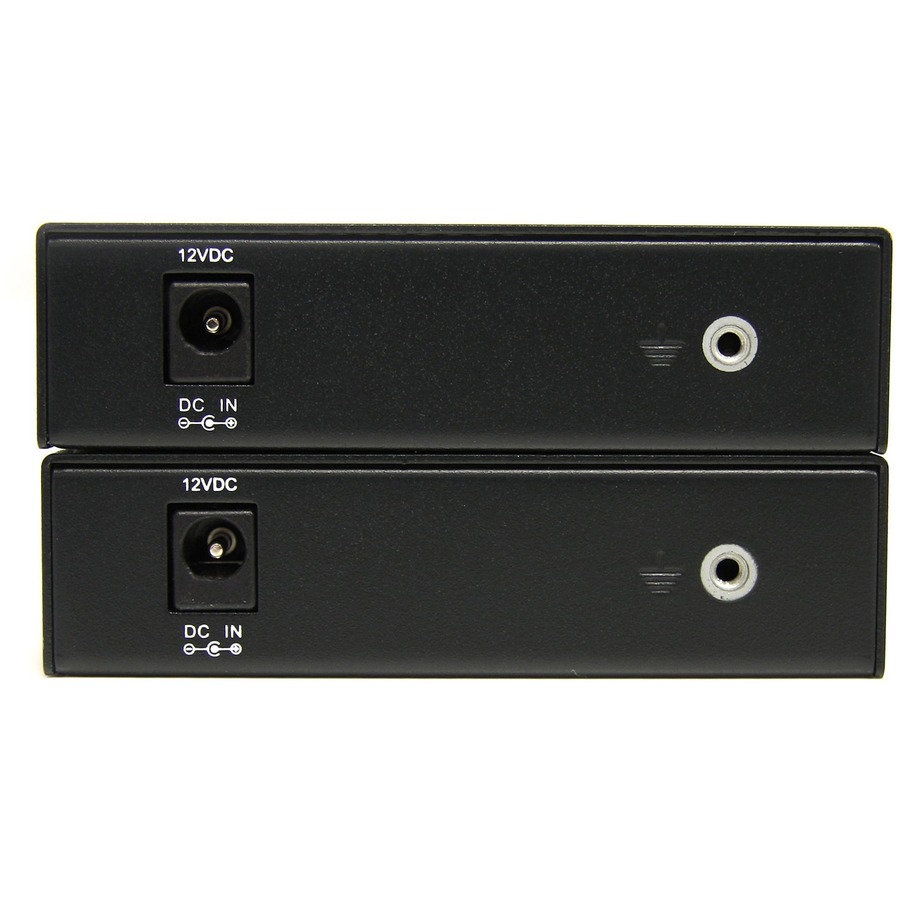

Power Source
AC Adapter
Limited Warranty
2 Year
Weight (Approximate)
2.70 lb
Form Factor
Rack-mountable, Desktop
Manufacturer
StarTech.com
Product Name
10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Network Technology
10/100Base-TX, 100Base-FX
Power Consumption
19.20 W
Brand Name
StarTech.com
Plug/Connector Type
Type M
Country of Origin
Taiwan
Height
1"
Width
3.5"
Depth
6.3"
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
USB
No
DVI
No
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Management Port
No
Number of SC Ports
1
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode
Total Number of Ports
2
SC Port Type
Duplex
TAA Compliant
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
