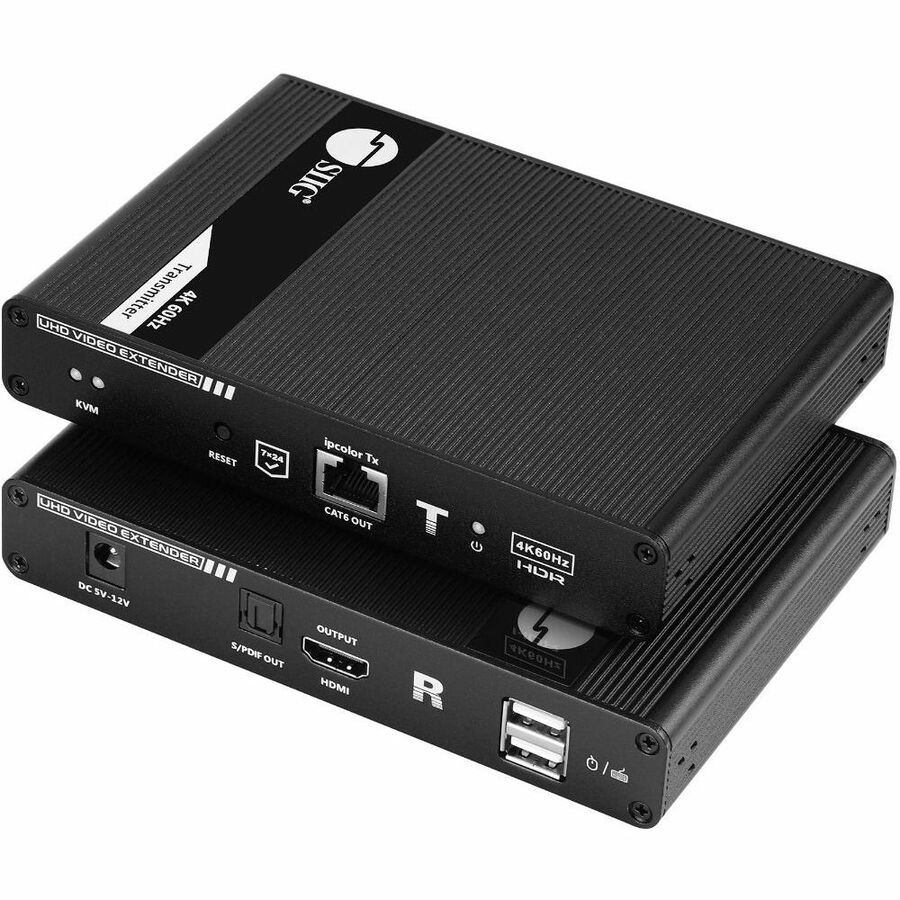

SIIG HDMI 2.0 KVM Over Cat6 Extender with Loopout & S/PDIF
SIIG

SIIG HDMI 2.0 KVM Over Cat6 Extender with Loopout & S/PDIF

Extend HDMI distance up to 230ft (70m) - support 4K60Hz Ultra HD display with nearly zero latency - HDMI KVM Extender - HDMI 18Gbps bandwidth - local HDMI output- KVM Keyboard & Mouse extender / HDCP 2.2 / USB 2.0 / S/PDIF audio Extraction / HDR / EDID passthrough - ESD protection/ Lightning protection/ Surge protection to safe your electronic equipment - Aluminum alloy housing - 2 years warranty

SKU
CE-H26Y11-S1
Category
KVM Consoles/Extenders

MSRP$259.99

$197.64

Save 24%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H26Y11-S1
Category
KVM Consoles/Extenders

Highlights

  • Extends and transmits 4K@60Hz HDMI 2.0 video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly with zero latency
  • Supports USB 2.0 extension to the receiver, allowing you to connect a wired/wireless keyboard and mouse to control your computer remotely

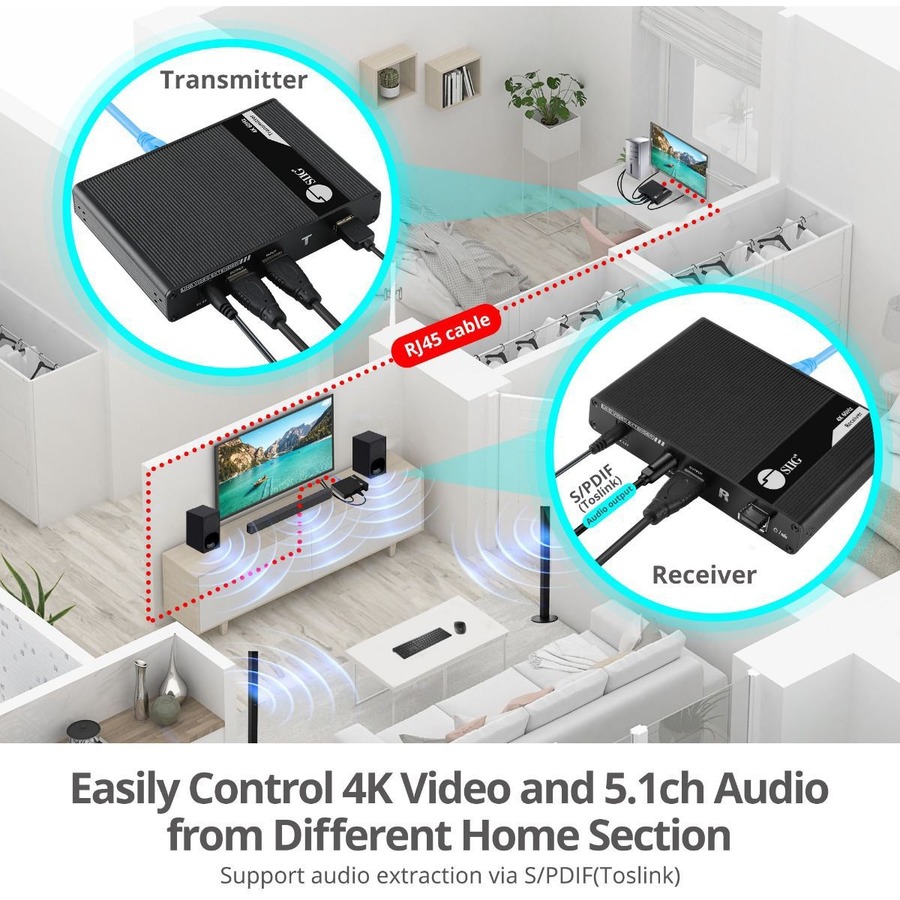

  • Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1

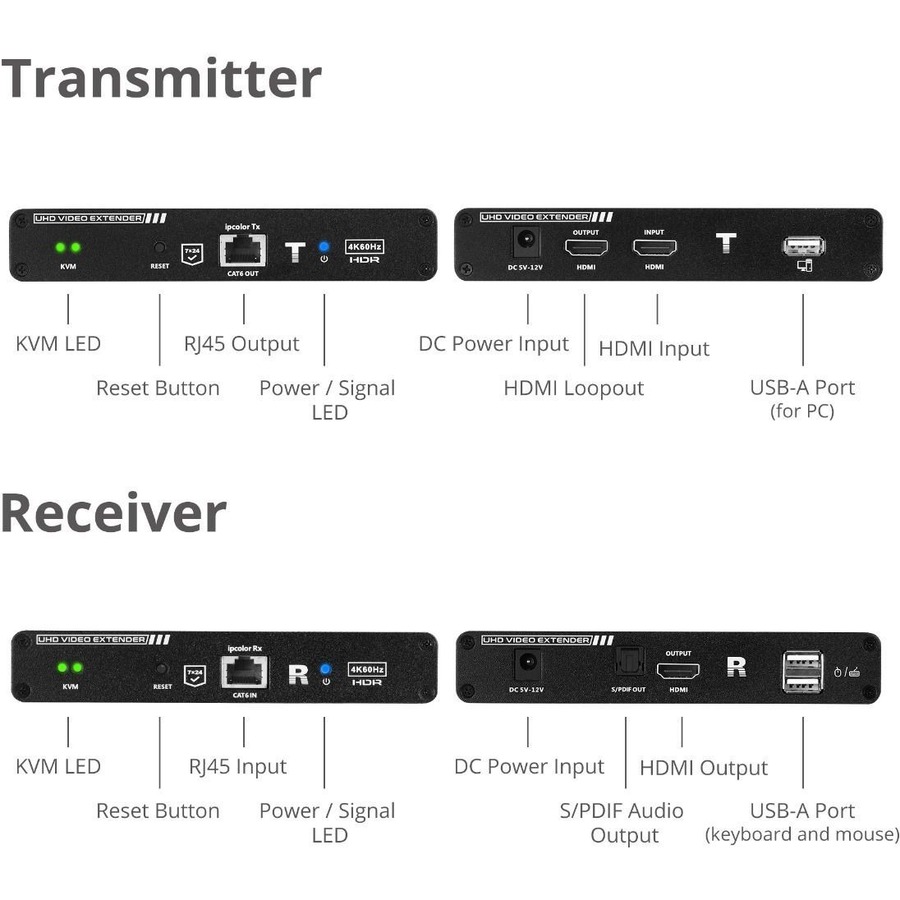

  • The transmitter's HDMI loop-out allows for local monitoring of the extended display
  • The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
  • Lightning protection, surge protection, ESD protection
  • Plug and play, no driver installation required
  • High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

Specifications

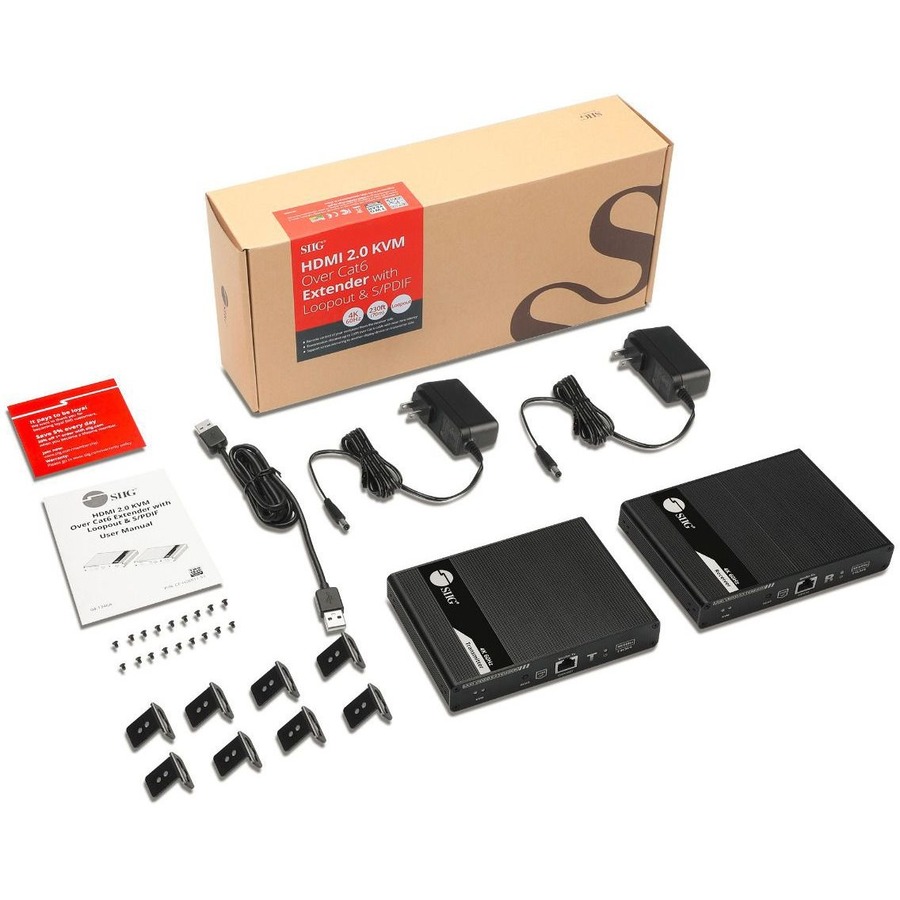

Package Contents
  • HDMI 2.0 KVM Over Cat6 Extender with Loopout & S/PDIF
  • 2 x Power Adapter
  • USB 2.0 Type-A to Type-A cable
  • Mounting Ears & Screw kit
  • User Manual
Product TypeKVM Extender
Input Voltage120 V AC, 240 V AC
Manufacturer Part NumberCE-H26Y11-S1
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerSIIG, Inc
Product NameHDMI 2.0 KVM Over Cat6 Extender with Loopout & S/PDIF
Brand NameSIIG
Input Voltage Range100V AC to 240V AC
Country of OriginChina
Environmentally FriendlyYes
Graphic Mode4K
Maximum Operating Distance229.66 ft
USBYes
HDMIYes
Number of HDMI Ports3
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports3
Number of Computers Supported1
Number of Local Users Supported1
Transmitter Height0.98"
Transmitter Width5.91"
Transmitter Depth4.13"
Receiver Height0.98"
Receiver Width5.91"
Receiver Depth4.13"
Transmitter Weight (Approximate)8.80 oz
Receiver Weight (Approximate)8.80 oz
Device TypeKVM Extender
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
