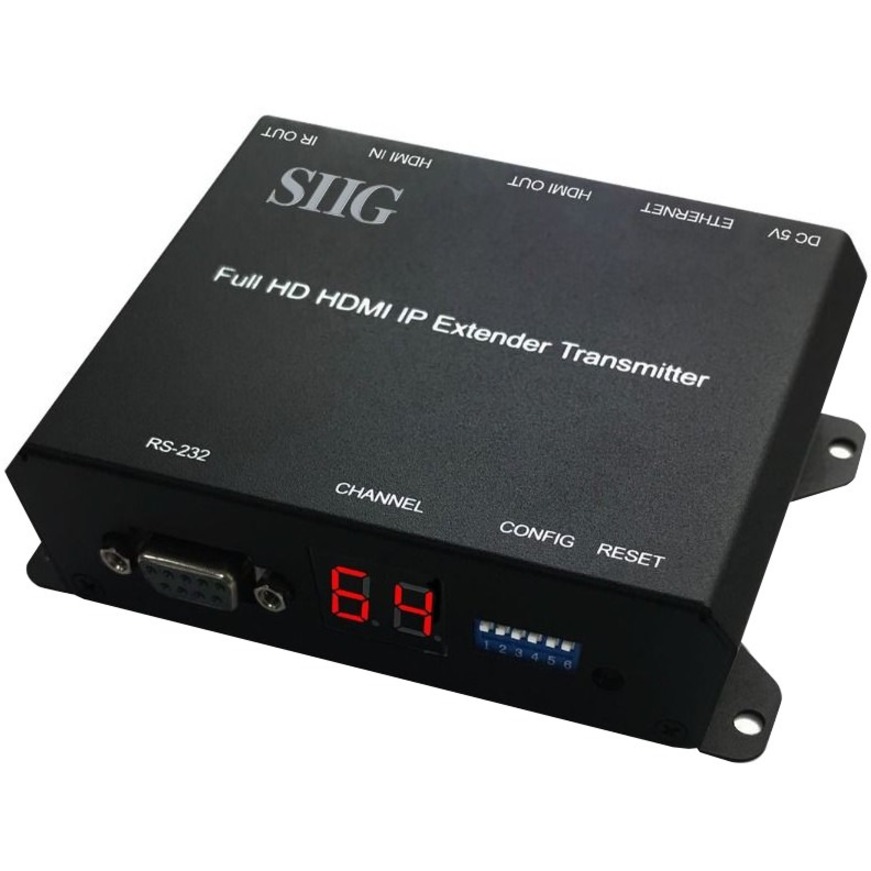

Full HD HDMI Extender over IP with PoE/RS-232 & IR
Encoder (TX)
Works with decoder of CE-H26511-S1 as a scalable matrix devices over the dedicated IP network and allows up to 256 units - support one to many/many to many - Provide the IR Pass Back function and RS-232 signal transmission to control the source device signal - Video up to 1080p 60Hz and loop out on the TX - Metal housing - ESD protection - 2 years warranty - TAA compliant
SKU
Category
KVM Consoles/Extenders
$200.62
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
KVM Consoles/Extenders
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

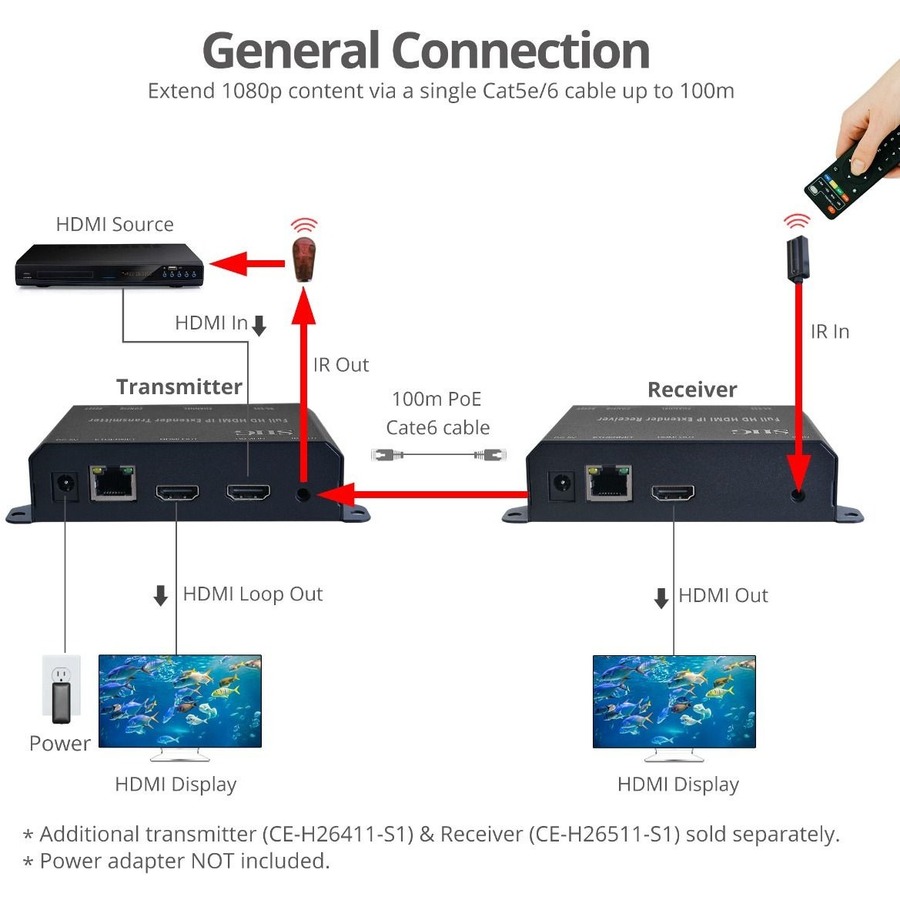

Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
Features
• Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note : Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Decoder (RX), part# CE-H26511-S1, sold separately

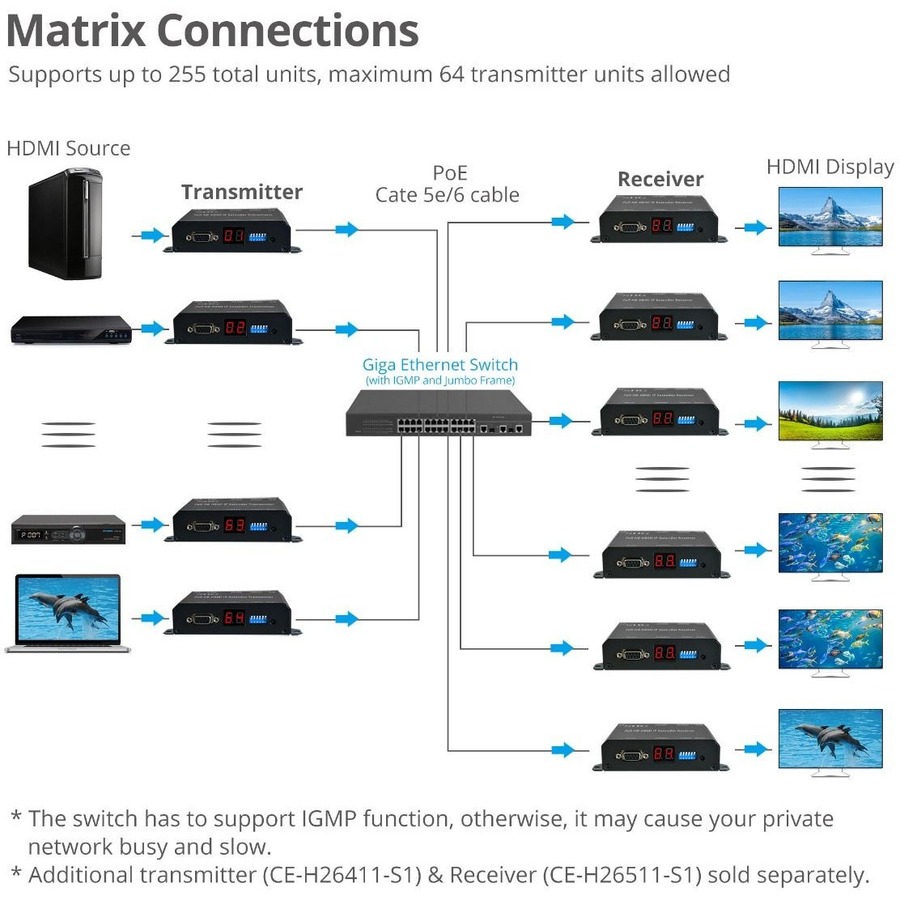

• Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
• Note : IGMP PoE Gigabit Switch is recommended for best performance and reliability
• Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
• Full HD 1080p video resolution delivers stunning and clear images

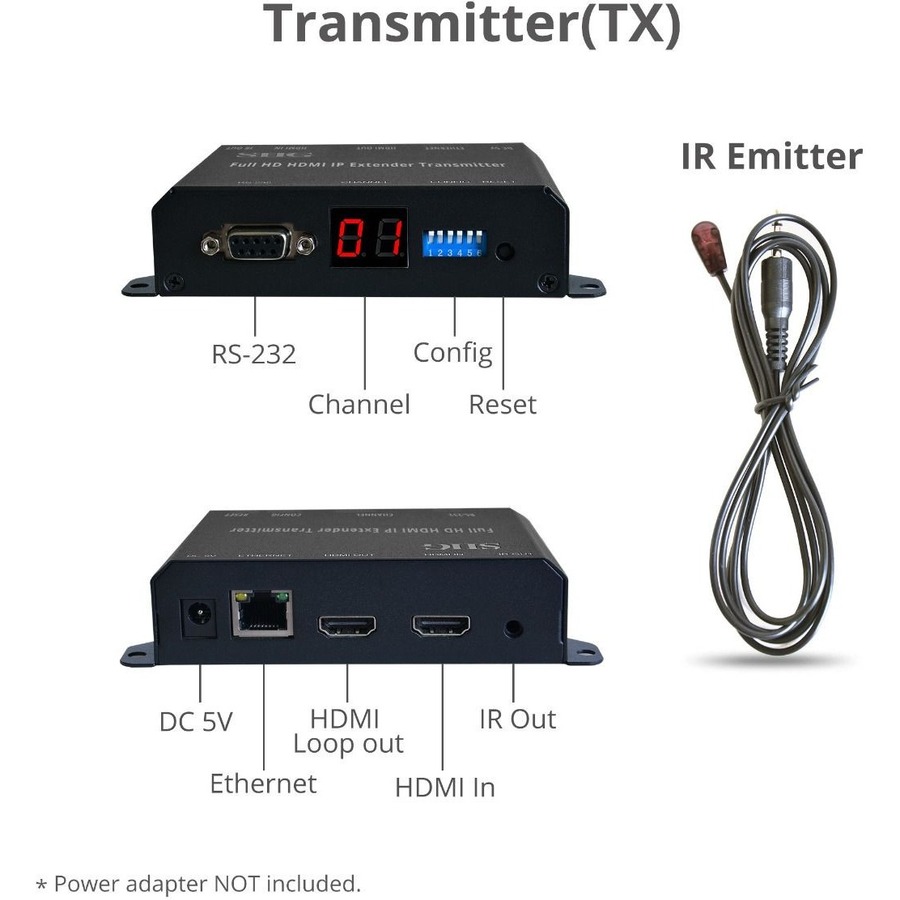

• Local HDMI loop-out allows you to monitor the extended display from the source location
• IR pass back function controls the source device from remote RX location
• Computer control software allows you to select and switch between source devices (Matrix mode only)
• Video protocol with H.264 compression over IP
• Features MP3 audio compression and stereo 192Kbps encoder/ decoder
