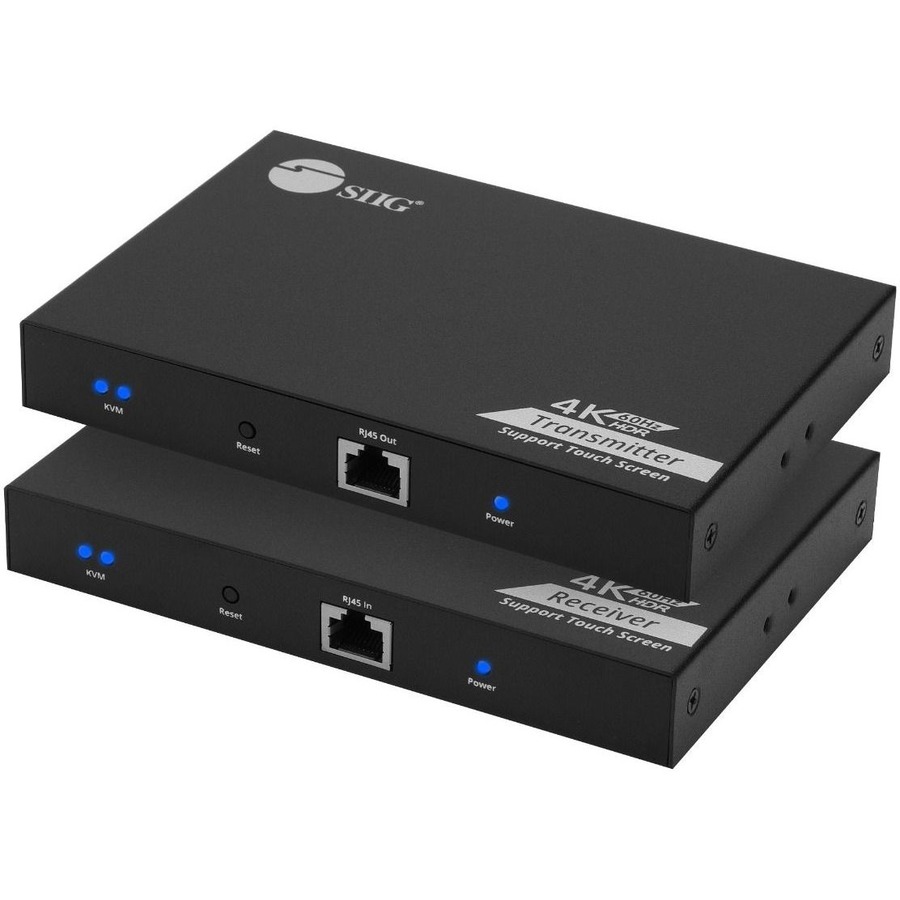

SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support
SIIG

SIIG 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support

Extends/splits HDMI signals up to 230ft (70m) through RJ45 network with nearly zero latency - Supports HDMI loopout - Video resolution up to 4K@60Hz 4:4::4 and HDR YUV 4:2:0 10-bit - HDCP 2.2 - Come with USB 2.0 port for keyboard/Mouse and support touch screen - S/DIF port with PCM 2ch and 5.1ch - Protection of Lightning / Surge / ESD - Plug and play - no driver required - Metal housing - 2 years warranty

SKU
CE-H27811-S1
Category
KVM Consoles/Extenders

MSRP$419.99

$313.28

Save 25%

In stock: 6

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H27811-S1
Category
KVM Consoles/Extenders

Overview

Multiple Connectivity Ports

Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)

Applications

• Lecture hall

• Educational facilities

• Multimedia education

• Home theater

• Restaurant

• Shopping center

• Digital signage

• Meeting room

• Trade show

• Library

• Show room

• Church

Highlights

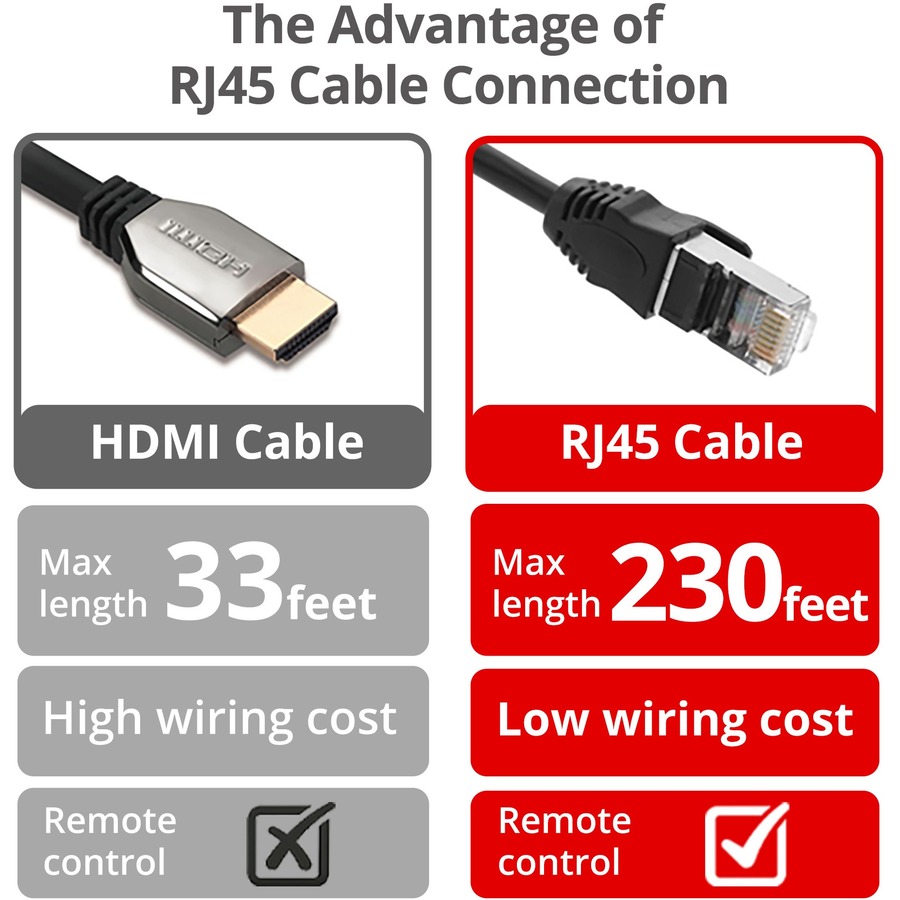

  • Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency

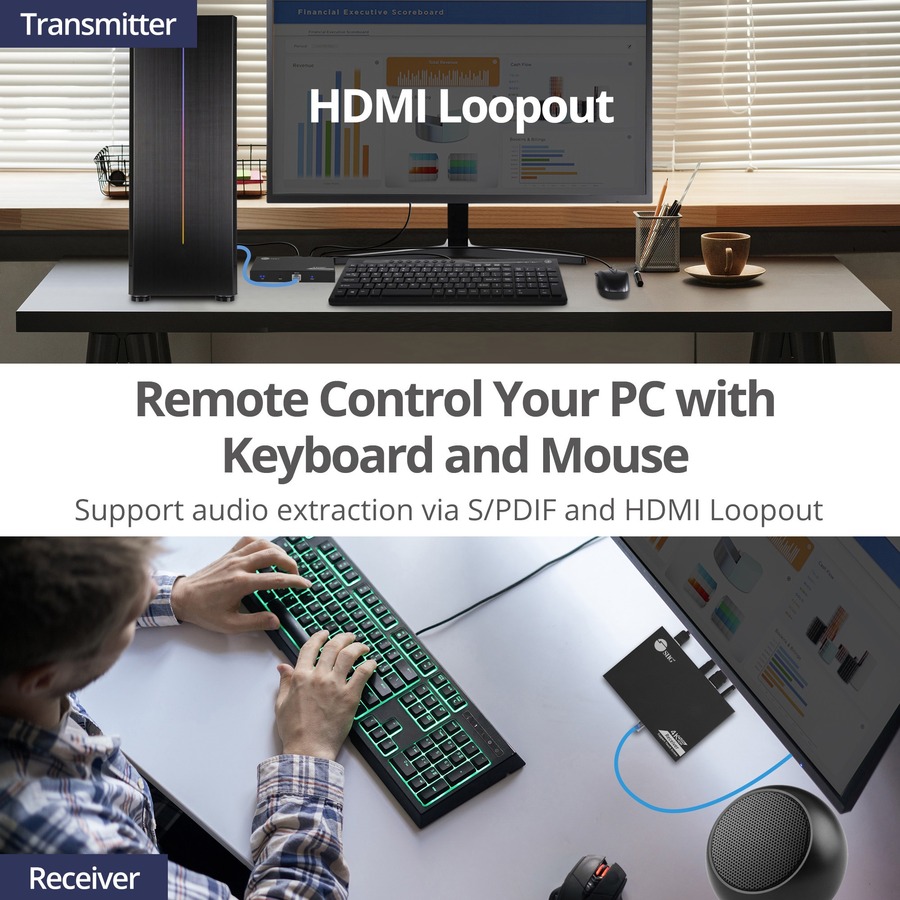

  • Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard/Mouse and support touch screen at the extended location for remotely operate your PC system
  • Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
  • The transmitter's HDMI loop-out allows for local monitoring of the extended display
  • The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
  • Lightning protection, surge protection, ESD protection
  • Plug and play, no driver installation required
  • High quality metal housing improve heat dissipation and ensure system stability during long hours of operation

Specifications

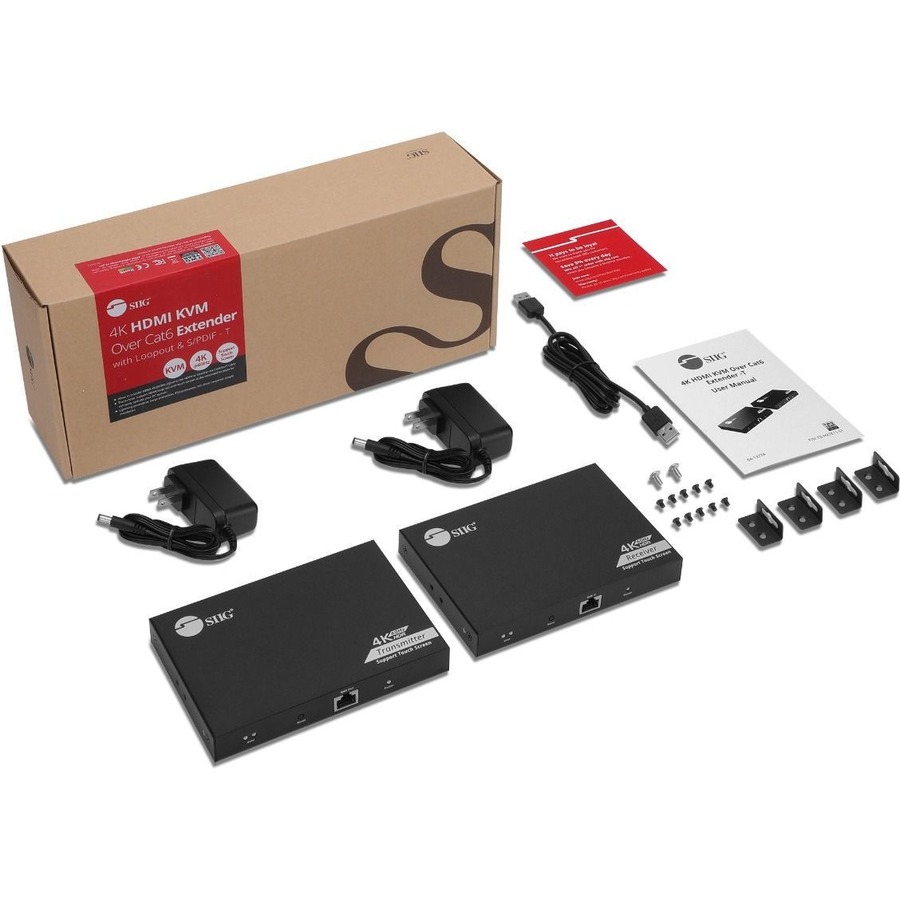

Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x Power Adapter
  • USB 2.0 Type-A to Type-A cable
  • Mounting ears & Screw kit
  • User manual
Product TypeKVM Extender
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberCE-H27811-S1
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerSIIG, Inc
Product Name4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support
Brand NameSIIG
Input Voltage Range100-240V
Country of OriginChina
Environmentally FriendlyYes
Maximum Video Resolution3840 x 2160
Graphic Mode4K
Maximum Operating Distance229.66 ft
USBYes
HDMIYes
Number of HDMI Ports3
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports3
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported1

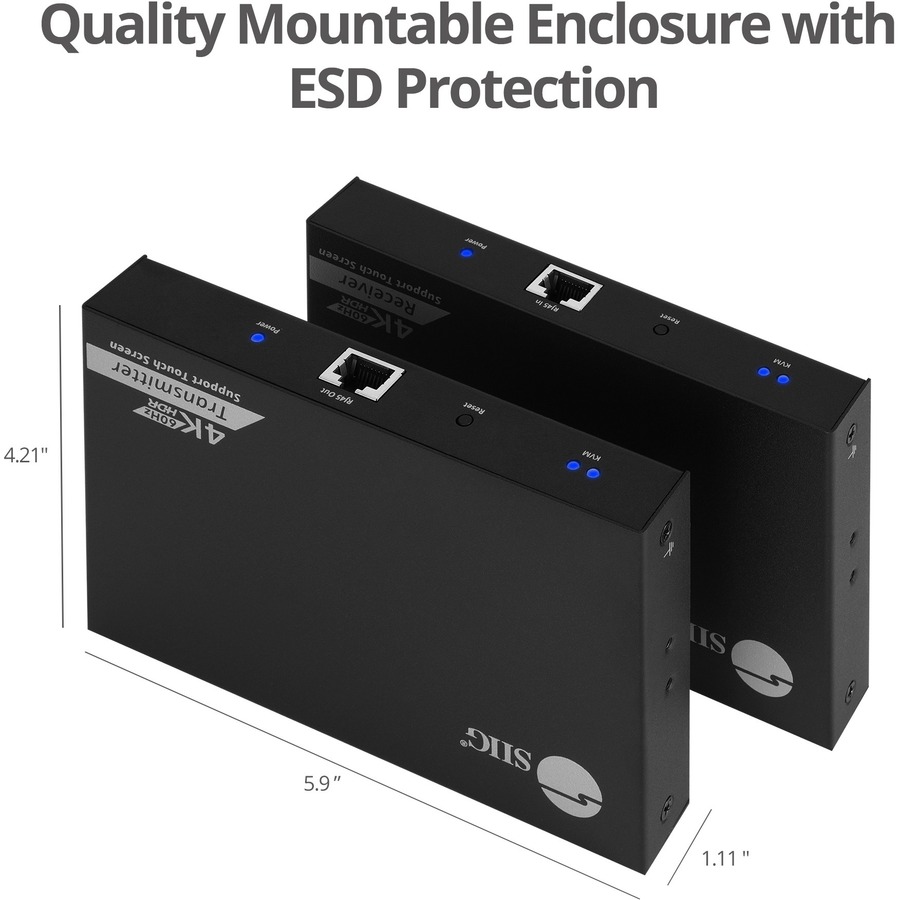

Transmitter Height0.87"
Transmitter Width6.02"
Transmitter Depth4.15"
Receiver Height0.87"
Receiver Width6.02"
Receiver Depth4.15"
Transmitter Weight (Approximate)12.32 oz
Receiver Weight (Approximate)12.32 oz
Device TypeKVM Extender
Product ColorBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
