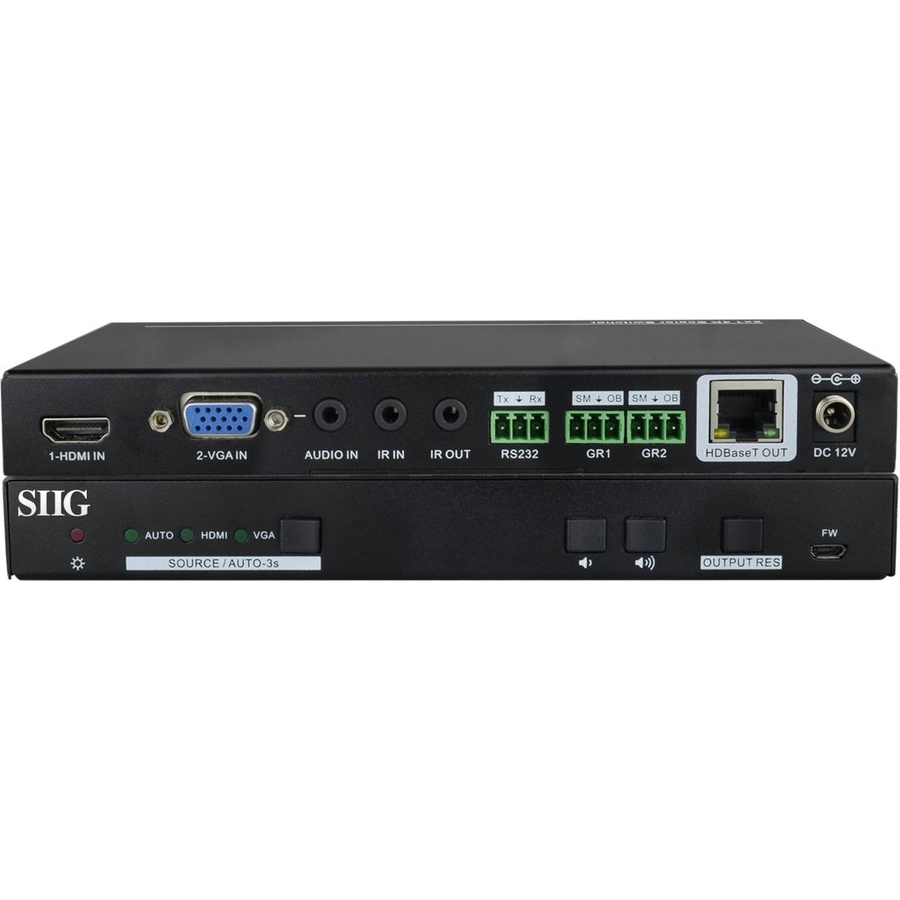

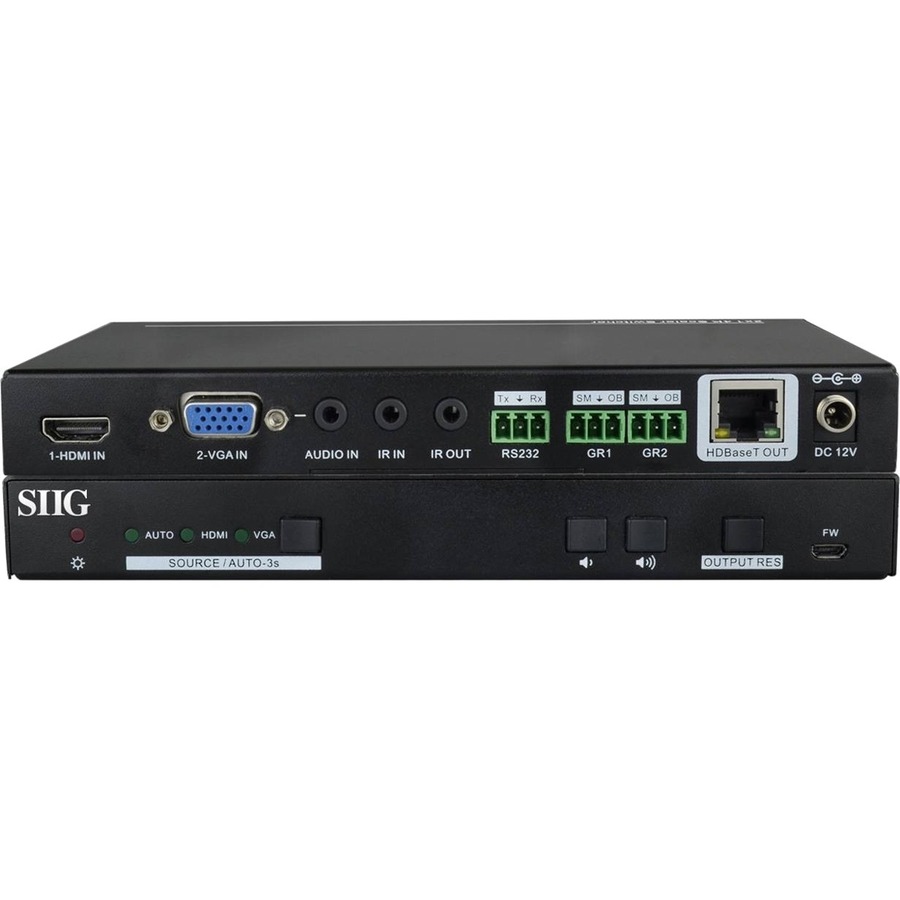

SIIG HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
CAT5e/6 - 70 Meters
- SKU
- CE-H24211-S1
- Category
- Video Switchboxes
MSRP$699.99
$422.23
Save 40%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H24211-S1
- Category
- Video Switchboxes
Overview
Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control
• Scales and switches an HDMI or VGA input to an HDBaseT output
• Features manual or auto device switching options
• Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4
• Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p
• Supports Bi-directional IR extension, RS232 control, advanced EDID management
• Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port
• Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output
Highlights
- Quickly switches both video and audio between sources without physical access
- A great solution for connecting display
- Switch between 2 sources to a single display
- Enjoy watching any class of content on 4096 x 2160 resolution
Specifications
| Package Contents |
|
|---|---|
| Product Type | Audio/Video Switchbox |
| Device Supported | Display, Blu-ray Disc Player, DVD Player, Gaming Console, TV, Computer |
| Manufacturer Part Number | CE-H24211-S1 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.77 lb |
| Connectivity Technology | Cable |
| Manufacturer | SIIG, Inc |
| Product Name | HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher |
| Brand Name | SIIG |
| Country of Origin | China |
| Height | 0.9" |
| Width | 7.7" |
| Depth | 3.9" |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 4096 x 2160 |
| Maximum Operating Distance | 229.66 ft |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| VGA In | Yes |
| HDMI In | Yes |
| Media Type Supported | Twisted Pair |
| Number of Displays Supported | 1 |
| Number of Input Devices Supported | 2 |
| Number of VGA Inputs | 1 |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
