and HDMI for Windows & Mac
(Dual 4K DP & HDMII, GigE, Audio, 6 x USB Ports) Vertical
$219.53
In stock: 125
Genuine Plugable Technologies through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Performance

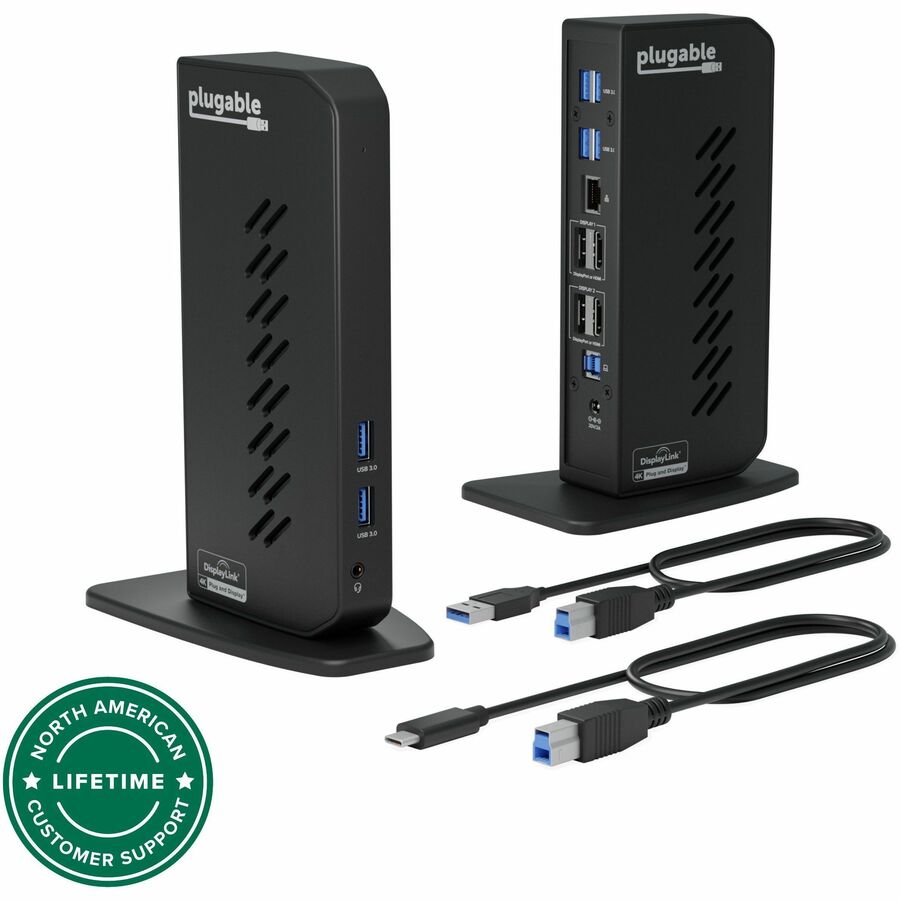

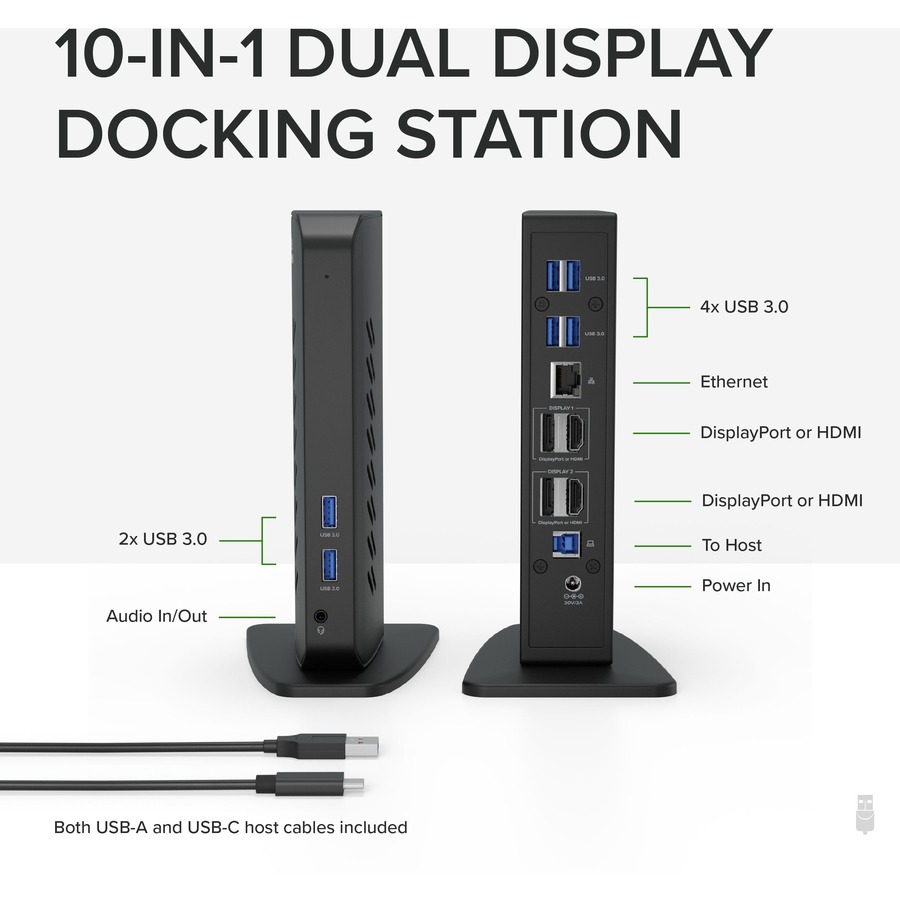

Featuring the latest DisplayLink DL-6950 chipset, the Plugable UD-6950Z docking station lets you connect two external monitors up to a 4K@60Hz resolution using DisplayPort or HDMI to your Windows laptop, or desktop via USB 3.0. Additionally, the UD-6950Z dock allows you to connect up to eight accessories to the six USB 3.0 ports, a Gigabit Etherent connection and audio input/output port all through a single USB cable.
4K@60Hz Notes:
To achieve 4K @ 60Hz each connected monitor must support 4K @ 60Hz on the DisplayPort 1.2 or HDMI 2.0

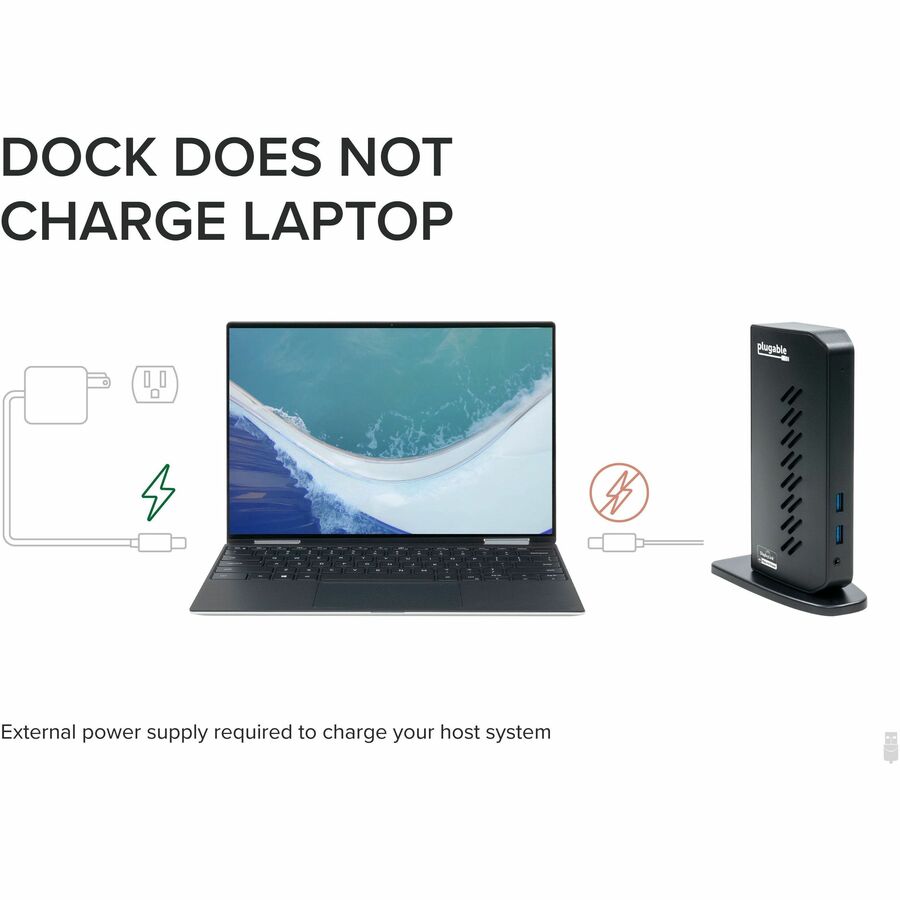

This docking station does not support host charging, we recommend using the systems separate power supply for optimal performance.
Compatibility
Our docking station is compatible with most modern laptops and desktops running Windows 11, 10, 8.1 and 7 and macOS 10.14+ and requires the DisplayLink graphics software to be installed.
Not supported on Linux.
Does not support HDCP copy protected content (Blu-Ray, Netflix, Amazon Prime video, etc.). DisplayPort MST daisy-chain connections or Dual-Link DVI conversions are not supported from the DisplayPort outputs.
Gigabit Ethernet port requires a Full-Duplex network connection from the connected network device (router, switch, etc.).
In the Box

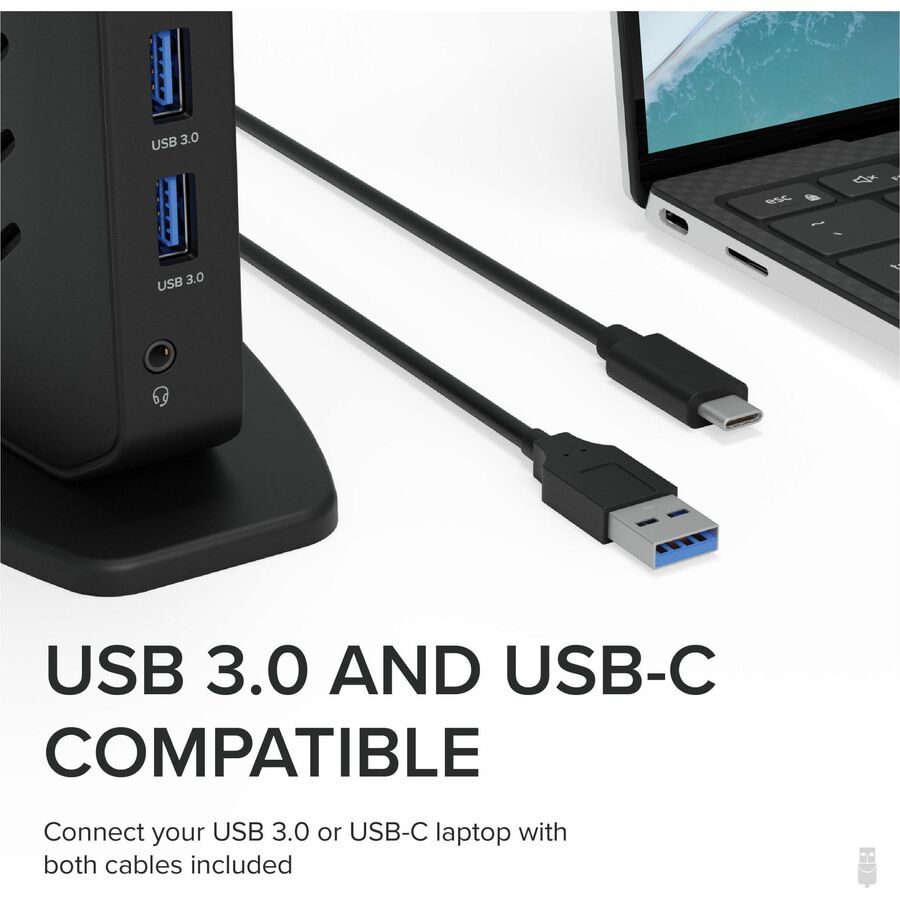

Plugable UD-6950Z USB 3.0 Dual 4K Display Vertical Docking Station, USB 3.0 Type-A to Type-C Cable, USB 3.1 Type-C to Type-C Cable, Power Adapter (US AC Wall Outlet Plug, 20V@2A), Quick Installation Guide More from the Manufacturer
Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.
Limited Warranty: 2 Year
About Plugable Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility. Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business. Connect This With That .
UD-6950Z
Plugable Dual 4K Display HDMI or DisplayPort Universal Docking Station
| General Information | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | UD-6950Z |
| Brand Name | Plugable |
| Product Model | UD-6950Z |
| Product Name | Dual 4K Display HDMI or DisplayPort Universal Docking Station |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB 3.0 Type C, USB 3.0 Type A |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.1 Type-C to Type-B cable |
| Number of USB Type-A Ports | 6 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 2 |
| DisplayPort | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Outputs | 2 |
| HDMI | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Height | 7.50" |
| Width | 2.80" |
| Weight (Approximate) | 12.30 oz |
| Software | |
| Operating System Supported | Windows, macOS |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Device Supported | Notebook, Desktop PC |
| Supported Resolutions | 3840 x 2160, 3840 x 1600, 3440 x 1440, 2560 x 1440, 2560 x 1080, 1920 x 1080, 1600 x 900, 1280 x 1024, 1280 x 720, 1280 x 800, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480 |
| Screen Mode Supported | 4K |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Compatible with most laptops and desktops running Windows 10/8.x/7 and macOS 10.14+. |
| Country of Origin | Thailand |
