Targus Universal USB-C DV4K Docking Station with 100W Power Delivery
for Keyboard, Hard Drive, Monitor, Workstation, Notebook - Charging Capability - 100 W - USB Type A, USB Type C - 2 Displays Supported - 4K @ 60Hz, 5K @ 60Hz, 5K, 4K UHD - 4096 x 2160, 5120 x 2880 - 4 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x DisplayPorts - DisplayPort - Gray - Wired - Gigabit Ethernet - Windows, macOS, ChromeOS, Android, Ubuntu - 100W - Desktop
- SKU
- DOCK316USZ
- Category
- Docking Stations
MSRP$147.99
$137.61
Save 7%Back ordered — ships when restocked.
Genuine Targus Group International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DOCK316USZ
- Category
- Docking Stations
Overview

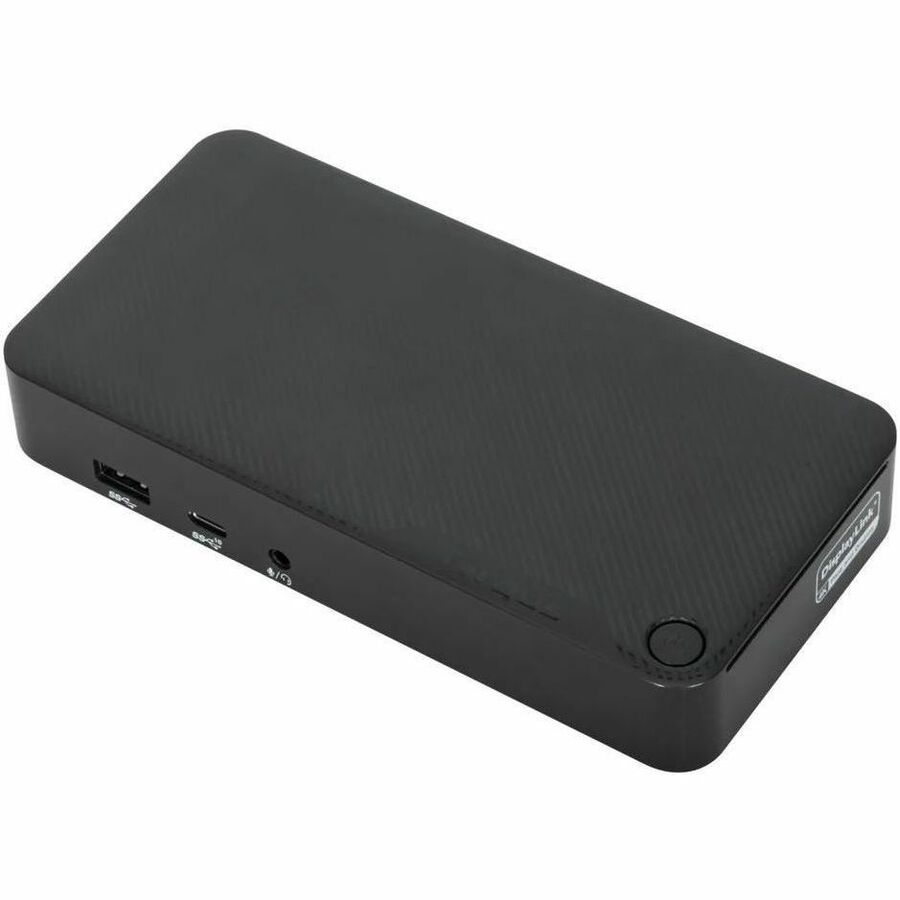

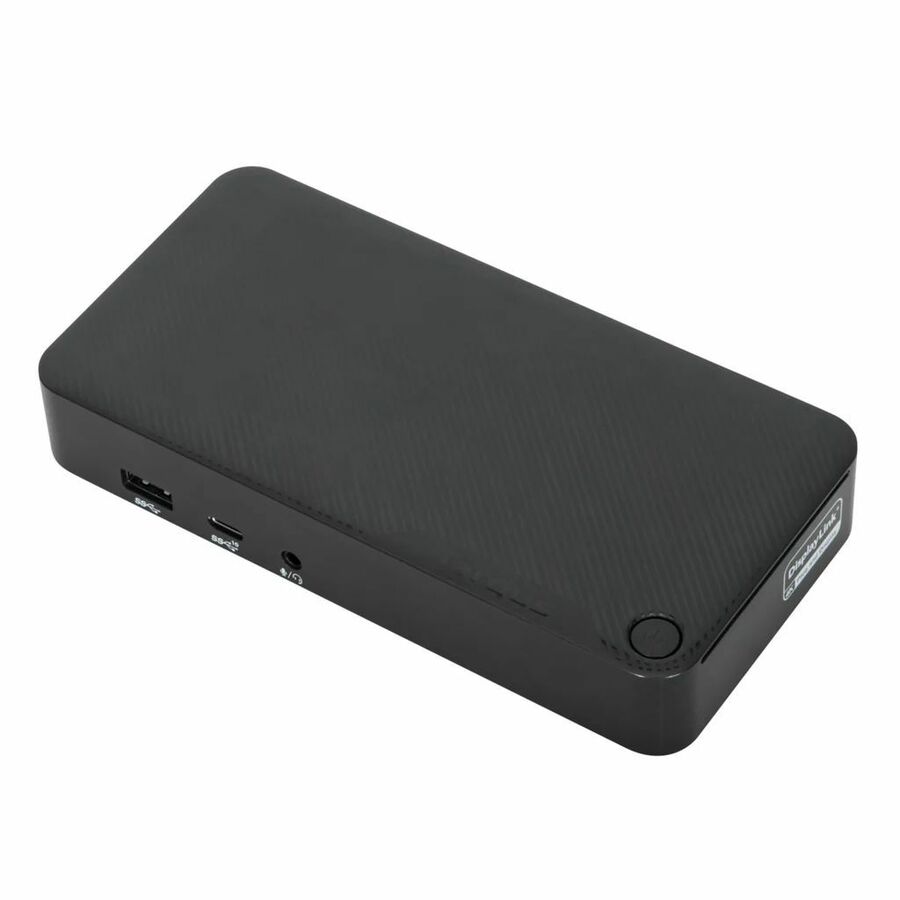

Expand your workstation and connect to nearly any laptop with the Universal USB-C DV4K DP Docking Station with 100W Power Delivery. Designed to support and power a wide variety of laptop brands and operating systems, this dock packs all of the ports and power you need.
With video performance up to 4096x2160 p60 for dual displays or single 5120x2880 p60 via DisplayPort, you are sure to get crisp and clear images. Connect all of your favorite accessories with a combination of USB-A (3x USB 3.2 Gen 1 Type-A ports) and USB-C (1x USB 3.2 Gen 2 Type-C), plus Ethernet and audio ports.
Supports Two DisplayPort Monitors
Access the latest display technology with two DisplayPort ports that creates a rich, ultra-high-definition viewing experience.
Onboard USB 3.2 for Advanced Peripherals and Charging
Three USB 3.2 Gen 1 Type-A ports and 1 USB 3.2 Gen 2 Type-C 10Gbps port make it simple to add the latest keyboards, exterior hard drives, and other peripherals to customize the workspace experience.
Innovative Design

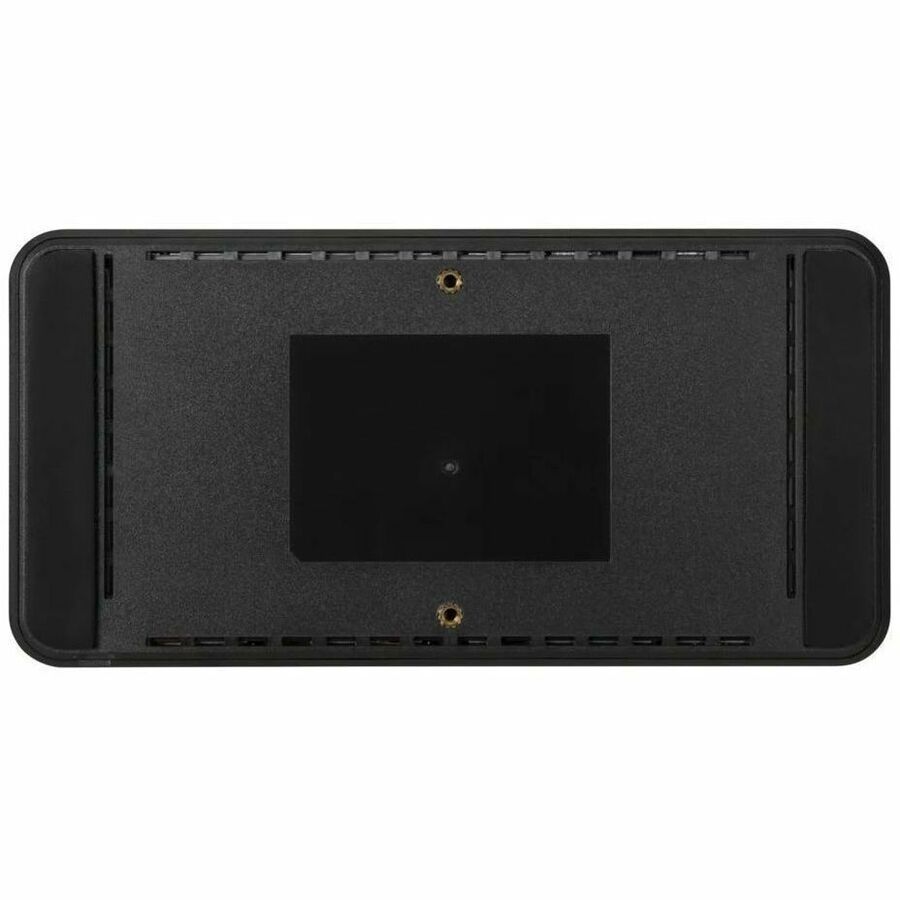

Compact and sleek, this dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Enterprise Software Suite: A Targus Exclusive
Enhance security and improve user experience with the Targus Enterprise Software Suite for DOCK316USZ.
• Wi-Fi Auto Switch: auto enables/disables Wi-Fi functionality when the dock's Ethernet connection is active, reducing unnecessary network traffic and enabling faster connection speeds.
• MAC Address Cloning: auto replaces the MAC address of the connected Targus Ethernet network adapter with any (Wired Ethernet, Wireless Ethernet, Bluetooth) MAC address of the local host, supporting device-based authentication methods.
Highlights
- Supports single 5K and dual 4K UHD HDR @ 60 Hz video via two DisplayPort? ports
- Power Delivery 3.0 up to 100WDC
- 100WAC Power Adapter
- 1 USB 3.2 Gen 2 Type-C 10Gbps upstream facing port

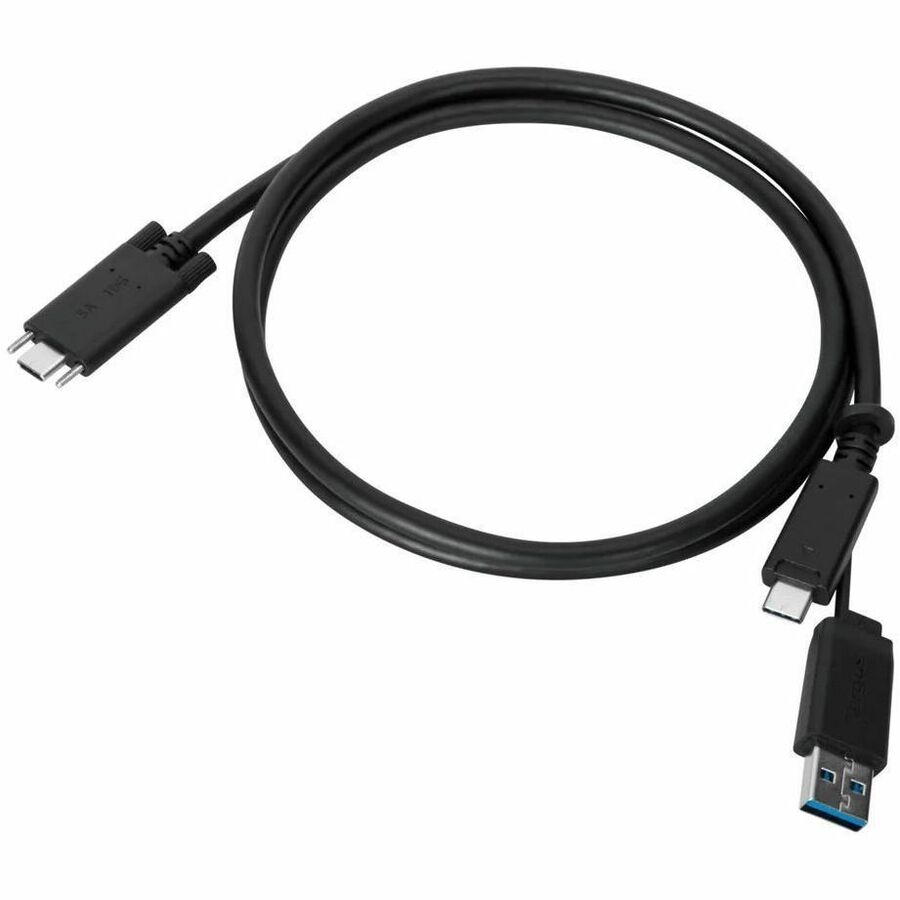

- 1M USB-C detachable host cable (C/M to C/M screw-in) with (C/F to A/M) tethered adapter
- 1 USB 3.2 Gen 2 Type-C 10Gbps downstream facing port
- 3 USB 3.2 Gen 1 Type-A downstream facing ports
- 1 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out port

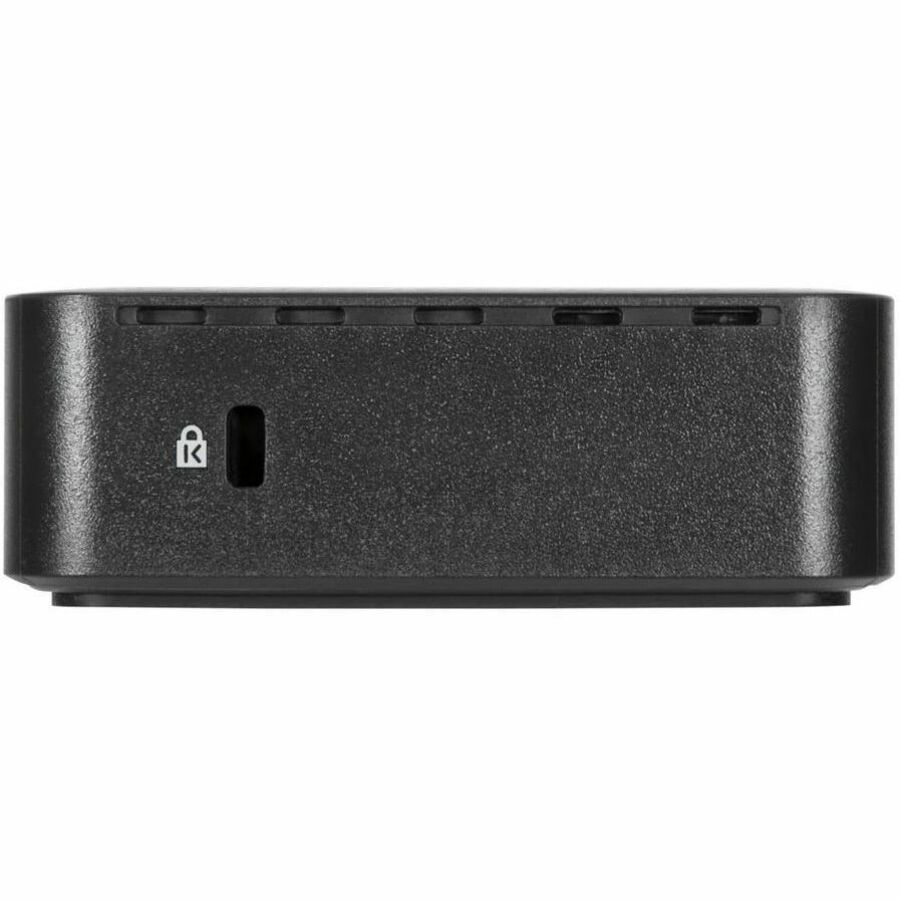

- Integrated lock slot accommodates standard security locks to safeguard equipment
- Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)
Specifications
| Package Contents |
|
|---|---|
| Host Interface | USB Type A, USB Type C |
| Product Type | Docking Station |
| Device Supported | Keyboard, Hard Drive, Monitor, Workstation, Notebook |
| Manufacturer Part Number | DOCK316USZ |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 1 lb |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Manufacturer | Targus Group International |
| Product Model | DOCK316USZ |
| Product Name | Universal USB-C DV4K DP Docking Station with 100W Power Delivery |
| Product Line | Universal |
| Brand Name | Targus |
| Charging Capability | Yes |
| Operating System Supported | Windows, macOS, ChromeOS, Android, Ubuntu |
| Height | 1.13" |
| Width | 3.25" |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | No |
| Number of HDMI Ports | 0 |
| DVI | No |
| VGA | No |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Thunderbolt | No |
| Number of Displays Supported | 2 |
| Number of DisplayPorts | 2 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Mini DisplayPort | No |
| Kensington Security Slot | Yes |
| TAA Compliant | No |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C Ports / 3.2 Gen 2 |
| Number of Mini DisplayPort | 0 |
| DisplayPort Version | 1.2 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 3 |
| Product Color | Gray |
| USB Power Delivery | 100W |
| Supported Resolutions | 4096 x 2160, 5120 x 2880 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K @ 60Hz, 5K @ 60Hz, 5K, 4K UHD |
| Management Features | MAC Address Pass-through |
