10 Ports, Windows/ChromeOS Plug & Play, macOS Driver Required
MSRP$169.99
$127.66
Save 25%In stock: 106
Genuine Plugable Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

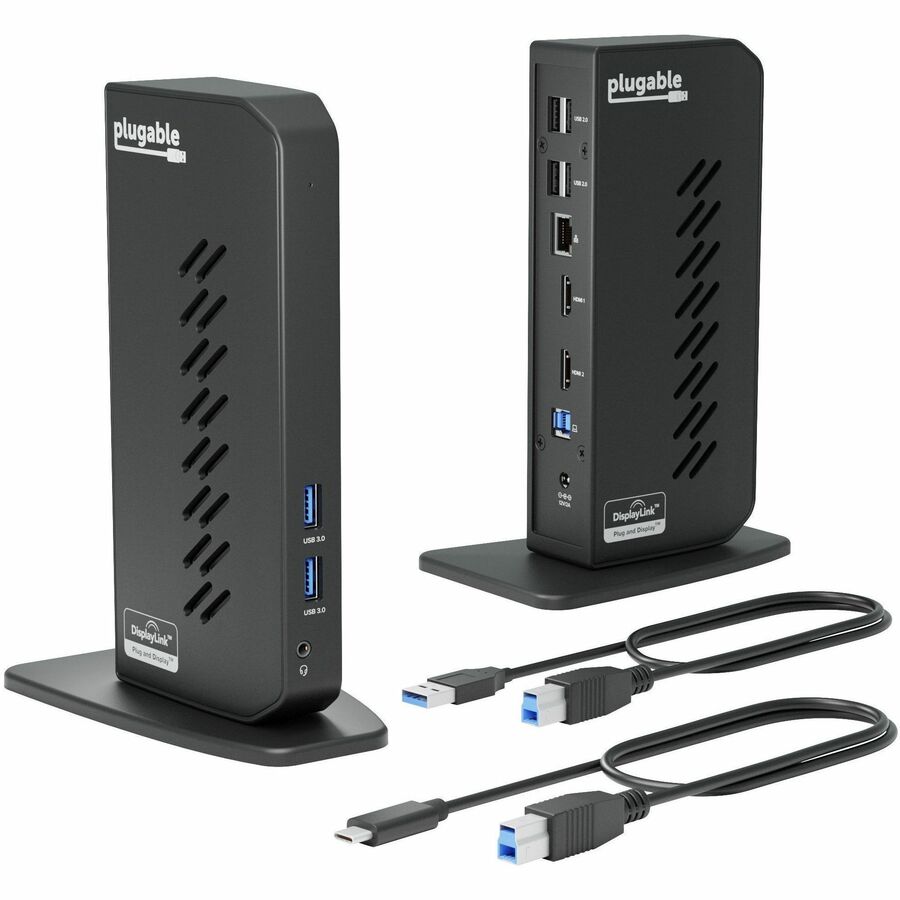

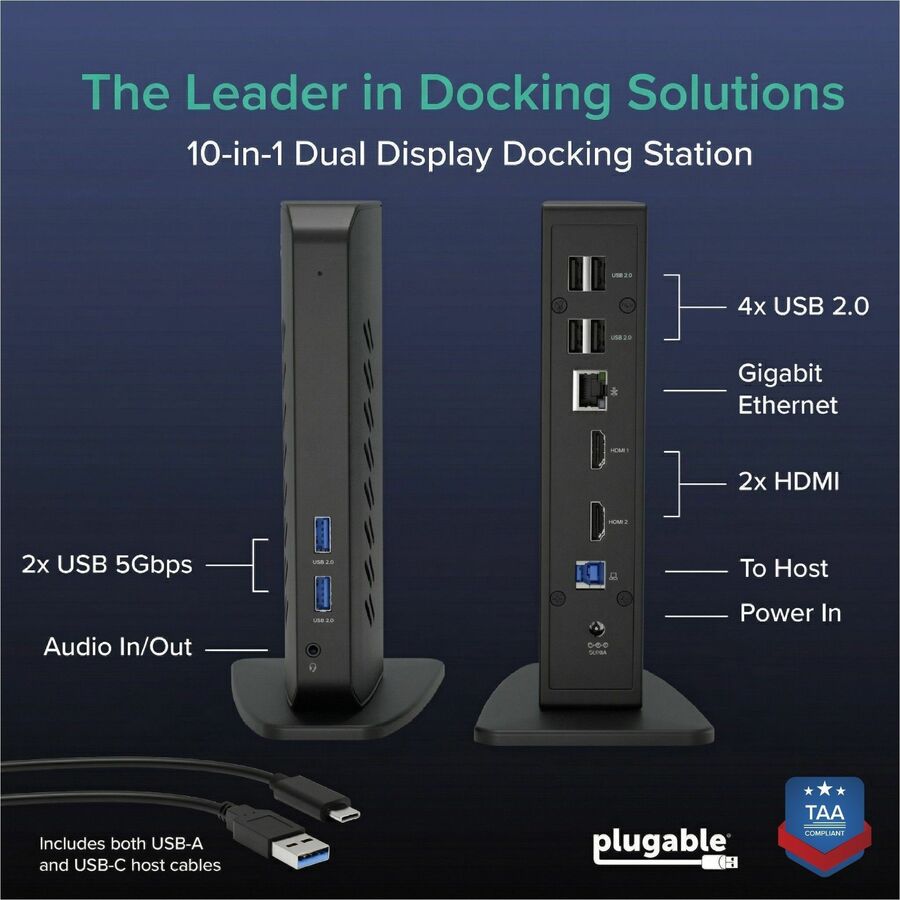

The Plugable UD-3900Z dock is a one-stop upgrade for your Windows tablet, laptop, or desktop. Connect up to 10 accessories through a single USB cable. Includes the latest drivers and firmware for compatibility with Windows 10 and earlier. Fully backward compatible with USB 2.0 PCs and devices. Features two HDMI ports for mirroring/extending your Windows desktop to external monitors, a Gigabit Ethernet port (10/100/1000 supported, full-duplex required), audio input/output, two USB 3.0 ports, and four USB 2.0 ports.
Compatibility
Windows 11, 10, 8.1, 8, and 7 drivers can be automatically installed by Windows Update (with an existing Internet connection) or can be downloaded from our website.
USB graphics require dual-core 2GHz+ CPU for best performance.Up-to-date USB drivers on host system recommended.
Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC). HDCP/Blu-ray playback not supported. Not recommended for gaming.
Linux/Unix are not supported.
Power

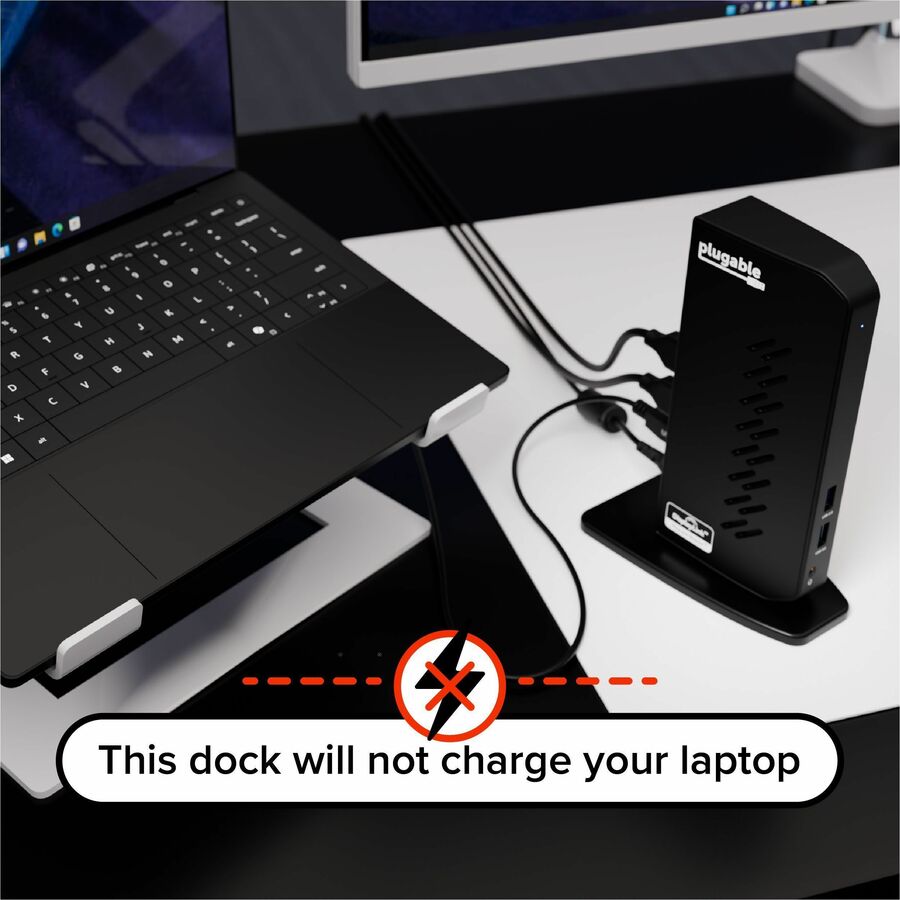

Includes 24W power supply. Dock does not provide power to attached computer.
In the Box

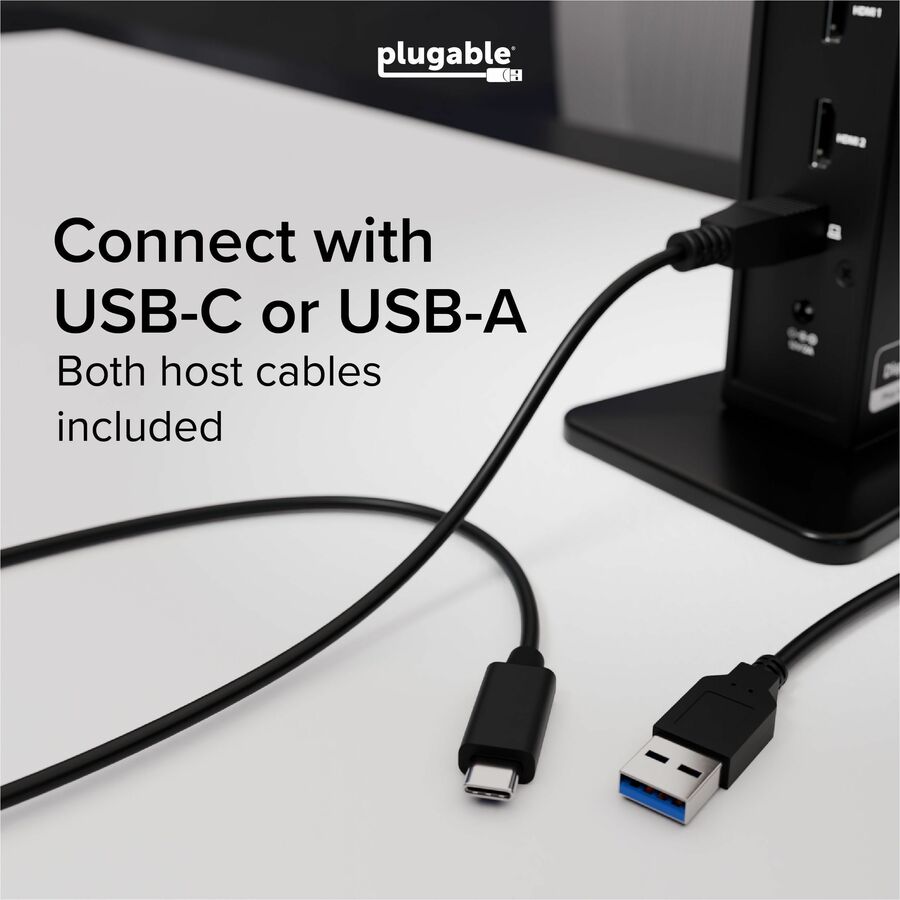

UD-3900Z dock, 24W power adapter (US AC Wall Outlet Plug, 100-240V 50/60Hz), USB 3.0 Type-A to Type-B cable (USB 2.0 compatible) and USB 3.1 Type-C to Type-B cable, quick-install guide More from the Manufacturer
Limited Warranty: 2 Year
About Plugable Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility. Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business. Connect This With That .
| General Information | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | UD-3900Z |
| Brand Name | Plugable |
| Product Model | UD-3900Z |
| Product Name | Dual HDMI USB Universal Docking Station For Windows |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB 3.1 Type C, USB 3.0 Type A |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.1 Type-C to Type-B cable |
| Number of USB Type-A Ports | 6 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Outputs | 2 |
| HDMI | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Height | 7.50" |
| Width | 2.80" |
| Weight (Approximate) | 11.70 oz |
| Power Description | |
| Maximum Power Supply Wattage | 24 W |
| Software | |
| Operating System Supported | Windows, macOS |
| Technical Information | |
| Connectivity Technology | Wired |

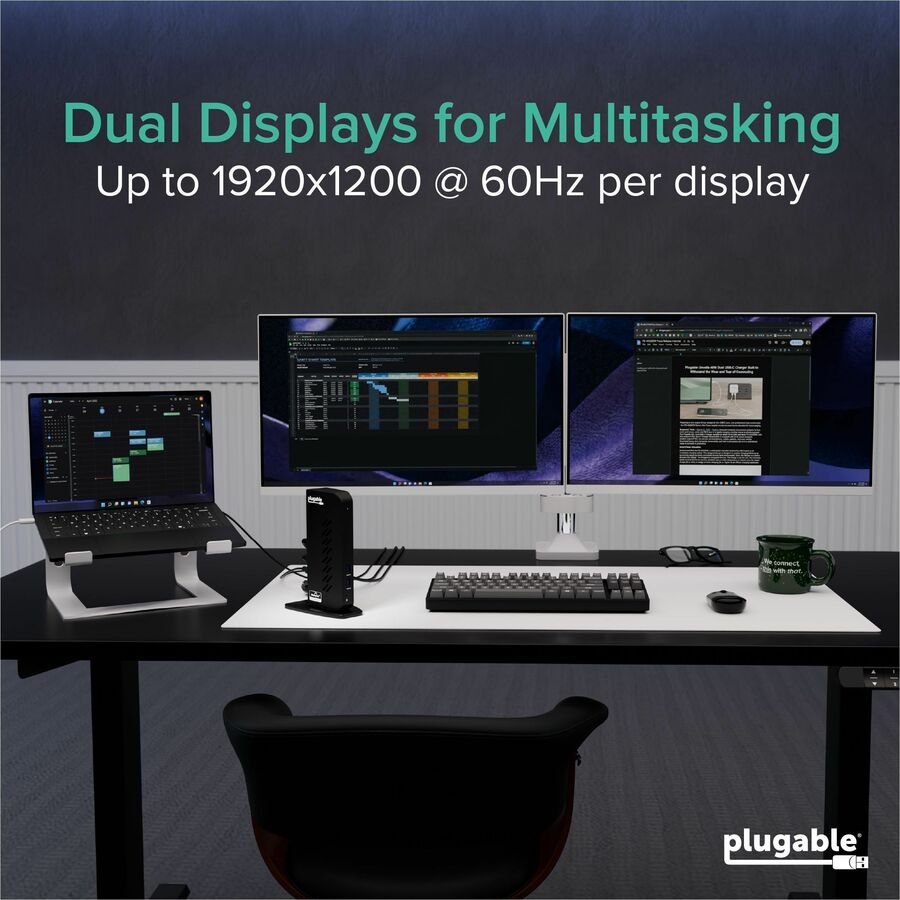

| Number of Displays Supported | 2 |
| Device Supported | Notebook, Desktop PC, Tablet PC |
| Supported Resolutions | 2048 x 1152, 1920 x 1200, 1600 x 900, 1280 x 1024, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480 |
| Screen Mode Supported | Full HD |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Compatible with most modern laptops and desktops running Windows 11 / 10 / 8.x / 7, macOS 10.14+, or ChromeOS 100+. Includes a USB 3.0 and USB-C cable for maximum flexibility connecting the dock to your laptop. Not compatible with: macOS 10.13 and previous, Linux / Unix, and ARM-based Windows systems. |
| Country of Origin | Thailand |
