1 x Network (RJ-45) - 1 x ST Ports - DuplexST Port - Single-mode - 1550 nm Fiber - Gigabit Ethernet - 1000Base-ZX, 10/100/1000Base-T - 120 km - Rack-mountable, Rail-mountable, Wall Mountable, Standalone
MSRP$5,503.00
$5,049.11
Save 8%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine Perle Systems through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

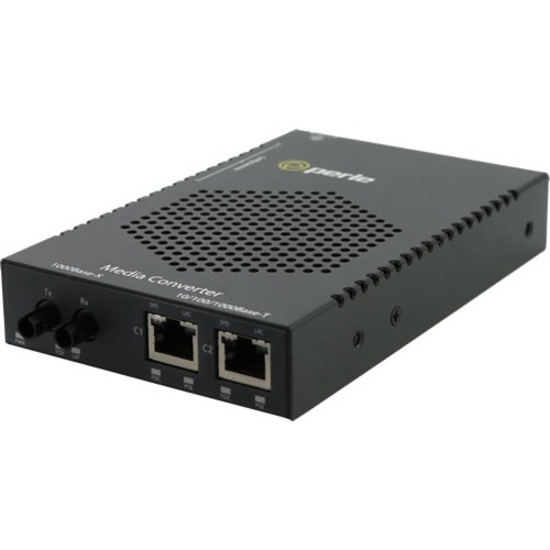

Perle S-1110HP Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices such as pan-tilt-zoom (PTZ) security cameras with heaters, LED lighting in building management, and 802.11ax/ac wireless access points.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD's are also supported. The S-1110HP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD's per converter.
S-1110HP Fiber Media Converters come with fixed fiber ports that support multimode or single mode fiber with dual ST/SC connectors or single strand fiber SC connectors.
• extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 1000Base-X fiber
• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber up to 160km
• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP PoE Media Converters the smart choice for IT professionals.
S-1110HP-XT PoE Media Converters are also available with support for -40C to +75C (-40F to +167F) extended operating temperature ranges
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05079474 |
| Brand Name | Perle |
| Product Series | S-1110HP |
| Product Model | S-1110HP-ST120 |
| Product Name | S-1110HP-ST120 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1550 nm |
| Maximum Distance Supported | 120 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-ZX, 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rack-mountable, Rail-mountable, Wall Mountable, Standalone |
| Height | 1" |
| Width | 5.9" |
| Depth | 3.7" |
| Weight (Approximate) | 14.11 oz |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Canada |
