Overview

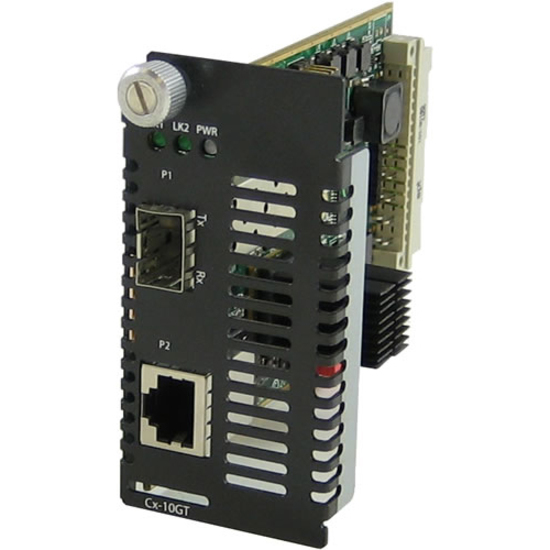

Installed in a high density MCR1900 Media Converter Chassis, Perle C-10GT Media Converter Modules transparently connect 10GBase-T Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with one RJ45 10GBase-T port and an empty slot for one SFP+ or XFP module.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
Highlights
For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Connect different types of media within a network with this single port
With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
Takes minimal energy and effort to get installed internally
Specifications
Product Type
Transceiver/Media Converter
Manufacturer Part Number
05061560
Maximum Distance Supported
0.10 km
Limited Warranty
Lifetime
Form Factor
Internal
Manufacturer
Perle Systems, Inc
Product Model
C-10GT-XFPH
Product Name
10 Gigabit Ethernet Media Converter Module
Network Technology
10GBase-T
Brand Name
Perle
Expansion Slot Type
XFP
Country of Origin
Canada
Environmentally Friendly
Yes
Ethernet Technology
10 Gigabit Ethernet
USB
No
DVI
No
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Management Port
No
Number of XFP Slots
1
Media Type Supported
Twisted Pair
Total Number of Ports
1
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
